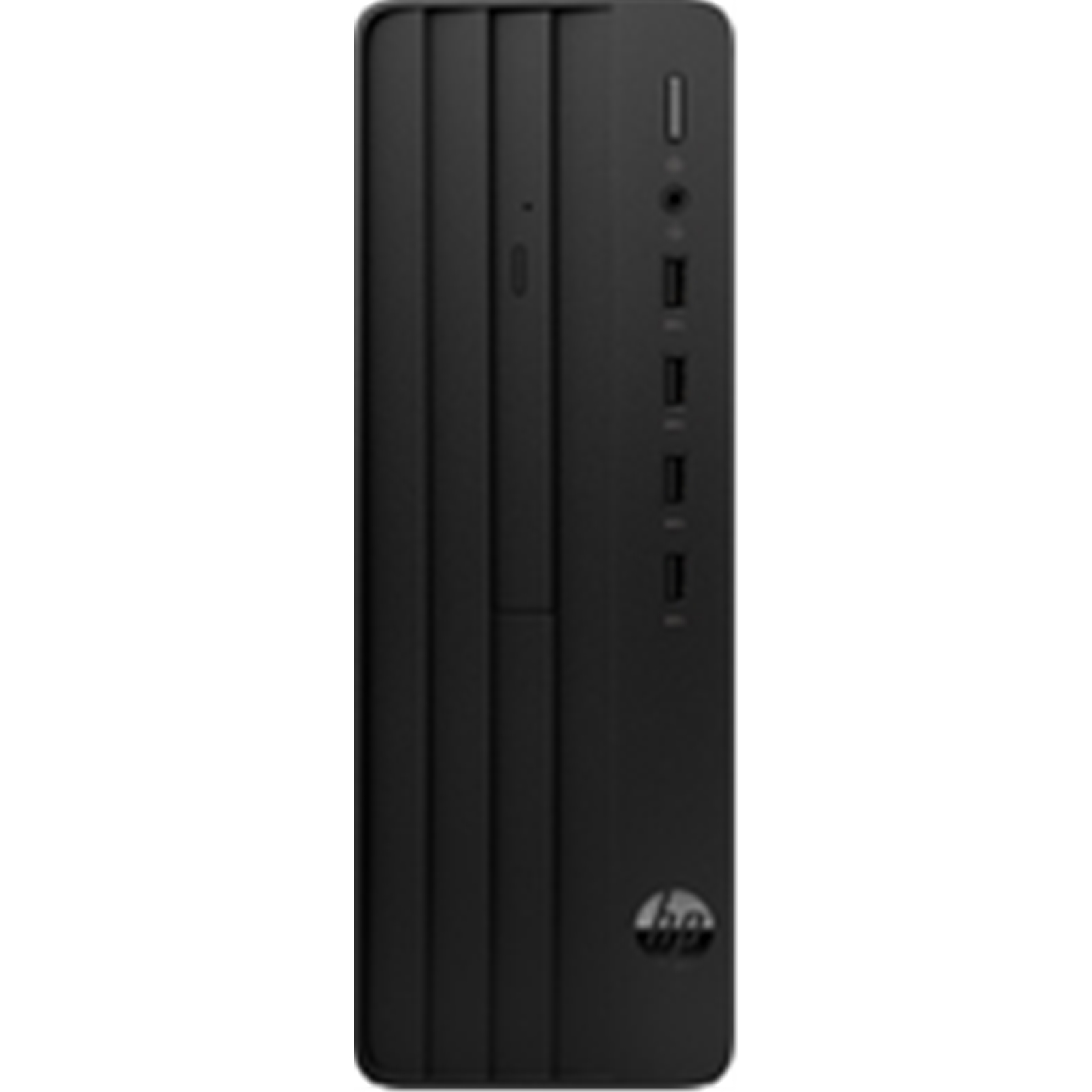

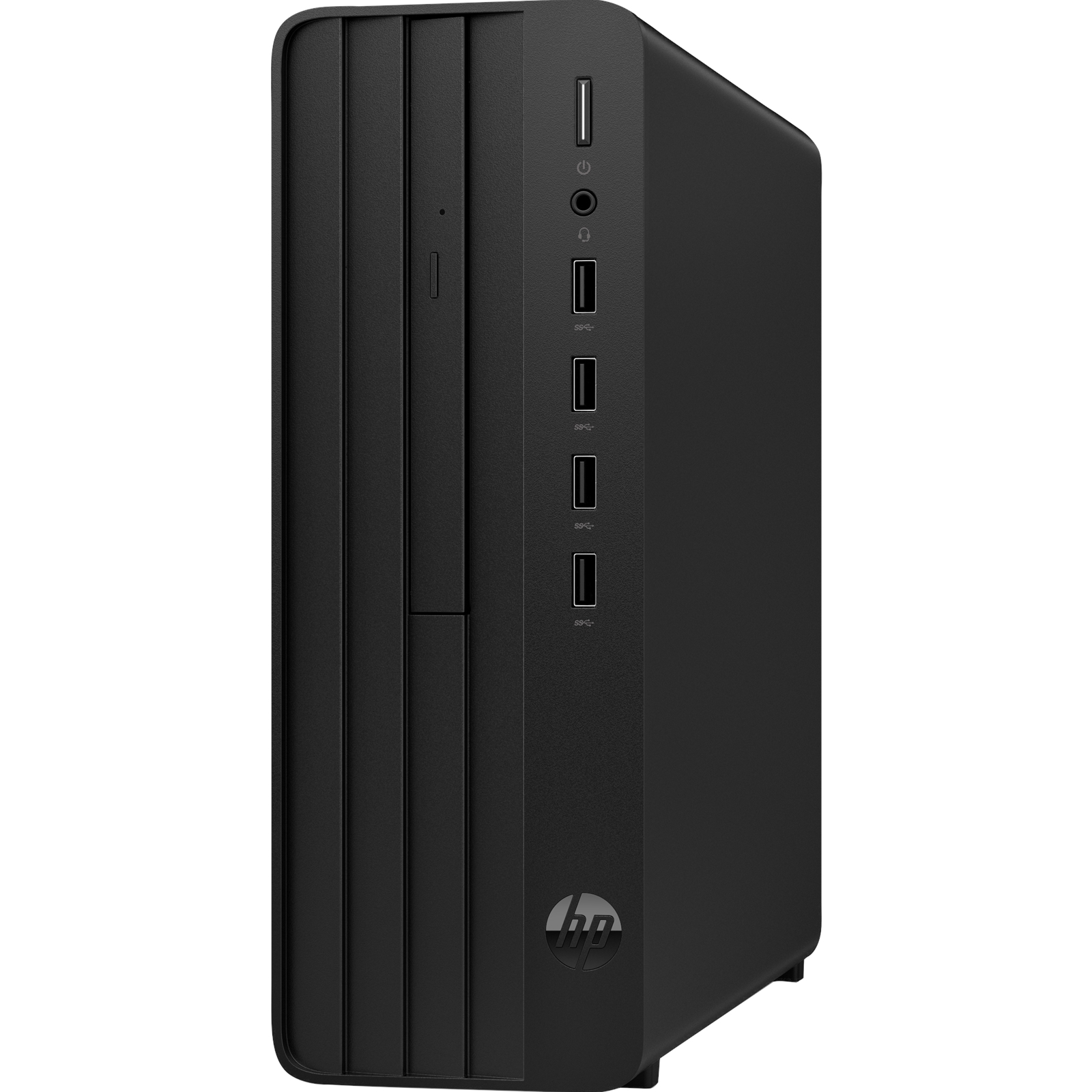

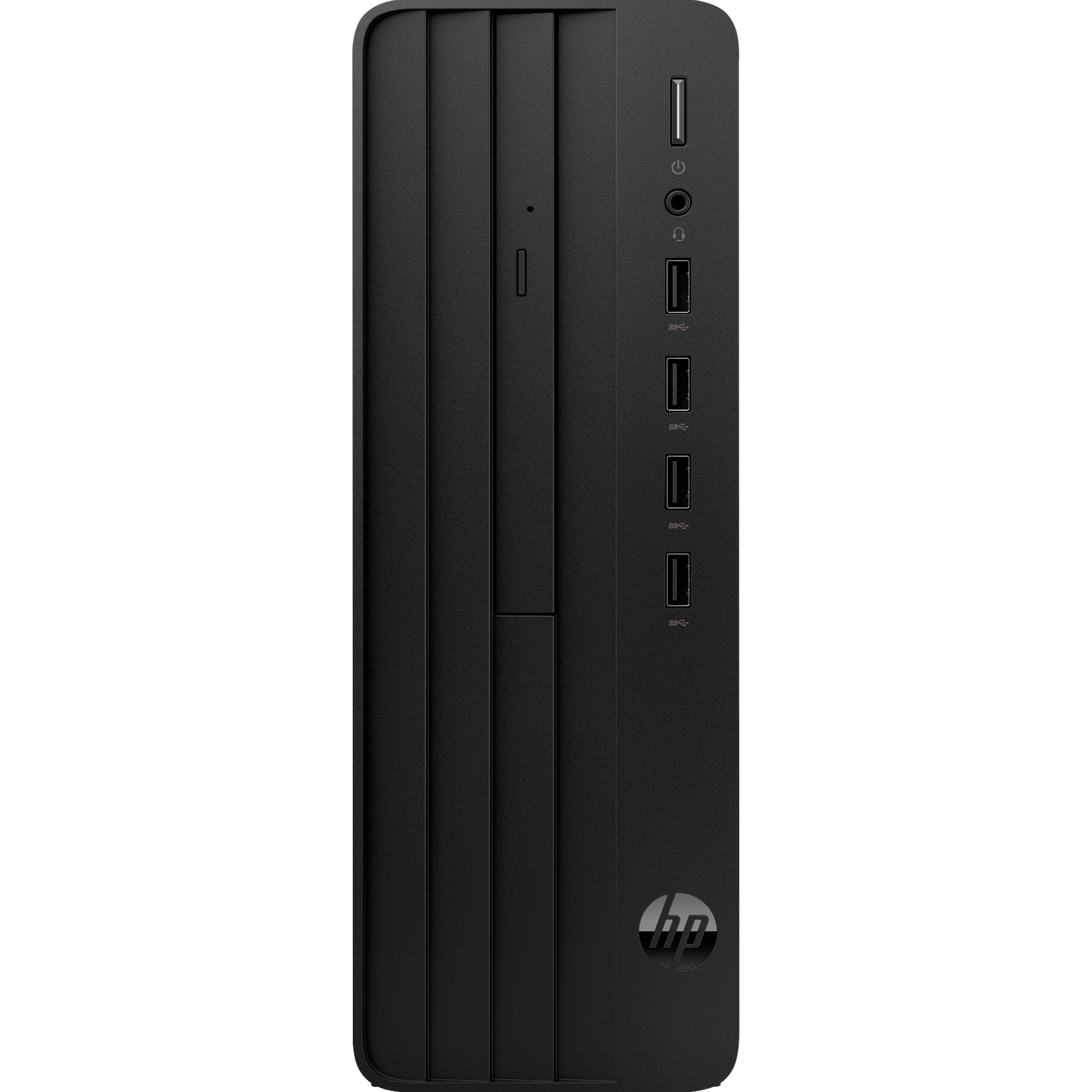

HP Pro 290 G9 SFF - 6B2S2EA

Essential business computing
The HP Pro SFF 290 helps optimize business resources. Equipped with a powerful Intel processor^[2], essential tools, and security features for business, this affordably priced and easy to set up PC has a scalable and functional design that can grow with your business.

Powered for performance
Easily manage your daily business with an Intel processor, powerful memory, drives, and graphics.

Expansion for the future
Two bays and two full-height slots provide expandability for the future.

Help keep data safe
Help protect your investment and your data with firmware TPM, HP Drive Lock, and a physical security lock slot

Specifications

Model Name
HP Pro 290 G9 SFF 6B2S2EA#ABU Core i5-12400 8GB 512GB SSD Win 11 Pro

General

Type
Personal computer

Product Form Factor
Small form factor

Built-in Devices
Speaker

Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip

Localisation
Language: English / region: United Kingdom

Processor / Chipset

CPU
Intel Core i3 (12th Gen) 12100

Clock Speed
3.3 GHz

Max Turbo Speed
4.3 GHz

Number of Cores
Quad-Core

CPU Qty
1

Max CPU Qty
1

CPU Upgradability
Upgradable

Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache

Chipset Type
Intel H670

Cache Memory

Installed Size
L3 Cache - 12 MB

Cache Per Processor
12 MB

RAM

Installed Size
8 GB / 64 GB (max)

Technology
DDR4 SDRAM - non-ECC

Effective Memory Speed
2933 MHz

Rated Memory Speed
2933 MHz

Form Factor
DIMM 288-pin

Slots
2 (Total) / 1 (empty)

Features
Unbuffered

Configuration Features
1 x 8 GB

Hard Drive

Type
SSD - M.2 2280

Capacity
1 x 256 GB

Interface Type
PCI Express 3.0

Features
NVM Express (NVMe)

Storage Controller

Type
1 x SATA

Channel Qty
3

Optical Storage
No

Type
DVD-Writer

Monitor

Monitor Type
None

Graphics Controller

Graphics Processor
Intel UHD Graphics 730 Dynamic Video Memory Technology

Video Interfaces
VGA, HDMI

HDCP Compatible
Yes

Audio Output

Sound Output Mode
Stereo

Max Sampling Rate
192 kHz

Compliant Standards
High Definition Audio

Input Device

Type
Mouse, keyboard

Keyboard

Keyboard Name
HP 125

Interface
USB

Localization & Layout
UK

Mouse

Mouse Name
HP 125

Interface
USB

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol
SNMP 2

Features
Wake on LAN (WoL), ACPI support

Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab

Expansion / Connectivity

Bays
1 (total) / 0 (free) x external 5.25" Slim Line 2 (total) / 2 (free) x internal 3.5"

Slots
1 (total) / 1 (free) x PCIe 4.0 x16 1 (total) / 1 (free) x PCIe 3.0 x1 1 (total) / 1 (free) x M.2 Card - 2230 1 (total) / 0 (free) x M.2 Card - 2242/2280

Interfaces
1 x headphones/microphone 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio line-in 1 x audio line-out 1 x HDMI 1 x VGA 1 x LAN (Gigabit Ethernet)

Miscellaneous

Included Accessories
Security cable lock

Theft/Intrusion Protection
Security lock slot (cable lock sold separately), padlock loop

Security Slot Type
Kensington security slot

Compliant Standards
CSA, UL, RoHS, ETS 300 826, WEEE, ETS 300 328, FCC CFR47 Part 15 C, LVD, CECP, SEPA, IEC 950, ErP Lot 3 2013 Ready, Japan PC Green Label, Taiwan Green Mark, Korea Eco-Label

Power

Device Type
Power adapter

Power Provided
180 Watt

Operating System / Software

OS Provided
Windows 11 Pro English

Software
HP Support Assistant, McAfee LiveSafe (1 year subscription), HP Setup Integrated OOBE, HP System Event Utility, Dropbox (25 GB Cloud Storage) (free for 1 year), HP Documentation, HP Audio Switch, HP JumpStart, Xerox DocuShare (90 days trial)

Environmental Standards

ENERGY STAR Certified
Yes

Manufacturer Warranty

Service & Support
Limited warranty - parts and labour - 1 year - on-site

Environmental Parameters

Min Operating Temperature
5 °C

Max Operating Temperature
35 °C

Humidity Range Operating
5 - 90% (non-condensing)

Dimensions(WxDxH)
9.5 cm x 30.3 cm x 27 cm

Weight
4.2 kg
