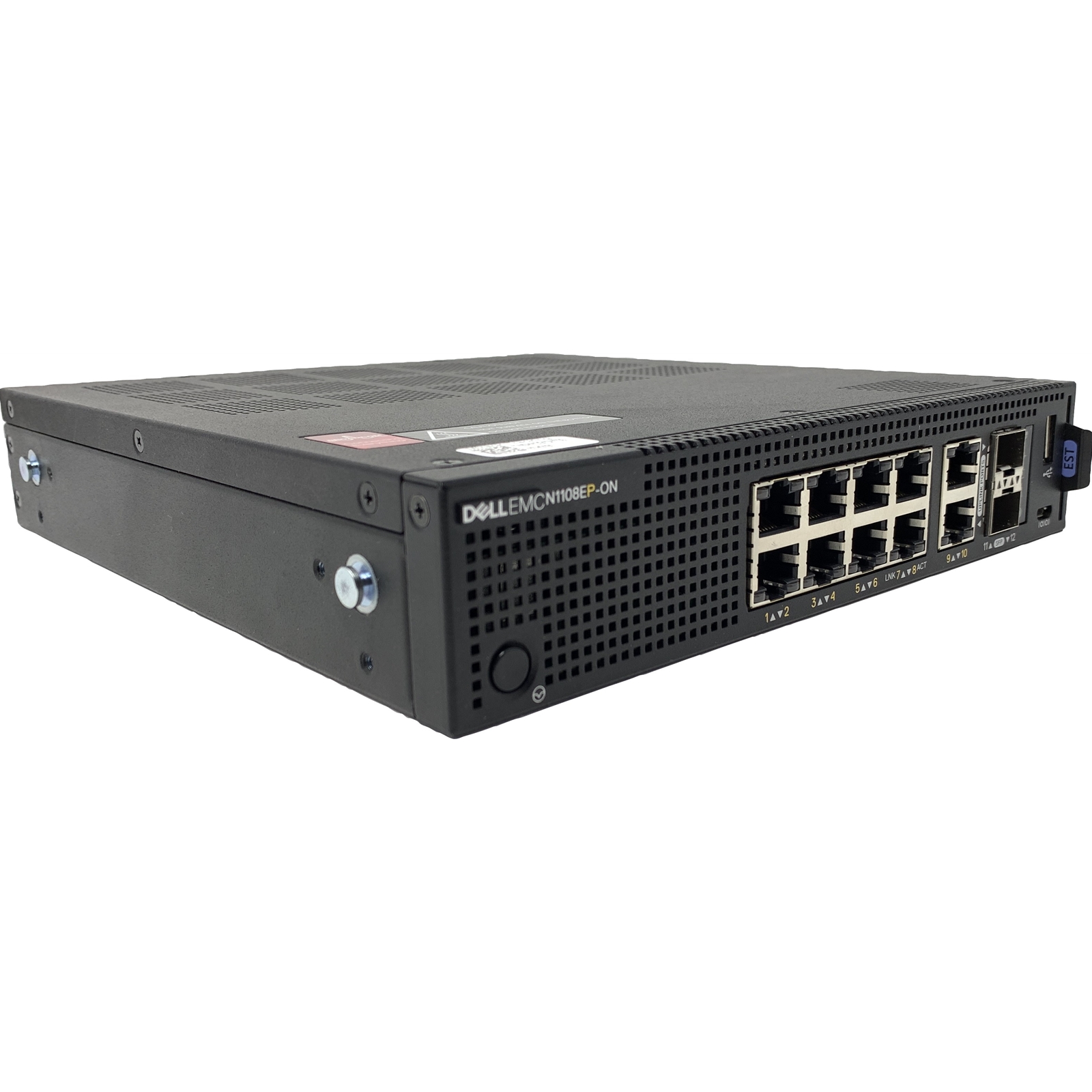

DELL N1108EP-ON Managed Switch

DELL Logo here

Manufacturer Part Code: 210-ARUK

Order Code: NPDEL-210ARUK

Category: Managed Network Switches

Dell Networking N1108EP-ON - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 10/100/1000 - front to back airflow - rack-mountable - PoE+ (137 W) - CAMPUS Smart Value

Focus your end-user network
Fully managed Layer 2 switching with Open Networking capabilities for third party OS support.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
176 Gbit/s
Store-and-forward
Y
Forwarding rate
164 Mpps
Rack mounting
Y
Form factor
1U
LED indicators
Y
Product colour
Black
Stackable
Y
Number of power supply units
1
Power source
AC
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
137 W
Power supply included
Y
Harmonized System (HS) code
85176990
MIB support
SMIv1/SMIv2, IP, TCP, UDP
Switch layer
L2
Quality of Service (QoS) support
Y
Switch type
Managed
ARP inspection
Y
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
VLAN support
Y
10G support
N
Auto-negotiation
Y
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
0 - 85%
Cable length
2 m
Operating system installed
OS6
Harmonized System (HS) code
85176990
USB 2.0 ports quantity
1
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
10
SFP module slots quantity
2
Power connector
AC-in jack
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
137 W
Security algorithms
802.1x RADIUS, SSH, SSL/TLS
IGMP snooping
Y
Authentication type
RADIUS
Weight
1.81 kg
Height
44.5 mm
Width
215.9 mm
Depth
254 mm
