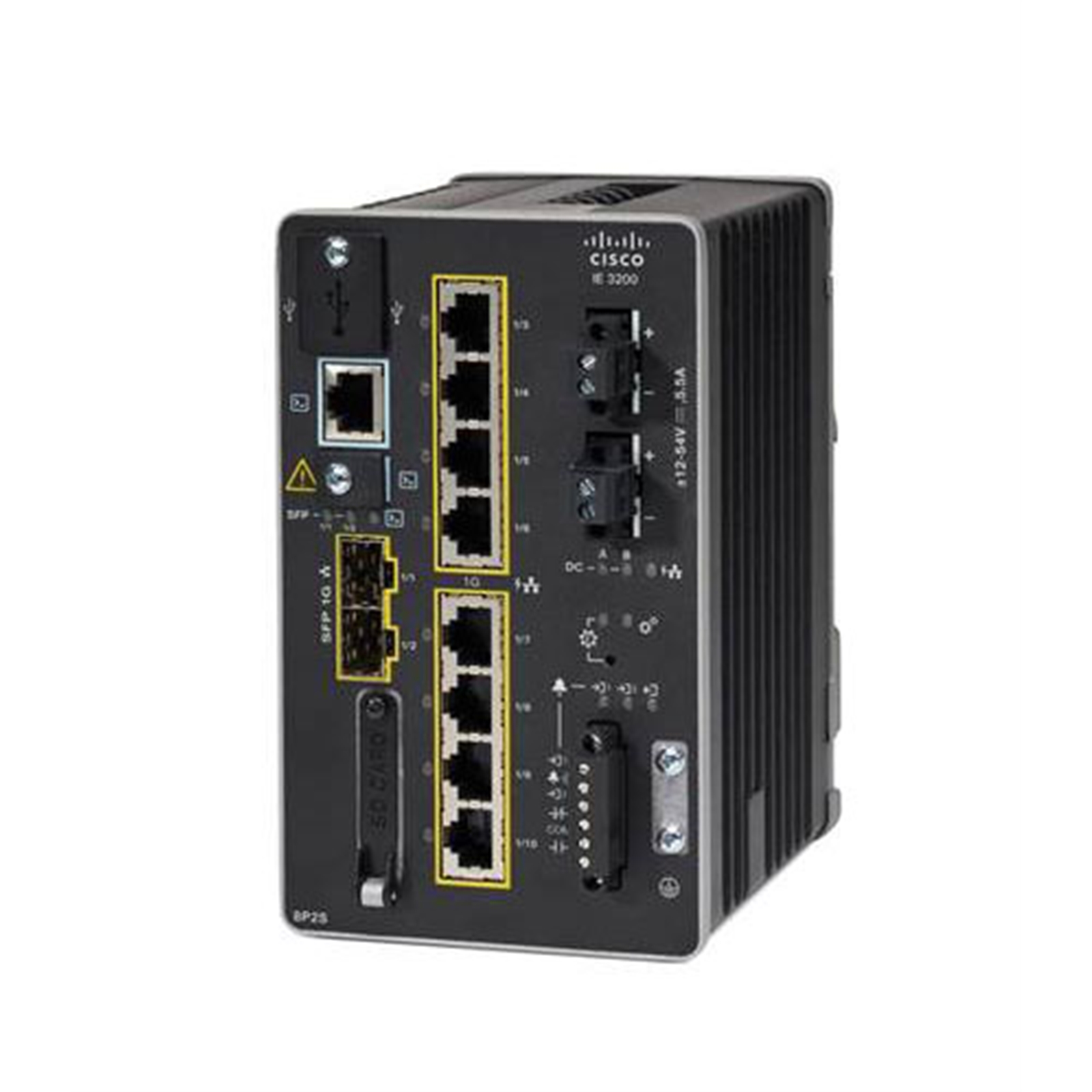

Illustration purposes only

CISCO Catalyst Network Essentials IE-3200-8P2S-E

CISCO Logo here

Manufacturer Part Code: IE-3200-8P2S-E

Order Code: NPCIS-IE32008P2D

Category: Managed Network Switches

Cisco Catalyst IE3200 Rugged Series - Network Essentials - switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - DIN rail mountable - PoE+ (240 W) - DC power

The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.

The IE3200 Series provides an option for up to eight ports of Power over Ethernet Plus (PoE+), with a product SKU that is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
8000 entries
Number of queues
8
Certification
UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 ATEX (l, 2, Gc/IIC), EN 61000-6-2 EN 61000-6-4 EN 61000-6-1 EN 61326-1 IEEE 1613 EN/IEC 61850-3 EN50121-4 ODVA
Electromagnetic compatibility
FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386
Product colour
Black
International Protection (IP) code
IP30
DIN rail mounting
Y
Power consumption (typical)
35 W
Redundant power supply (RPS) support
Y
Input current
5.5 A
DC input voltage
9.6 - 60 V
Harmonized System (HS) code
85176990
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
Switch type
Managed
ARP inspection
Y
Multicast support
Y
Networking standards
IEEE 802.1x, IEEE 802.3
Broadcast storm control
Y
Rate limiting
Y
Number of VLANs
256
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Virtual LAN features
VLAN Identifier ( VLAN ID)
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 70 °C
Internal memory
2048 MB
Mean time between failures (MTBF)
613125 h
Flash memory
1500 MB
Memory type
DRAM
Harmonized System (HS) code
85176990
Dying Gasp
Y
Compatible memory cards
SD
Console port
RJ-45
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity
10
SFP module slots quantity
2
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W
Security algorithms
SNMP, SNMPv3, SSH
MAC address filtering
Y
Access Control List (ACL)
Y
IGMP snooping
Y
BPDU filtering/protection
Y
Authentication
Guest VLAN, MAC-based authentication
Access Control List (ACL) rules
1500
IGMP entries
1000
DHCP features
DHCP server, DHCP snooping
Weight
1.7 kg
Height
152.4 mm
Width
91.4 mm
Depth
134.6 mm
