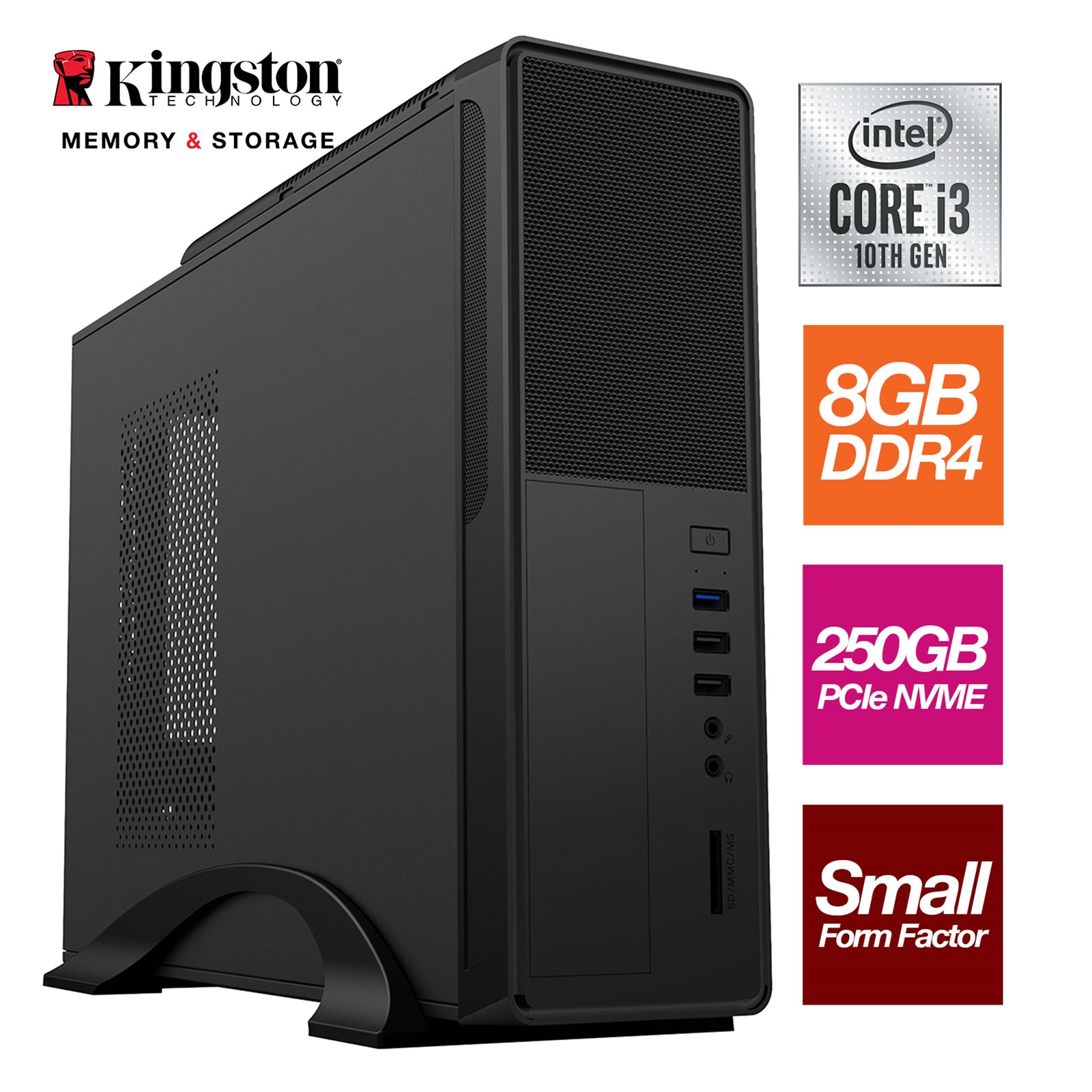

TARGET Small Form Factor - Intel i3 10100 Quad Core 8 Thread 3.60GHz (4.30GHz Boost), 8GB RAM, 250GB NVMe M

Great value with improved performance for everyday computing
The refreshed Intel Core i3-10100 quad-core processor with Hyperthreading is optimised for everyday computing, with up to 4.30GHz boost, a low 65W TDP, Intel UHD Graphics and included stock cooling.

Micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

Product Description
Small Form Factor - Intel i3 10100 Quad Core 8 Thread 3.60GHz (4.30GHz Boost), 8GB RAM, 250GB NVMe M.2, No Optical, Small Foot Print for Home or Office Use - Pre-Built PC

Processor
Intel Core i3 10100 4 Core Processor 8 Threads, 3.60GHz up to 4.30Ghz Turbo Comet Lake Refresh Socket LGA 1200 6MB Cache, 65W, Cooler

Processor Cores
4

Processor Threads
8

Core Clock Speed
3.60GHz

Core Boost Speed
4.30Ghz

Memory
Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV2 (SNV2S/250G) 250GB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3000 MB/s, Write 1300 MB/s

Format
M.2 NVMe

Max Read/Write Speeds
Read: Up to 3000 MB/s
Write: Up to 1300 MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
On-Chip Intel UHD Graphics 630
GPU Base Speed
350 MHz
GPU Max Speed
1.10GHz

Graphics Card I/O
N/A

Operating System
N/A

Card Reader
Built-in Card Reader - SD/MMC/MS 3in1

Networking
Motherboard - Realtek GbE LAN chip (1 Gbit/100 Mbit)
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
Asus PRIME H510M-A, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2

Expansion Slot
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe

Rear I/O
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0 Type-A
1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x Intel I219-V 1Gb
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port 1 x Front Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
8 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
