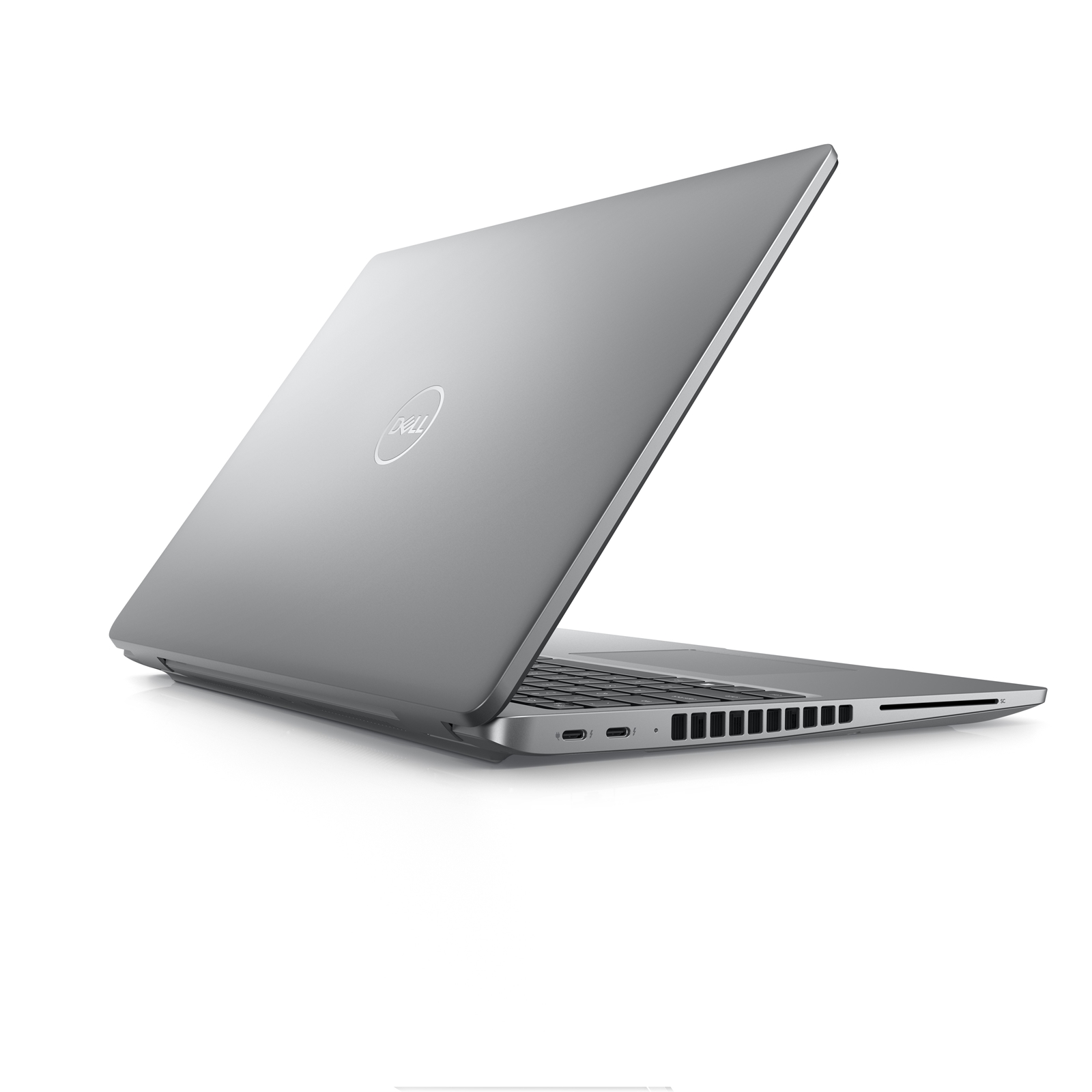

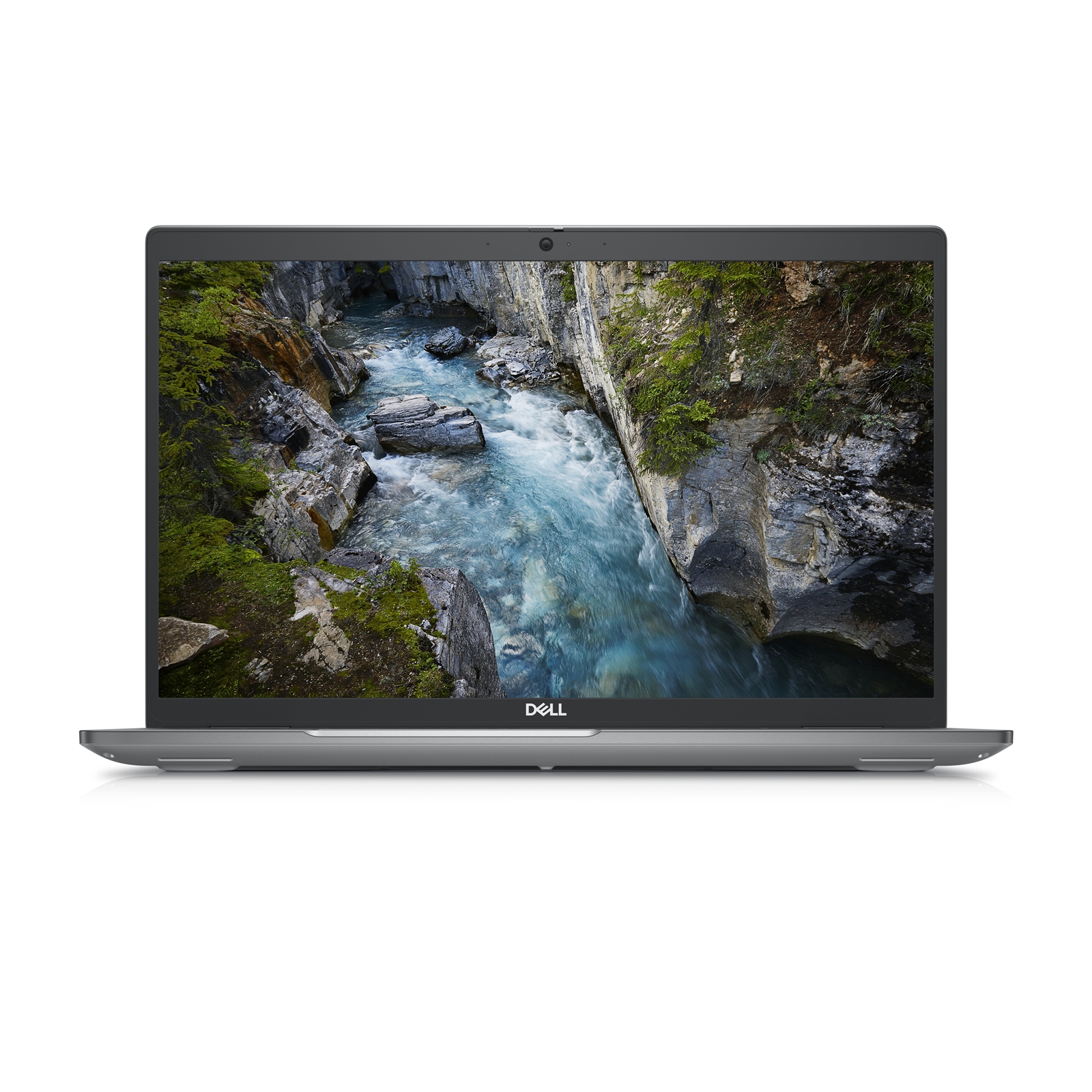

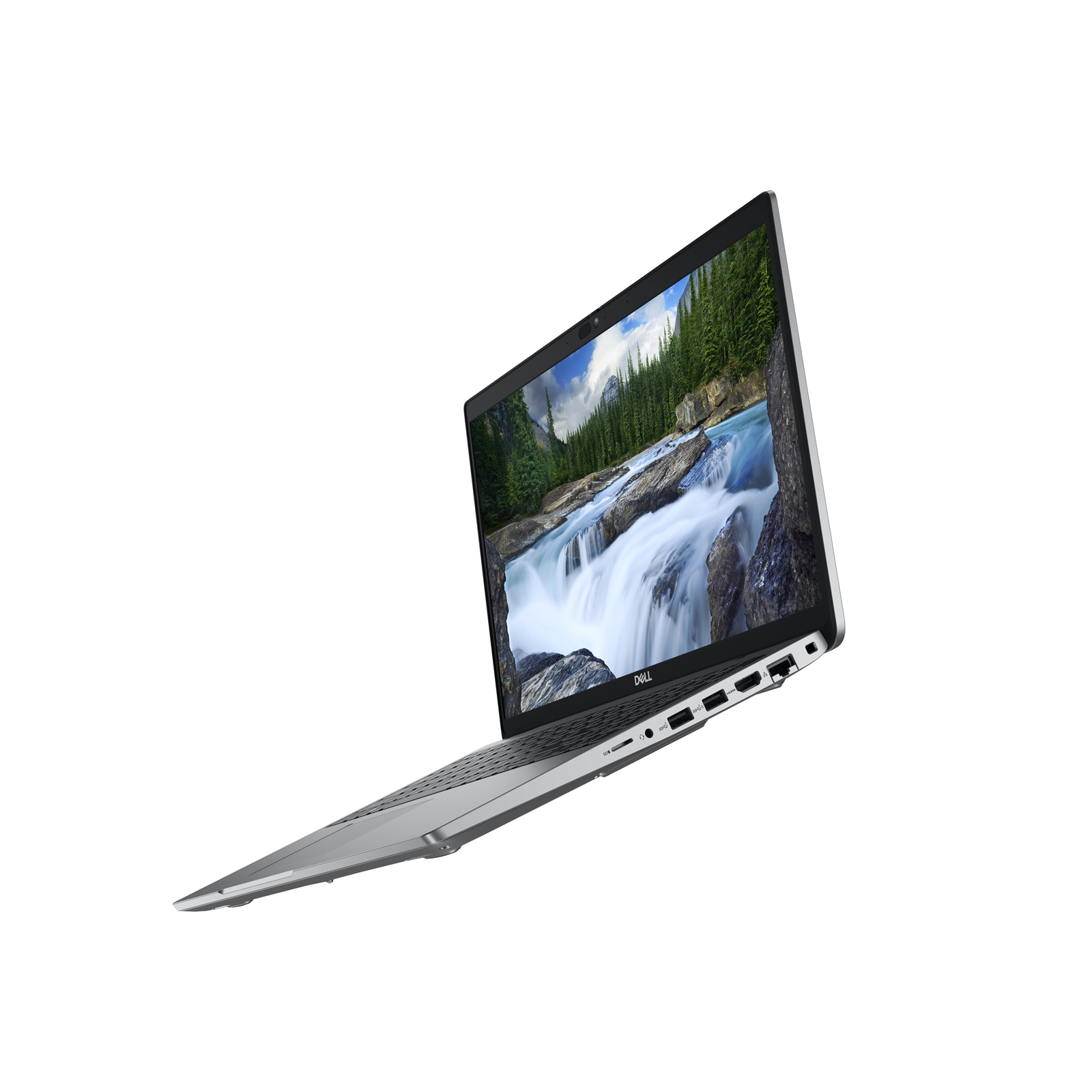

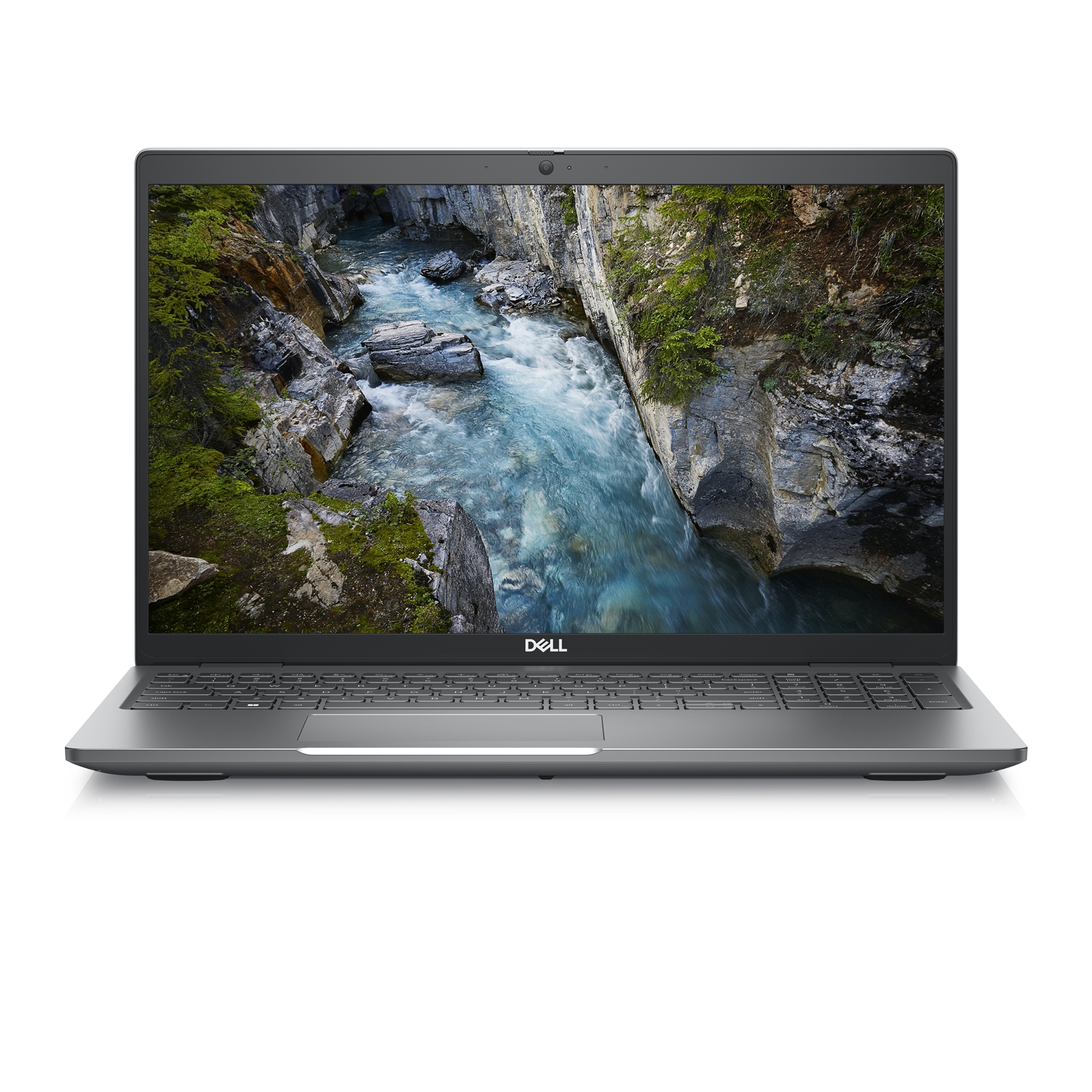

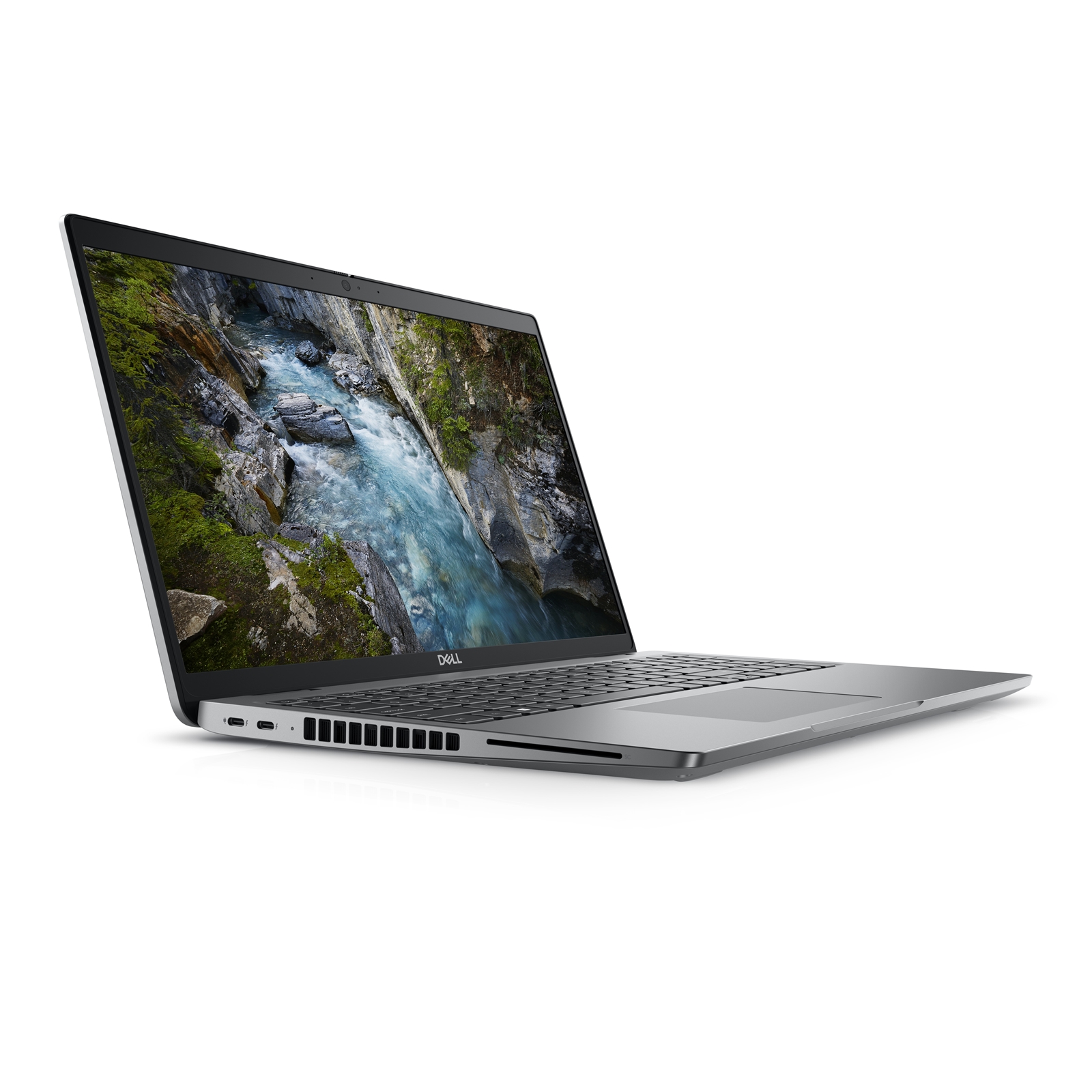

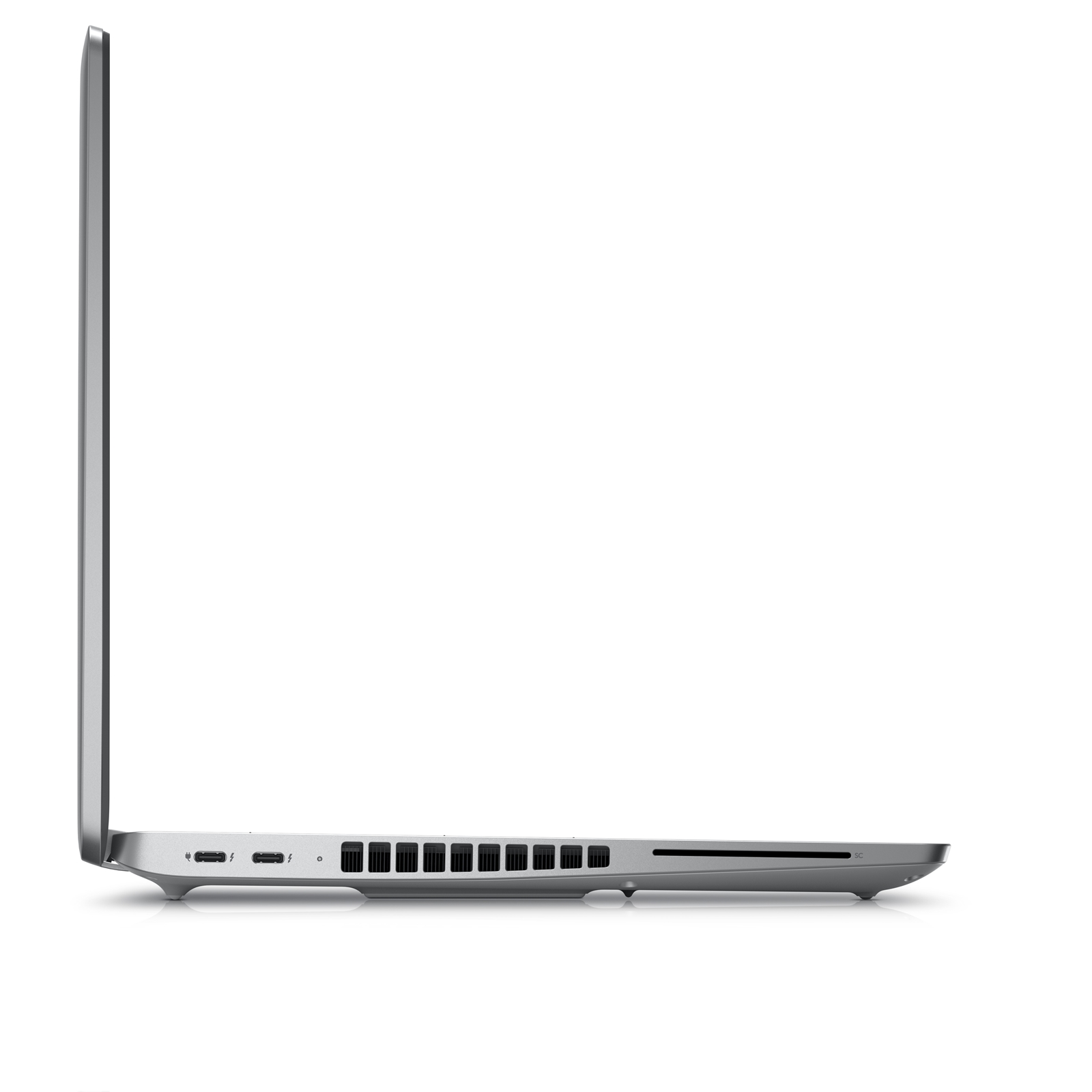

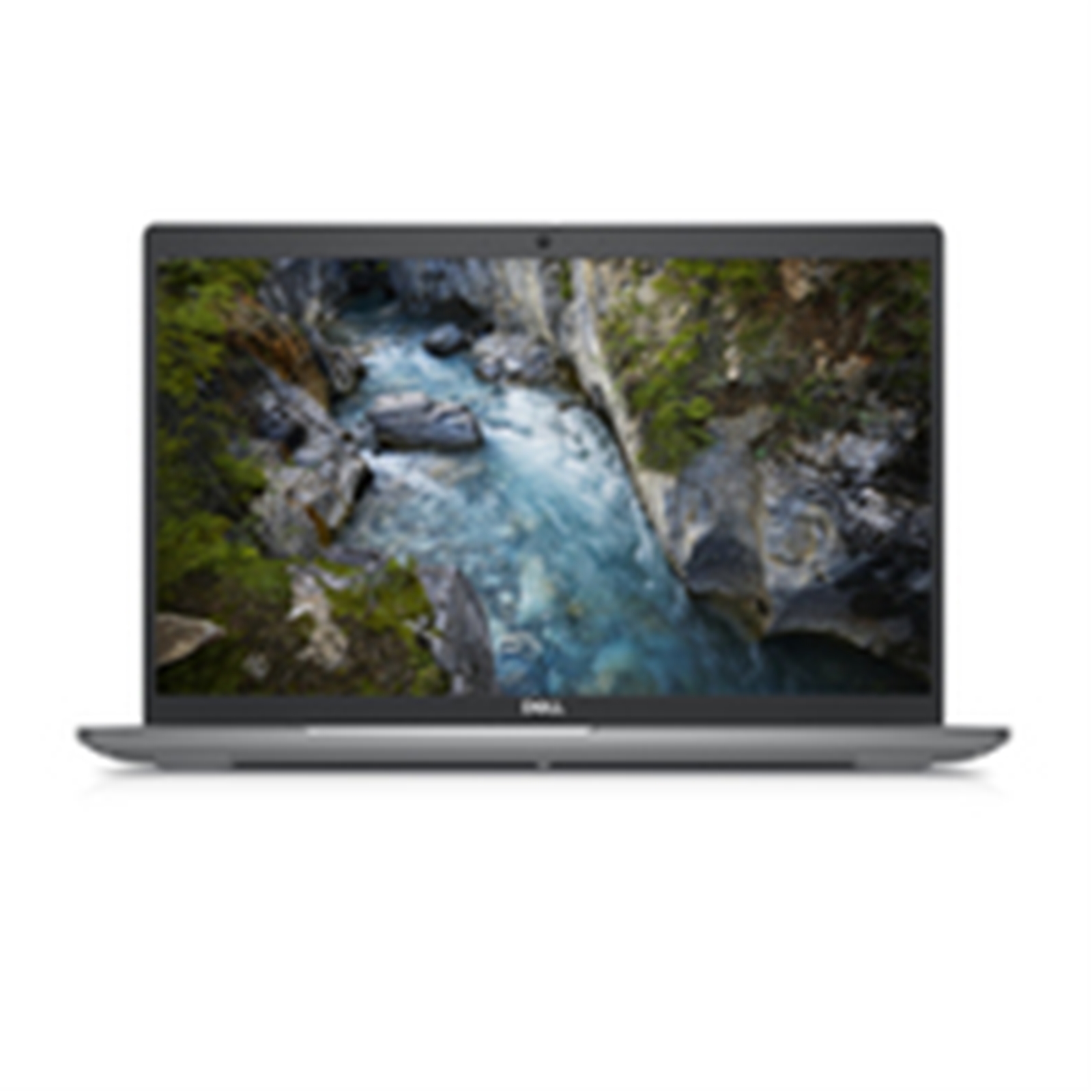

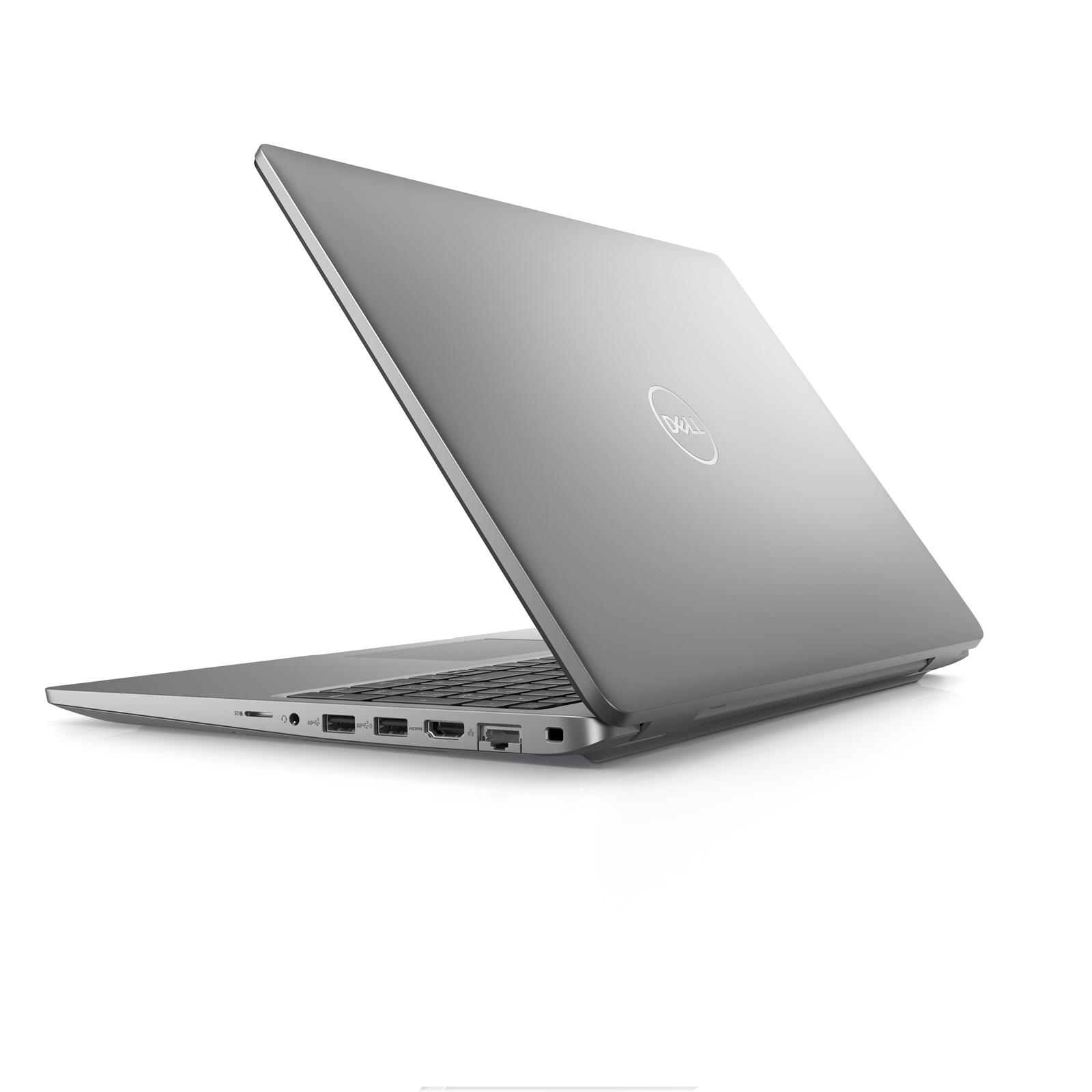

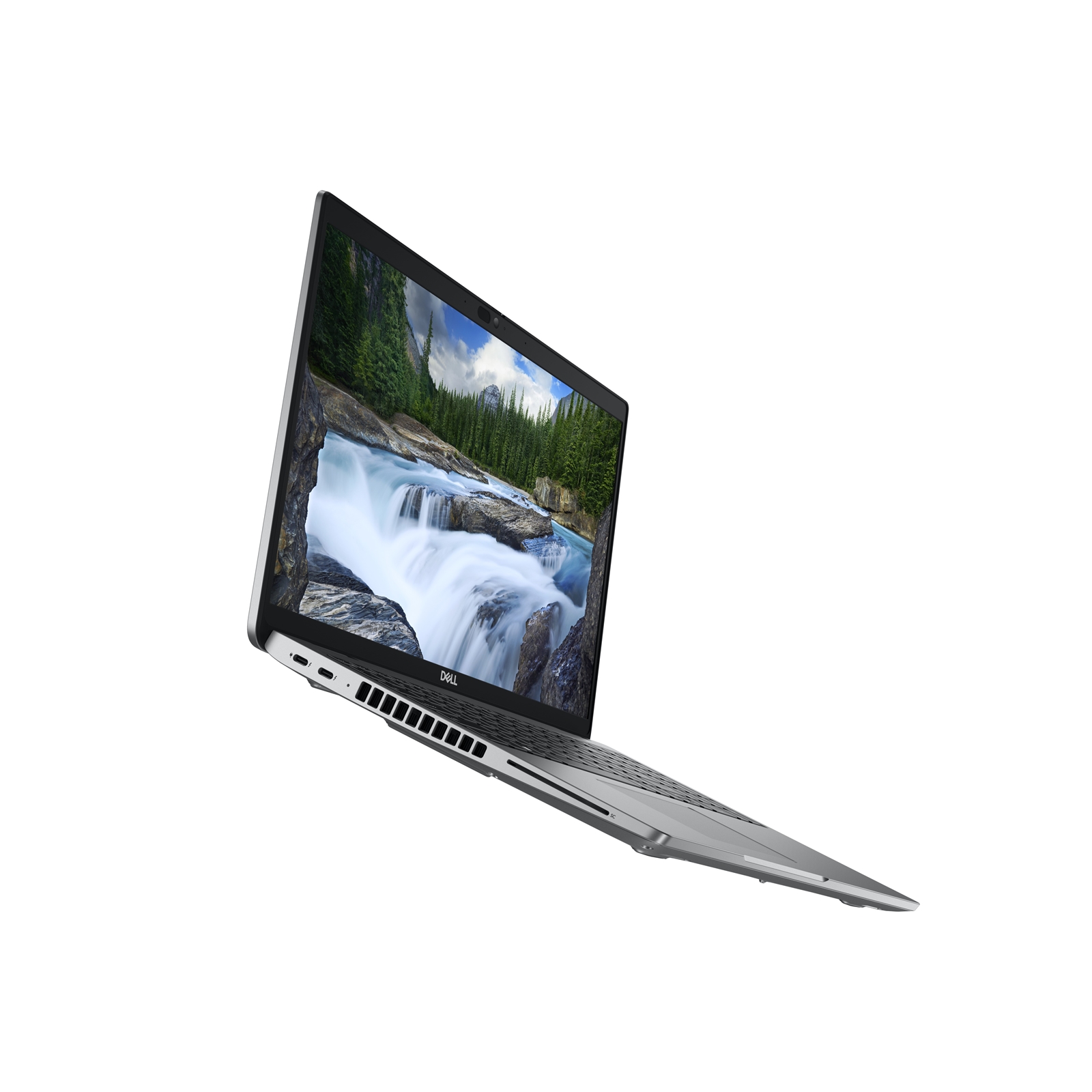

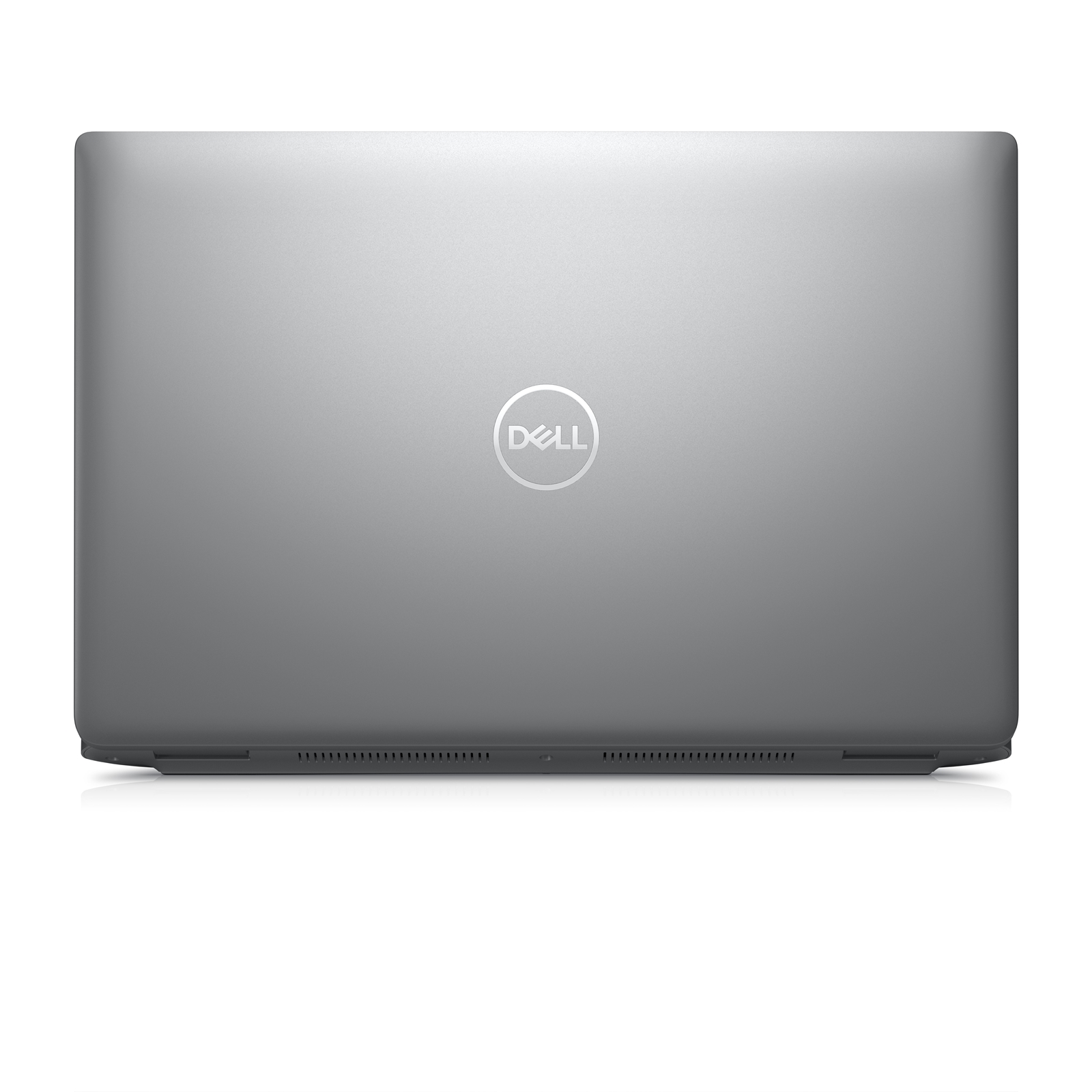

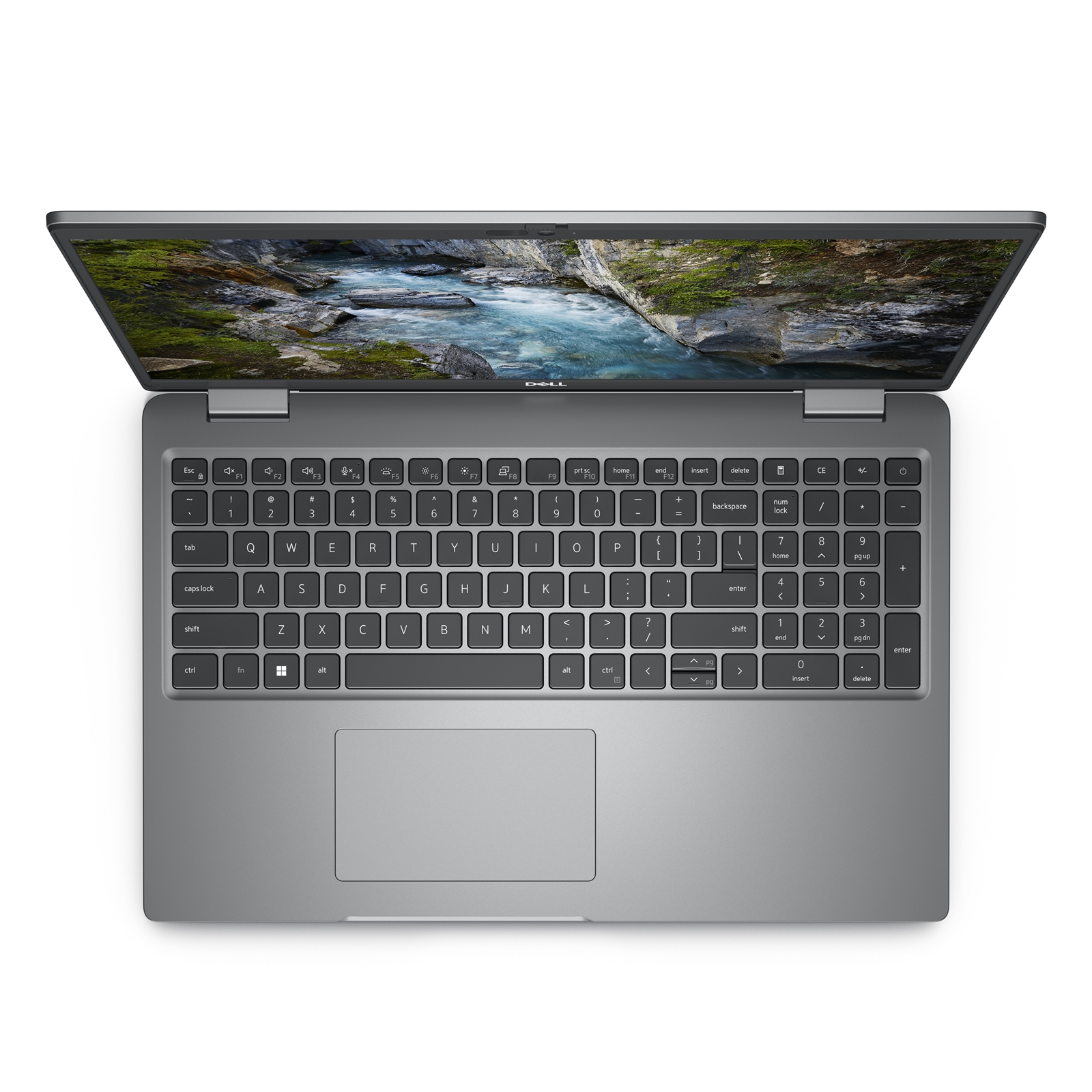

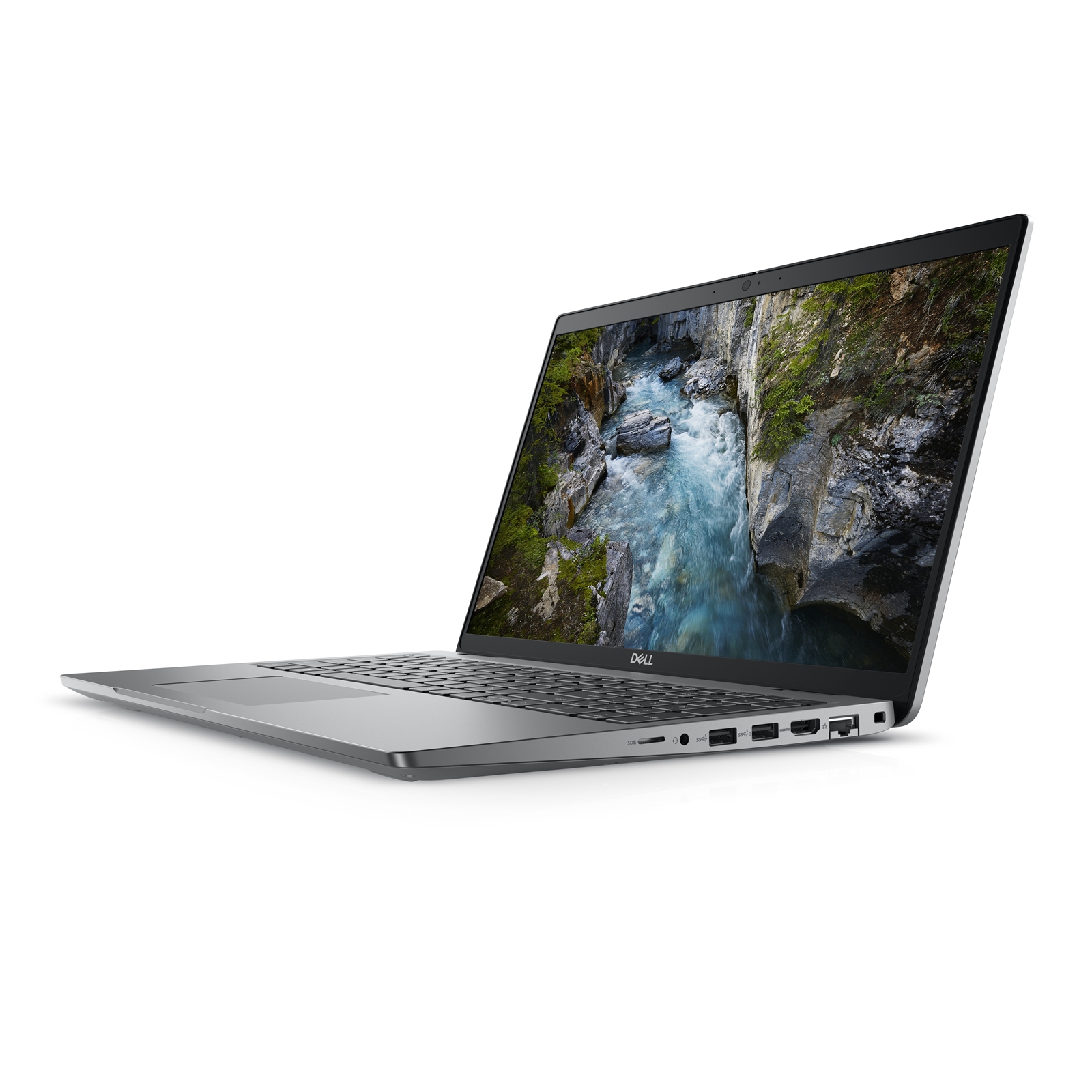

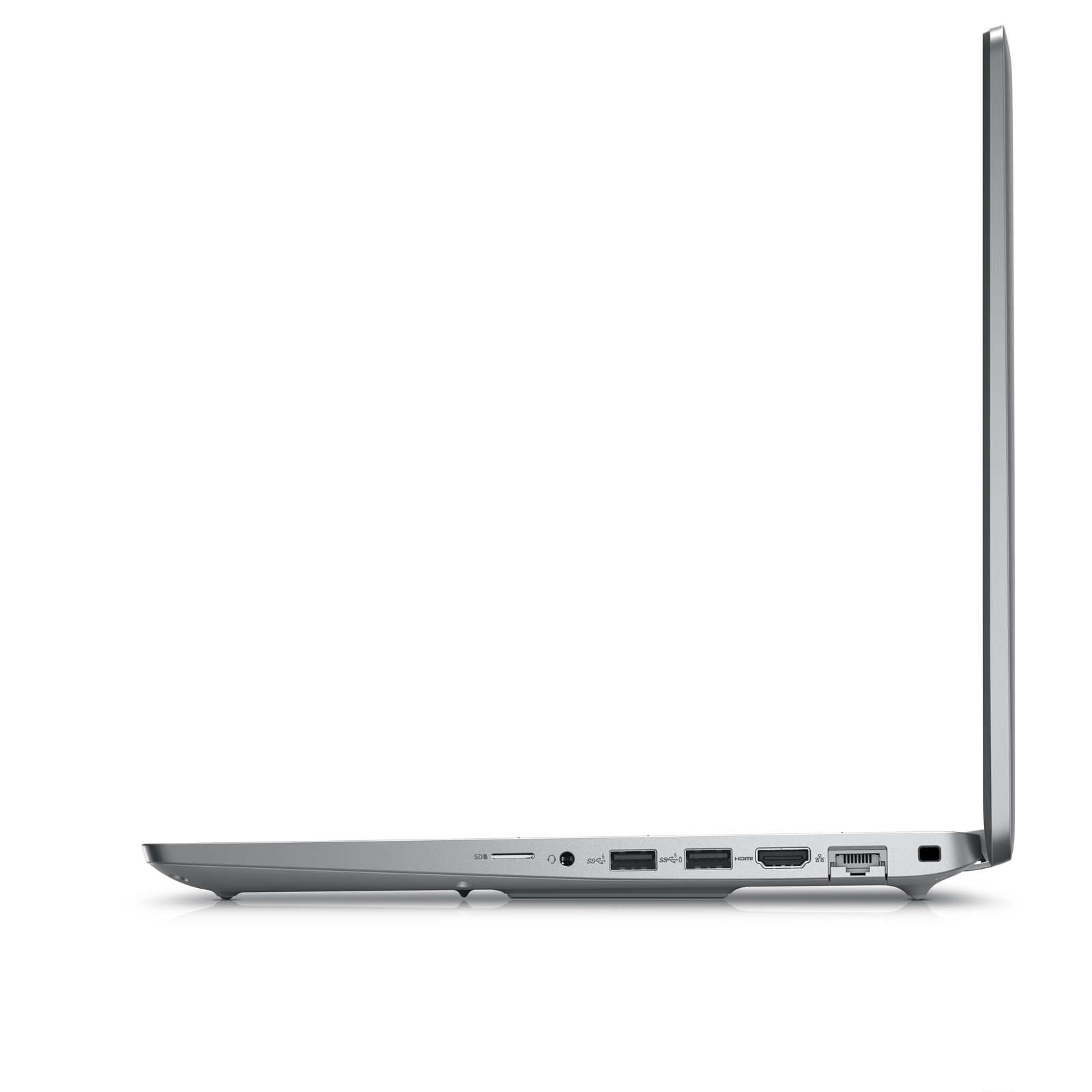

DELL Precision 3580 - RC86K

DELL Logo here

Manufacturer Part Code: RC86K

Order Code: LADEL-RC86K

Category: Dell Laptops

Precision 3580 Intel CoreÖ i7-1360P vPro Essentials (18MB Cache 12 Cores 16 Threads 2.2 - 5.0 GHz Turbo 28W) 16 GB 2 x 8 GB DDR5 4800 MHz 512GB M.2 2230 Gen 4 PCIe NVMe SSD Class 35 No Additional Hard Drive 15.6 FHD 1920 x 1080 60 Hz 250 nits non-touch RG

Great for 2D CAD, Design and Creative Applications
With intelligently optimized performance, the 3580 is a reliable workstation for entry-level design and creative applications.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Audio system
MaxxAudio
Built-in microphone
Y
Speaker power
2 W
Number of built-in speakers
2
Speakers manufacturer
Waves
Number of built-in speakers
2.28 cm
Number of microphones
2
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
3
Battery recharge time
3 h
Battery weight
220 g
Battery voltage
11.4 V
Battery capacity (Watt-hours)
54 Wh
Video capturing speed
30 fps
Front camera
Y
Front camera resolution (numeric)
2.07 MP
Front camera resolution
1920 x 1080 pixels
Front camera HD type
Full HD
Form factor
Clamshell
Product colour
Grey
Product type
Mobile workstation
Intel® vPro? Platform Eligibility
Y
Pixel pitch
0.179 x 0.179 mm
Contrast ratio (typical)
700:1
Display diagonal
39.6 cm (15.6")
Display response rise/fall
35 ms
Contrast ratio (typical)
0 - 95%
Display brightness
250 cd/m²
Display resolution
1920 x 1080 pixels
Touchscreen
N
LED backlight
Y
Maximum refresh rate
60 Hz
Anti-glare screen
Y
Native aspect ratio
16:9
HD type
Full HD
Pixel density
141 ppi
Colour gamut
45%
Panel type
IPS
RGB colour space
NTSC
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
AC adapter power
130 W
USB charging current
6.5 A
USB charging voltage
20,5 V
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
NVIDIA RTX A500
Discrete graphics memory type
GDDR6
On-board graphics card
Y
Discrete graphics card memory
4 GB
Discrete graphics card
Y
Discrete GPU manufacturer
NVIDIA
Pointing device
Touchpad
Numeric keypad
Y
Keyboard language
UK English
Keyboard backlit
Y
Internal memory type
DDR5-SDRAM
Memory slots
2x SO-DIMM
Maximum internal memory
64 GB
Memory clock speed
4800 MHz
Memory form factor
SO-DIMM
Memory channels
Dual-channel
Memory layout (slots x size)
2 x 8 GB
Internal memory
16 GB
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet LAN
Y
Antenna type
2x2
Bluetooth
Y
Wi-Fi data rate (max)
2400 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Mobile network connection
N
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
MIMO
Y
MIMO type
Multi User MIMO
WLAN controller manufacturer
Intel
Operating system installed
Windows 11 Pro
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system language
German, Dutch, English, French, Italian
Operating altitude
-15.2 - 3048 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 35 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Non-operating vibration
1.3 G
Operating vibration
0.66 G
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.0
Combo headphone/mic port
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB Type-C DisplayPort Alternate Mode
Y
USB Power Delivery
Y
PowerShare
Y
Number of USB ports with PowerShare support
1
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Y
Processor model
i7-1360P
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor cores
12
Processor boost frequency
5 GHz
Processor cache
18 MB
Configurable TDP-down
20 W
Processor cache type
Smart Cache
Processor base power
28 W
Maximum turbo power
64 W
Processor generation
13th gen Intel® Core™ i7
Efficient-core Max Turbo Frequency
3.7 GHz
Performance-core Max Turbo Frequency
5 GHz
Intel Flex Memory Access
Y
Execute Disable Bit
Y
Intel Trusted Execution Technology
Y
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Y
Embedded options available
N
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Virtualization Technology (VT-x)
Y
Cable lock slot
Y
Trusted Platform Module (TPM)
Y
Trusted Platform Module (TPM) version
2.0
Cable lock slot type
Wedge
Smart card reader
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Optical drive type
N
Total storage capacity
512 GB
Card reader integrated
Y
SSD interface
PCI Express 4.0
SSD capacity
512 GB
Number of SSDs installed
1
Storage media
SSD
SSD form factor
M.2
NVMe
Y
Total SSDs capacity
512 GB
SSD performance class
35
Weight
1.61 kg
Width
357.8 mm
Depth
233.3 mm
Height (front)
2.08 cm
Height (rear)
2.28 cm
