Fujitsu Primergy Tower Servers | FUJITSU PRIMERGY TX1320 M5 Tower Server - VFY:T1325SC051IN | VFY:T1325SC051IN | ServersPlus
L R
FUJITSU VFY:T1325SC051IN | serversplus.comFUJITSU VFY:T1325SC051IN | serversplus.comFUJITSU VFY:T1325SC051IN | serversplus.comFUJITSU VFY:T1325SC051IN | serversplus.com

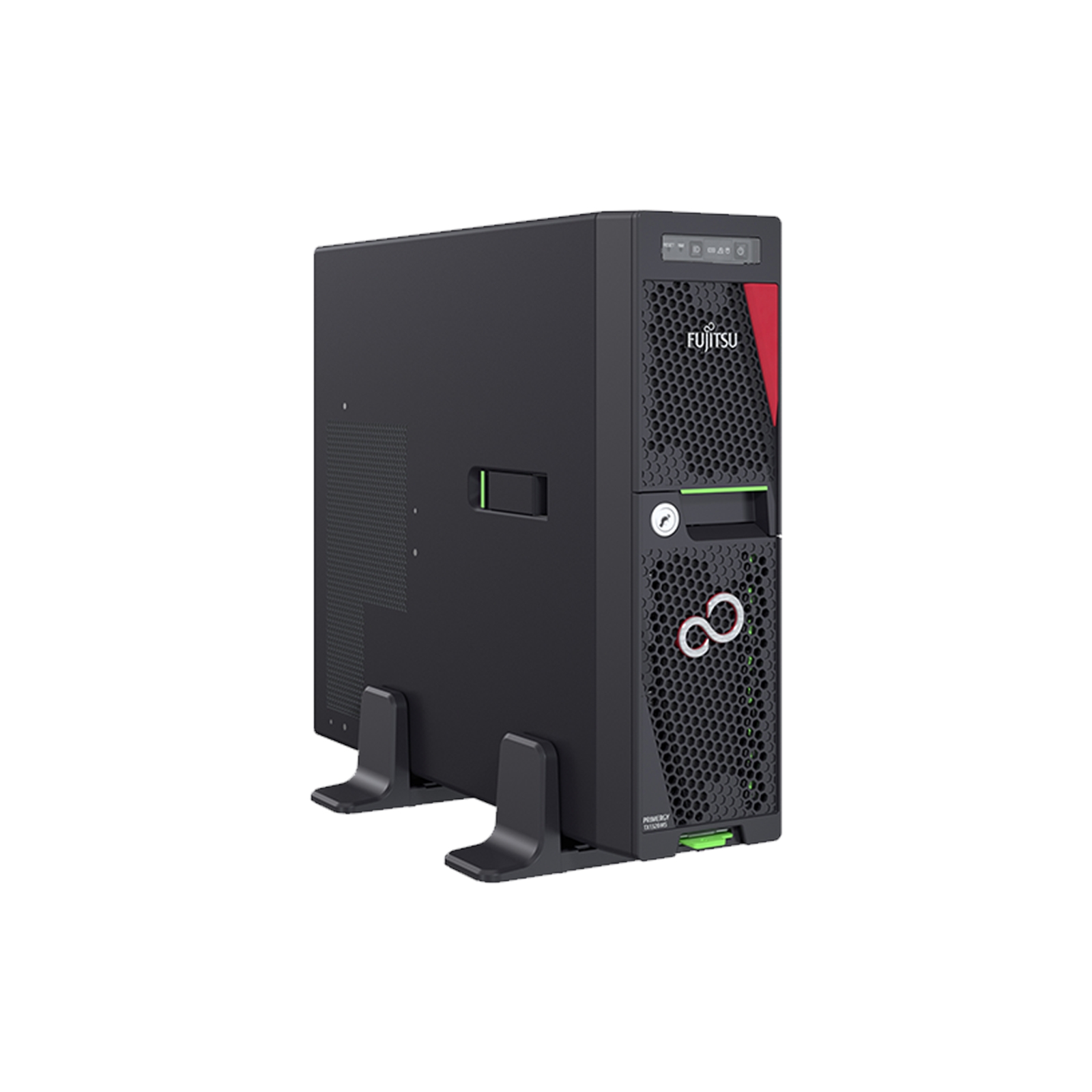

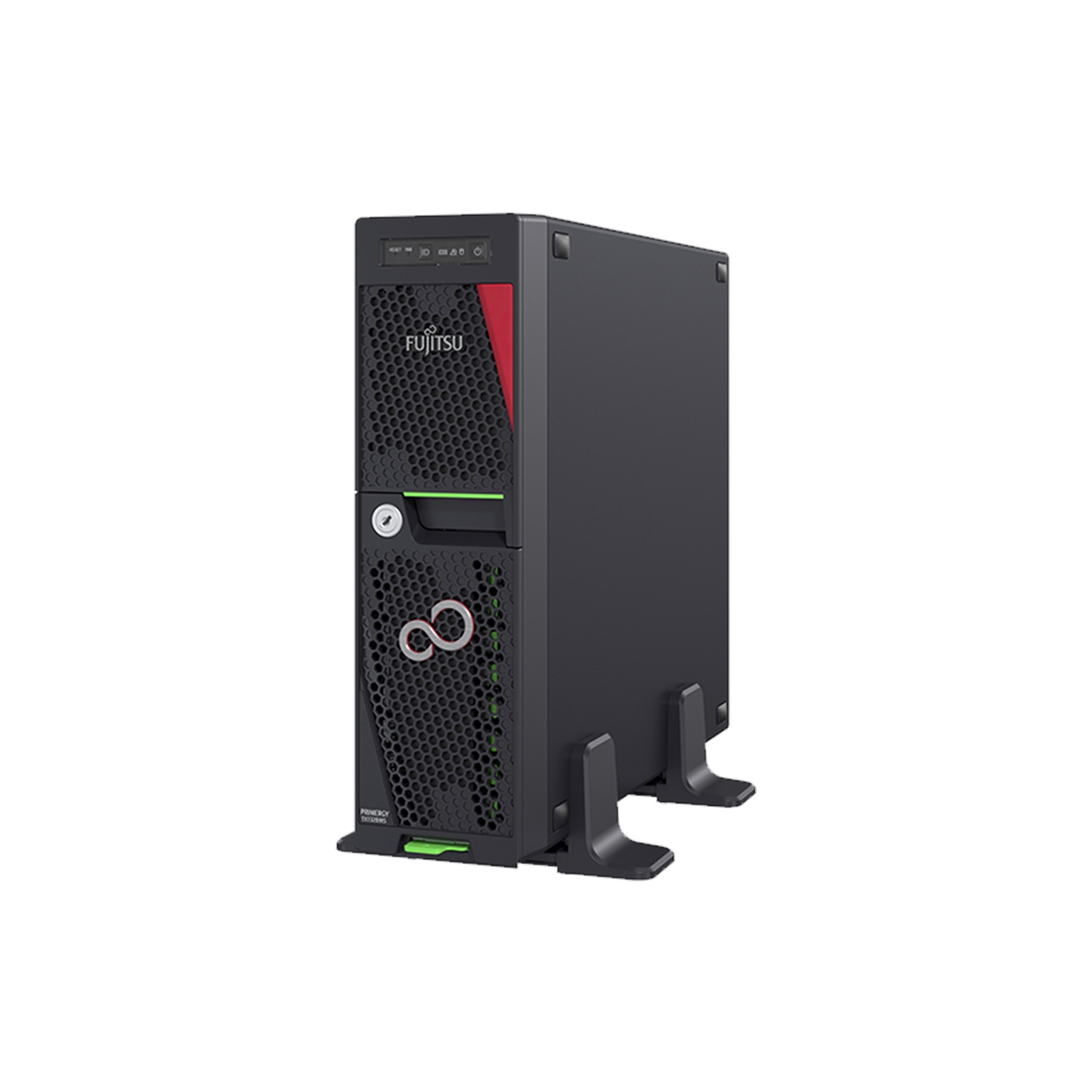

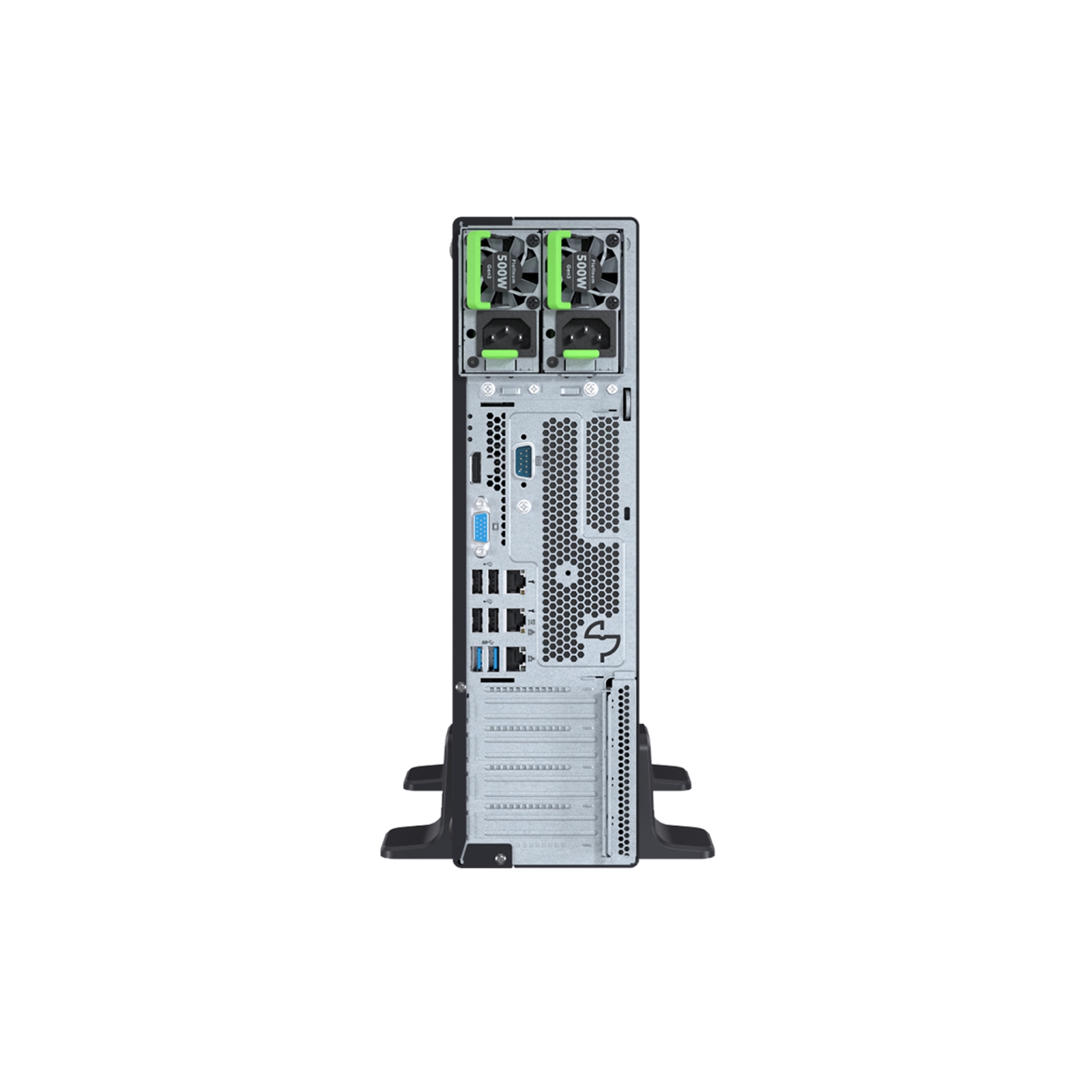

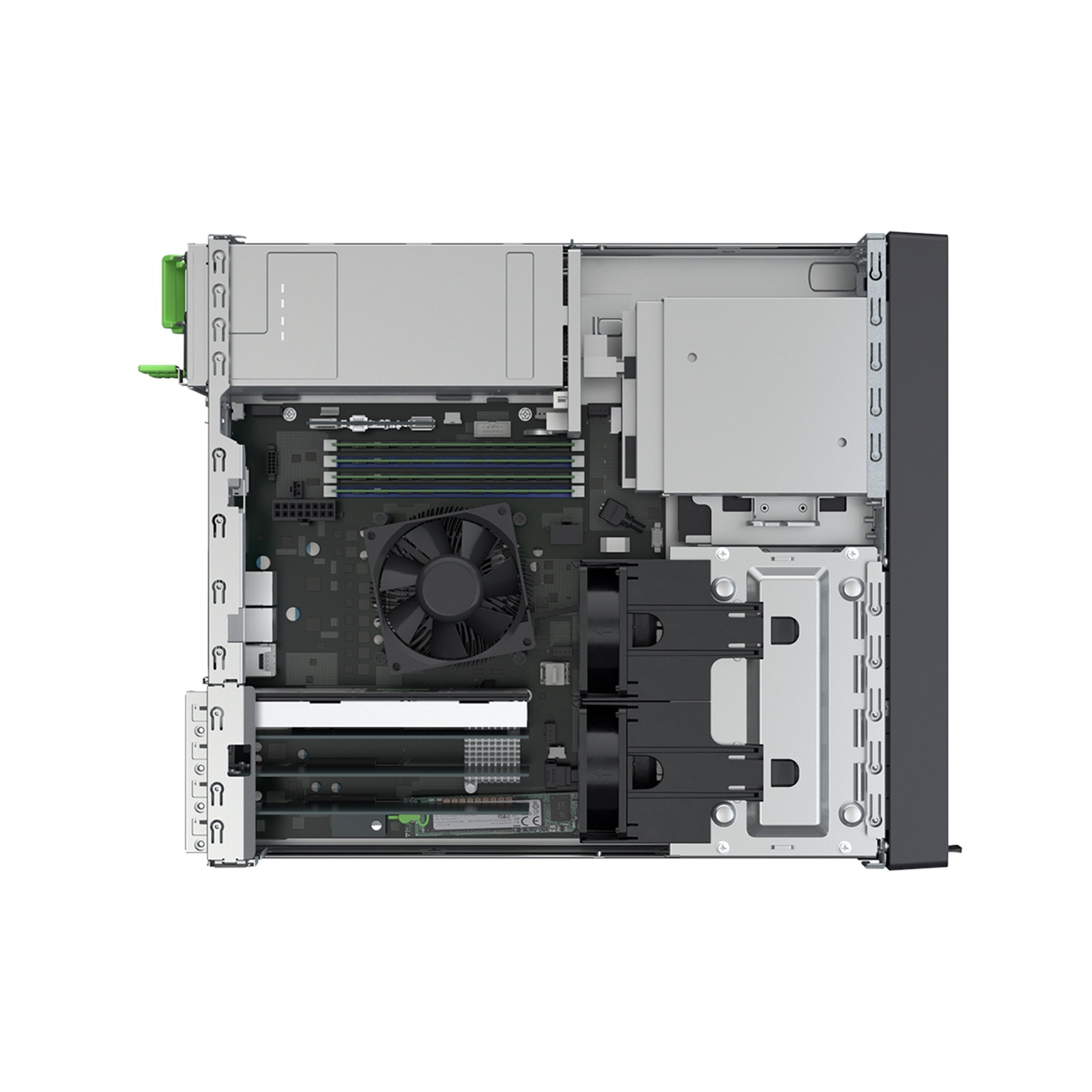

Illustration purposes only

FUJITSU PRIMERGY TX1320 M5 Tower Server - VFY:T1325SC051IN

FUJITSU Logo here

Manufacturer Part Code: VFY:T1325SC051IN

Order Code: SVFUJ-T1325SC051

Category: Fujitsu Primergy Tower Servers

TX1320 M5 4x 2.5 INCH E-2334 4C/8T 16GB TPM

This product qualifies for...
Fujitsu Reliability Promise - Get the cost back if it fails within a year!

The unique ultra-compact Fujitsu Server PRIMERGY TX1320 M5 has advanced technology
ideal for most industry verticals, small and medium-sized enterprises (SME), spaceconstrained environments, retail premises or branch offices. The performance-oriented yet costeffective mono-socket design supports the latest Intel® Xeon® E-2300 product family processors, an
affordable Pentium® processor option plus up to 128 GB RAM at 3,200 MT/s to boost performance
for appropriately sized standard business workloads, including virtualized ones (such as:
file/print, email, ERP/CRM, messaging, centralizeddata storage) and industry specific applications.
Institutions with special legal requirements such as medical, governmental, legal, or financial
offices can benefit from the server's secure and robust storage and transmission features. These
include up to eight high quality 2.5-inch storage devices (including up to four ultra-fast PCIe SSDs
for demanding applications), powerful RAID controllers, graphics and networking options
enabled by 4 PCIe expansion slots (Gen 4/3) together with versatile and affordable backup plus
TPM 2.0 capability. High efficiency (94%), 500W redundant power supplies enhance reliability and protect customer investment. This ultra-compact,silent server with a new dust protection kit and
Advanced Thermal Design Technology is designed for deployment flexibility – it can be deployed in
offices, on rack shelves, industrial areas and even on desks at temperatures from 5 °C to 45 °C. New
generation technologies include M.2 modules for efficient OS installation along with dual microSD
capability for VMware ESXi, plus the latest USB 3.2 Gen 2 ports. Furthermore, the TX1320 M5
server features the iRMC S6 and the Fujitsu Infrastructure Manager (ISM) suite, which enable
remote server management and centralized IT infrastructure control respectively, hence boosting
IT administrator productivity


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Need this delivered pre-built? We have configuration and installation options available!

Technical Information

Chassis type
Tower
Power supply
500 W
PCI Express x4 (Gen 3.x) slots
2
PCI Express x8 (Gen 4.x) slots
2
Internal memory type
DDR4-SDRAM
Memory slots
4x DIMM
Maximum internal memory
128 GB
ECC
Yes
Memory clock speed
3200 MHz
Memory layout (slots x size)
1 x 16 GB
Internal memory
16 GB
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
LAN controller
Intel I210
Ethernet interface type
Gigabit Ethernet
Compatible operating systems
Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2022 Essentials Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials VMware vSphere™ 7.0 SUSE® Linux Enterprise Server 15 Red Hat® Enterprise Linux 8
Operating system installed
No
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
USB 2.0 ports quantity
4
Ethernet LAN (RJ-45) ports
2
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Total number of SATA connectors
7
Processor model
E-2334
Motherboard chipset
Intel C256
Number of processors installed
1
Processor manufacturer
Intel
Processor family
Intel Xeon E
Processor boost frequency
4.8 GHz
Processor cache
8 MB
Execute Disable Bit
Yes
Idle States
Yes
Processor frequency
3.4 GHz
Enhanced Intel SpeedStep Technology
Yes
Intel Trusted Execution Technology
Yes
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel 64
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel Virtualization Technology (VT-x)
Yes
Optical drive type
No
Number of 5.25" bays
1
Height
340 mm
Width
98 mm
Depth
400 mm
