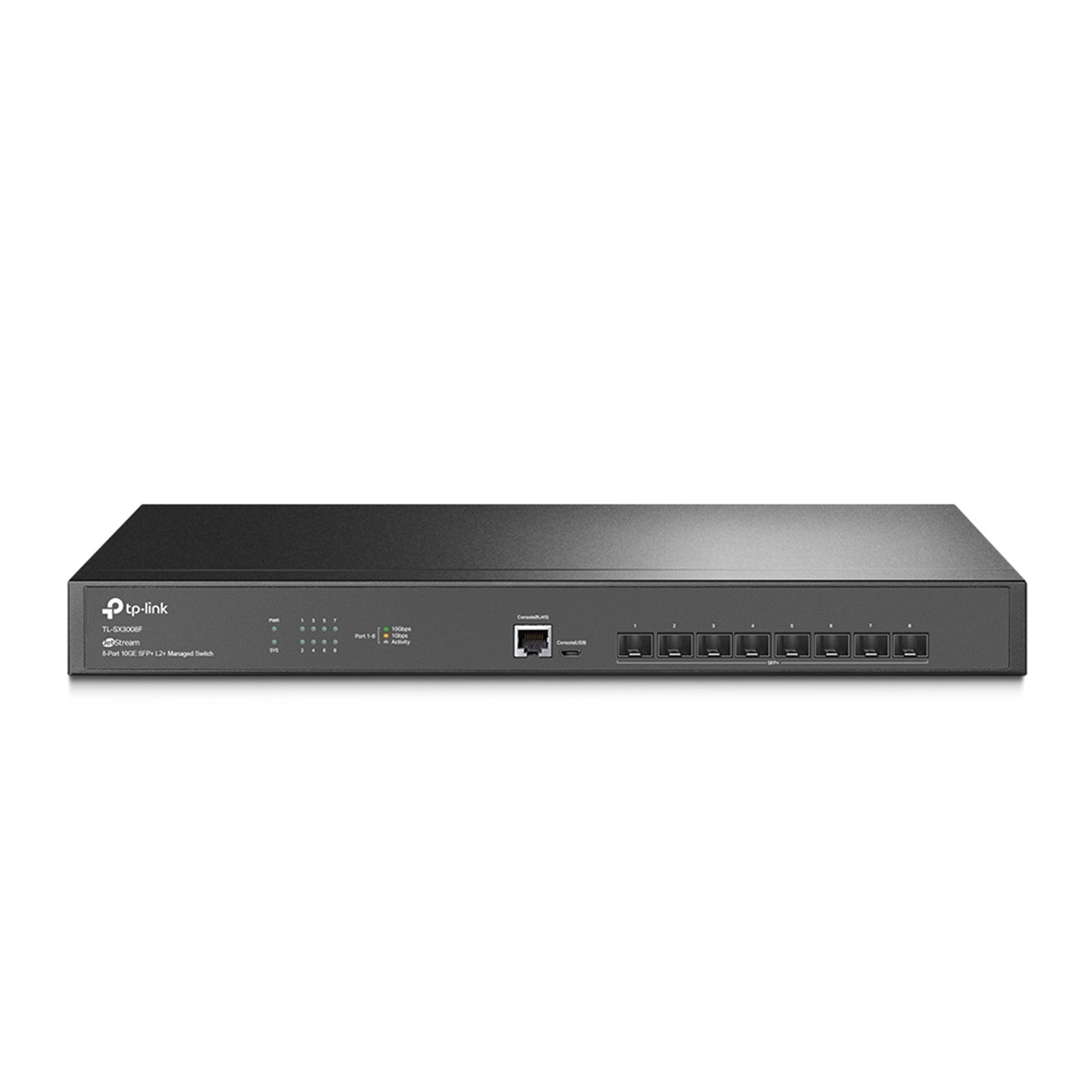

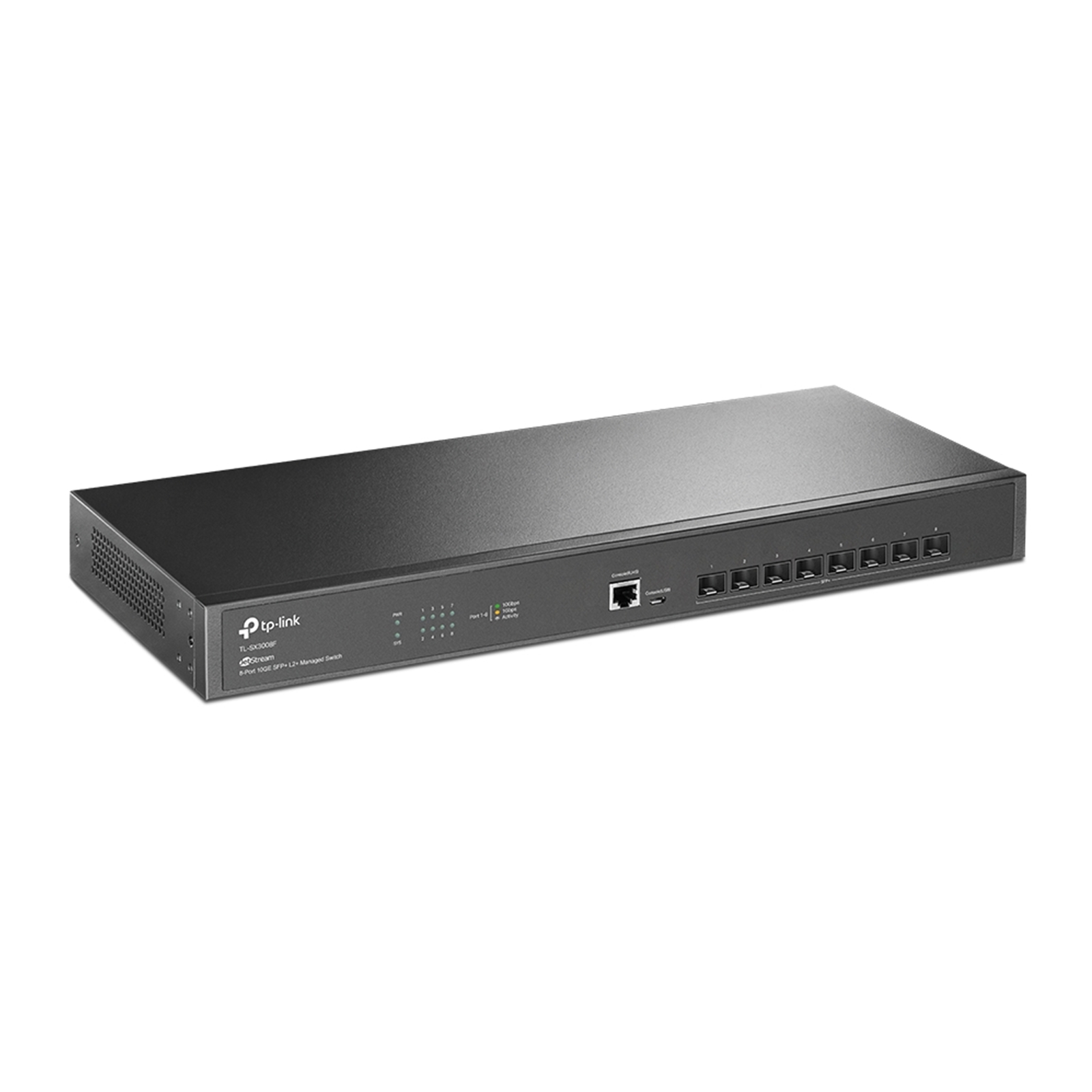

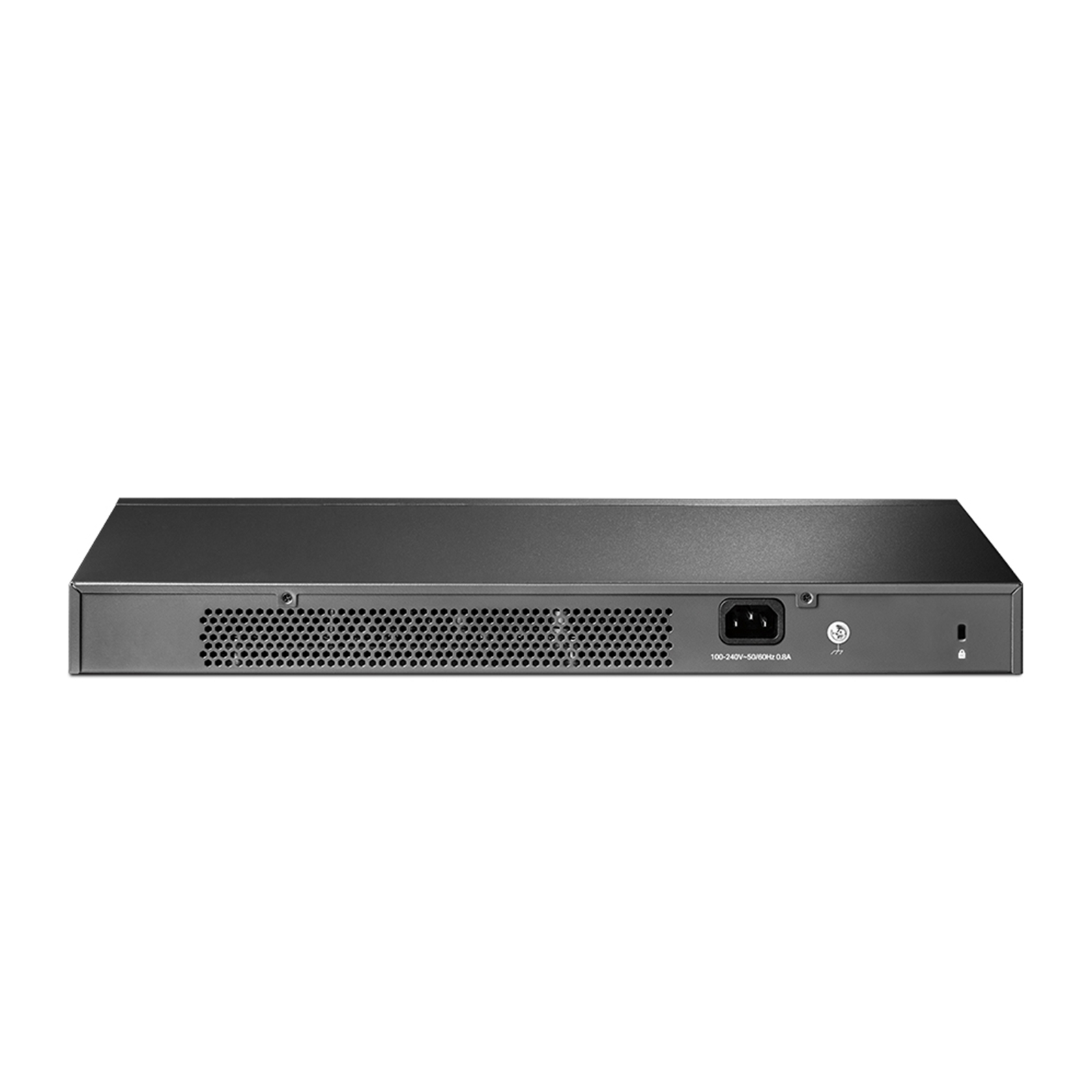

TP-LINK JetStream TL-SX3008F

TP-LINK Logo here

Manufacturer Part Code: TL-SX3008F

Order Code: NPTPL-TLSX3008F

Category: Managed Network Switches

TP-Link Omada TL-SX3008F JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch

Future-Proof Your Business with Full 10G Fiber Switch
JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

Seamless Integration to Omada Cloud SDN
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.

Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.

ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
32000 entries
Switching capacity
160 Gbit/s
Jumbo frames support
Yes
Number of queues
8
Forwarding rate
119.04 Mpps
Packet buffer memory
16 MB
Jumbo frames
9000
Static route
Yes
Certification
CE, FCC, RoHS
Rack mounting
Yes
LED indicators
Yes
Product colour
Black
Power source
AC
AC input frequency
50/60 Hz
AC input voltage
220 V
Power consumption (max)
15.46 W
Power supply included
Yes
Harmonized System (HS) code
85176990
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Switch type
Managed
Traffic classification
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Flow control support
Yes
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
IP routing
Yes
Number of VLANs
4000
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
10G support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Voice VLAN
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
52.75 BTU/h
Package weight
2.37 kg
Cables included
AC
Package depth
250 mm
Package height
80 mm
Package width
528 mm
Manual
Yes
Quick start guide
Yes
Package type
Box
Rack mount kit
Yes
Harmonized System (HS) code
85176990
Console port
RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type
No
SFP+ module slots quantity
8
Power connector
DC-in jack
Power over Ethernet (PoE)
No
Management protocols
SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering
Yes
Static port security
Yes
Access Control List (ACL)
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Authentication type
AAA, TACACS+
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Height
44 mm
Width
440 mm
Depth
180 mm
