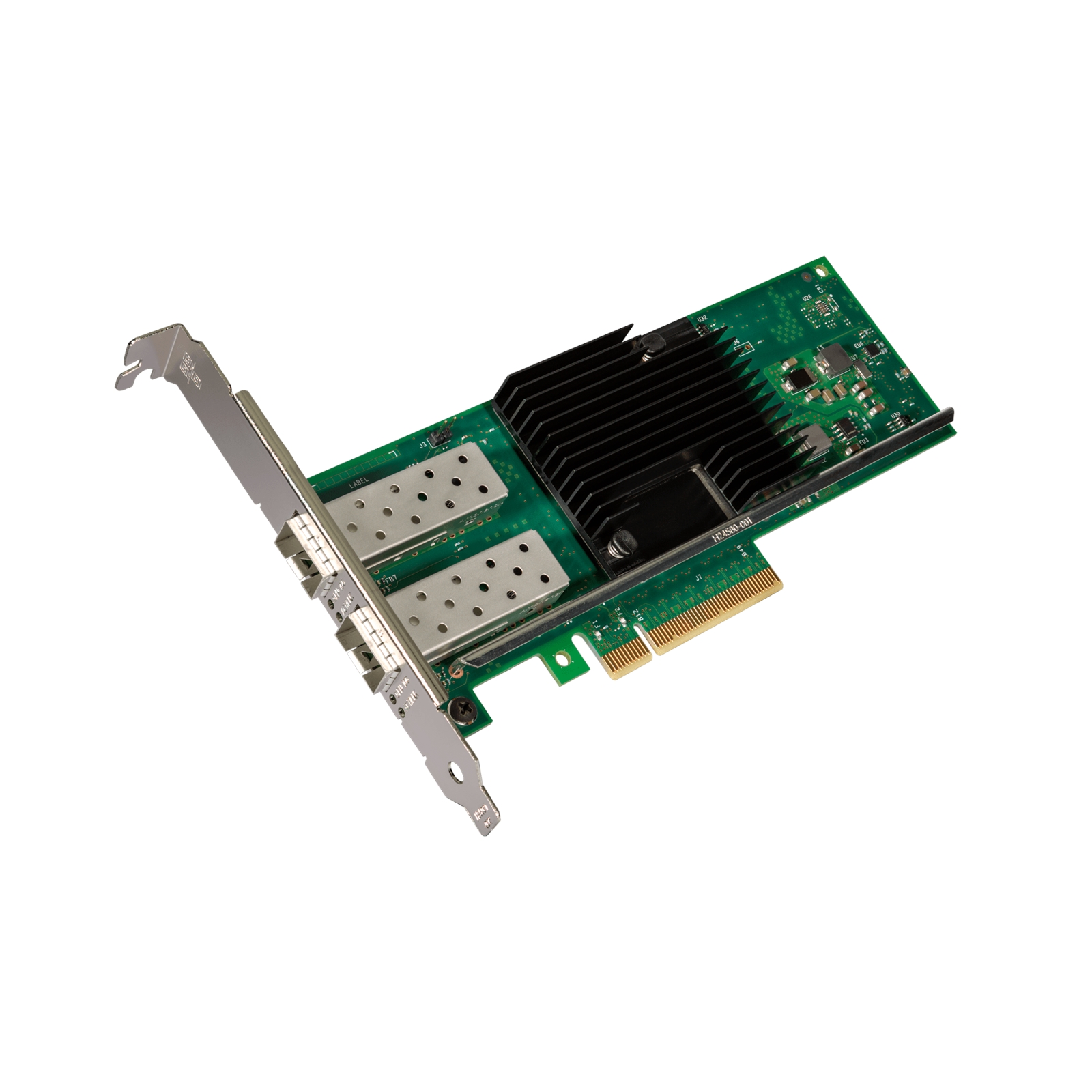

INTEL Ethernet Converged Network Adapter X710-DA2

INTEL Logo here

Manufacturer Part Code: X710DA2

Order Code: NPINT-X710DA2

Category: Network Cards

Intel Ethernet Converged Network Adapter X710-DA2 - Network adapter - PCIe 3.0 x8 low profile - 10 Gigabit SFP+ x 2

Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Internal
Yes
Certification
FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Chipset
X710-AM2
LED indicators
Yes
Product colour
Black, Green
Power consumption (typical)
4.5 W
Harmonized System (HS) code
85176990
Supported network protocols
TCP, UDP, IP
Maximum data transfer rate
10000 Mbit/s
Ethernet LAN
Yes
Networking standards
IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
Maximum operating distance
10 m
LAN controller
Intel® X710
Ethernet LAN data rates
10,1000 Mbit/s
Fiber ethernet cabling technology
10GBASE-LR, 10GBASE-SR
VLAN tagging
Yes
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 55 °C
Storage relative humidity (H-H)
35 - 90%
Management protocols
PXE, SNMP, RMON
Interface type
PCIe v3.0 (8.0 GT/s)
Cable type
SFP+ Direct Attached Twinaxial Cabling up to 10m
Processor family
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Flow control support
Yes
Controller type
Intel® Ethernet Controller X710
Number of VLANs
4096
Cabling type
SFP+ Direct Attached Twinaxial Cabling up to 10m
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel Trusted Execution Technology
No
Embedded options available
No
Intel Virtual Machine Device Queues (VMDq)
Yes
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Intel Flexible Port Partitioning
Yes
Storage-over-ethernet
Yes
Speed & slot width
8.0 GT/s, x8 Lane
Message signal interrupt
No
Low halogen options available
No
Intelligent Offloads
Yes
iWARP/RDMA
No
Fiber Channel over Ethernet
Yes
Intel Ethernet Power Management
Yes
Intel Data Direct I/O Technology
Yes
Number of QPI links
Dual
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Storage Over Ethernet
iSCSI, NFS
Product type
Network Interface Card
Conflict-Free
Yes
Status
Launched
Launch date
Q4''14
Product name
Intel Ethernet Converged Network Adapter X710-DA2
Product brief URL
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf
Born on date
Q4''14
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Last change
64826824
Harmonized System (HS) code
85176990
Product family
Intel 10 Gigabit server adapter
Product series
700 Series Network Adapters (up to 40GbE)
Product codename
Fortville
Target market
Artificial Intelligence, High Performance Computing
Ethernet adapter ARK ID
83964
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Bracket height
Low-Profile (LP) / Full-Height (FH)
Interface
Fiber
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
2
Host interface
PCI Express
Fiber ports quantity
2
Fiber optic connector
SFP+
PCI Card form factor
Full-height (low-profile)
PCI version
3.0
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Linux operating systems supported
RedHat EL Linux 6.0
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Other operating systems supported
FreeBSD
Width
68.6 mm
Depth
167.1 mm
