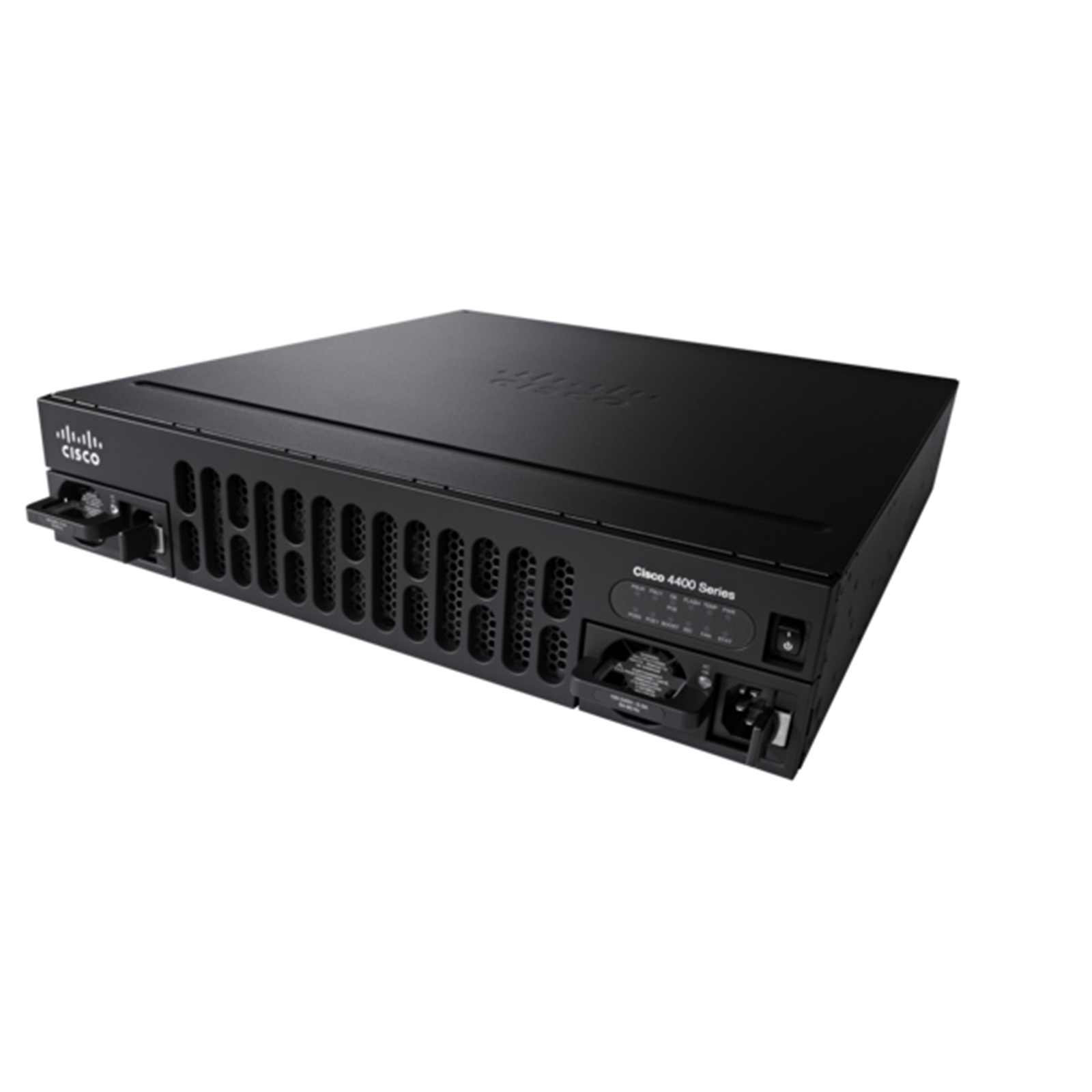

Illustration purposes only

CISCO ISR 4331 Routers

CISCO Logo here

Manufacturer Part Code: ISR4331/K9

Order Code: NPCIS-ISR4331

Category: Wired Routers

ISR 4331

Cisco 4000 Family Integrated Services Routers (ISRs) form an intelligent WAN platform that delivers the performance, security, and convergence capabilities that today's branch offices need.

The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.

The Cisco 4000 Family contains five platforms: the 4451-X, 4431, 4351, 4331, and 4321 ISRs.

Cisco 4000 Family ISRs provide you with Cisco® Intelligent WAN (IWAN) software features and a converged branch infrastructure. Along with superior throughput, these capabilities form the building blocks of next-generation branch-office WAN solutions.

Cisco Intelligent WAN (IWAN)
Cisco IWAN is a set of intelligent software services that allow you to reliably and securely connect users, devices, and branch office locations across a diverse set of WAN transport links. IWAN-enabled routers like the ISR 4000 dynamically route traffic across the ?best? link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business.

Cisco Converged Branch Infrastructure
The Cisco 4000 Series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services, including encryption, traffic management, and WAN optimization, without slowing your data throughput. And you can activate new services on demand through a simple licensing change.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Safety
UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1, GB-4943
Rack mounting
Yes
LED indicators
Yes
Product colour
Black
Rack mounting
Y
Form factor
1U
Rack capacity
1U
LED indicators
Y
Colour of product
Black
On/off switch
Yes
Rack capacity
1U
On/off switch
Y
DSL connection type
N
Power consumption (typical)
42 W
Power supply
250 W
Power consumption (typical)
42 W
Input current
3 A
Power supply
250 W
Power source type
AC, DC
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
Input current
3 A
Power source type
AC, DC
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
Full duplex
N
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN connection
Y
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Internal memory
4000 MB
Flash memory
4000 MB
Safety
UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1, GB-4943
Internal memory
4000 MB
Flash memory
4000 MB
Safety
UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1, GB-4943
Maximum memory card size
16 GB
Maximum memory card size
16 GB
Harmonized System (HS) code
85176990
Quality of Service (QoS) support
Yes
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Y
Web-based management
Y
Reset button
Y
Internal memory
4000 MB
Flash memory
4000 MB
Data network
Not supported
Full duplex
No
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Networking standards
IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah
Full duplex
N
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Y
Networking standards
IEEE 802.1ag,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ah
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Operating altitude
0 - 3050 m
Operating relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 4750 m
Operating altitude
0 - 3050 m
Operating relative humidity range
5 - 85%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
5 - 95%
Non-operating altitude
0 - 4750 m
Package depth
571.5 mm
Package height
181 mm
Package width
577.9 mm
Package depth
571.5 mm
Packaging depth
571.5 mm
Package height
181 mm
Packaging height
181 mm
Package width
577.9 mm
Packaging width
577.9 mm
Internal memory
4000 MB
Flash memory
4000 MB
Maximum memory card size
16 GB
Ethernet LAN (RJ-45) ports
5
DC-in jack
Yes
RS-232 ports
2
WAN connection
Ethernet (RJ-45)
USB version
2.0
Ethernet LAN (RJ-45) ports quantity
5
DC-in jack
Y
USB ports quantity
2
RS-232 ports
2
USB version
2.0
USB ports quantity
2
Routing protocols
BGP, EIGRP, IS-IS, OSPF
DHCP client
0 - 40 °C
Routing protocols
BGP,EIGRP,IS-IS,OSPF
Firewall security
IPSec, EZVPN, DMVPN, FlexVPN
Firewall security
IPSec, EZVPN, DMVPN, FlexVPN
Firewall
Yes
Firewall
Y
Rack mounting
Y
Form factor
1U
LED indicators
Y
Colour of product
Black
Harmonized System (HS) code
85176990
On/off switch
Y
Ethernet WAN
Yes
Ethernet WAN
Y
Height
44.5 mm
Weight
5 kg
Width
438.1 mm
Depth
438.1 mm
Height
44.5 mm
Width
438.1 mm
Depth
438.1 mm
Packaging depth
571.5 mm
Packaging height
181 mm
Packaging width
577.9 mm
Dual-band
No
Dual-band
N
