Switch Modules | ZYXEL SFP-SX-D 1000BaseSX SFP Module | 91-010-204001B | ServersPlus

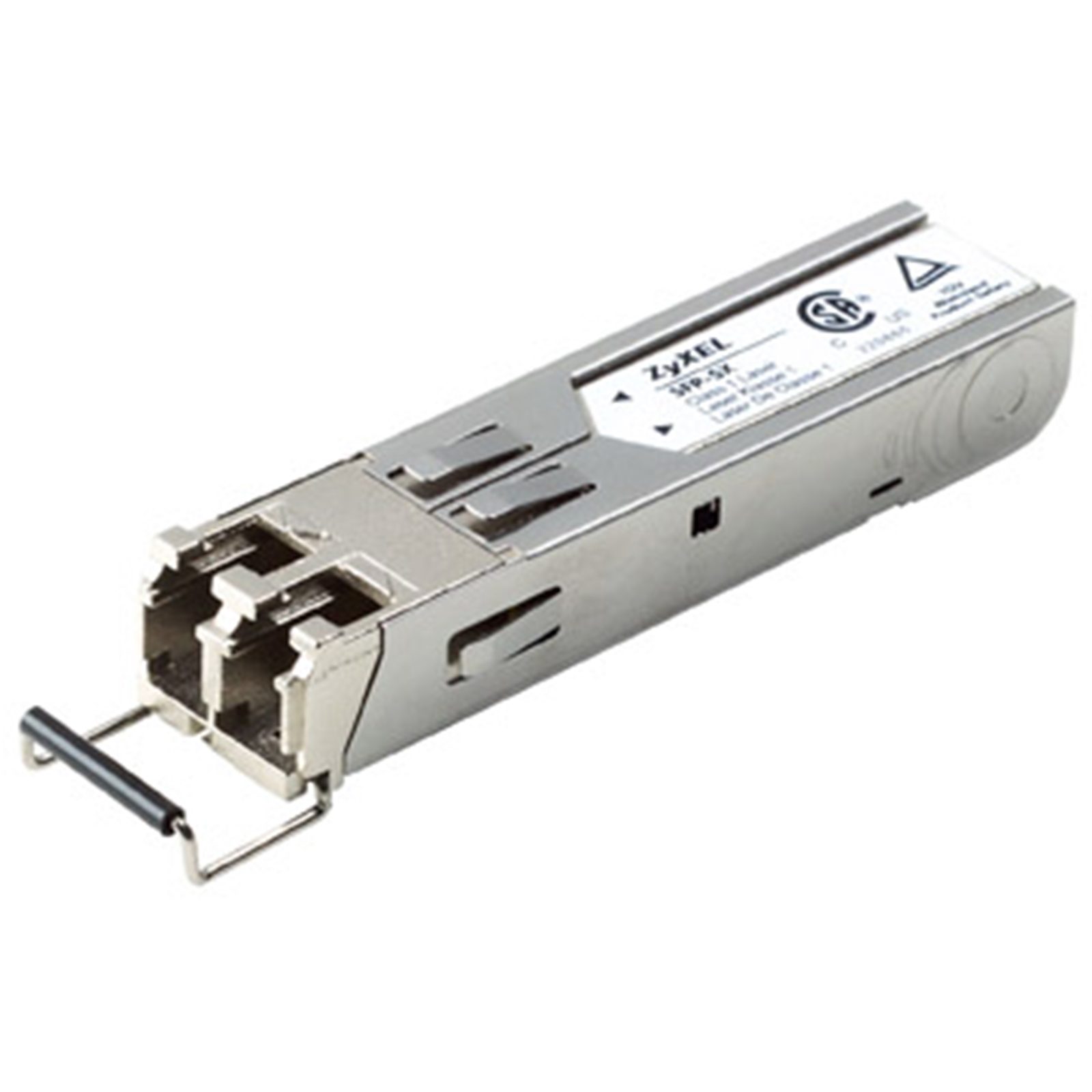

Illustration purposes only

ZYXEL SFP-SX-D 1000BaseSX SFP Module

ZYXEL Logo here

Manufacturer Part Code: 91-010-204001B

Order Code: NPZYX-9101020400

Category: Switch Modules

SFP-SX-D 1000BaseSX SFP Module

SFP ports mean flexibility. The flexibility to choose which fiber you want to run and what sort of distance you need. They save money by allowing you to use existing fiber so you don't have to run more. Instead of buying a switch with built-in fiber ports, buy a switch with SFP ports that allows you to choose what type of fiber transceiver you want to use on a port-by-port basis.
- Gigabit Performance Transmission and Flexibility
- Small Size and High Port Density
- Industry Standard-based Compliance

Gigabit Speed and Flexibility
ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.

Small Size and High Port Density
ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links - all at an affordable price.

Industry Standards-based Compliance
ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Safety
Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11
Harmonized System (HS) code
85369010
Cabling technology
1000Base-LHX
Maximum data transfer rate
1000 Mbit/s
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
0 - 70 °C
Dimensions (WxDxH)
56 x 13.4 x 12.46 mm
Form factor
Plug-in
Wavelength
850 nm
Maximum transfer distance
550 m
Harmonized System (HS) code
85369010
Height
12.5 mm
Width
56 mm
Depth
13.4 mm
