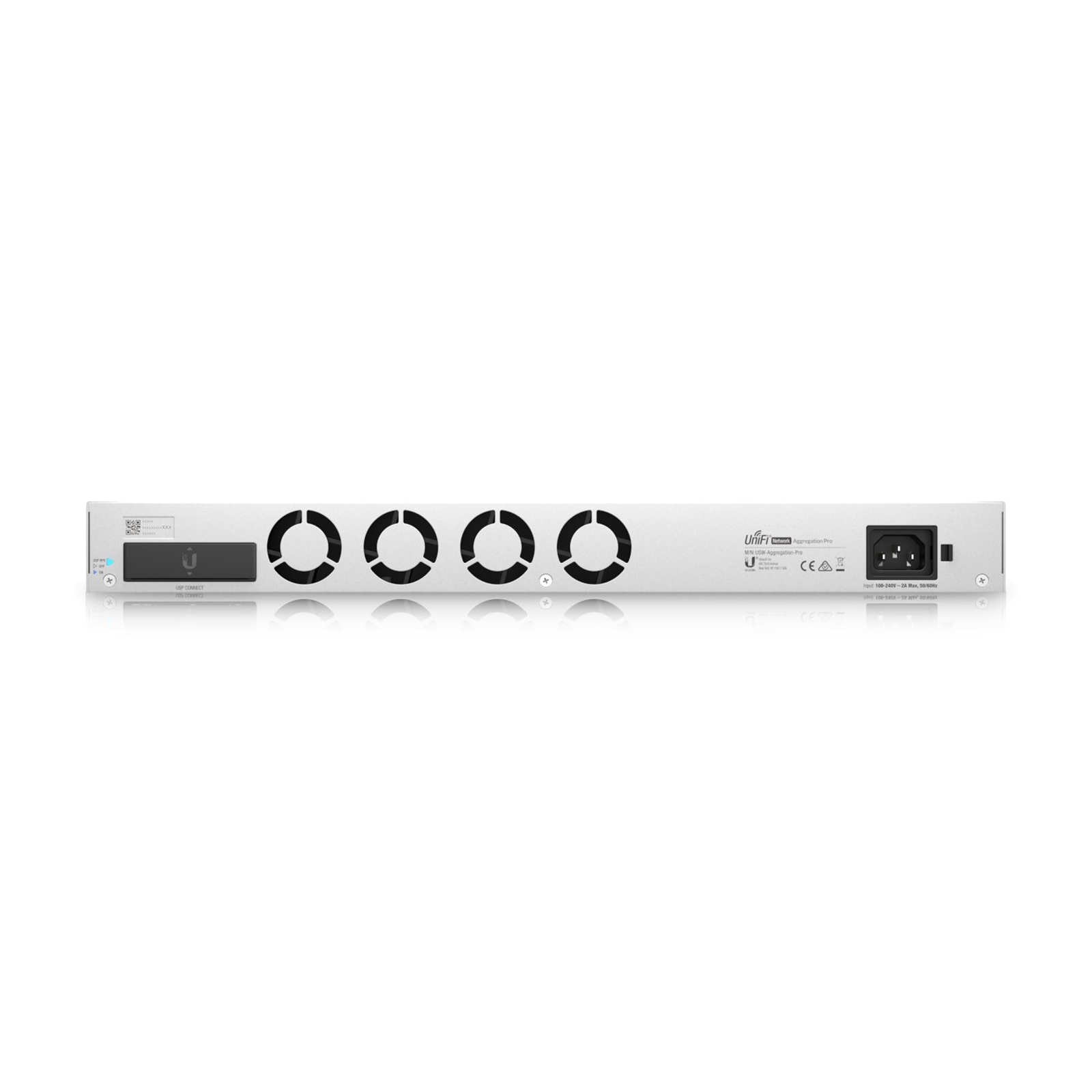

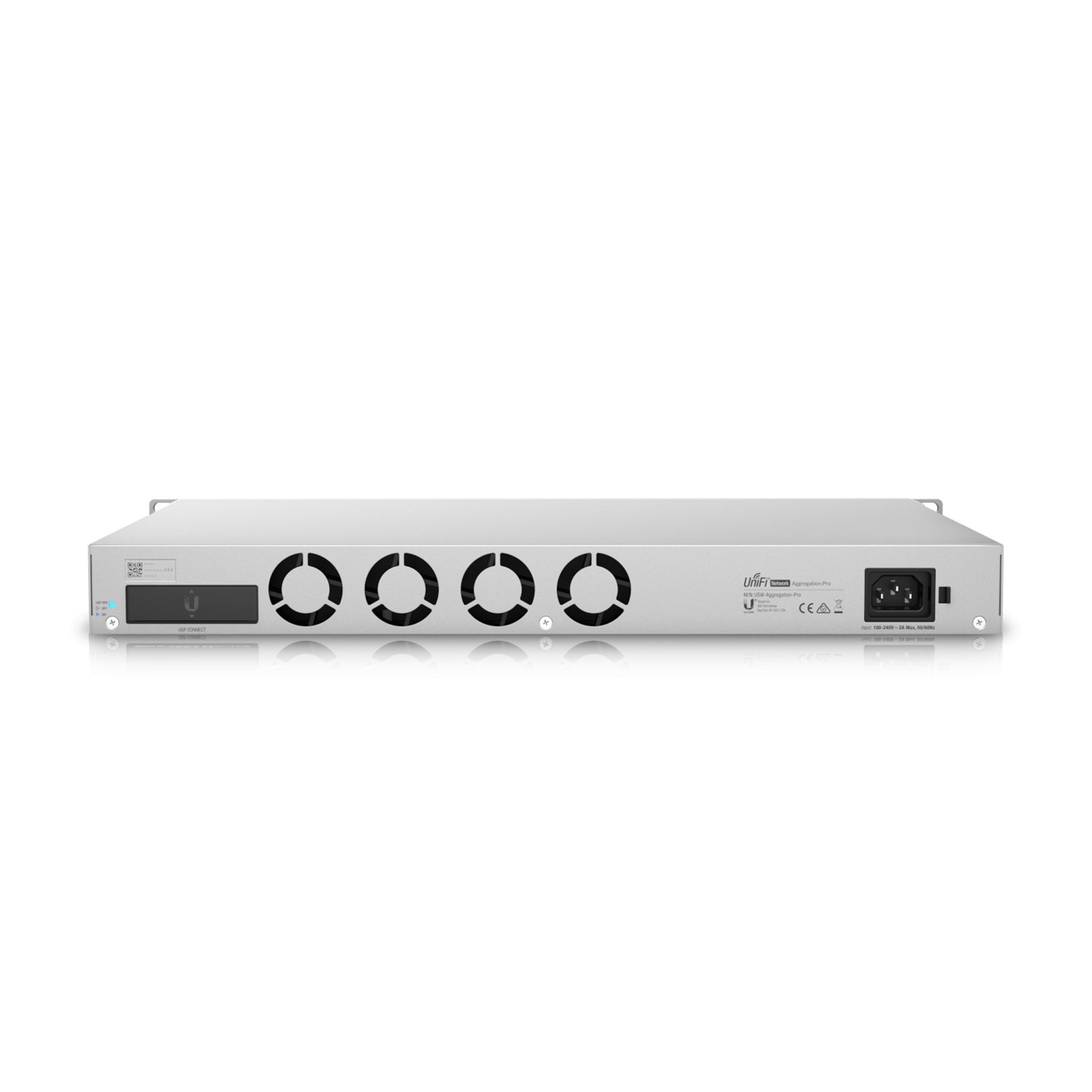

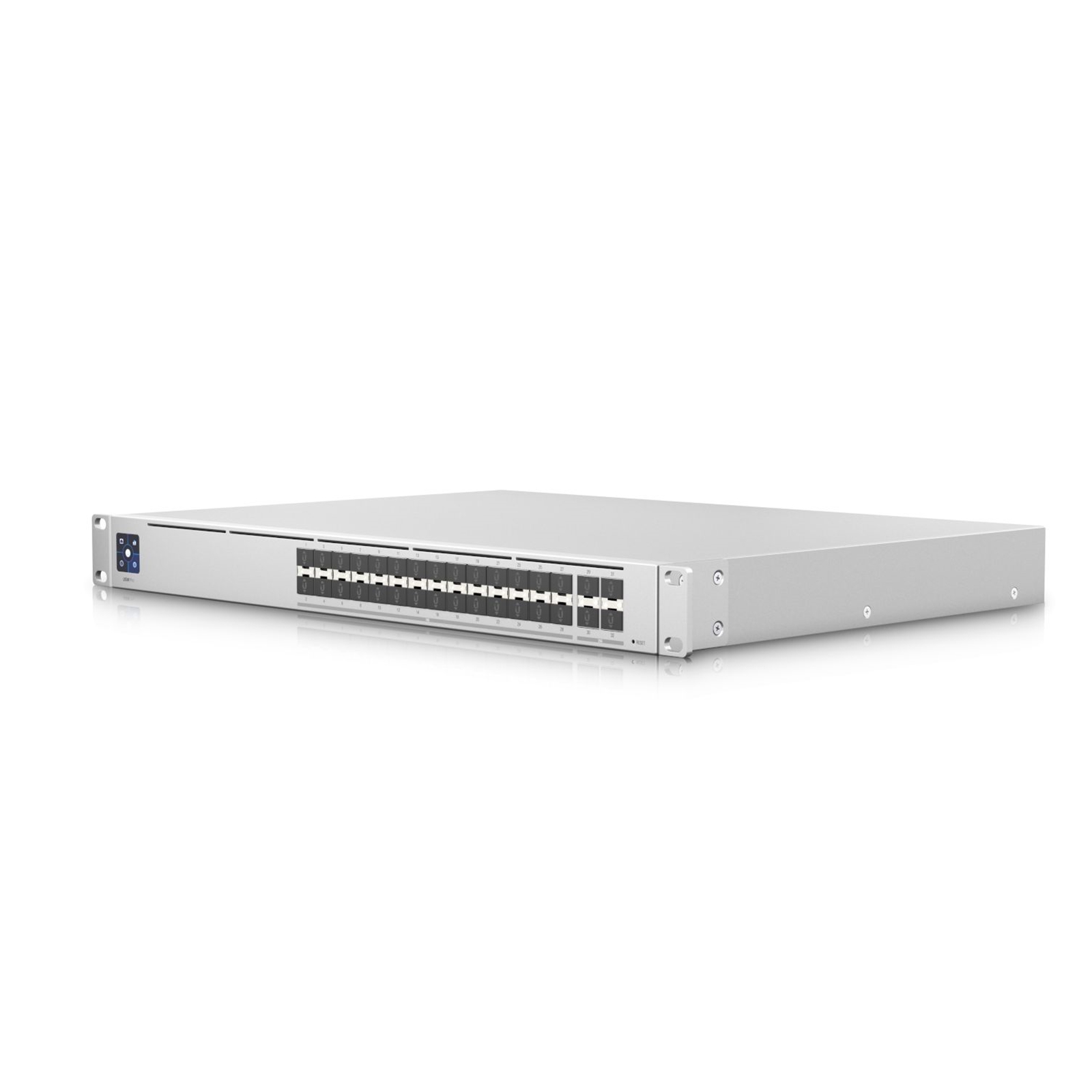

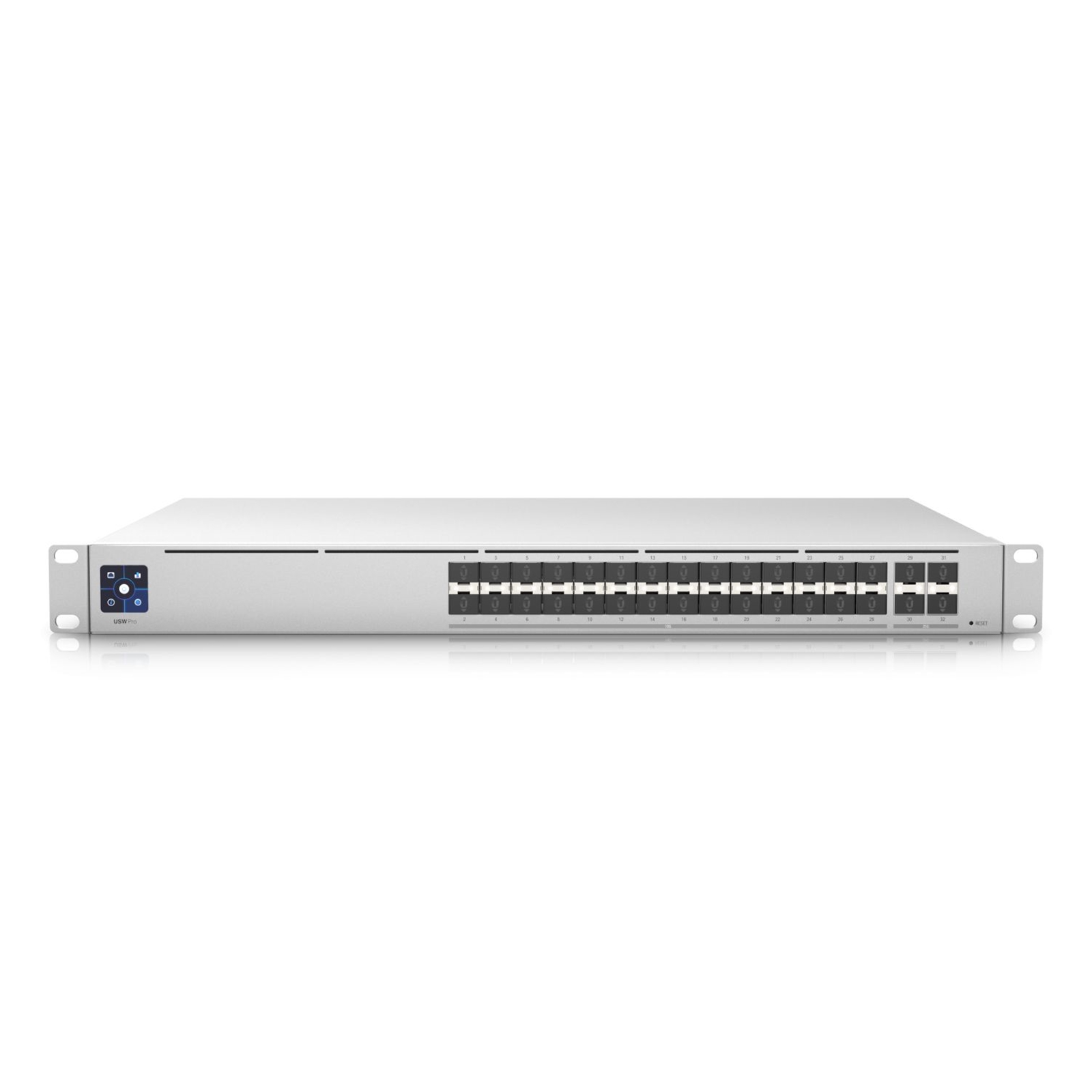

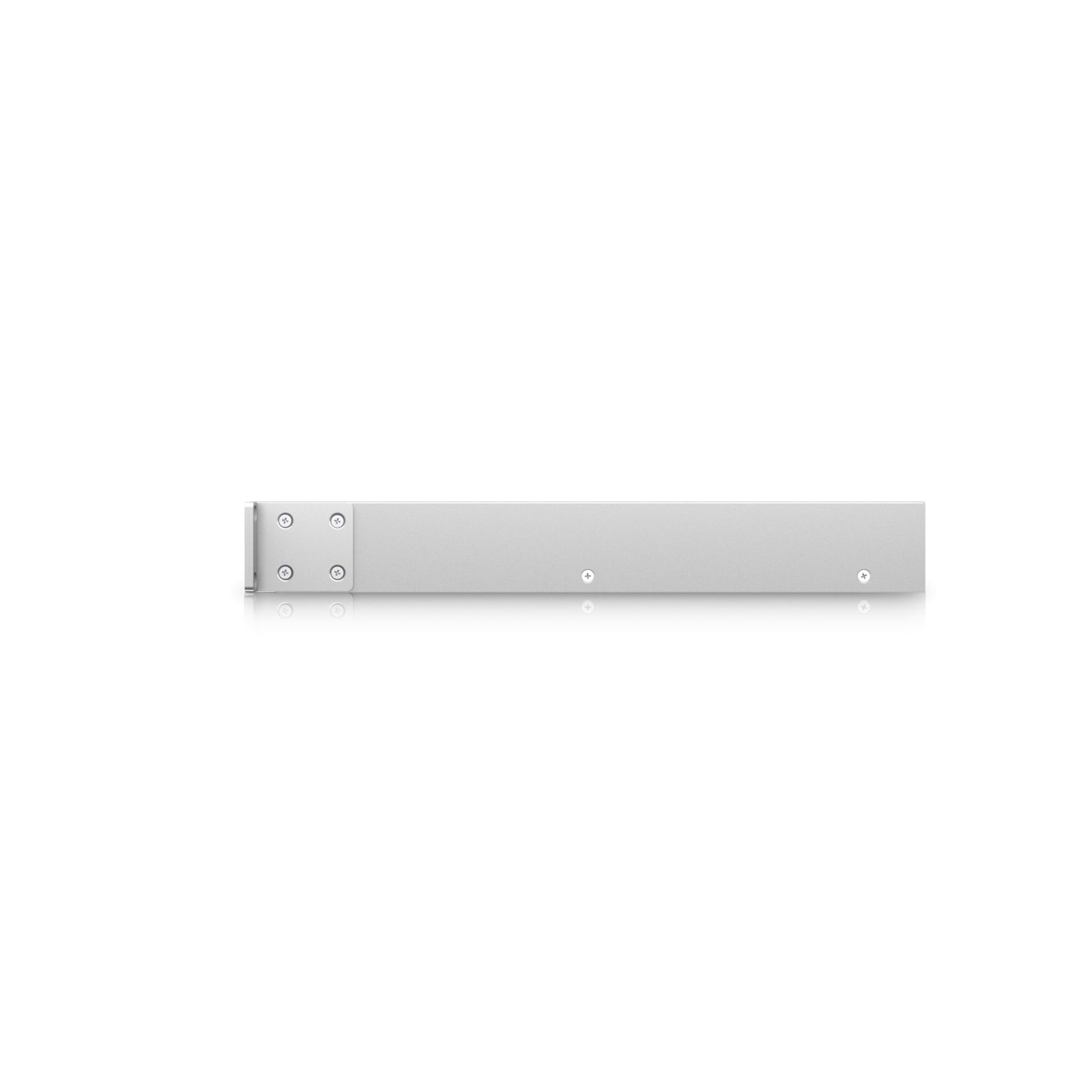

Illustration purposes only

Ubiquiti USW-PRO-AGGREGATION UniFi Switch Pro Aggregation, 28x 10G SFP+ Ports, 4x 25G SFP28+ Ports,

Ubiquiti Logo here

Manufacturer Part Code: USW-PRO-AGGREGATION

Order Code: NPUBI-USWPAGGR

Category: Switch Finder

Ubiquiti USW-PRO-AGGREGATION UniFi Switch Pro Aggregation, 28x 10G SFP+ Ports, 4x 25G SFP28+ Ports, 760 Gbps Switching, 565.44 Mbps Forwarding, 380 Gbps Non-Blocking Throughput

Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports.

The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features
(1) 1.3" LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Switching capacity
760 Gbit/s
Forwarding rate
565.44 Mpps
Throughput
380 Mpps
Static route
Yes
LED indicators
Yes
Product colour
Grey
Number of fans
4 fan(s)
Housing material
Steel
Input current
2 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
DC input voltage
11.5 V
Power consumption (max)
100 W
Power supply included
Yes
Harmonized System (HS) code
85176990
Switch layer
L3
Switch type
Managed
Port mirroring
Yes
Link aggregation
Yes
VLAN support
Yes
10G support
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 40 °C
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
No
SFP+ module slots quantity
28
Power connector
DC-in jack
SFP28 ports quantity
4
Power over Ethernet (PoE)
No
DHCP features
DHCP server
Weight
4.6 kg
Height
44 mm
Width
442 mm
Depth
325 mm
