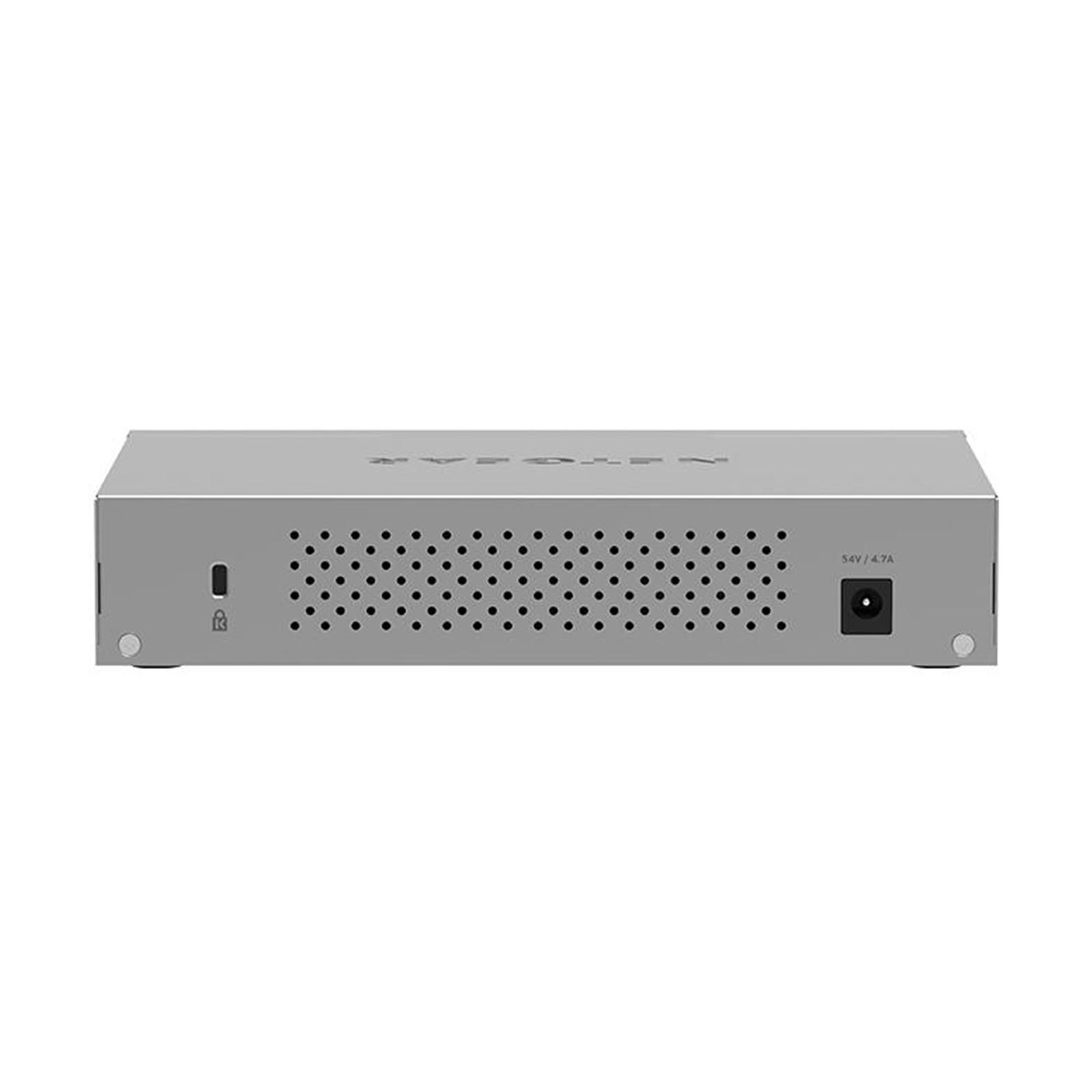

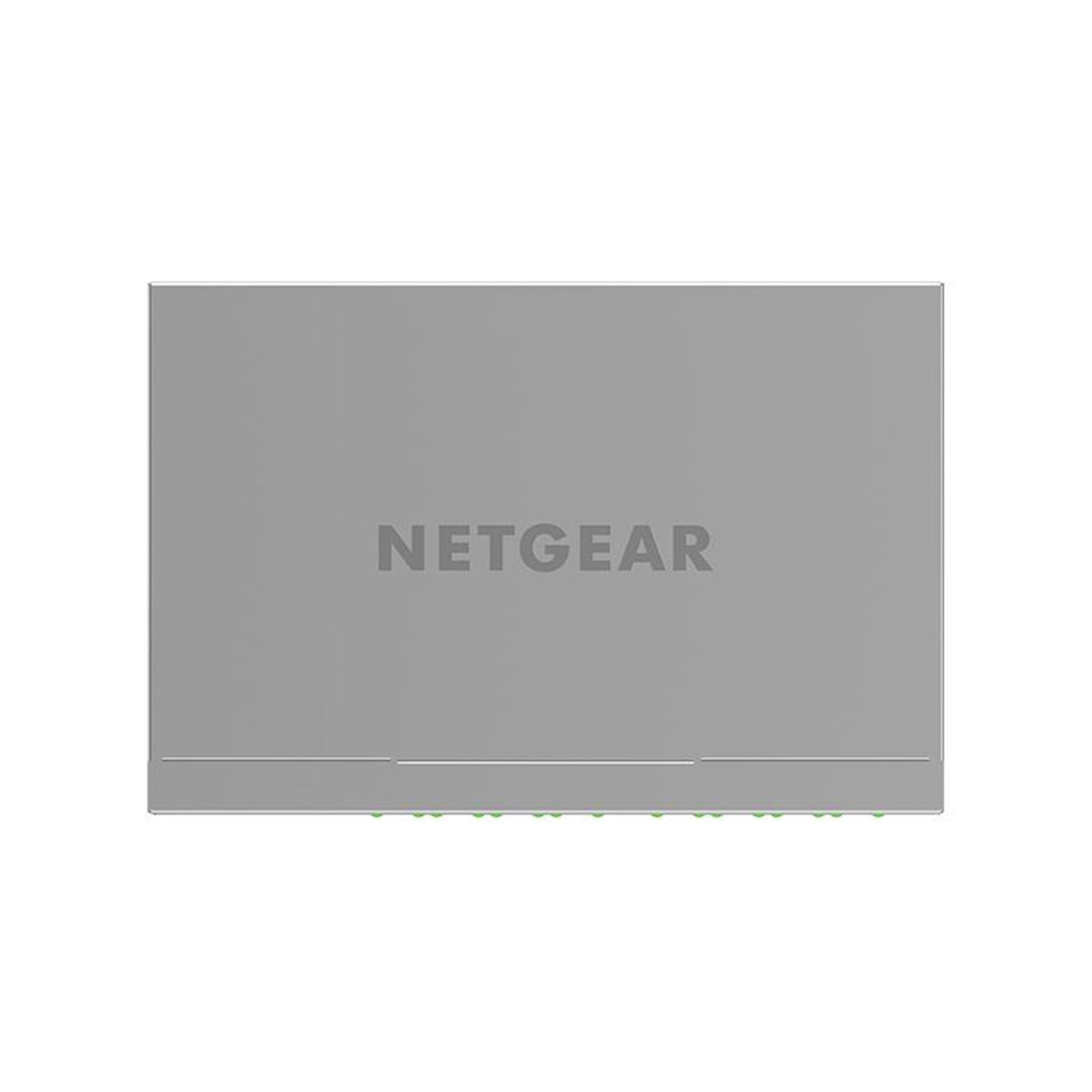

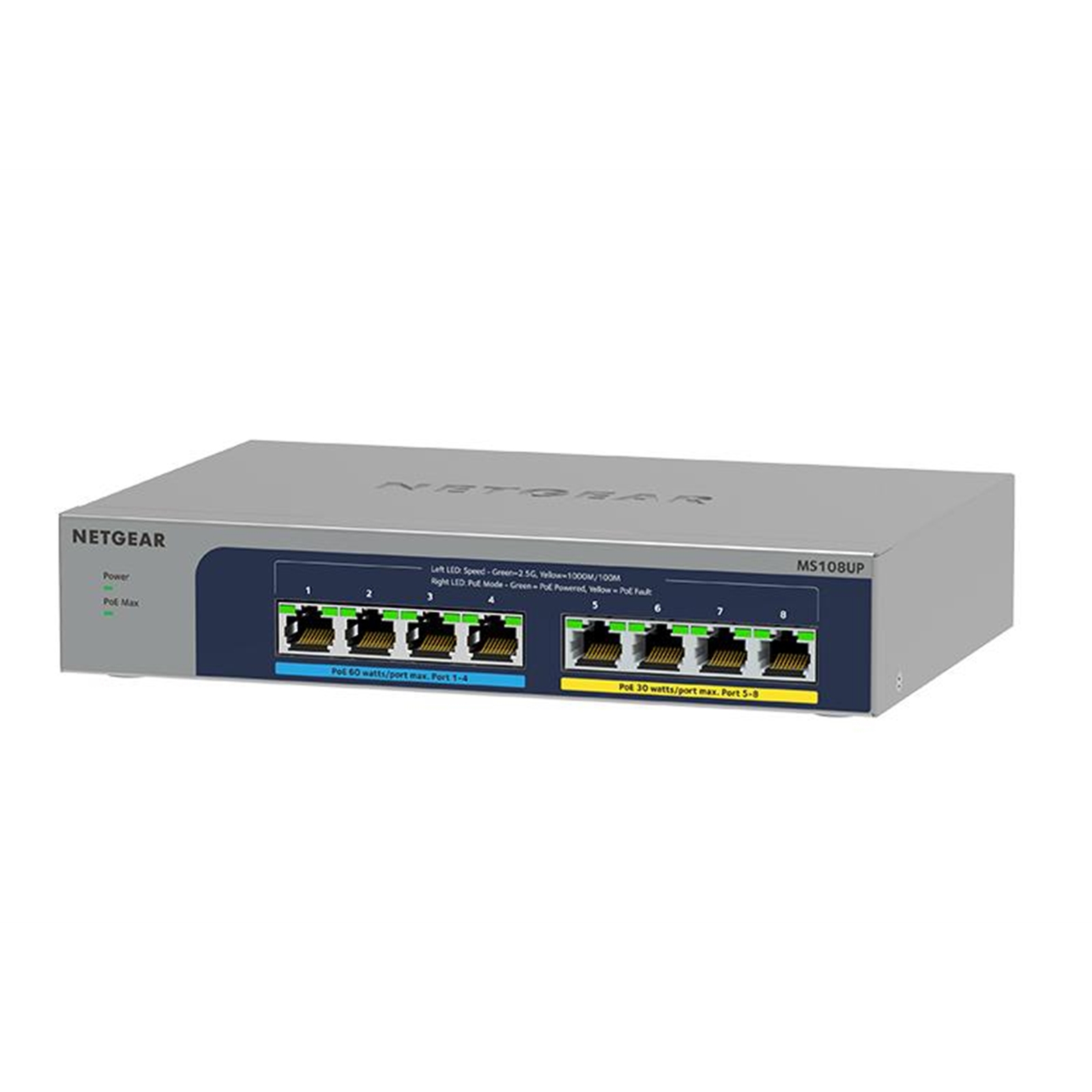

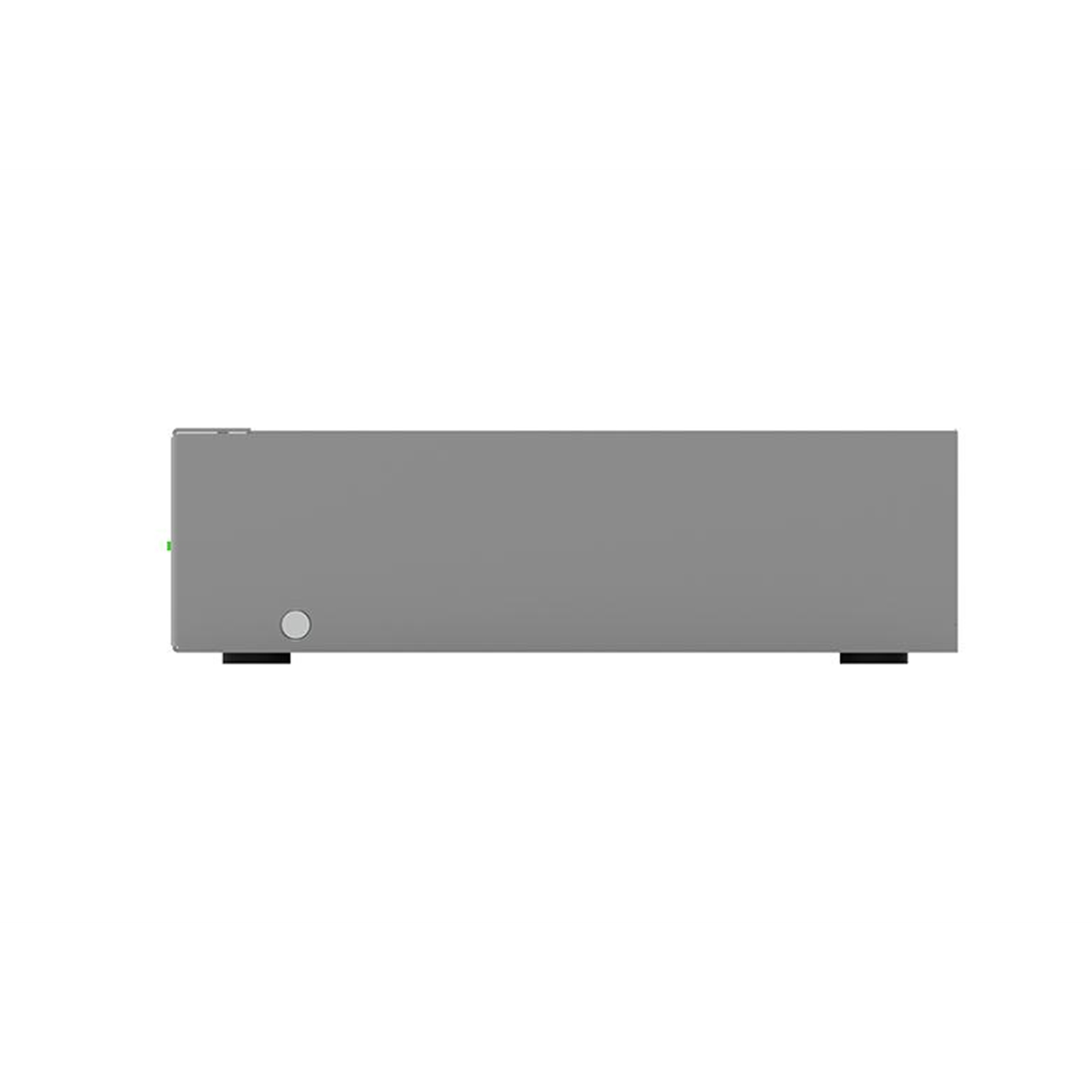

NETGEAR 8-Port POE++ MULTIGIG Unmanaged Switch - MS108UP

NETGEAR Logo here

Manufacturer Part Code: MS108UP-100EUS

Order Code: NPNET-MS108UP100

Category: Unmanaged Switches

8-Port POE++ MULTIGIG Unmanaged Switch

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
40 Gbit/s
Jumbo frames support
Yes
Packet buffer memory
1.5 MB
Latency (1 Gbps)
3.593 µs
Packet forwarding rate (1 Gbps)
1488000 pps
Jumbo frames
12000
Certification
CB, CSA, CCC, BSMI, RCM
Rack mounting
No
Electromagnetic compatibility
CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
LED indicators
Activity, Link, PoE, Power
Wall mountable
Yes
Housing material
Metal
Power source
DC
Input current
4.7 A
DC input voltage
54 V
Power supply included
Yes
Harmonized System (HS) code
85176990
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Full duplex
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates
100,1000,2500 Mbit/s
Auto MDI/MDI-X
Yes
Number of VLANs
64
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
10G support
No
Auto-sensing
Yes
Half duplex
Yes
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Heat dissipation
923.49 BTU/h
Mean time between failures (MTBF)
373643.7 h
Fanless
Yes
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity
8
2.5G Ethernet (copper) ports quantity
8
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
230 W
Weight
900 g
Height
40 mm
Width
210 mm
Depth
140 mm
