Aruba Wireless Access Points | Aruba AP-375 (RW) OUTDOOR 11AC AP | JZ172A | ServersPlus
Aruba JZ172A | serversplus.comAruba JZ172A | serversplus.comAruba JZ172A | serversplus.com

Illustration purposes only

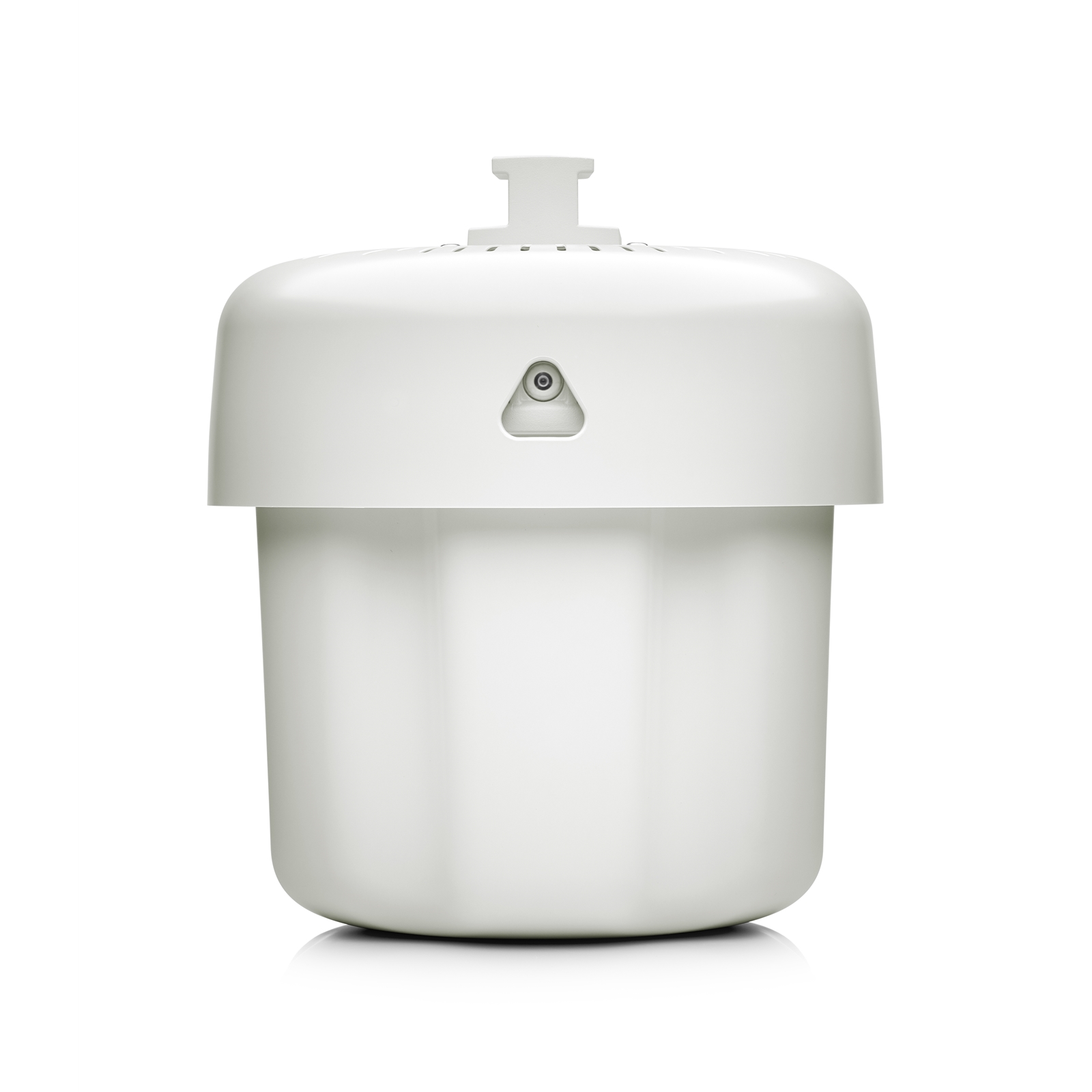

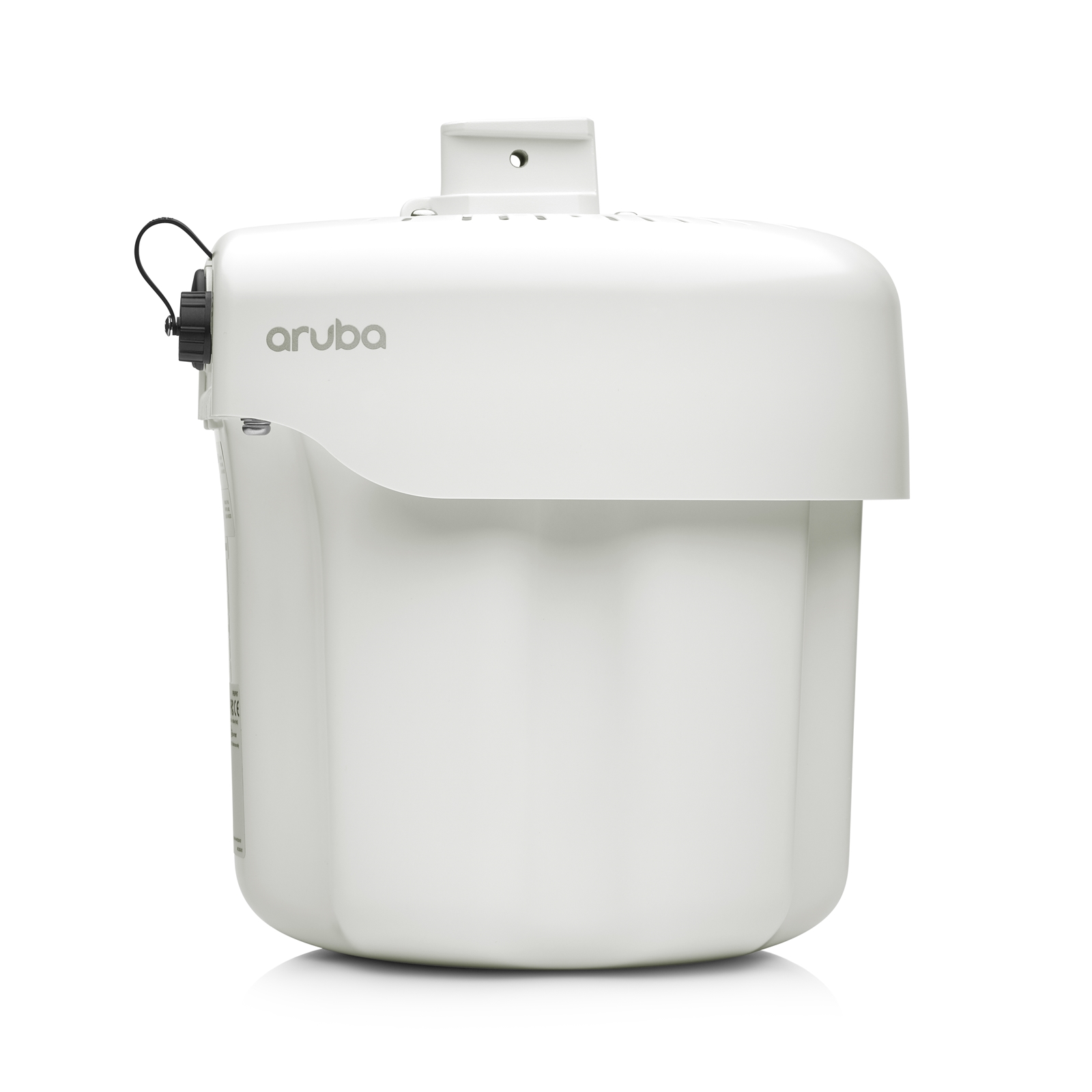

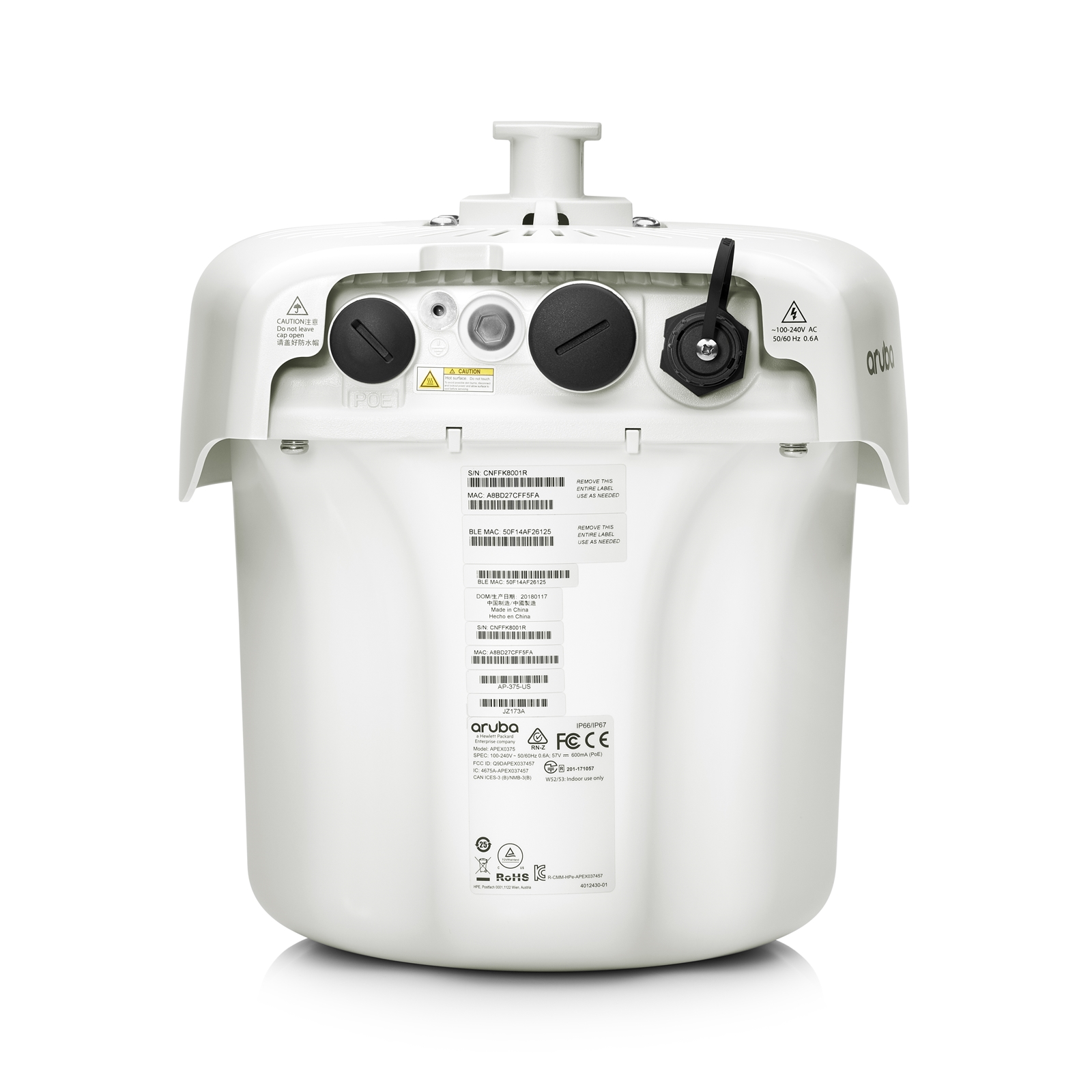

Aruba AP-375 (RW) OUTDOOR 11AC AP

Aruba Logo here

Manufacturer Part Code: JZ172A

Order Code: NPHEW-JZ172A

Category: Aruba Wireless Access Points

AP-375 (RW) OUTDOOR 11AC AP

Weatherproof and temperature hardened, Aruba 370 series access points deliver 802.11ac Wave 2 Gigabit Wi-Fi to outdoor and environmentally challenging locations.

Delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and an integrated Bluetooth beacon to enable Aruba location services. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Antenna gain level (max)
4.6 dBi
Antenna type
Internal
Antenna gain level (max)
4.6 dBi
Antenna features
Integrated antenna
Antenna direction type
Omni-directional
Antenna design
Integrated antenna
Antenna direction type
Omni-directional
Channel bandwidth
160 MHz
Data transfer rate (max)
2033 Mbit/s
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Cable lock slot
Yes
Product colour
White
Cable lock slot
Y
Colour of product
White
Placement
Ceiling, Wall
Cable lock slot type
Kensington
Placement
Ceiling, Wall
Cable lock slot type
Kensington
Power over Ethernet (PoE)
Yes
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
23 W
Input frequency
50/60 Hz
Power over Ethernet (PoE) Support
Y
Power consumption (max)
23 W
Maximum data transfer rate
2033 Mbit/s
Channel bandwidth
160 MHz
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Spread spectrum method
DSSS, OFDM
Number of users
256 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az
Quality of Service (QoS) support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum data transfer rate
2033 Mbit/s
Channel bandwidth
160 MHz
Modulation
16-QAM,64-QAM,256-QAM,BPSK,CCK,QPSK
Spread spectrum method
DSSS,OFDM
Number of users
256 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3at,IEEE 802.3az
Auto MDI/MDI-X
Yes
2.4 GHz
Yes
5 GHz
Yes
MIMO
Yes
Quality of Service (QoS) support
Y
MIMO type
Multi User MIMO
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
1733 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Y
2.4 GHz
Y
5 GHz
Y
MIMO
Y
MIMO type
Multi User MIMO
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
1733 Mbit/s
Harmonized System (HS) code
85176990
Quality of Service (QoS) support
Y
Spread spectrum method
DSSS,OFDM
Number of users
256 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3at,IEEE 802.3az
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-40 - 65 °C
Operating altitude
0 - 3000 m
Operating relative humidity range
5 - 95%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
-40 - 65 °C
Data transfer rate (max)
2033 Mbit/s
Channel bandwidth
160 MHz
Modulation
16-QAM,64-QAM,256-QAM,BPSK,CCK,QPSK
Spread spectrum method
DSSS,OFDM
Number of users
256 user(s)
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3at,IEEE 802.3az
Quality of Service (QoS) support
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Y
2.4 GHz
Y
5 GHz
Y
MIMO
Y
MIMO type
Multi User MIMO
USB connector type
Micro-USB
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB connector type
Micro-USB
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports quantity
1
DHCP client
-40 - 65 °C
Security algorithms
Not supported
Security algorithms supported
Not supported
Cable lock slot
Y
Height
270 mm
Input voltage
100 - 240 V
Harmonized System (HS) code
85176990
Weight
2.4 kg
Height
270 mm
Weight
2.4 kg
Width
230 mm
Depth
240 mm
Height
270 mm
Width
230 mm
Depth
240 mm
Antenna type
Internal
Modulation
16-QAM,64-QAM,256-QAM,BPSK,CCK,QPSK
Antenna gain level (max)
4.6 dBi
