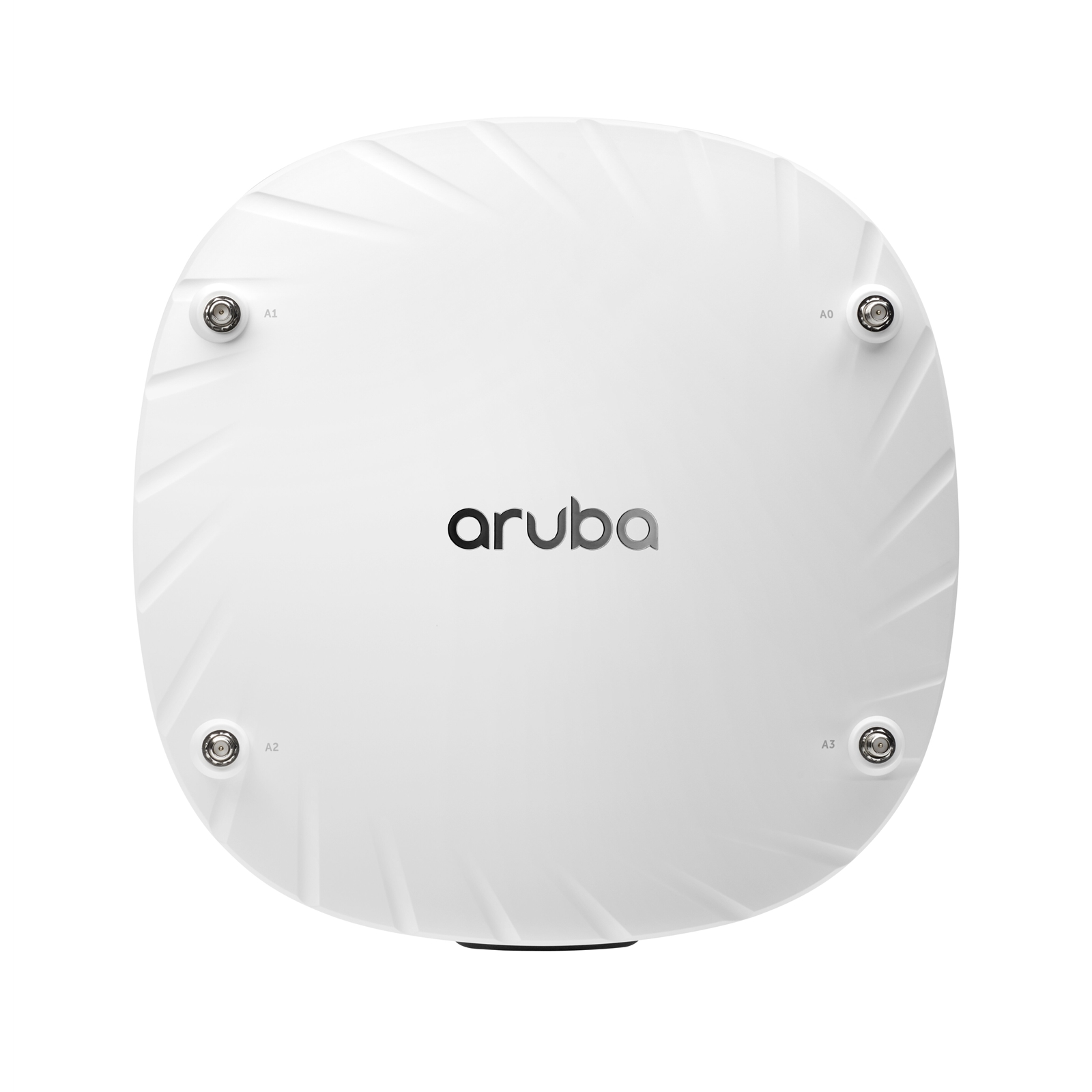

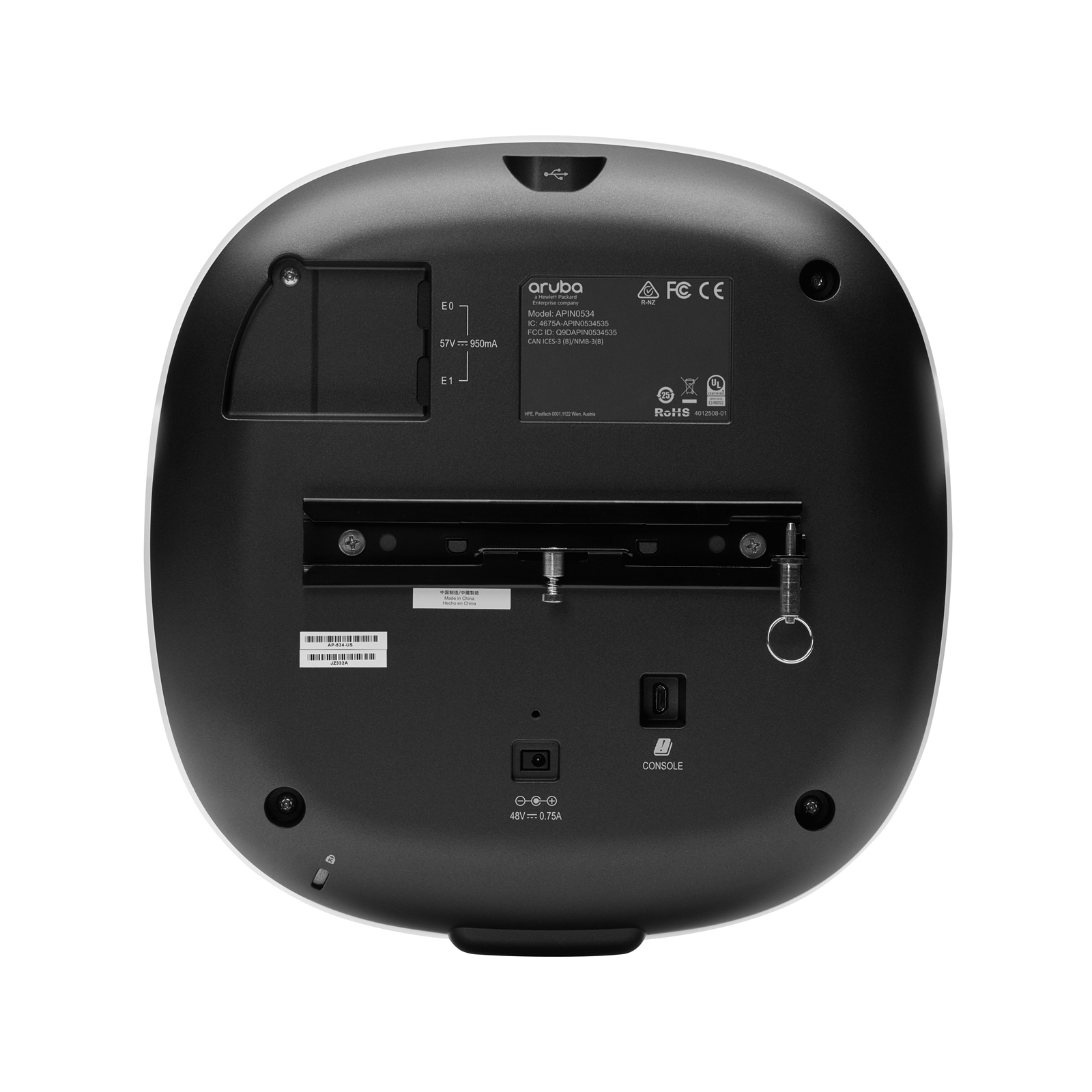

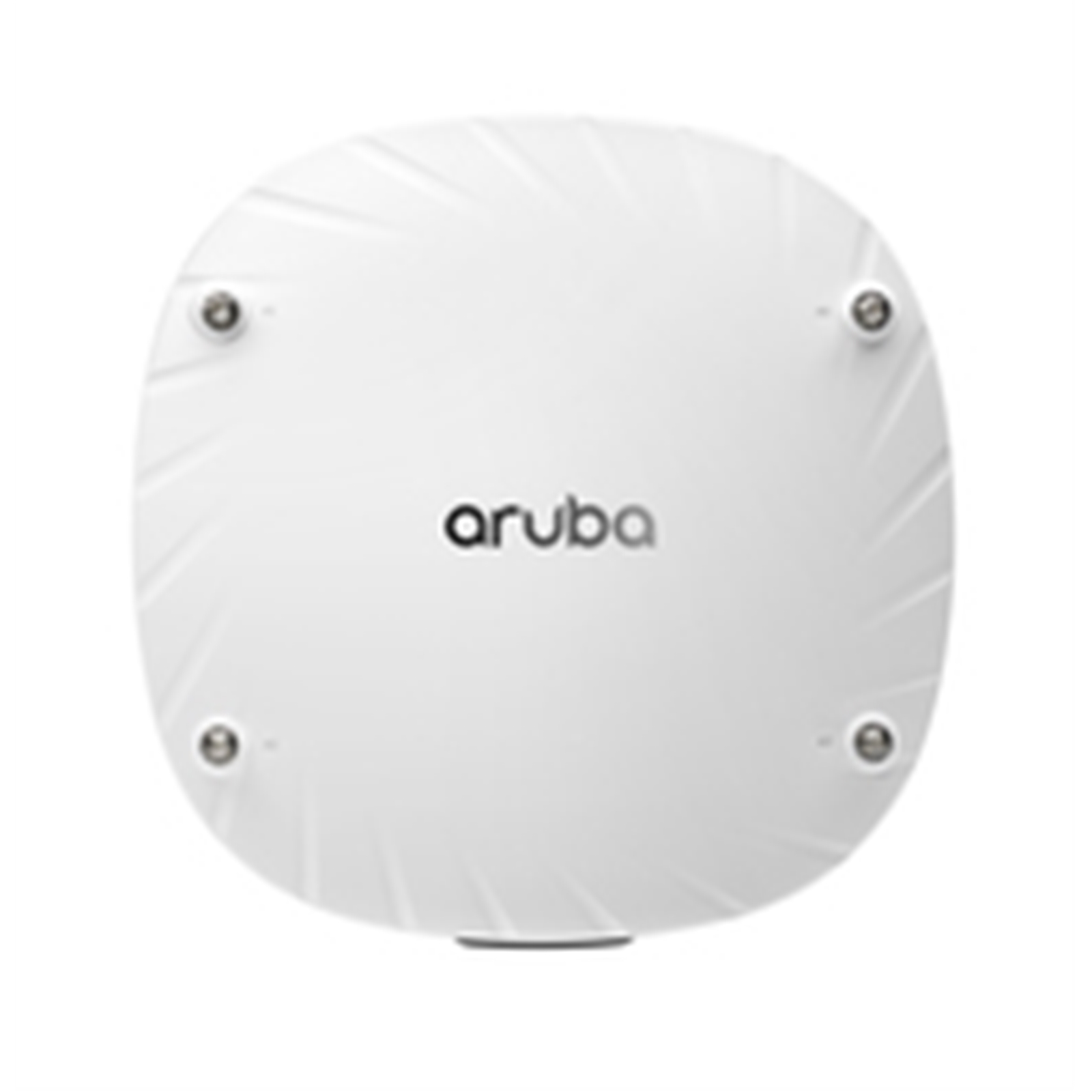

Aruba AP-534 (RW) WiFi 6 Campus Radio Access Point - JZ331A

Aruba Logo here

Manufacturer Part Code: JZ331A

Order Code: NPARU-JZ331A

Category: Aruba Wireless Access Points

HPE Aruba AP-534 (RW) - Campus - radio access point - Bluetooth 5.0 - Bluetooth Wi-Fi 6 - 2.4 GHz 5 GHz

The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.

The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.

In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.

Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.

Enhanced performance
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.

Smart power management
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.

IoT and location ready
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
External
Antenna connector type
RP-SMA
Antennas quantity
4
Number of connectors
4
Cable lock slot
Yes
Product colour
White
Placement
Ceiling, Wall
Cable lock slot type
Kensington
Power over Ethernet (PoE)
Yes
Power consumption (max)
23.3 W
Maximum data transfer rate
3550 Mbit/s
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Spread spectrum method
DSSS, OFDM
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3z
Ethernet LAN data rates
100,1000,2500,5000 Mbit/s
Auto MDI/MDI-X
Yes
2.4 GHz
Yes
5 GHz
Yes
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
1148 Mbit/s
Maximum data transfer rate (5 GHz)
2402 Mbit/s
Harmonized System (HS) code
85176990
Operating relative humidity (H-H)
5 - 93%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
5 - 93%
USB connector type
USB Type-A
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Security algorithms
WMM, WPA, WPA2
Harmonized System (HS) code
85176990
Weight
1.27 kg
Height
57 mm
Width
240 mm
Depth
240 mm
