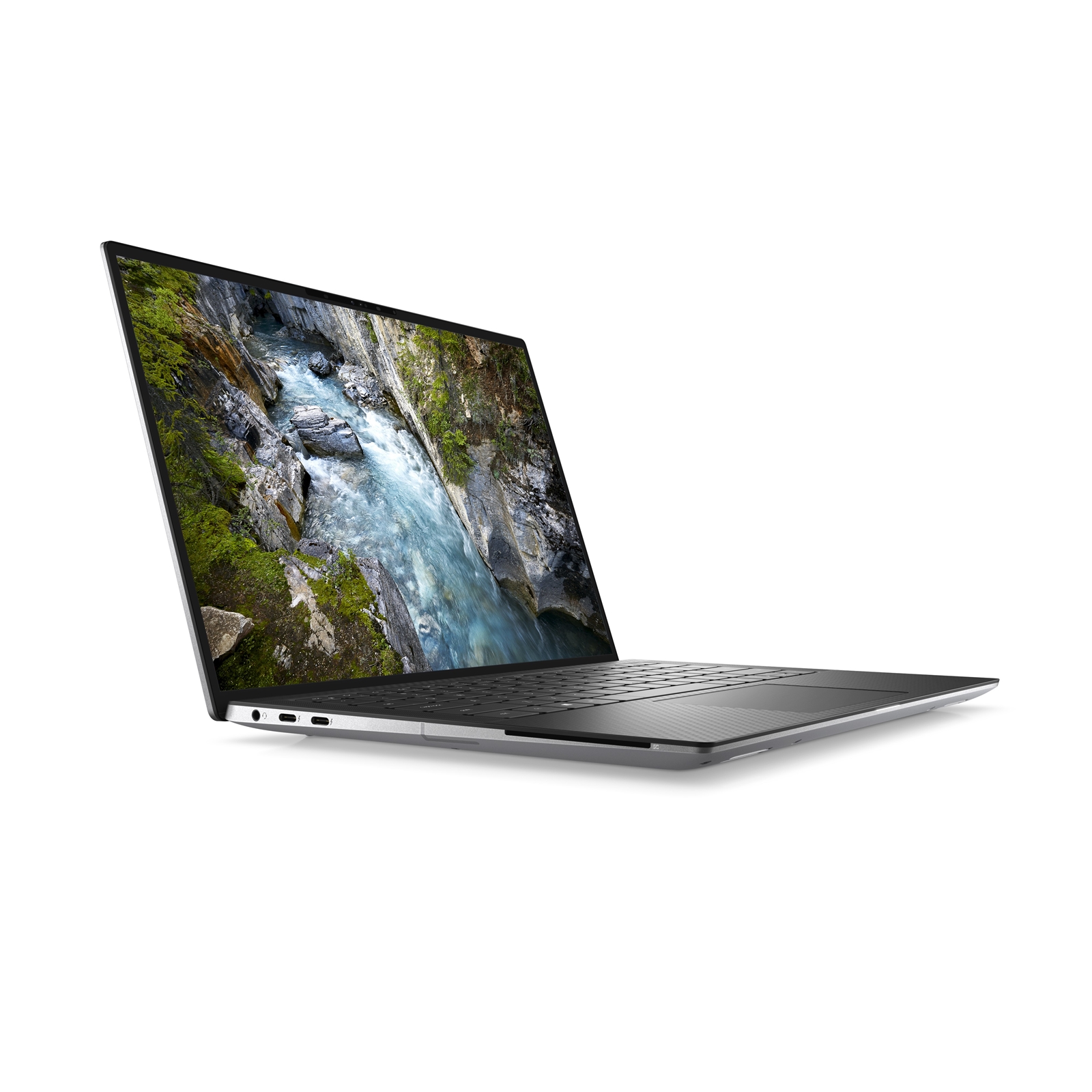

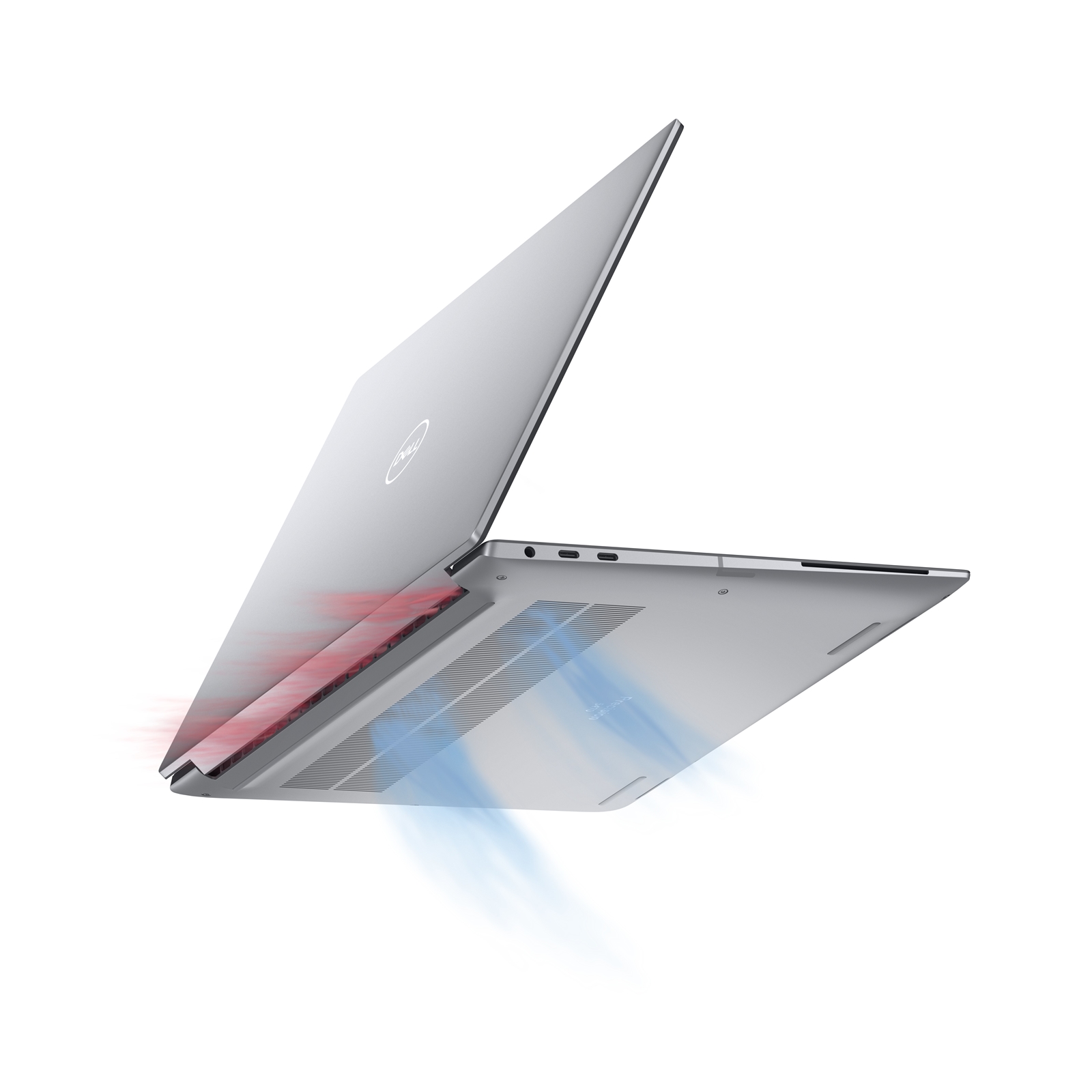

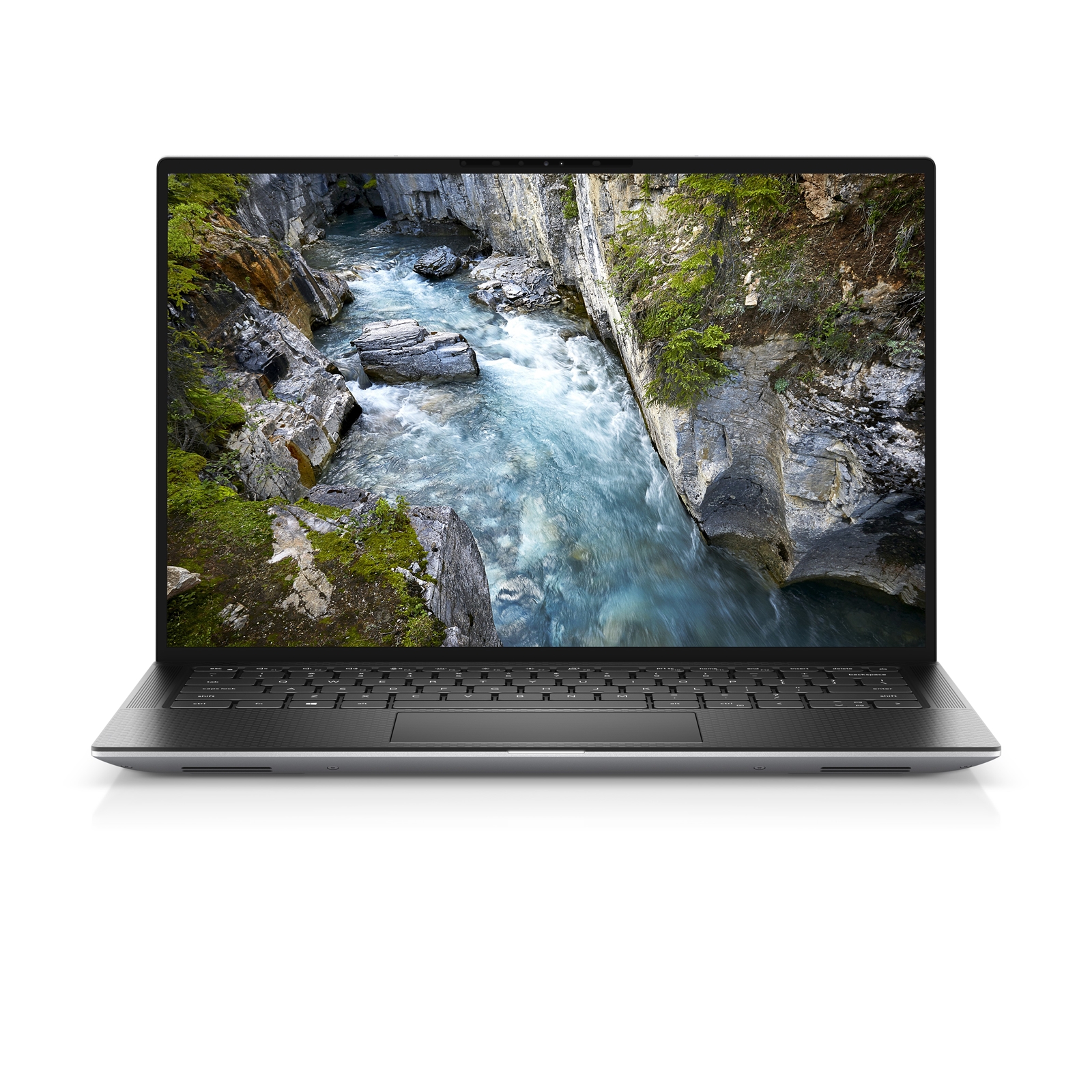

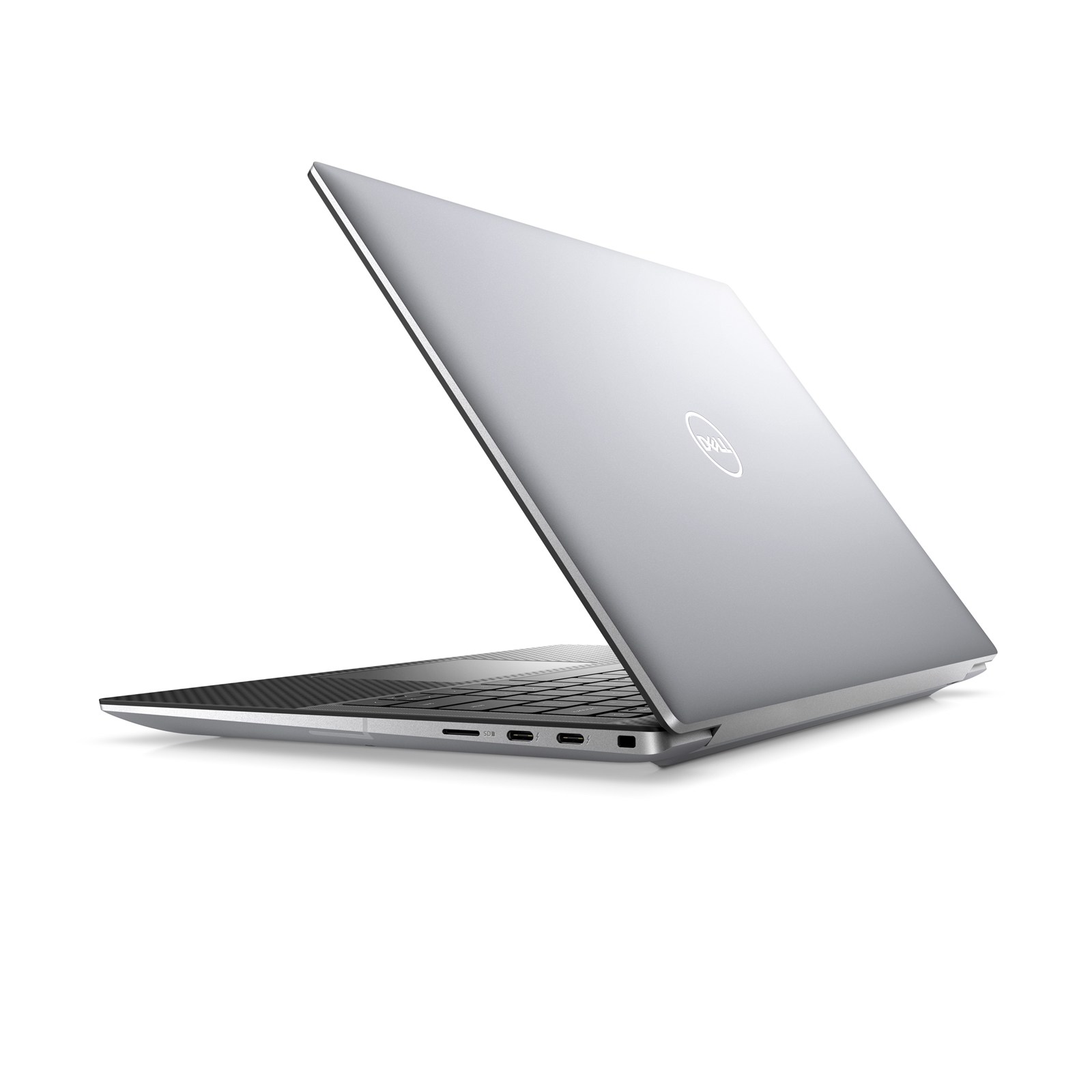

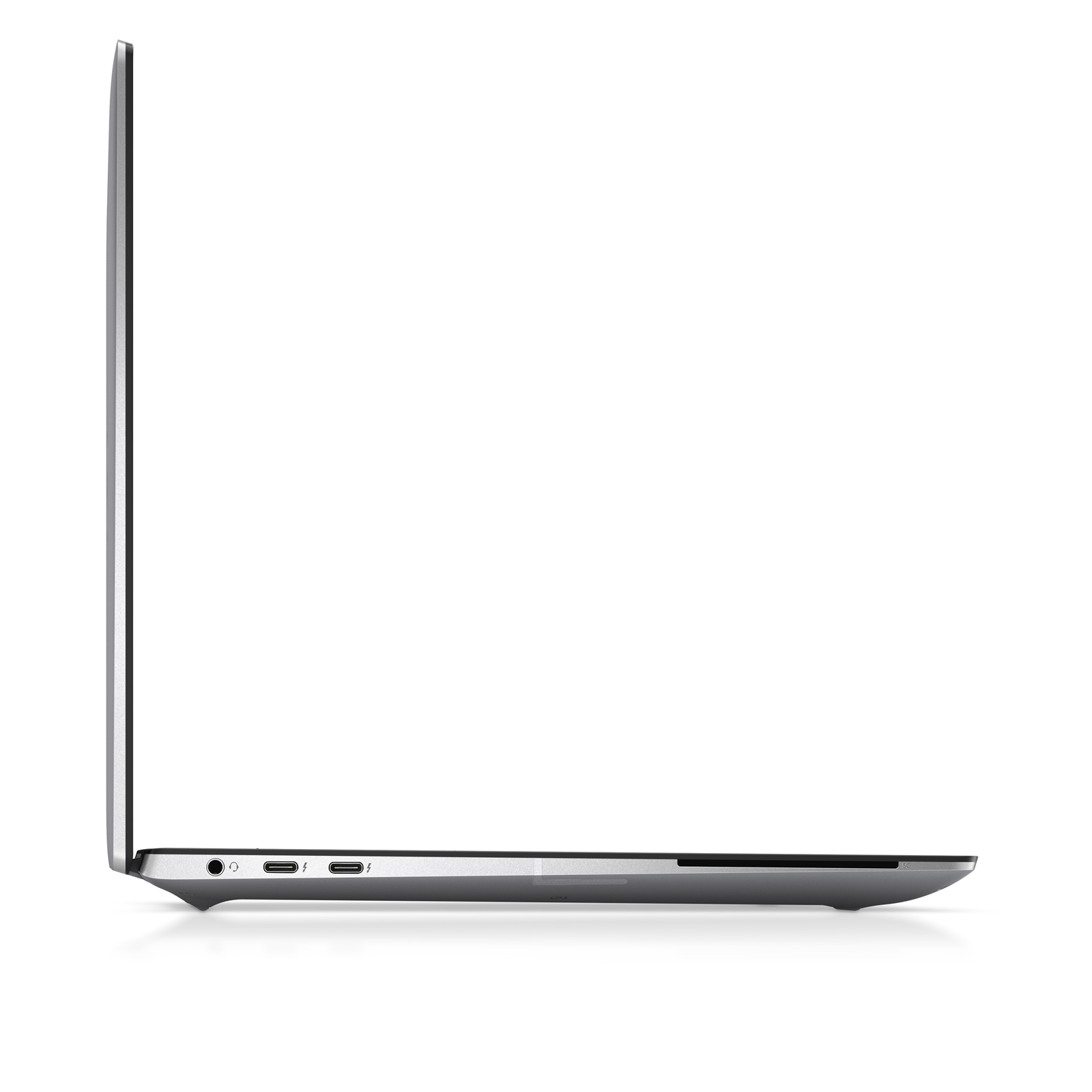

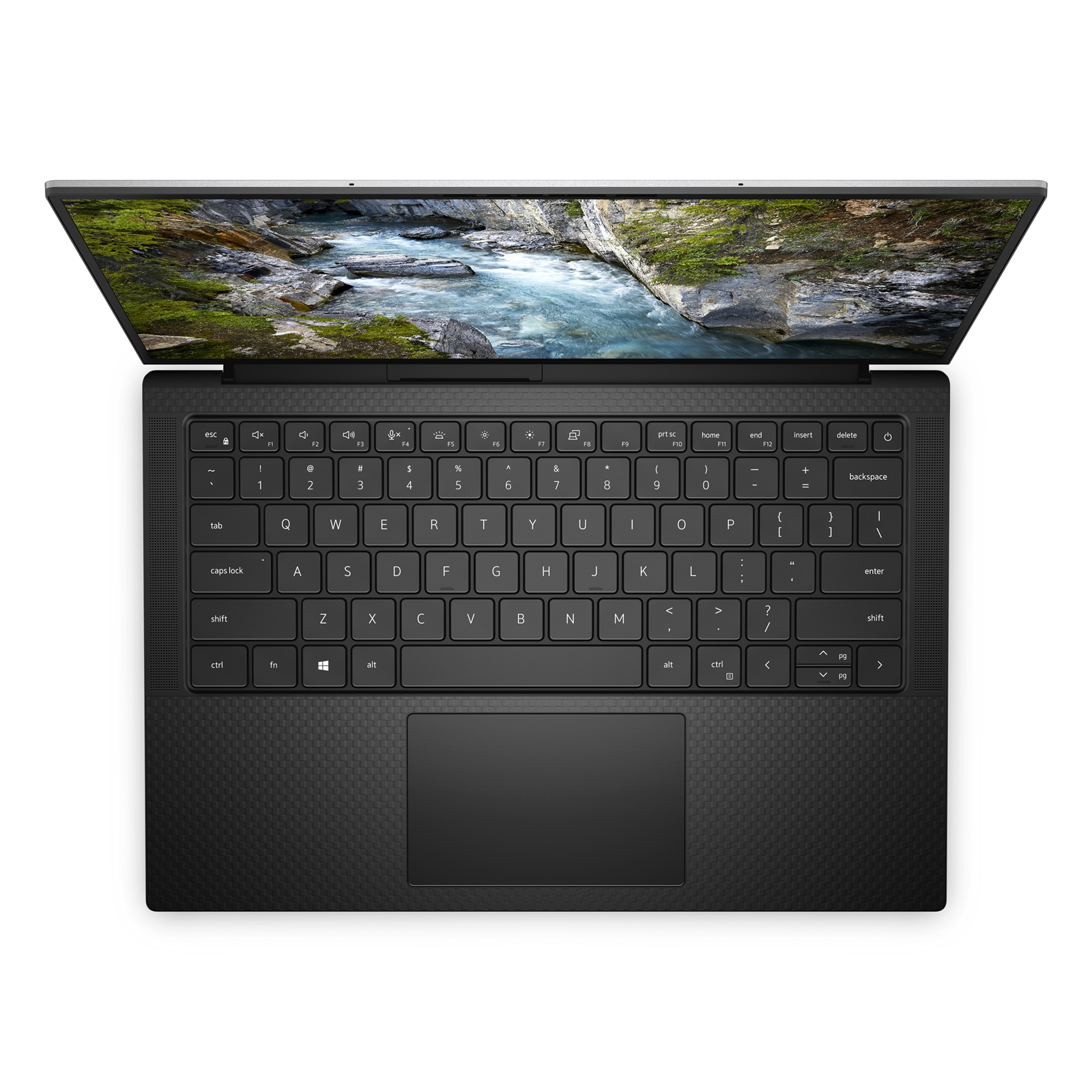

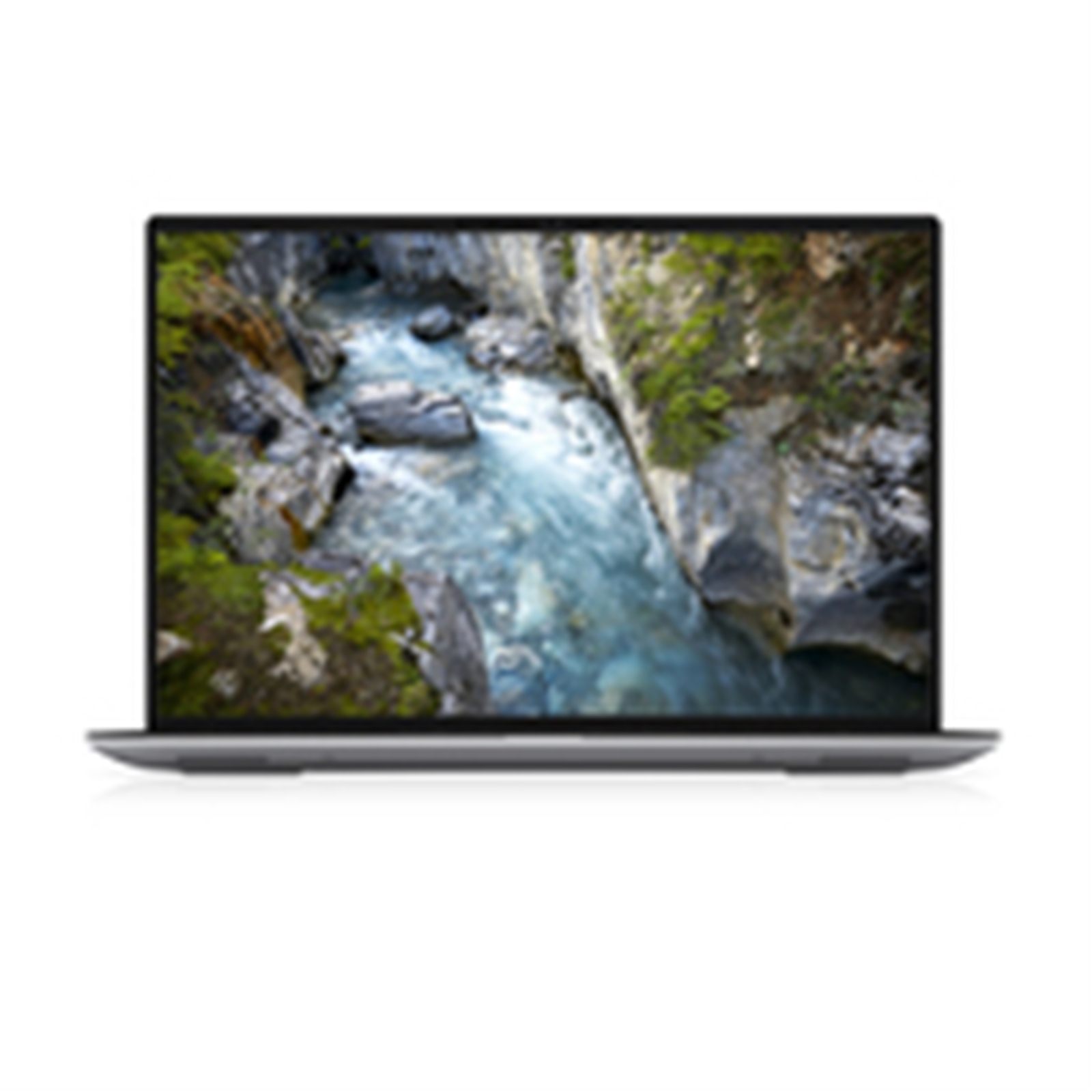

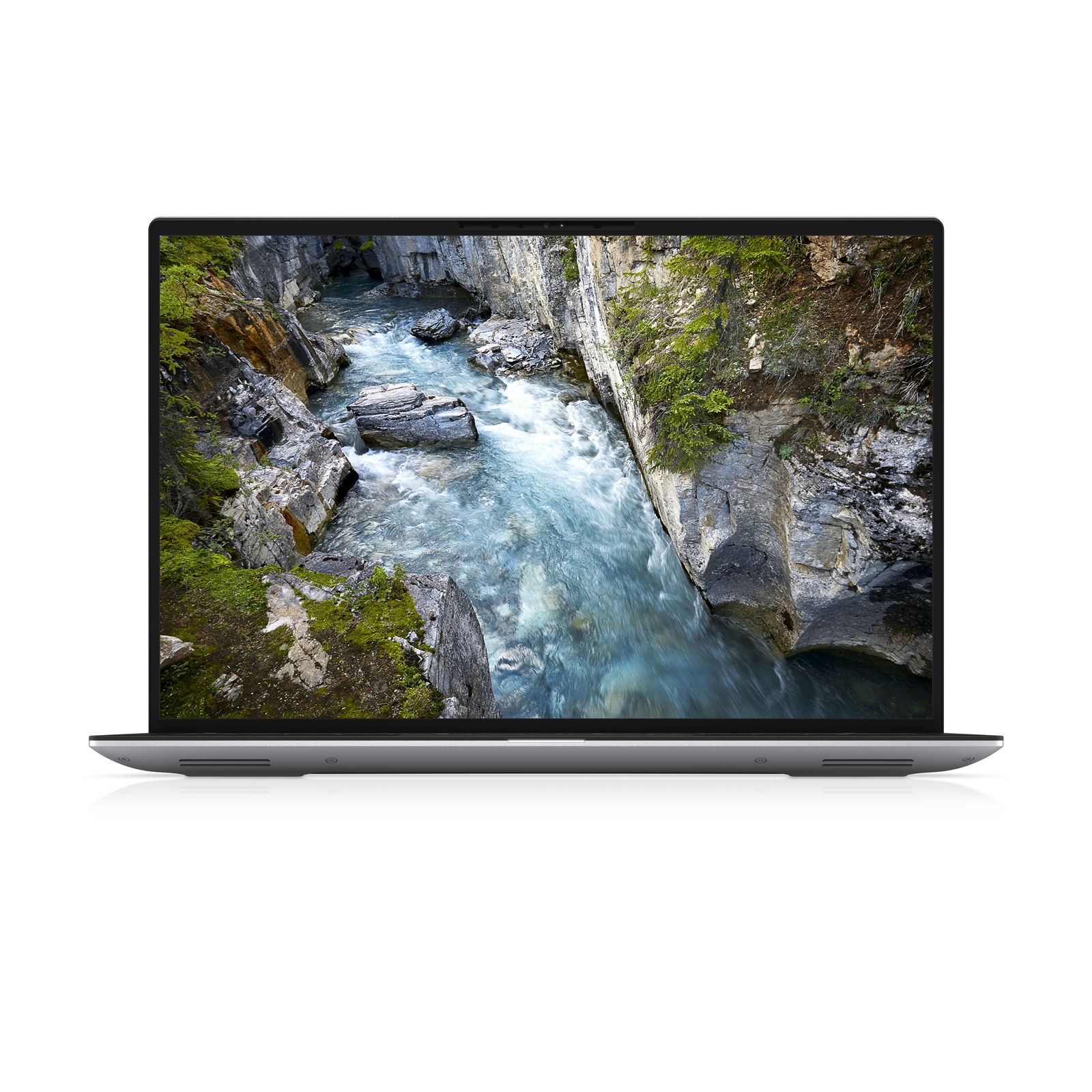

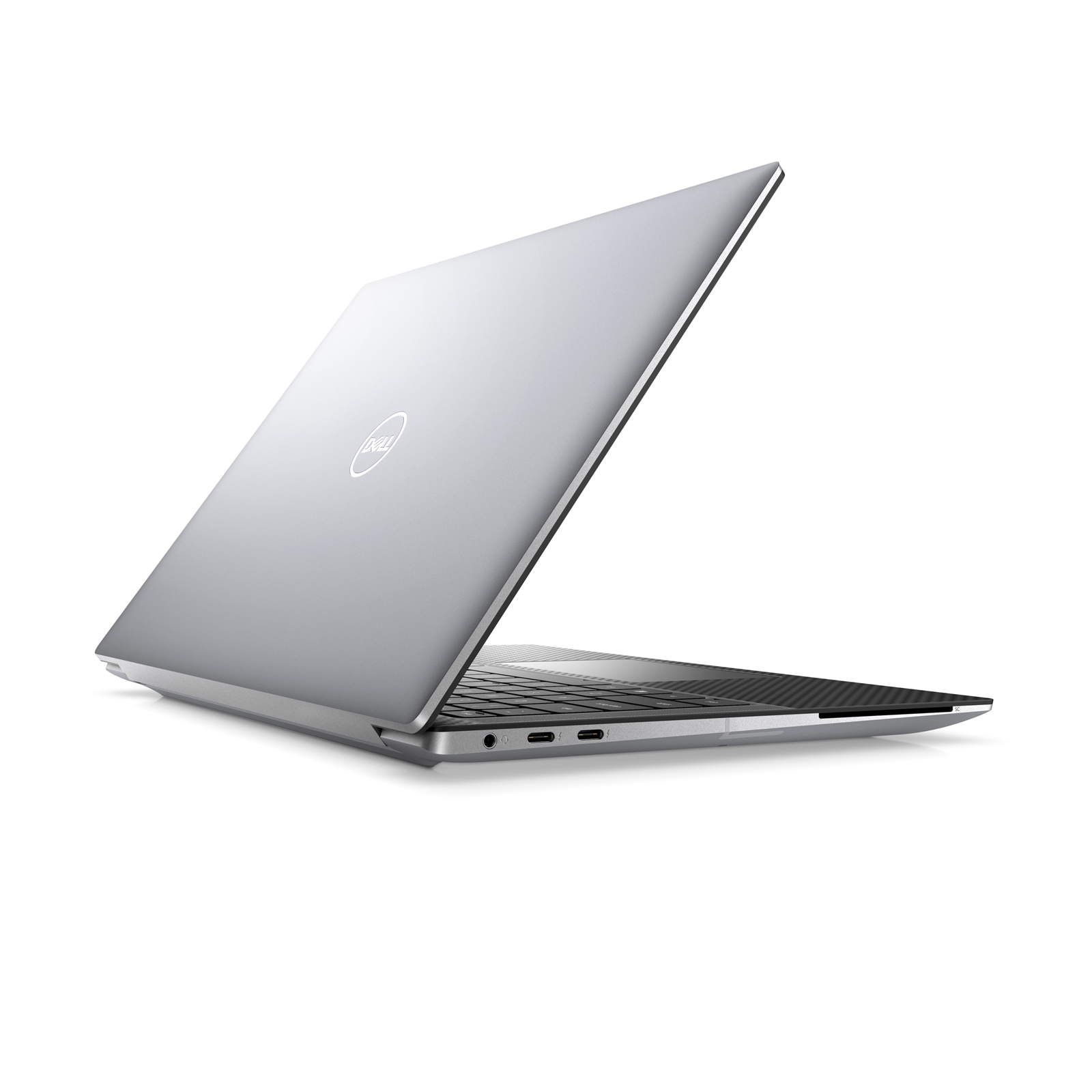

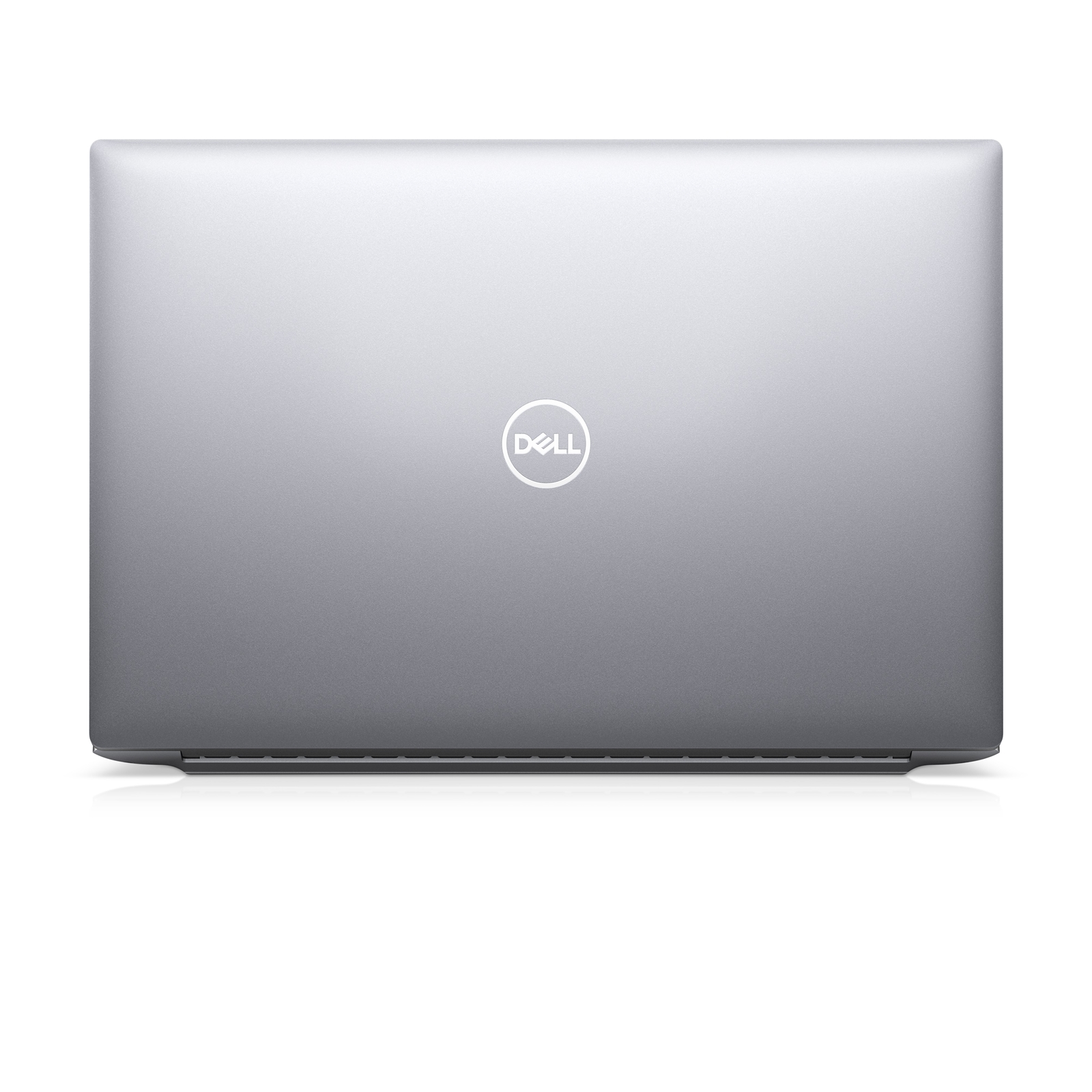

DELL Precision 5470 Mobile Workstation - M05F3

DELL Logo here

Manufacturer Part Code: M05F3

Order Code: LADEL-M05F3

Category: Dell Laptops

Precision 5470 12th Gen Intel Core i7-12800H vPro (24 MB cache14 cores20 threads2.40 GHz to 4.80 GHz Turbo45W) 16 GB DDR5 5200 MHz integrated 512 GB M.2 2280 Gen 4 PCIe x4 NVMe SSD 14 FHD+ Non-touch 1920 x 1200 60Hz 500 nits WLED 100% sRGB Low Blue Light

Power your creative zone
14" mobile workstation featuring 4-sided InfinityEdge display, up to 12 Gen Intel® Core™ i9 and professional graphics from Intel or NVIDIA.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Built-in microphone
Yes
Speaker power
8 W
Number of built-in speakers
4
Number of built-in speakers
1.11 cm
Number of microphones
2
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
4
Battery recharge time
4 h
Battery weight
285 g
Battery voltage
15.4 V
Fast charging
Yes
Battery capacity (Watt-hours)
72 Wh
Video capturing speed
30 fps
Front camera
Yes
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1280 x 720 pixels
Front camera HD type
HD
Infrared (IR) camera
Yes
Form factor
Clamshell
Product colour
Grey
Market positioning
Business
Product type
Mobile workstation
Intel® vPro? Platform Eligibility
Yes
Pixel pitch
0.1572 x 0.1572 mm
Contrast ratio (typical)
1200:1
Display diagonal
35.6 cm (14")
Display response rise/fall
35 ms
Contrast ratio (typical)
0 - 95%
Display brightness
500 cd/m²
Display resolution
1920 x 1200 pixels
Touchscreen
No
LED backlight
Yes
Maximum refresh rate
60 Hz
Anti-glare screen
Yes
Native aspect ratio
16:10
HD type
Full HD+
Pixel density
161 ppi
Colour gamut
100%
Panel type
WLED
RGB colour space
sRGB
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
AC adapter power
130 W
USB charging current
6.5 A
USB charging voltage
20,5 V
On-board graphics card model
Intel Iris Xe Graphics
Discrete graphics card model
NVIDIA RTX A1000
Discrete graphics memory type
GDDR6
On-board graphics card
Yes
Discrete graphics card memory
4 GB
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Pointing device
Touchpad
Numeric keypad
No
Keyboard language
UK English
Keyboard backlit
Yes
Internal memory type
LPDDR5-SDRAM
Maximum internal memory
16 GB
Memory clock speed
5200 MHz
Memory form factor
On-board
Internal memory
16 GB
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version
5.2
Ethernet LAN
No
Antenna type
2x2
Bluetooth
Yes
Wi-Fi data rate (max)
2400 Mbit/s
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
MIMO
Yes
WLAN controller manufacturer
Intel
Operating system installed
Windows 10 Pro
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system architecture
64-bit
Operating system language
German, Dutch, English, French, Italian
Windows 11 free upgrade
Yes
Operating altitude
-15.2 - 3048 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 35 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Non-operating vibration
1.3 G
Operating vibration
0.66 G
Ambient light sensor
Yes
Accelerometer
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
Charging port type
USB Type-C
Thunderbolt 4 ports quantity
4
Intel® Thunderbolt 4
Yes
Processor model
i7-12800H
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor cores
14
Processor threads
20
Processor boost frequency
4.8 GHz
Processor cache
24 MB
Thermal Design Power (TDP)
45 W
Configurable TDP-down
35 W
Processor generation
12th gen Intel® Core™ i7
Intel Flex Memory Access
Yes
Execute Disable Bit
Yes
Intel Trusted Execution Technology
Yes
CPU configuration (max)
1
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
Intel Stable Image Platform Program (SIPP)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Password protection
Yes
Compatible memory cards
SDXC, SD, SDHC
Optical drive type
No
Total storage capacity
512 GB
Card reader integrated
Yes
SSD interface
PCI Express 4.0
SSD capacity
512 GB
Number of SSDs installed
1
Storage media
SSD
SSD form factor
M.2
NVMe
Yes
Total SSDs capacity
512 GB
Weight
1.48 kg
Width
310.6 mm
Depth
210.3 mm
Height (front)
7.49 mm
Height (rear)
1.11 cm
