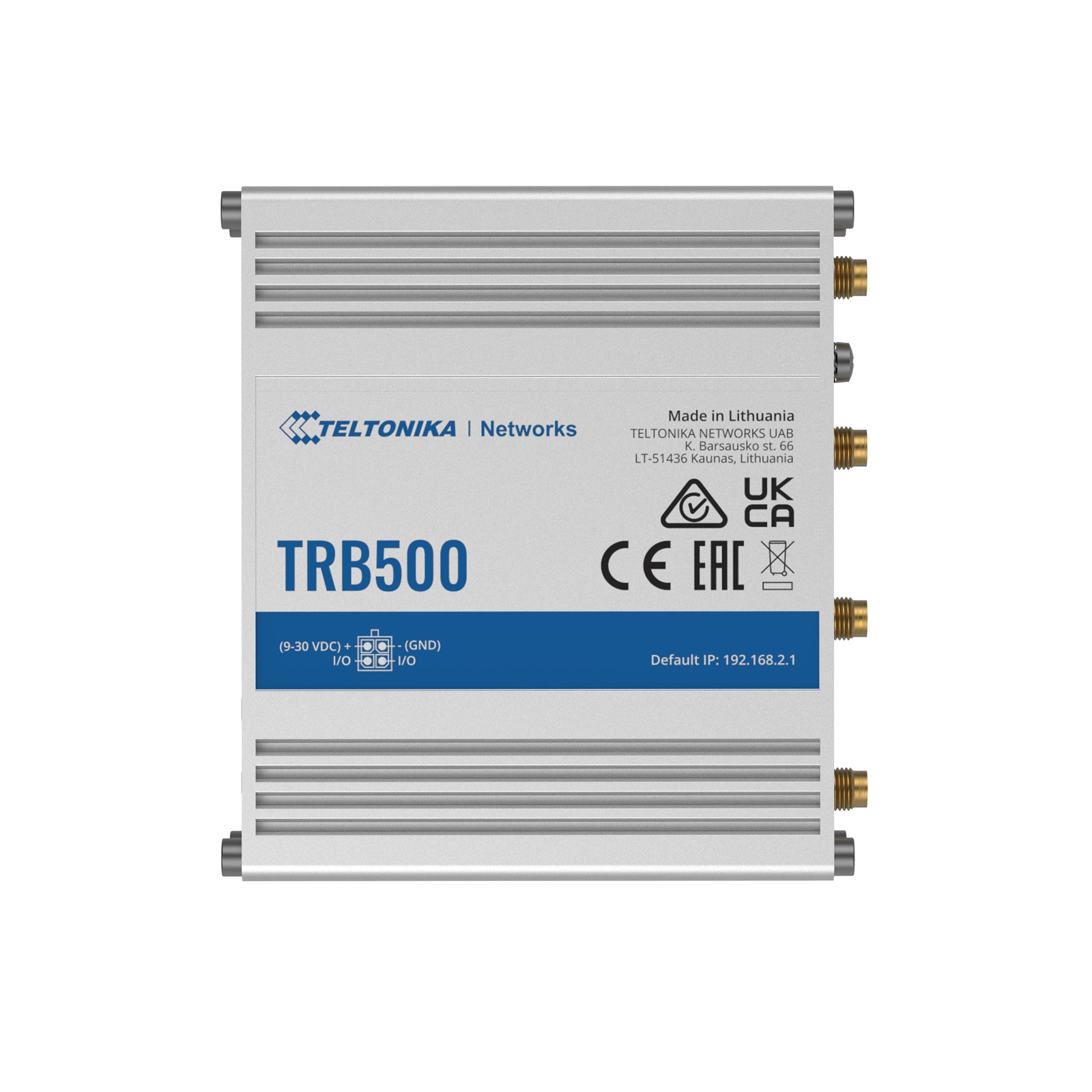

TELTONIKA TRB500 Industrial 5G Gateway Router - TRB500

TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission with ultra-low latency. Backward compatibility with 4G and 3G networks enables future-proofing solution infrastructures even in areas where 5G is not yet available

Connectivity

5G
Ultra-high cellular speeds of up to 1 Gbps

SA & NSA
Supports both architectures to leverage the 5G infrastructure

COMPACTNESS
One of the smallest 5G gateways available in the market

FUTURE-PROOFING
Backward compatible with 4G (LTE CAT 20) and 3G network technologies

HARDWARE

Mobile
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL

CPU
Single core ARM Cortex A7, 1,5 GHz

Storage
512 MB Flash

Memory
256 MB RAM

Powering Option
4-pin power socket, 9-30 VDC

SIM
1 x Internal SIM holder (2FF)

Antenna connectors
4 x SMA for mobile

Ethernet
1 x 10/100/1000 Mbps Ethernet port

Inputs/Outputs
On 4-pin socket: 1 x Digital input, 1 x Digital open collector output (configurable)

Other
1 x Micro USB slave, 1 x Grounding screw

Status LEDs
3 x Connection type s, 3 x Signal strength, 2 x Ethernet, 1 x Power

Operating Temperature
40 °C to 75 °C

Housing
Aluminum housing, DIN rail mounting option

Dimensions
100 x 30 x 93.4 mm (W x H x D)

SOFTWARE

Operating system
RutOS

Mobile features
Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)

Firewall
Port forward, traffic rules, custom rules, Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T

Security
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VPN and tunneling
OpenVPN, IPsec, GRE, PPTP, L2TP, SSTP, STUNNEL, DMVPN, WireGuard, ZeroTier

Monitoring and Management
WEB UI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS

Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Cloud solutions
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx

SMS features
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply

Services
WEB UI , FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS

PACKAGE CONTENTS

TRB500 Gateway
9 W PSU
4 x Mobile antennas (swivel, SMA male)
Micro-USB cable (0.8 m)
Ethernet cable
SIM Adapter kit
QSG (Quick Start Guide)
