Ubiquiti UniFi AFI-G-UK AmpliFi Mesh Gaming WiFi System

Ubiquiti Logo here

Manufacturer Part Code: AFI-G-UK

Order Code: NPUBI-AFI-G-UK

Category: Wireless Routers

Ubiquiti UniFi AFI-G-UK AmpliFi Mesh Gaming WiFi System

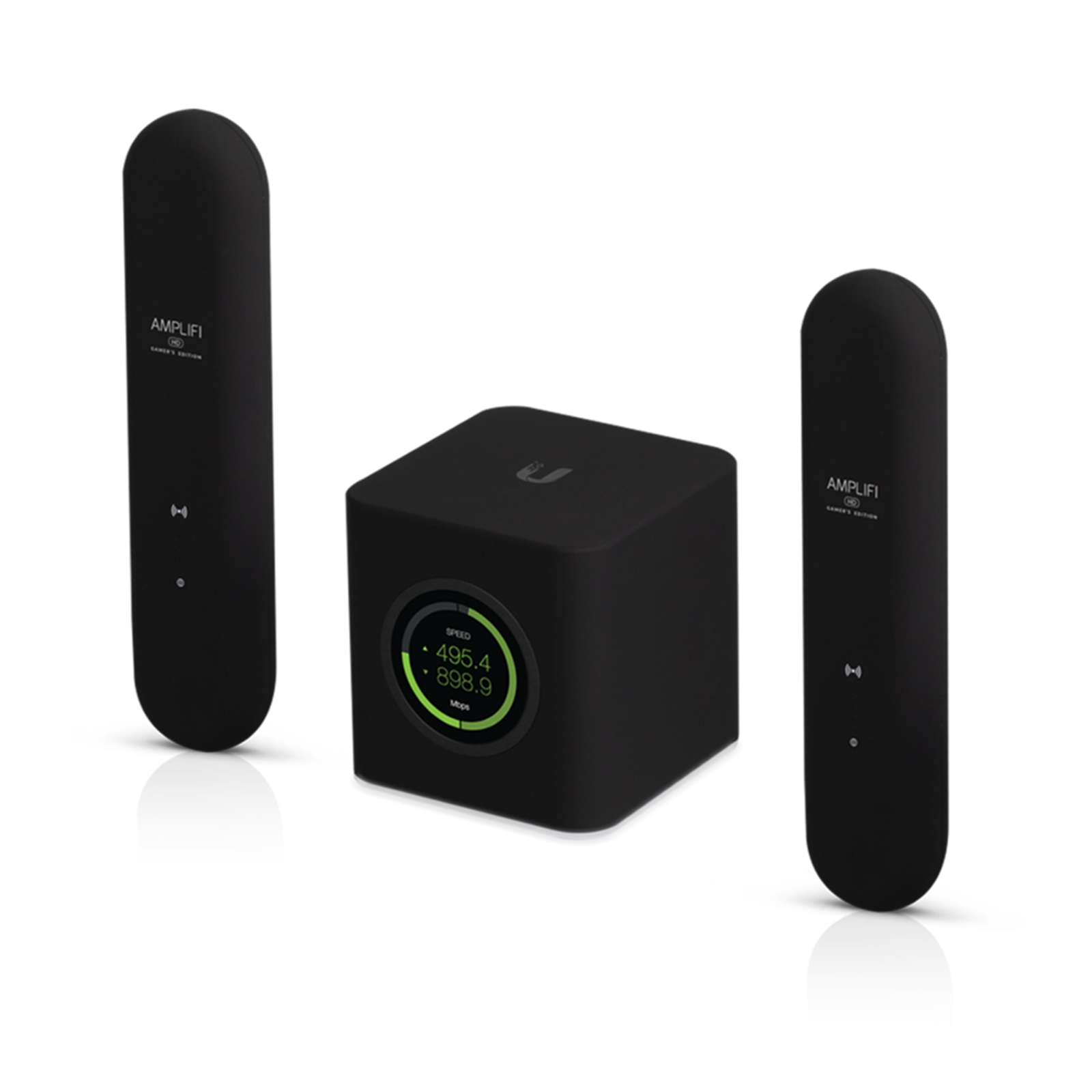

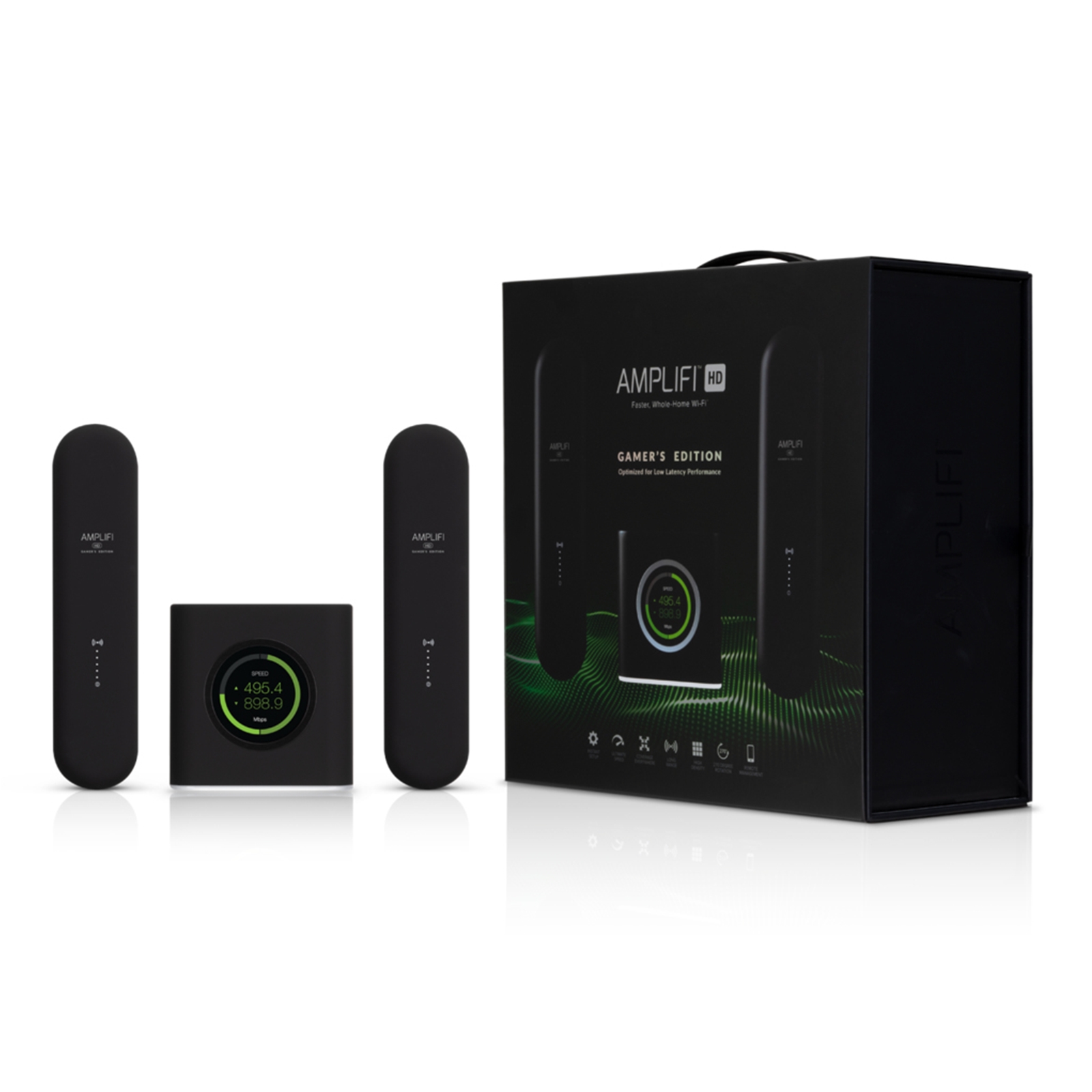

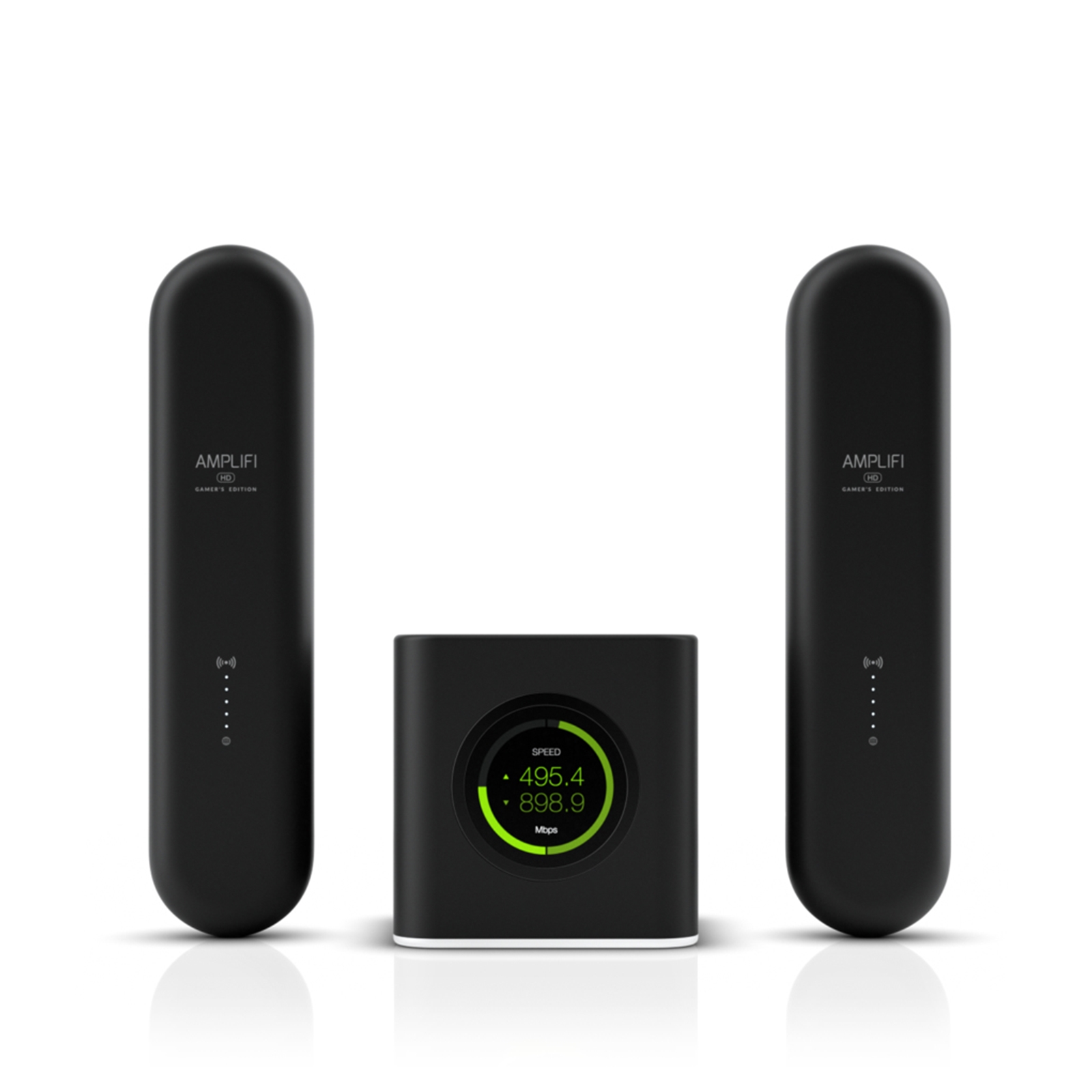

Ubiquiti AmpliFi HD Home WiFi Mesh NVIDIA Gamer's Edition - AFI-G-UK. The Ubiquiti AmpliFi HD Gamer's Edition kit includes an AmpliFi Mesh Router along with 2wireless MeshPoints. The AFI-G combines deployment flexibility and simplicity with maximum WiFi coverage for your home.

With turbocharged 802.11ac Wi-Fi mesh technology, AmpliFi HD Gamer's Edition utilizes multiple self-configuring radios and advanced antenna technology to deliver powerful, whole-home Wi-Fi coverage.

The AmpliFi HD Gamer's Edition is equipped with a GeForce NOW QoS mode, developed by Ubiquiti with NVIDIA's support to quickly adjust networks for optimal game-streaming performance.

The QoS implementation offers gamers a simple solution for detecting latency or frame-loss issues, resulting in a top-quality experience when other traffic is present on the network.

System Specifications

Max. TX Power 26 dBm
Radios 6
MIMO Chains 18
Speed 5.25 Gbps

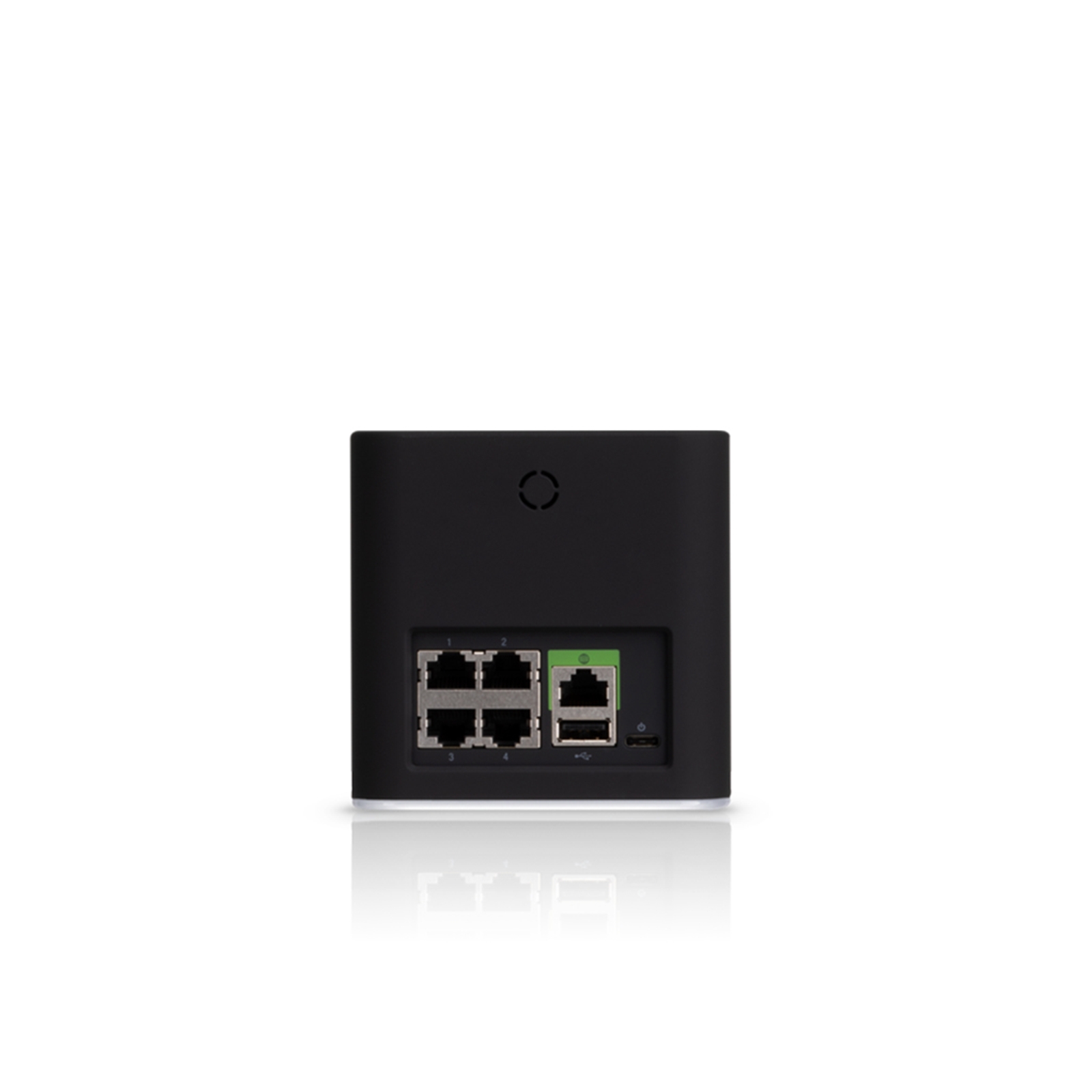

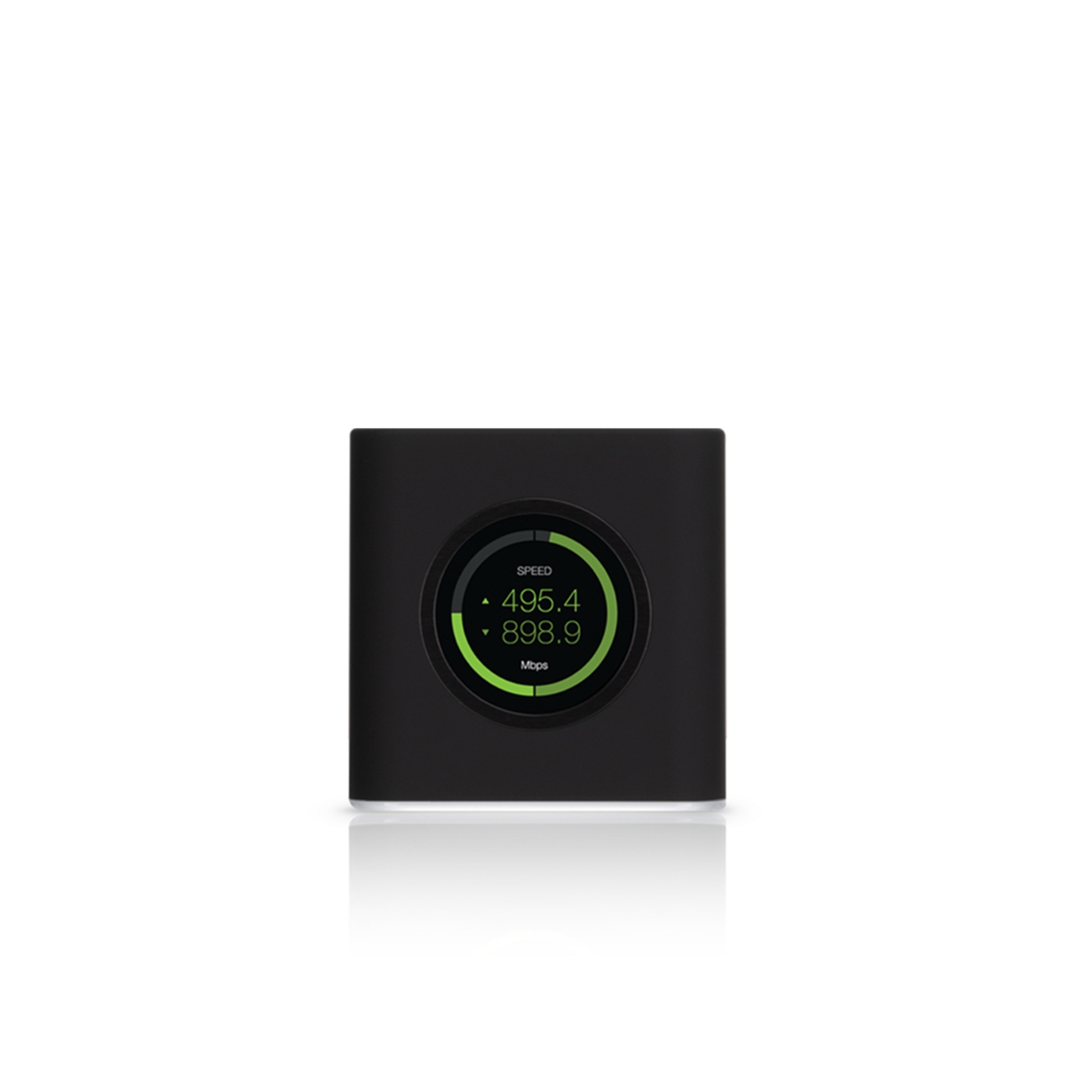

Router Specifications

Dimensions
99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92")

Weight
0.410 kg (14.46 oz)

Max. TX Power
26 dBm

Radios
2

MIMO Chains
6

Speed
1750 Mbps

Networking Interface
Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN

Max. Power Consumption
11W

Buttons
Reset

ESD/EMP Protection
24kV Air/Contact

Antennas
(1) Dual-Band Antenna, Tri-Polarity

Display
40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color

Wi-Fi Standards
802.11ac

Power Save
Supported

Wireless Security
WPA2-PSK AES/TKIP

Operating Temperature
-10 to 55° C (14 to 131° F)

Operating Humidity
5 to 95% Noncondensing

Certifications
FCC, CE, IC

Supported Data Rates (Mbps)

802.11ac 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

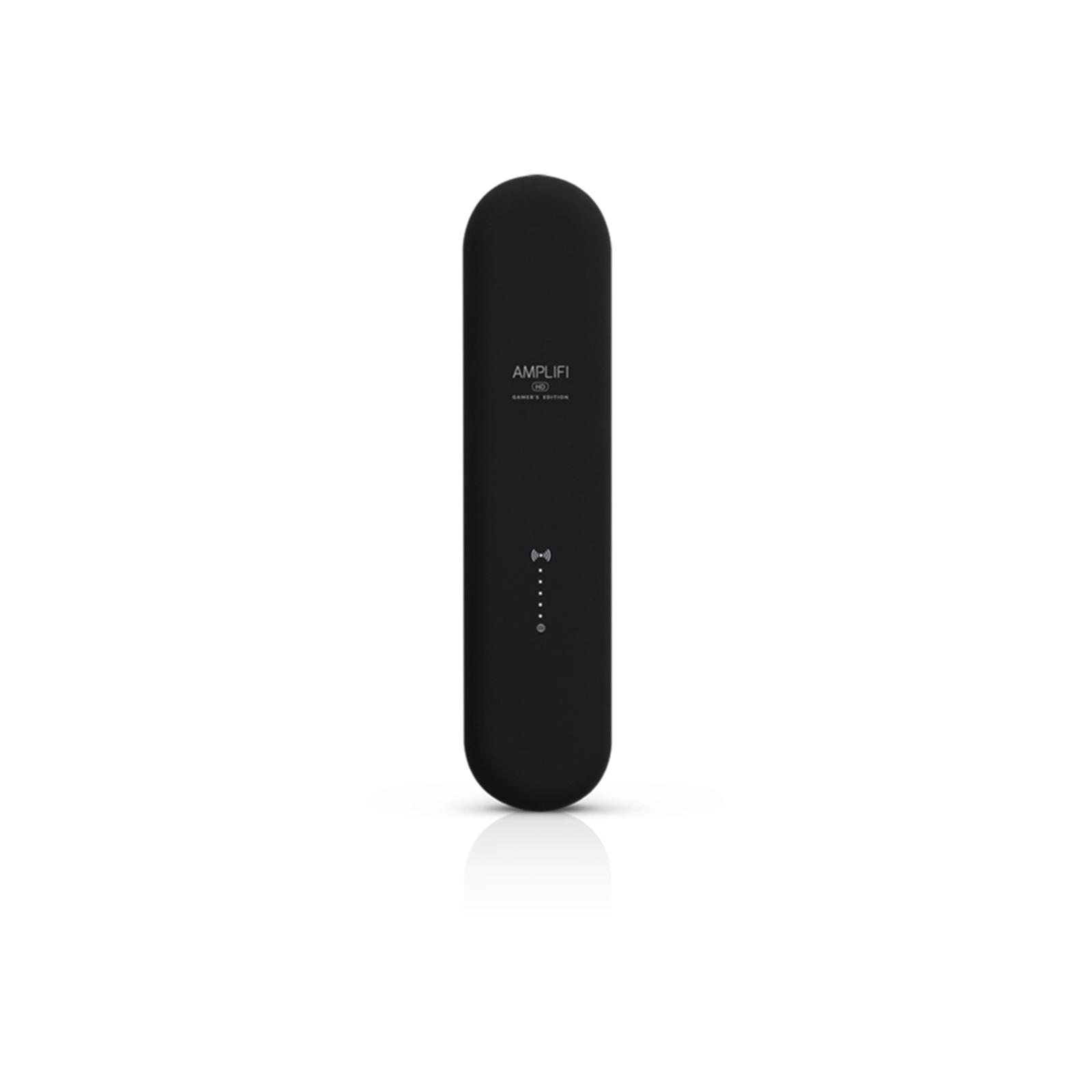

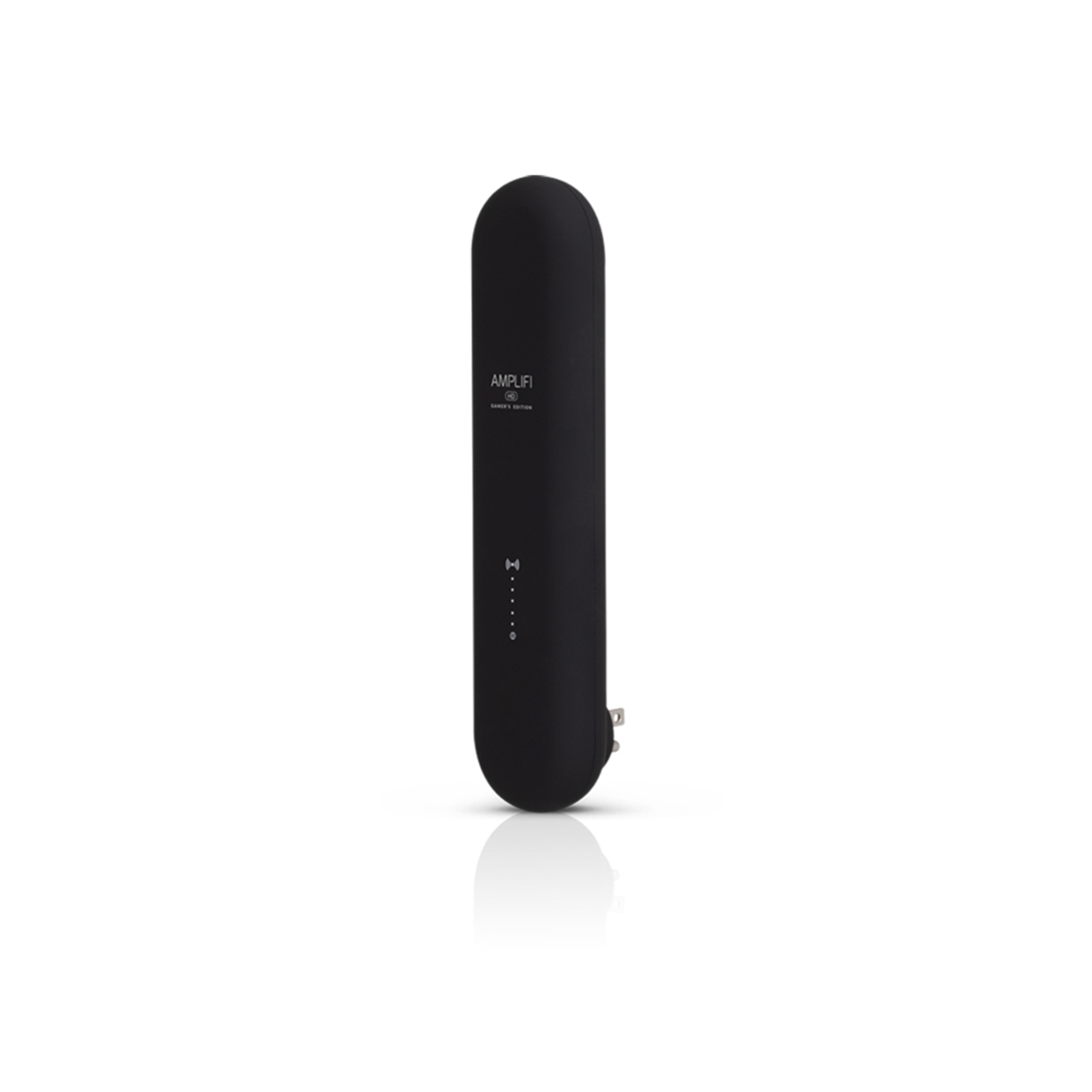

Meshpoint Specifications

Dimensions
228 x 54 x 57.1 (8.98 x 2.13 x 2.25")

Weight
0.165 kg (5.82 oz)

Max. TX Power
26 dBm

Radios
2

MIMO Chains
6

Speed
1750 Mbps

ESD/EMP Protection
24kV Air/Contact

Wi-Fi Standards
802.11ac

Wireless Security
WPA2-PSK AES/TKIP

Buttons
Reset

Antennas
(1) Dual-Band Antenna, Tri-Polarity

Power
Save Supported

Operating Temperature
-10 to 55° C (14 to 131° F)

Operating Humidity
5 to 95% Noncondensing

Certifications
FCC, CE, IC



Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antennas quantity
1
Transmit power
26 dBmW
Antenna design
Internal
Product colour
Black
Product type
Tabletop router
Certification
FCC, CE, IC
Reset button
Y
3G
N
4G
N
SIM card slot
N
5G
N
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Y
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 55 °C
AC adapter included
Y
Cables included
LAN (RJ-45)
AC adapter included
Y
Cables included
LAN (RJ-45)
Ethernet LAN (RJ-45) ports
5
Memory card slot(s)
N
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB port
Y
Power consumption (typical)
11 W
Power source type
AC
Security algorithms
WPA2-AES, WPA2-PSK, WPA2-TKIP
DSL WAN
N
Ethernet WAN
Y
SIM card slot
N
3G/4G USB modem compatibility
N
Weight
410 g
Height
99.6 mm
Width
99.5 mm
Depth
97.8 mm
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)
5250 Mbit/s
WLAN data transfer rate (first band)
1300 Mbit/s
WLAN data transfer rate (second band)
1300 Mbit/s
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
