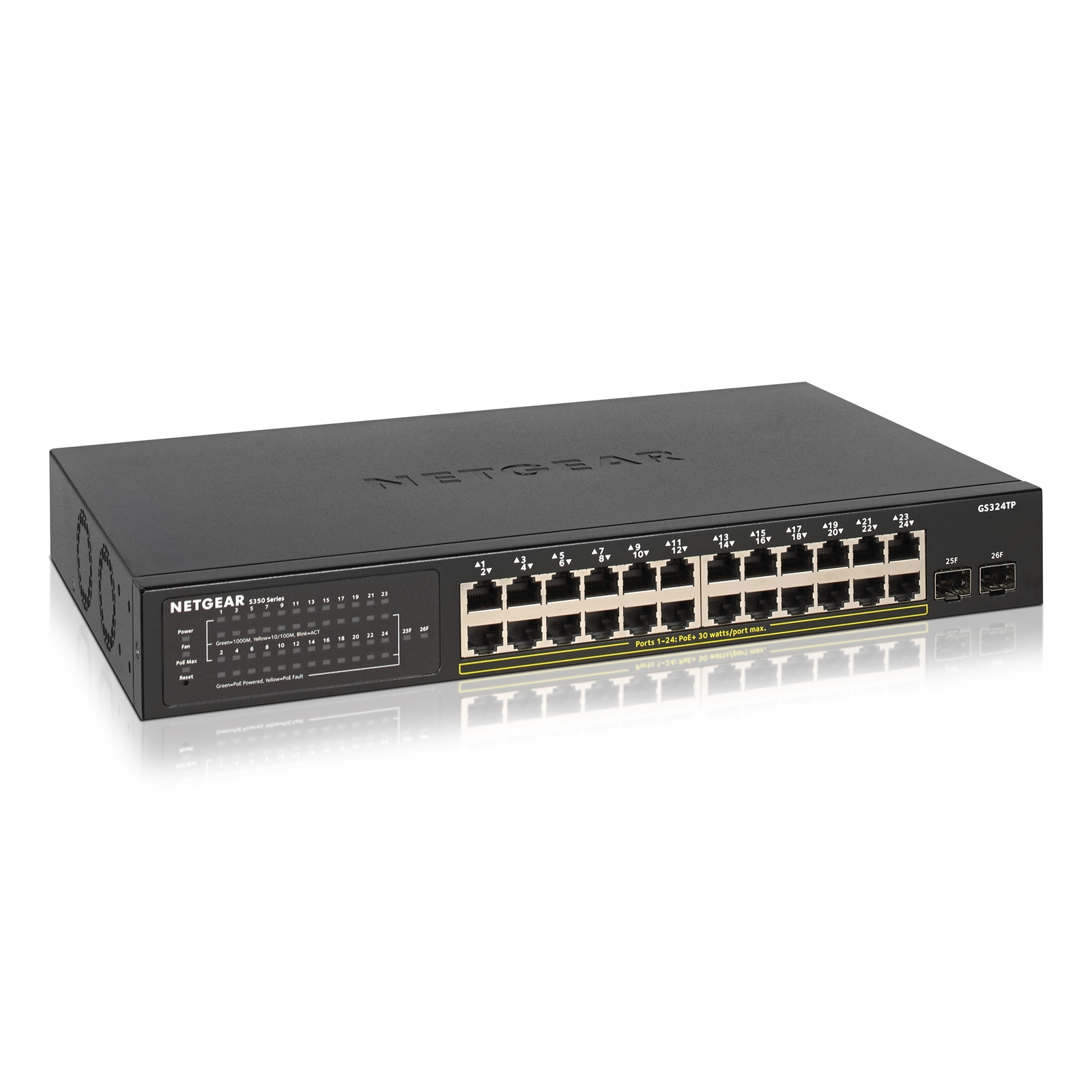

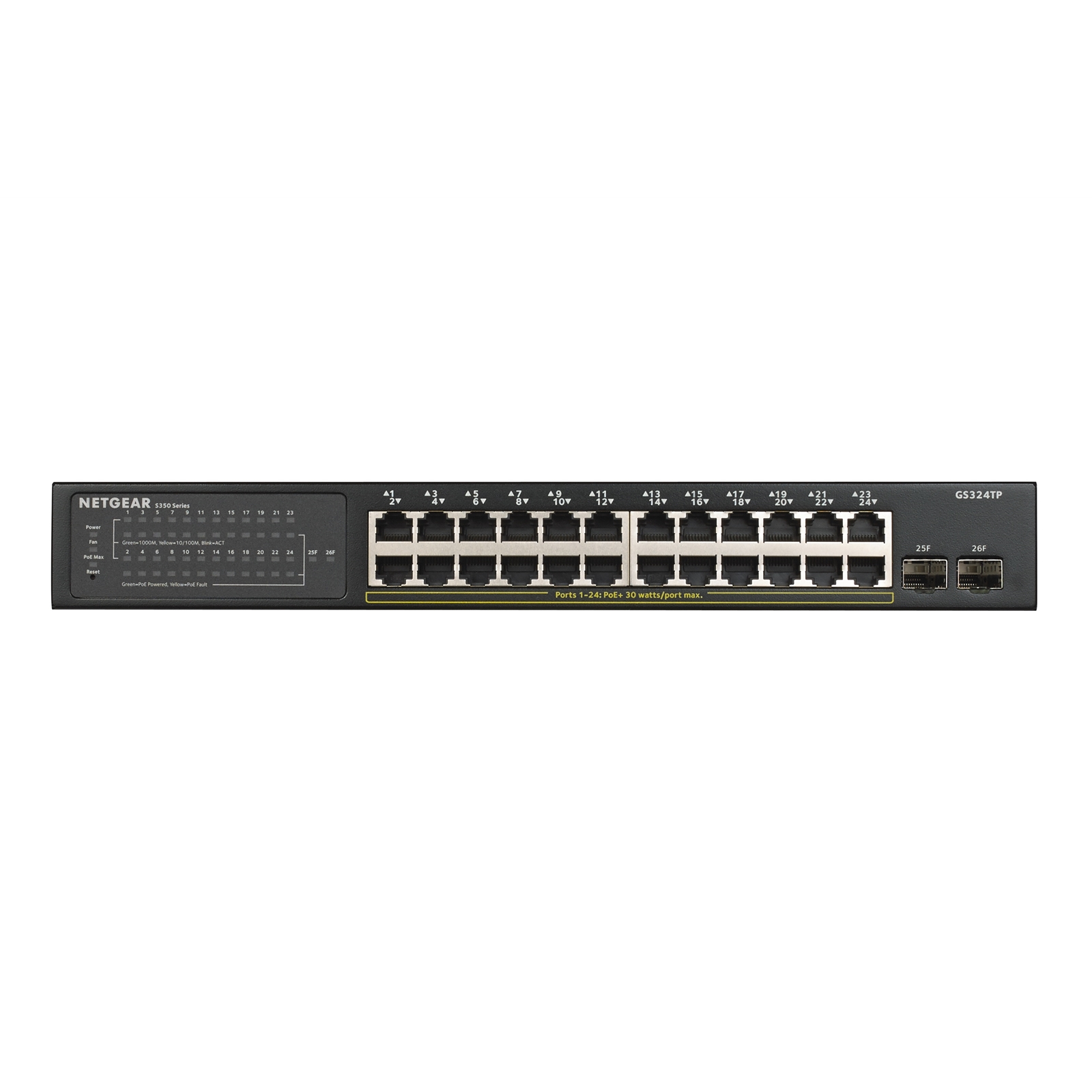

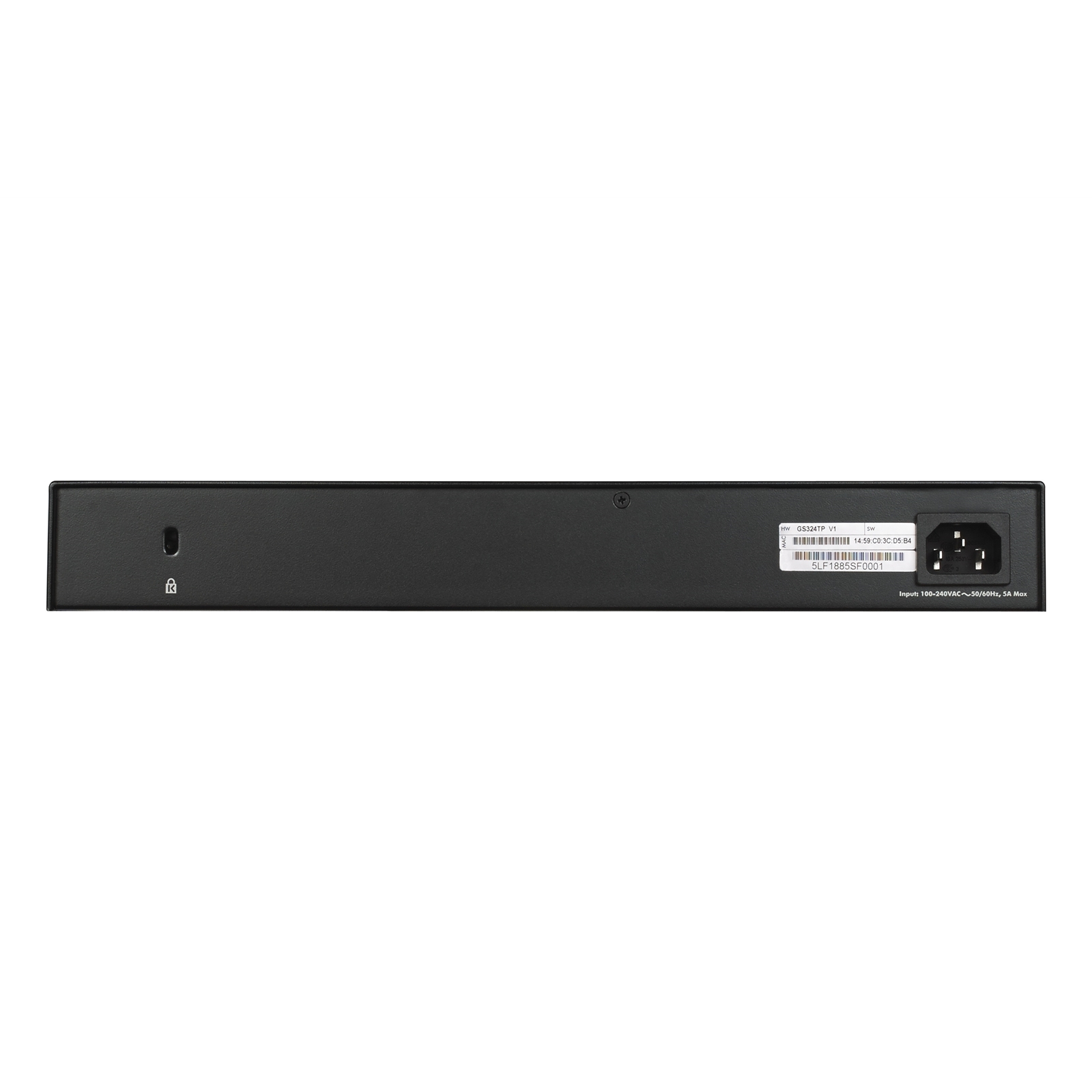

NETGEAR GS324TP 24 Port Gigabit PoE+ 2 x SFP Smart Switch

NETGEAR Logo here

Manufacturer Part Code: GS324TP-100EUS

Order Code: NPNET-GS324TP100

Category: Smart Managed Network Switches

NETGEAR GS324TP - Switch - smart - 24 x 10/100/1000 (PoE+) + 2 x SFP - desktop rack-mountable - PoE+ (190 W)

Connectivity, Security and Affordability for Your Smart Business
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.

Designed for Converged Networks
NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.

Smart Managed switching features for security and performance
- Advanced VLAN support for better network segmentation
- L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication
- QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
- Auto ?denial-of-service? (DoS) prevention
- Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring

Network Development Made Easy
- Auto Voice VLAN for easy development of VoIP
- Auto Video for simple deployment of IP Surveillance
- ACL Wizard for a guided tour to set up your network access control
- Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades
- PoE Timer for scheduling the on/off time of your PoE powered devices
- Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
52 Gbit/s
Full duplex
Y
MAC address table
16000 entries
Jumbo frames support
Yes
Store-and-forward
Yes
Switching capacity
52 Gbit/s
Jumbo frames support
Y
Store-and-forward
Y
Number of VLANs
256
Rack mounting
Yes
LED indicators
Yes
Product colour
Black
Rack mounting
Y
Number of fans
2 fan(s)
LED indicators
Y
Colour of product
Black
Number of fans
2 fan(s)
Input current
5 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
229.9 W
Power over Ethernet (PoE) Support
Y
Input current
5 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
229.9 W
Power connector
AC-in jack
LED indicators
Y
Master (outer) case height
498 mm
Master (outer) case width
293 mm
Master (outer) case gross weight
20.9 kg
Master (outer) case length
471 mm
Products per master (outer) case
5 pc(s)
Harmonized System (HS) code
85176990
Master (outer) case height
49.8 cm
Master (outer) case width
29.3 cm
Master (outer) case weight
20.9 kg
Master (outer) case length
47.1 cm
Quantity per master (outer) case
5 pc(s)
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Yes
Switch type
Managed
ARP inspection
Yes
Quality of Service (QoS) support
Y
Virtual Cable Test (VCT)
Yes
Switch type
Managed
ARP inspection
Y
Virtual Cable Test (VCT)
Y
Full duplex
Yes
Networking standards
IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
Full duplex
Y
MAC address table
16000 entries
Flow control support
Yes
Port mirroring
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Networking standards
IEEE 802.3at,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3az,IEEE 802.3x
Number of VLANs
256
Spanning tree protocol
Yes
VLAN support
Yes
Flow control support
Y
Auto-negotiation
Yes
Port mirroring
Y
Link aggregation
Y
Jumbo Frames support
Y
Broadcast storm control
Y
Virtual LAN features
Private VLAN, Voice VLAN, Port-based VLAN
Store-and-forward
Y
Rate limiting
Y
IGMP snooping
Y
Number of VLANs
256
Spanning tree protocol
Y
VLAN support
Y
Auto-negotiation
Y
Virtual LAN features
Private VLAN,Voice VLAN,Port-based VLAN
Operating temperature (T-T)
0 - 45 °C
Operating temperature range (T-T)
0 - 45 °C
Cables included
AC
Mounting brackets included
Y
Package weight
3.97 kg
Cables included
AC
Package weight
3.97 kg
Package depth
452 mm
Package height
88 mm
Package width
268 mm
Package type
Box
Cables included
AC
Mounting brackets included
Yes
Packaging depth
452 mm
Packaging height
88 mm
Packaging width
268 mm
Package type
Box
Mounting brackets included
Y
Buffer size
512 KB
Noise level
32.8 dB
Firmware upgradeable
Yes
Buffer size
512 KB
Noise level
32.8 dB
Harmonized System (HS) code
85176990
Firmware upgradeable
Y
Auto-negotiation
Y
Installed SFP modules quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
SFP module slots quantity
2
Power connector
AC-in jack
SFP ports quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Power connector
AC-in jack
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
190 W
Power over Ethernet (PoE) support
Y
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
190 W
Access Control List (ACL)
Yes
IGMP snooping
Yes
DoS attack prevention
Yes
Loop protection
Yes
ARP attack prevention
Yes
DHCP features
DHCP client
Access Control List (ACL)
Y
IGMP snooping
Y
DoS attack prevention
Y
Loop protection
Y
ARP attack prevention
Y
DHCP features
DHCP client
Rack mounting
Y
Colour of product
Black
Noise level
32.8 dB
Firmware upgradeable
Y
VLAN support
Y
Number of VLANs
256
VLAN support
Y
Virtual LAN features
Private VLAN,Voice VLAN,Port-based VLAN
Weight
2.69 kg
Height
43 mm
Weight
2.69 kg
Width
330 mm
Depth
206 mm
Height
43 mm
Width
330 mm
Depth
206 mm
