Ubiquiti AirMax | UBIQUITI airMAX M5 Titanium Variable Beam Mid-Gain Sector 60-120 degree - AM-M-V5G-TI | AM-M-V5G-TI | ServersPlus

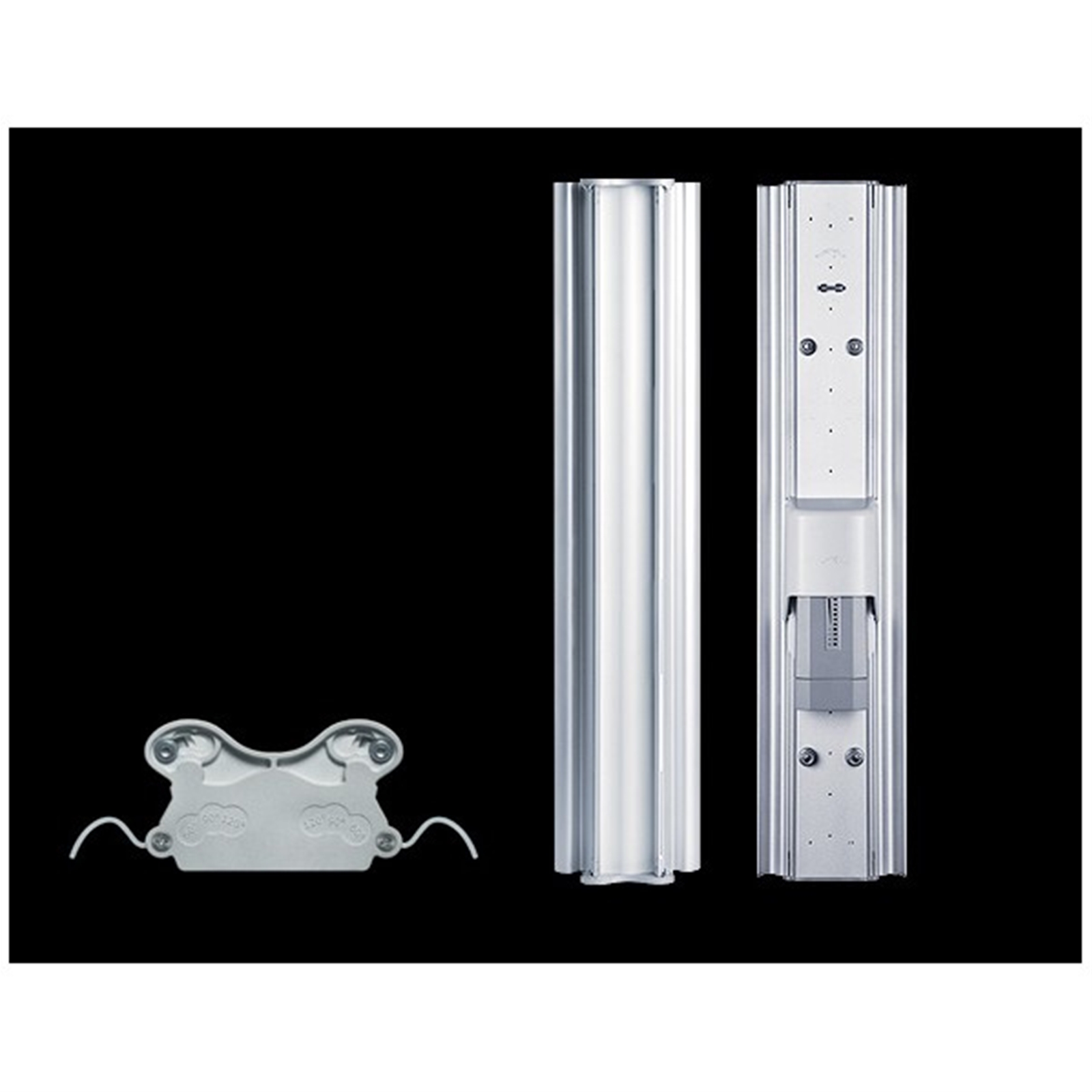

Illustration purposes only

UBIQUITI airMAX M5 Titanium Variable Beam Mid-Gain Sector 60-120 degree - AM-M-V5G-TI

UBIQUITI Logo here

Manufacturer Part Code: AM-M-V5G-TI

Order Code: NPUBI-AMMV5GTGTI

Category: Ubiquiti AirMax

airMAX M5 Titanium Variable Beam Mid-Gain Sector 60-120 degree - AM-M-V5G-TI

Advanced Carrier-Class PtMP Basestation Antenna
Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti's best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology

Reduced Co-Location Interference
Drawing on Ubiquiti's depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments.

Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60 °, 90 °, or 120 ° sector.
Antenna gain changes according to the configured beamwidth.

Increased Performance
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket M Titanium.

- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co-location environment
- Increased durability in harsh weather

Easily Mount and Protect Your Rocket
The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
EN 302 326 DN2\nCE, FCC, IC
Colour of product
White
Certification
EN 302 326 DN2\nCE, FCC, IC
Antenna type
Sector antenna
Colour of product
White
Frequency band
5.15 - 5.85
Antenna gain level (max)
17 dBi
Mounting
Wall
Purpose
Outdoor
Antenna connector type
RP-SMA
Polarization
Dual polarization
Horizontal beam width
120°
Vertical beam width
60°
Voltage Standing Wave Ratio (VSWR)
1.7:1
Horizontal beam width (5 GHz)
Quantity
1
Frequency band
5.15 - 5.85
Antenna gain level (max)
17 dBi
Horizontal beam width
120°
Vertical beam width
60°
Horizontal beam width (5 GHz)
Vertical beam width (5 GHz)
Antenna type
Sector antenna
Frequency band
5.15 - 5.85
Antenna gain level (max)
17 dBi
Purpose
Outdoor
Antenna connector type
RP-SMA
Polarization
Dual polarization
Horizontal beam width
120°
Vertical beam width
60°
Voltage Standing Wave Ratio (VSWR)
1.7:1
Horizontal beam width (5 GHz)
Weight
3.25 kg
Height
76 mm
Width
385 mm
Depth
149 mm
