Aruba Wireless Access Points | Aruba  Instant On AP15 (RW) 4x4 11ac Wave2 Indoor Access Point, Smart Mesh Technology, MU-MIMO Radios | R2X06A | ServersPlus
Aruba R2X06A | serversplus.comAruba R2X06A | serversplus.comAruba R2X06A | serversplus.comAruba R2X06A | serversplus.comAruba R2X06A | serversplus.comAruba R2X06A |

Illustration purposes only

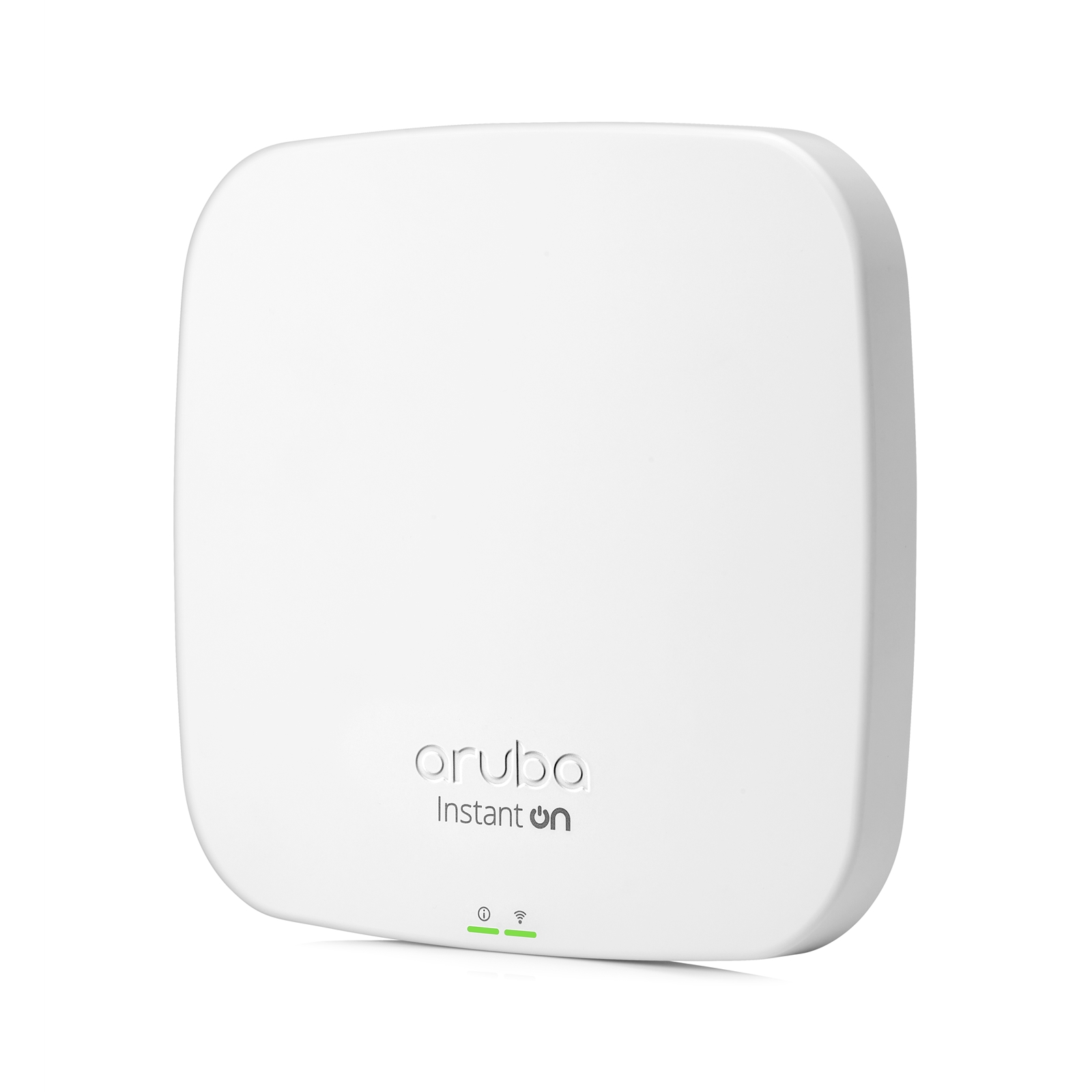

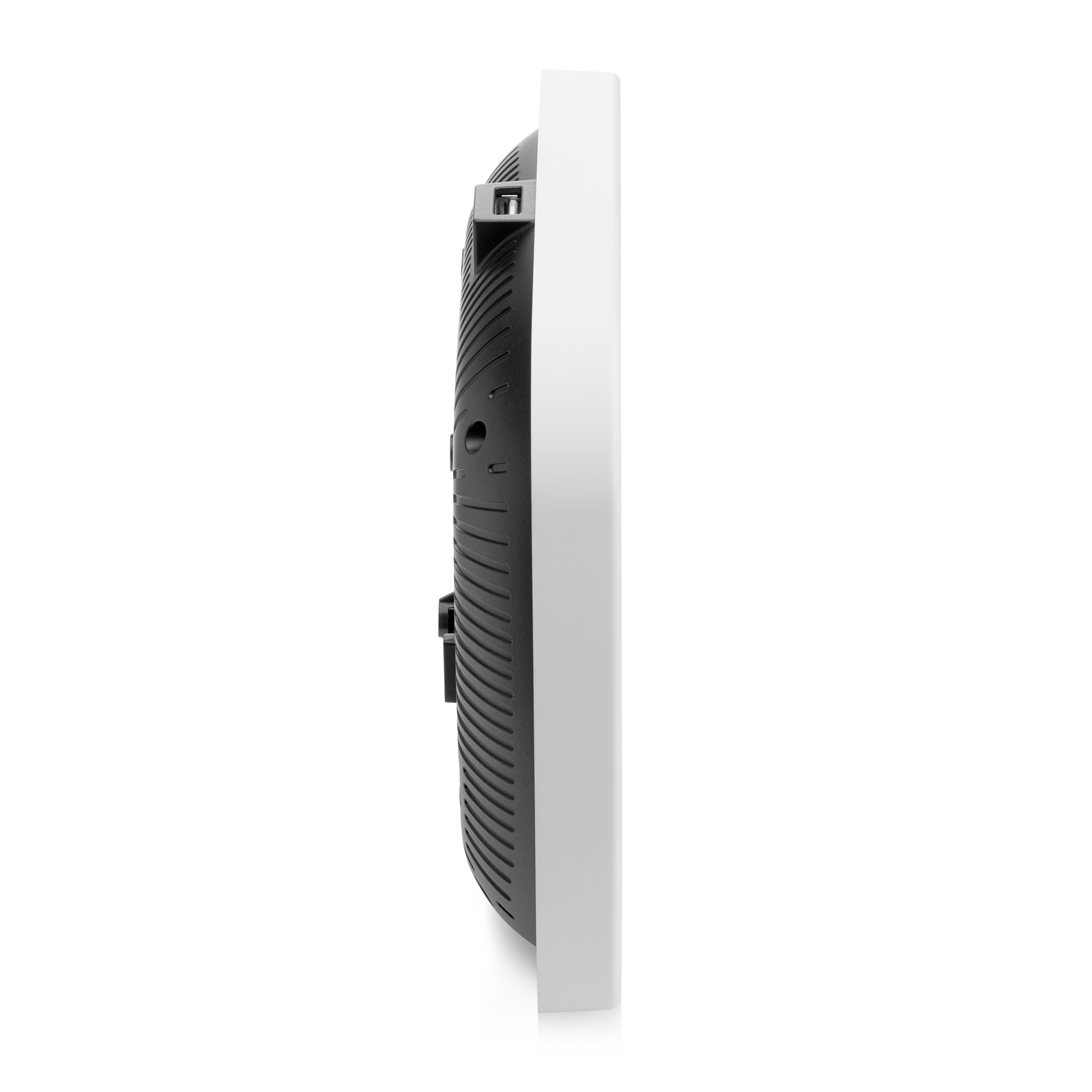

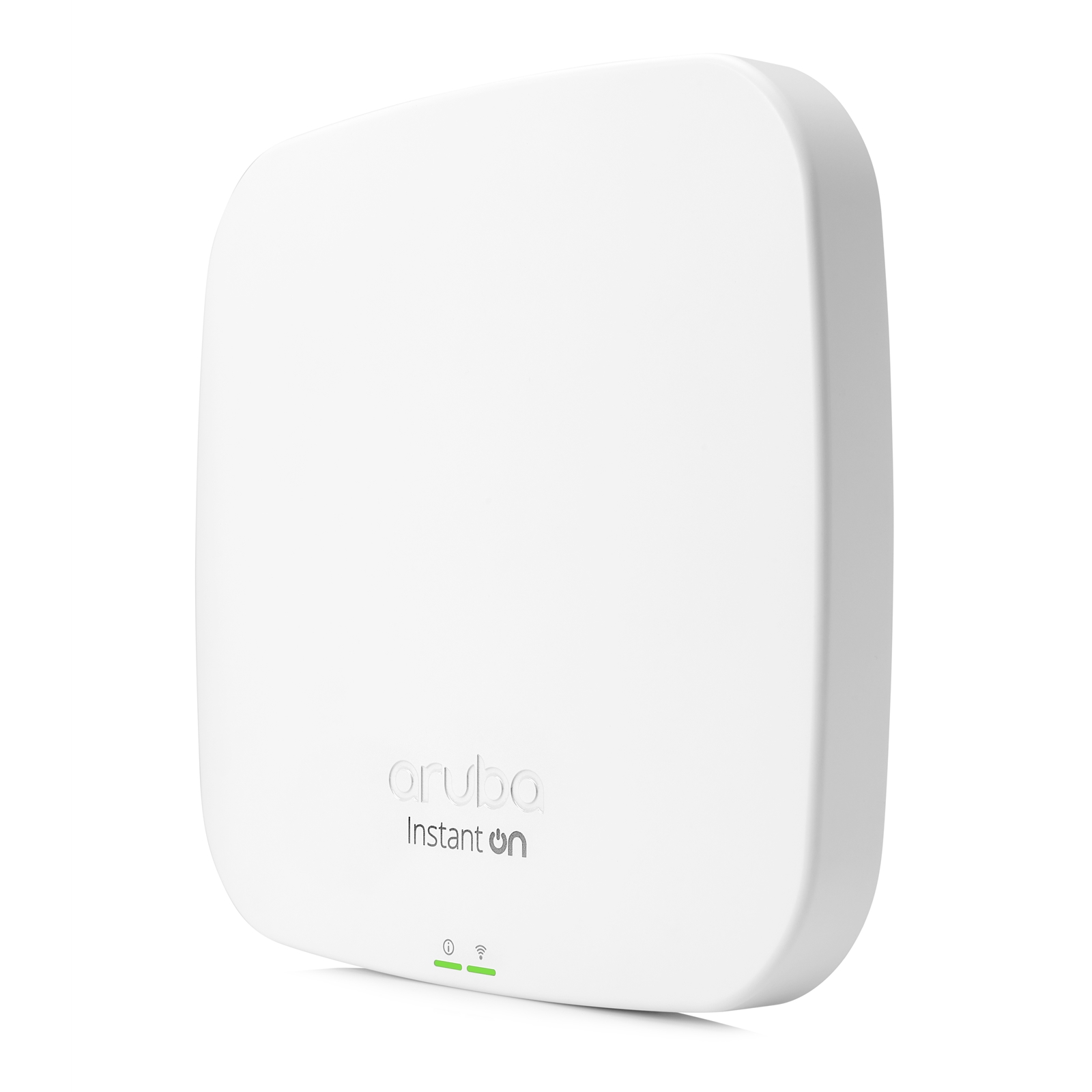

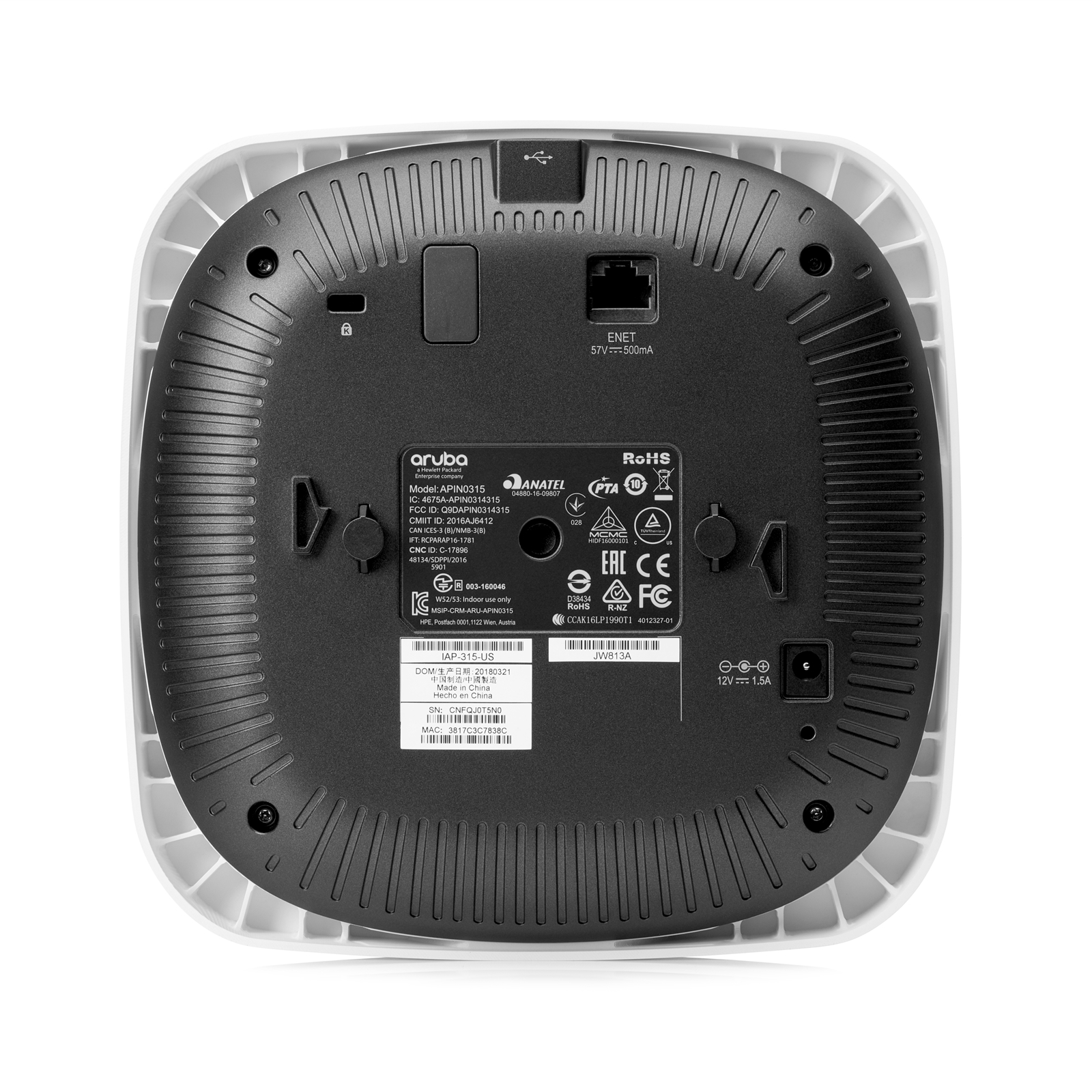

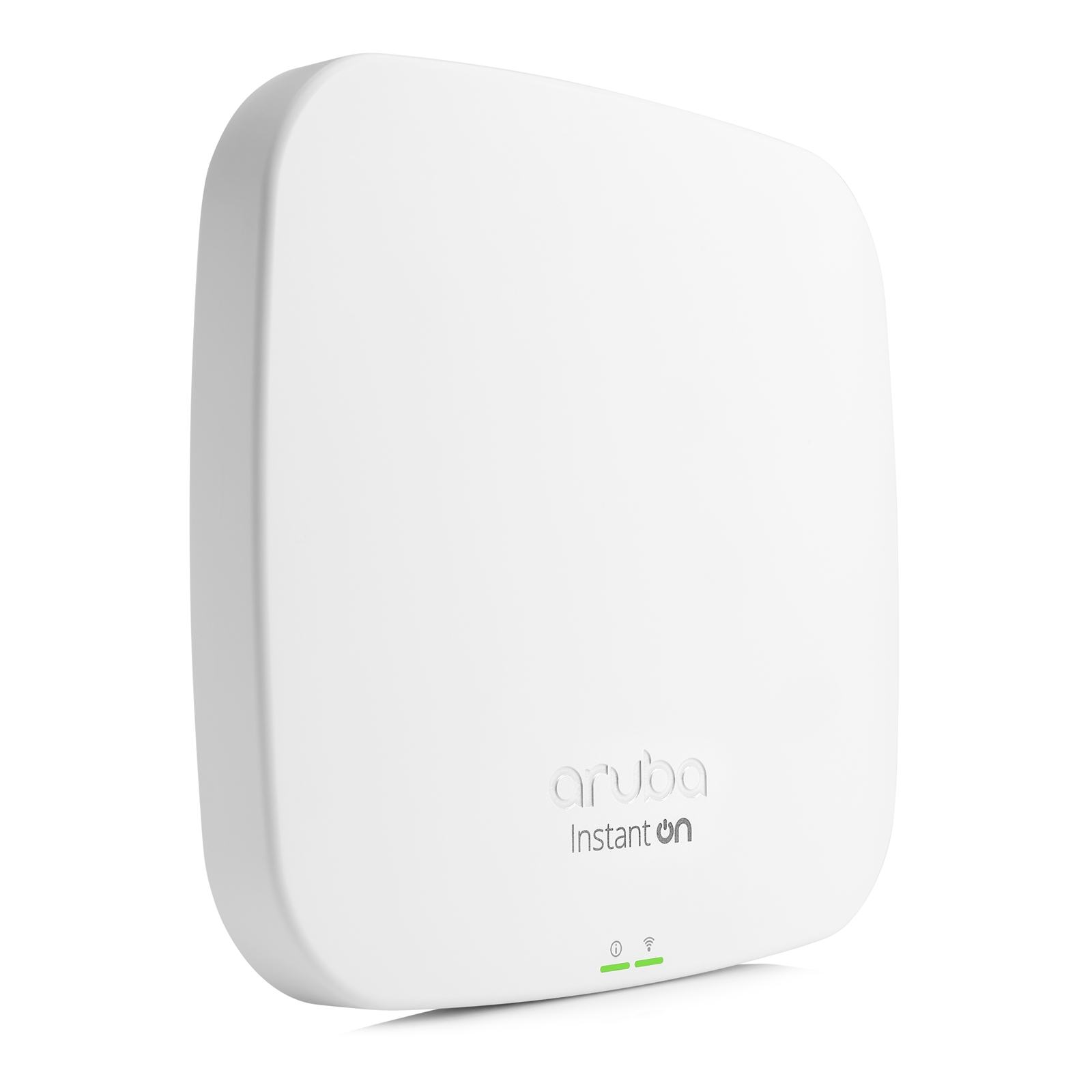

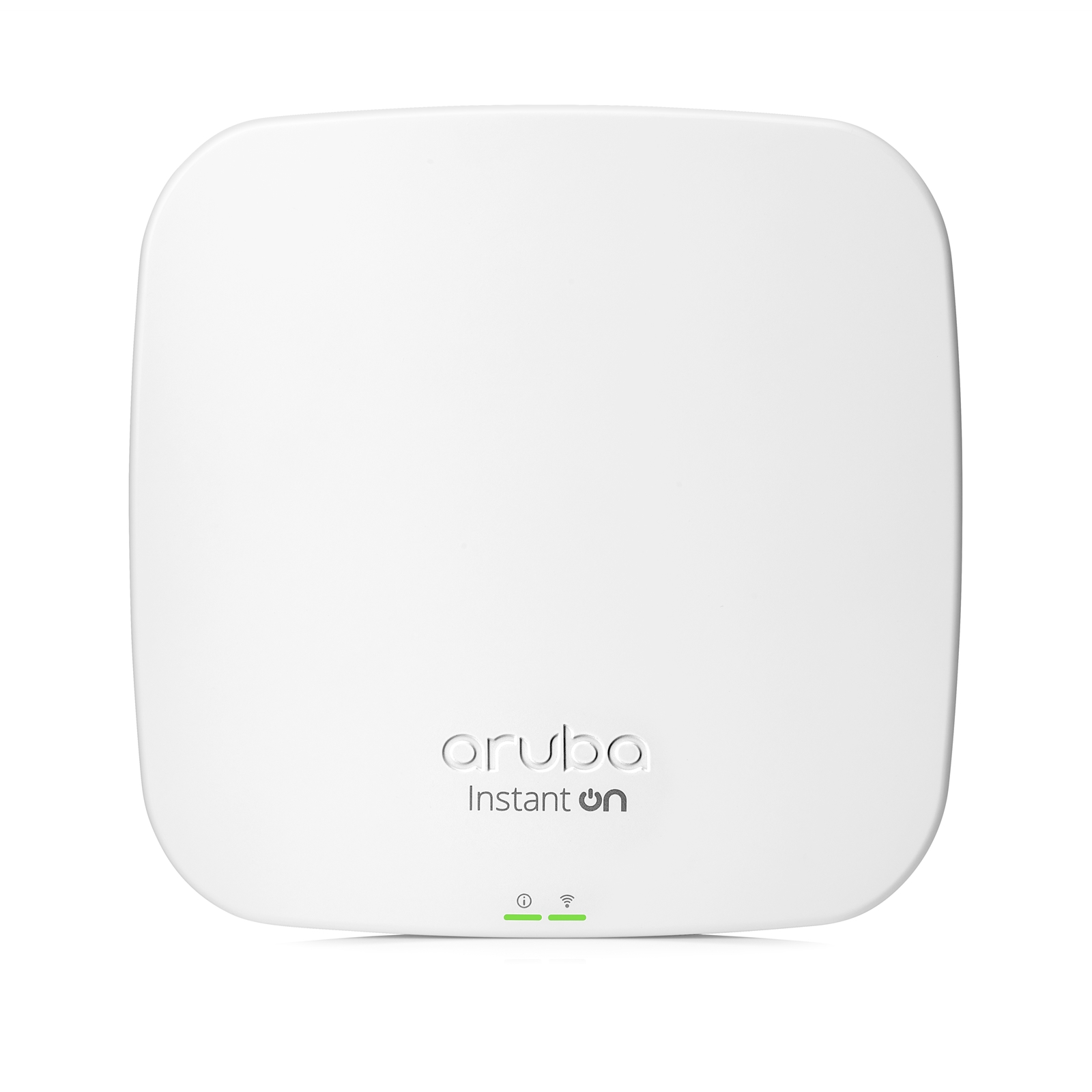

Aruba Instant On AP15 (RW) 4x4 11ac Wave2 Indoor Access Point, Smart Mesh Technology, MU-MIMO Radios

Aruba Logo here

Manufacturer Part Code: R2X06A

Order Code: NPARU-R2X06A

Category: Aruba Wireless Access Points

Aruba Instant On AP15 (RW) 4x4 11ac Wave2 Indoor Access Point, Smart Mesh Technology, MU-MIMO Radios, Remote Management, Cloud Managed, POE Powered, No POE Injector (R2X06A)

Aruba Instant On AP15 Indoor Access Points deliver affordable, premium-grade Wave 2 802.11ac Wi-Fi for medium-density small business and SMB environments requiring high performance and bandwidth. Business-grade capabilities are designed to meet the mobile, IoT, and security needs of tech-start-ups, animation and graphics firms, or other demanding environments.

Get setup and running in minutes with the Aruba Instant On Cloud app management system. The cloud-hosted web interface and mobile app make it easy to manage multiple Aruba Instant On APs deployed in your facility, keeping network access logins and security settings consistent.

AP15 APs can be powered with Power over Ethernet (802.1af Class 2) or using a 12V local power adapter. The AP15 (R2X06A) provides only the unit. Separately you must provide Power over Ethernet, or order 12V power adapter and cord a la carte.

AP15 APs provide best coverage when mounted on a ceiling or high on a wall. Unit ships with mounting hardware for drop ceiling rails and for wall placement.

Specified hardware for 1733 Mbps on 5 GHz (.11ac) | 300 Mbps on 2.4 GHz (.11n) | Total 2033 Mbps throughput | Unit has one Gigabit 100/1000 uplink connection | recommended for up to 100 max active devices.

Access Points are dedicated WiFi devices used to deliver enhanced WiFi across a facility, to reach all areas needing wireless connectivity, with WiFi strength beyond what is possible with WiFi repeaters. This technology, common is large companies and colleges and universities, is now available for smaller business and SMBs looking for strong WiFi in their facilities. Aruba Instant On is the business-class Access Point (AP) solution for you. Small businesses and SMBs are facing a number of challenges that need constant attention, so setting up and running a network shouldn't be on that list. Choosing the best Wi-Fi for your business should make your life simple.

We've made it easy to keep Wi-Fi users happy, mobile devices connected and your network secure. Aruba Instant On APs work together in concert, with shared security access and presenting a common network across your facility. Setting up employee and guest networks is a breeze. Smart Mesh Wi-Fi makes it easy to cover rooms difficult to reach with wires.

Whether you own a small retail store or a busy bed-and-breakfast or a professional office location, Wi-Fi plays such a critical role today. Aruba Instant On Access Points (APs) are easy to deploy and manage – at an attractive price point. Instant On AP models can be mixed in the same network. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included.

Package Contains:

  • Single unit (UK model). Separately provide PoE or order power adapter and cord
  • Mounting: for ceiling or wall mounting. Mounting hardware included.
  • Warranty: 1 Year. From Aruba, a Hewlett Packard Enterprise company.

Technical Specifications

- Aruba Instant On AP15 Indoor Access Point
- Aruba Instant On AP15 Quick Start guide
- Ceiling rail mount clip
- Solid surface mount clip
- Ethernet Cable

- Dual Radio for simultaneous dual-band operation
- 5 GHz 802.11ac 4x4 MIMO for up to 1,733 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
- 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

- Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
- DC power connector (12V)
- USB host interface (future use)
- Bluetooth Low Energy (BLE) radio
- LED status indicators (2)
- Reset/LED control button
- Kensington security slot

- 183mm x 183mm x 41mm, excluding mount accessories
- Weight: 674g

- Power over Ethernet (POE): 802.3af (class 3)
- Max power consumption (worst-case): 14.4W (PoE), 12.7W (DC)
- DC power (12V)
Note: Power sources are sold separately

- Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz

The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling)

- UL2043 plenum rating

- Operating Temperature: 0° C to +50° C (+32° F to +122° F)
- MTBF: 916khrs (105yrs) at +25° C

- UL 2043 plenum rating
- EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
- Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3

- Instant On mobile application (Android & iOS)
- Cloud Portal:

- Aruba Instant On 2-year* warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is for as long as you own the products. Should you require longer support, please purchase a Foundation Care contract for your APs. The SKUs are HK1Y0E (3 years) and H30GZE (5 years).

Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Essential Extras and Accessories

Technical Information

Antenna type
Antenna gain level (max)
6 dBi
Antenna features
Integrated antenna
Antenna direction type
Cable lock slot
Product colour
Ceiling, Wall
Cable lock slot type
Power over Ethernet (PoE)
Power consumption (max)
14.4 W
Maximum data transfer rate
2033 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Ethernet LAN data rates
10,100,1000 Mbit/s
2.4 GHz
5 GHz
MIMO type
Multi User MIMO
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
1733 Mbit/s
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 50 °C
Ethernet LAN (RJ-45) ports
Security algorithms
674 g
41 mm
183 mm
183 mm
