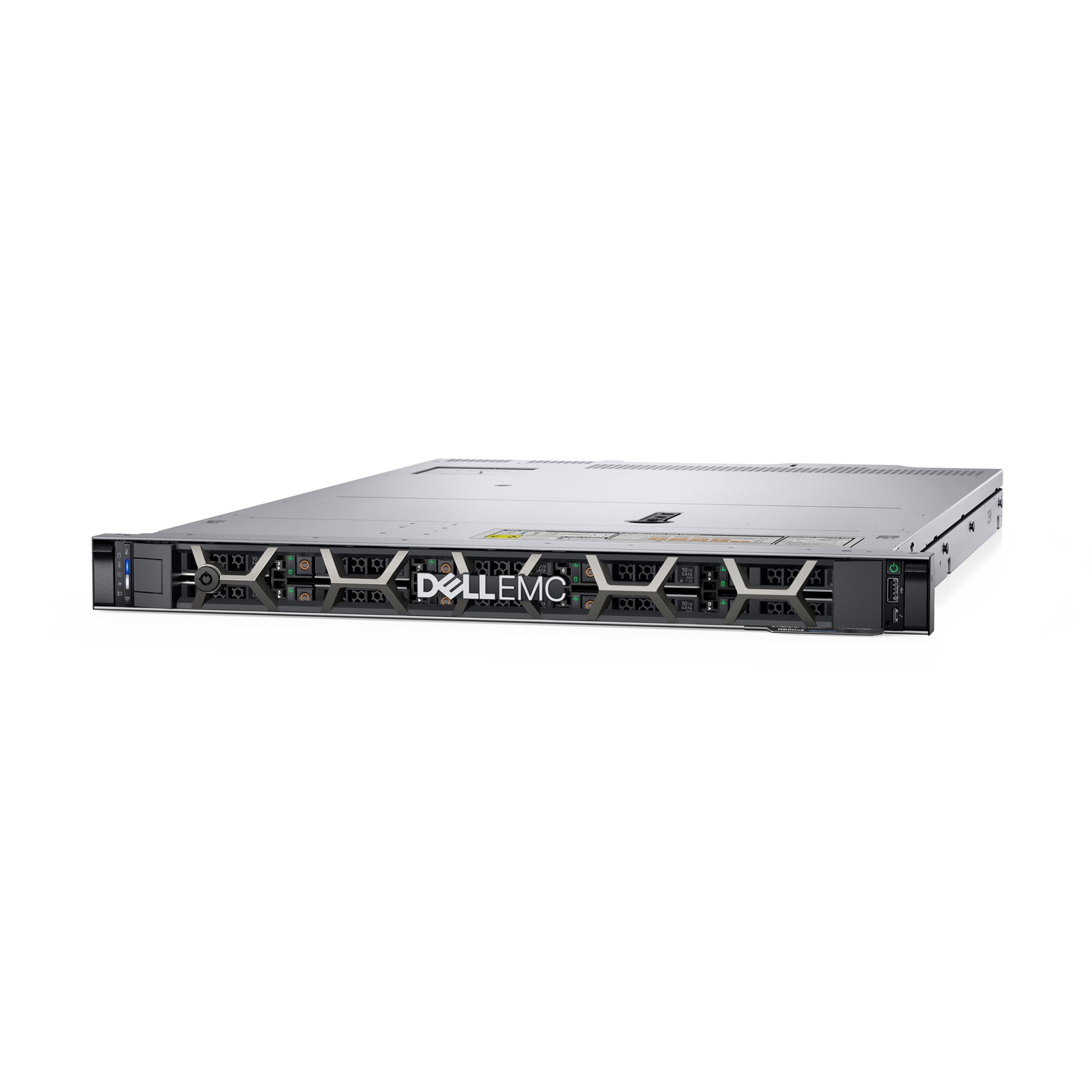

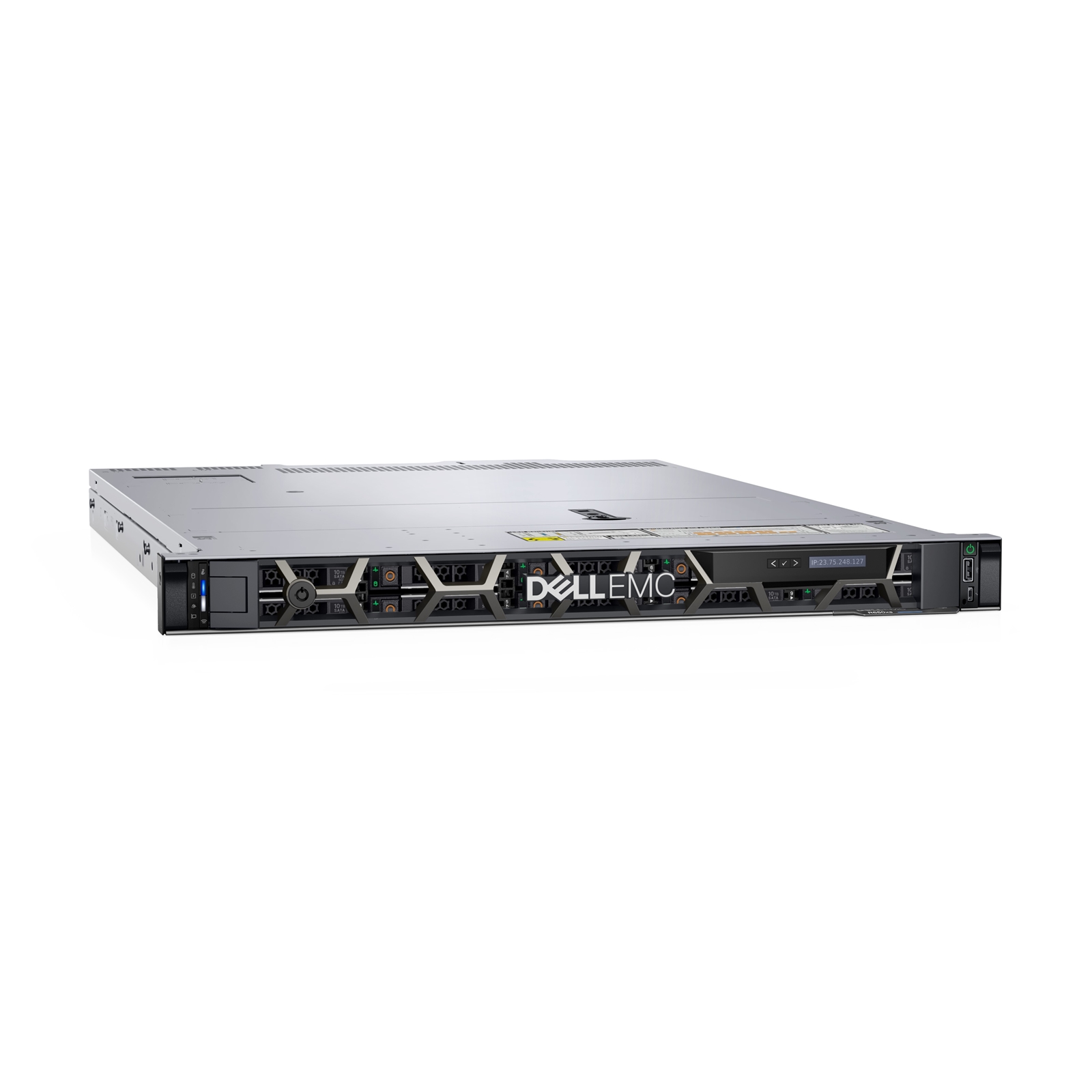

DELL PowerEdge R650xs Rack Server - RD8NP

DELL Logo here

Manufacturer Part Code: RD8NP

Order Code: SVDEL-RD8NP

Category: Dell Rack Servers

PowerEdge R650XS Chassis 8 x 2.5in Hot-Plug Intel Xeon Silver 4314 32GB 480GB SSD Rails Bezel Quad-Port 1GbE BASE-T PERC H755 iDRAC9 Enterprise 800W 3Y Basic NBD

1U server that's purpose-built for scale-out solutions
The Dell EMC PowerEdge R650xs is designed to meet a specific set of requirements for medium-duty workloads with enterprise-class performance and capabilities.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.
Need this delivered pre-built? We have configuration and installation options available!

Essential Extras and Accessories

Technical Information

Total carbon footprint
8310 kg of CO2e
Total carbon emissions (Standard deviation)
4460 kg of CO2e
Carbon emissions (Manufacturing)
997 kg of CO2e
Carbon emissions (Logistics)
138 kg of CO2e
Carbon emissions (Use)
7150 kg of CO2e
Carbon emissions (End-of-Life)
22 kg of CO2e
Total carbon emissions (w/o Use phase)
1157 kg of CO2e
PAIA version
1.3.2, 2022
Chassis type
Rack (1U)
Product colour
Black
Bezel
Yes
Power supply
800 W
Redundant power supply (RPS) support
Yes
Power cable length
2 m
Number of main power supplies
1
Number of redundant power supplies supported
2
Power cable current
10 A
Power cable connector 1
C13 coupler
Power cable connector 2
C14 coupler
PCI Express x16 slots
2
On-board graphics card model
Not available
Harmonized System (HS) code
84714100
Internal memory type
DDR4-SDRAM
Memory slots
16x DIMM
Memory clock speed
2666 MHz
Memory ranking
2
Memory layout (slots x size)
1 x 32 GB
Internal memory
32 GB
Memory data transfer rate
3200 MT/s
Buffered memory type
Registered (buffered)
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
LAN controller
Broadcom 5720
Ethernet interface type
Gigabit Ethernet
Compatible operating systems
Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Operating system installed
No
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
8 - 80%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 12000 m
Data transfer rate
6 Gbit/s
Bytes per sector
512
Remote administration
iDRAC9, Enterprise 15G
Harmonized System (HS) code
84714100
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
2
VGA (D-Sub) ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Power cables quantity
1
Processor model
4314
Number of processors installed
1
Processor manufacturer
Intel
Processor family
Intel Xeon Silver
Processor boost frequency
3.4 GHz
Processor cache
24 MB
Processor frequency
2.4 GHz
Processor generation
3rd Generation Intel® Xeon® Scalable
Optical drive type
No
Hot-Plug support
Yes
Total storage capacity
480 GB
SSD interface
SATA III
SSD capacity
480 GB
RAID support
No
Number of SSDs installed
1
Number of SSDs supported
8
Supported RAID controllers
PERC H755
SSD size
2.5"
Drive writes per day (DWPD)
1
Supported SSD sizes
2.5"
Height
42.8 mm
Width
482 mm
