Wireless Routers | Ubiquiti  UDR UniFi Dream Router - Combined Wi-Fi 6 AP / POE Switch / Security Gateway / Controller | UDR | ServersPlus
L R
Ubiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.comUbiquiti UDR | serversplus.com

Illustration purposes only

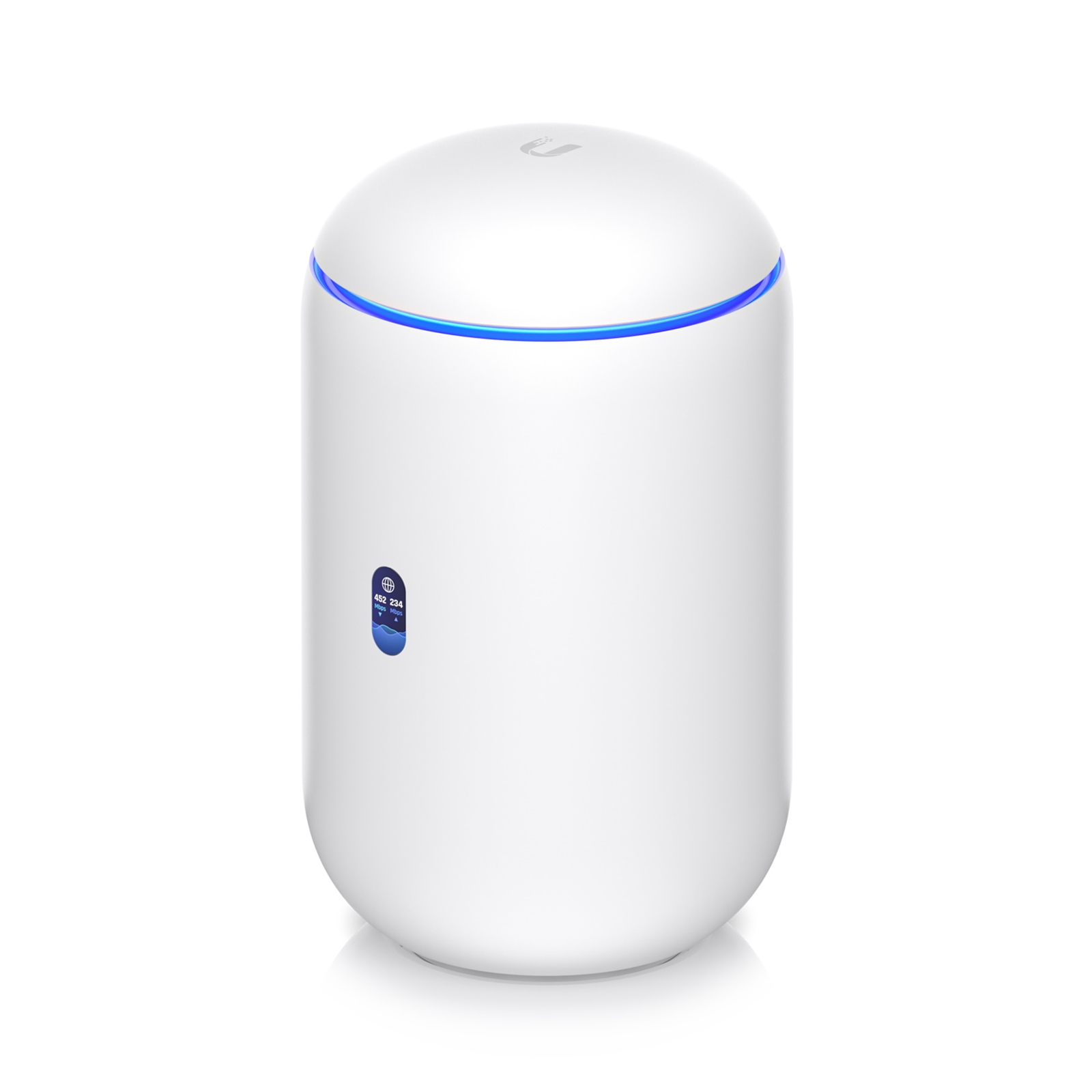

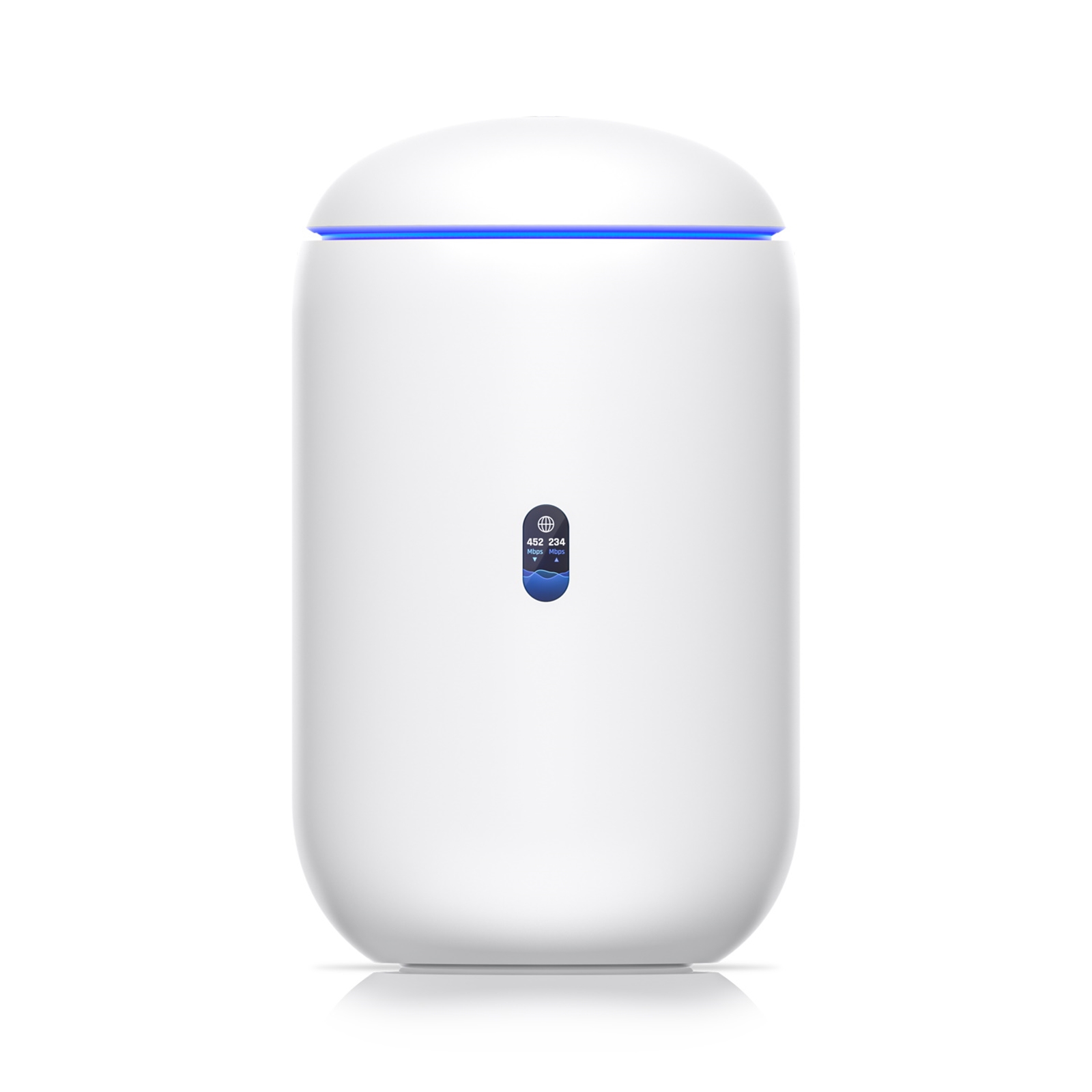

Ubiquiti UDR UniFi Dream Router - Combined Wi-Fi 6 AP / POE Switch / Security Gateway / Controller

Ubiquiti Logo here

Manufacturer Part Code: UDR

Order Code: NPUBI-UDR

Category: Wireless Routers

Ubiquiti UDR UniFi Dream Router - Combined Wi-Fi 6 AP / POE Switch / Security Gateway / Controller

All-in-one WiFi 6 router with a 3 Gbps aggregate throughput rate.

The Dream Router (UDR) is a next-generation WiFi 6 router that delivers unbeatable performance at an unmatched price. Featuring advanced 4x4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices. The UDR also has (5) GbE RJ45 ports, including two that supply PoE to compatible devices, and all of its connections can be conveniently monitored from the router's LCM color screen. Designed to be a comprehensive, easy-to-use network hub, the UDR can be set up and configured in minutes via the UniFi Network web application or mobile app.

Features
Four-stream WiFi 6 technology
5 GHz band (4x4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate
2.4 GHz band (4x4 MIMO) with a 600 Mbps throughput rate
128 GB of internal storage

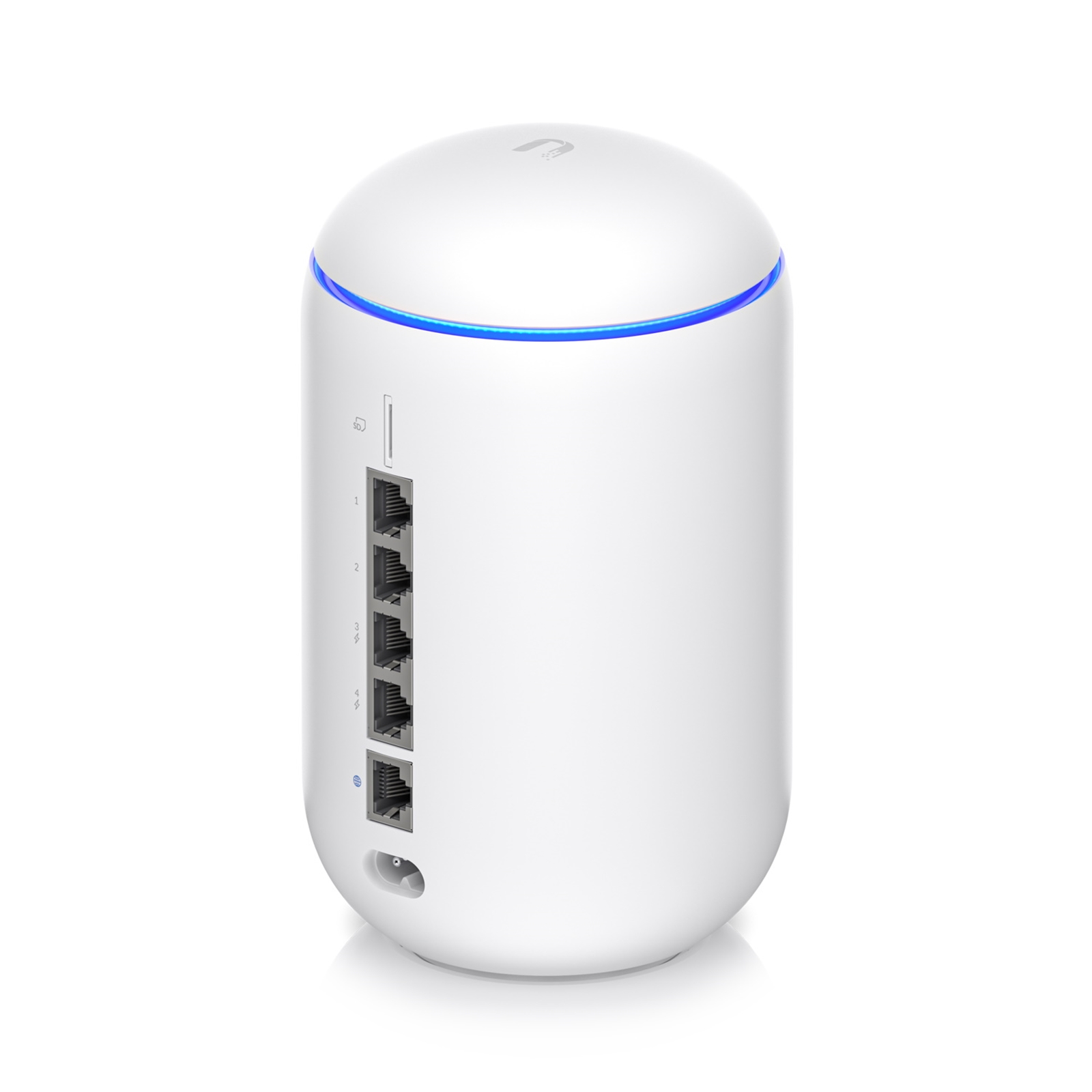

(1) GbE RJ45 WAN port
(4) LAN ports, including (2) PoE outputs
0.96" LCM color screen for network and connection monitoring
Micro SD memory card expansion slot

Please note this device comes with an EU power plug.

Specifications

Dimensions
110 x 184.13 mm

Weight
1.15kg

Enclosure Material
Polycarbonate

Processor Specs
Dual-Core Cortex A53 at 1.35 GHz

System Memory
2GB

Expansion Slot
Micro SD memory card* (optional)
*Requires a memory card with at least 128 GB of storage.

Management Interface
Ethernet
Bluetooth

Networking Interfaces
(1) WAN: 1 GbE RJ45 port
(4) LAN: 1 GbE RJ45 ports

POE Interfaces
2x POE

LCD Display
Start-up animation: start-up in progress
Firmware update icon: firmware updating

Button
Factory Reset

LED
White/Blue

Power Method
Universal AC input, 100-240VAC, 1.1A Max, 50/60 Hz

Power Supply
AC/DC, Internal, 50W

POE Budget
32W

Max. PoE wattage per port by PSE
15.4W


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
4.3 dBi
Antennas quantity
1
Antenna design
Internal
Product colour
White
Housing material
Polycarbonate (PC)
Built-in display
Yes
Product type
Tabletop router
Processor frequency
1350 MHz
Internal memory
128000 MB
Certification
CE, FCC, IC
Bluetooth
Yes
Firmware upgradeable
Yes
Processor cores
2
Built-in processor
Yes
Processor architecture
ARM Cortex-A53
Quality of Service (QoS) support
Yes
Web-based management
Yes
Reset button
Yes
MIMO
Yes
MU-MIMO technology
Yes
3G
No
4G
No
SIM card slot
No
5G
No
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Networking standards
IEEE 802.1Q, IEEE 802.3af
Ethernet LAN interface type
Gigabit Ethernet
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 45 °C
Manual
Yes
Manual
Yes
Number of products included
1 pc(s)
Compatible memory cards
MicroSD (TransFlash)
Ethernet LAN (RJ-45) ports
4
Memory card slot(s)
Yes
USB port
No
Power consumption (typical)
19.37 W
Power supply
50 W
Power over Ethernet (PoE)
Yes
Power source type
AC
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Security algorithms
WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
WAN connection type
RJ-45
DSL WAN
No
Ethernet WAN
Yes
SIM card slot
No
3G/4G USB modem compatibility
No
Weight
1.2 kg
Height
184.1 mm
Width
110 mm
Depth
110 mm
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)
2400 Mbit/s
WLAN data transfer rate (first band)
600 Mbit/s
WLAN data transfer rate (second band)
2400 Mbit/s
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
