Wireless Routers | TP-LINK 300Mbps vDSL2+ Modem Router | TD-W9970 | ServersPlus
L R
TP-LINK TD-W9970 | serversplus.comTP-LINK TD-W9970 | serversplus.comTP-LINK TD-W9970 | serversplus.comTP-LINK TD-W9970 | serversplus.com

Illustration purposes only

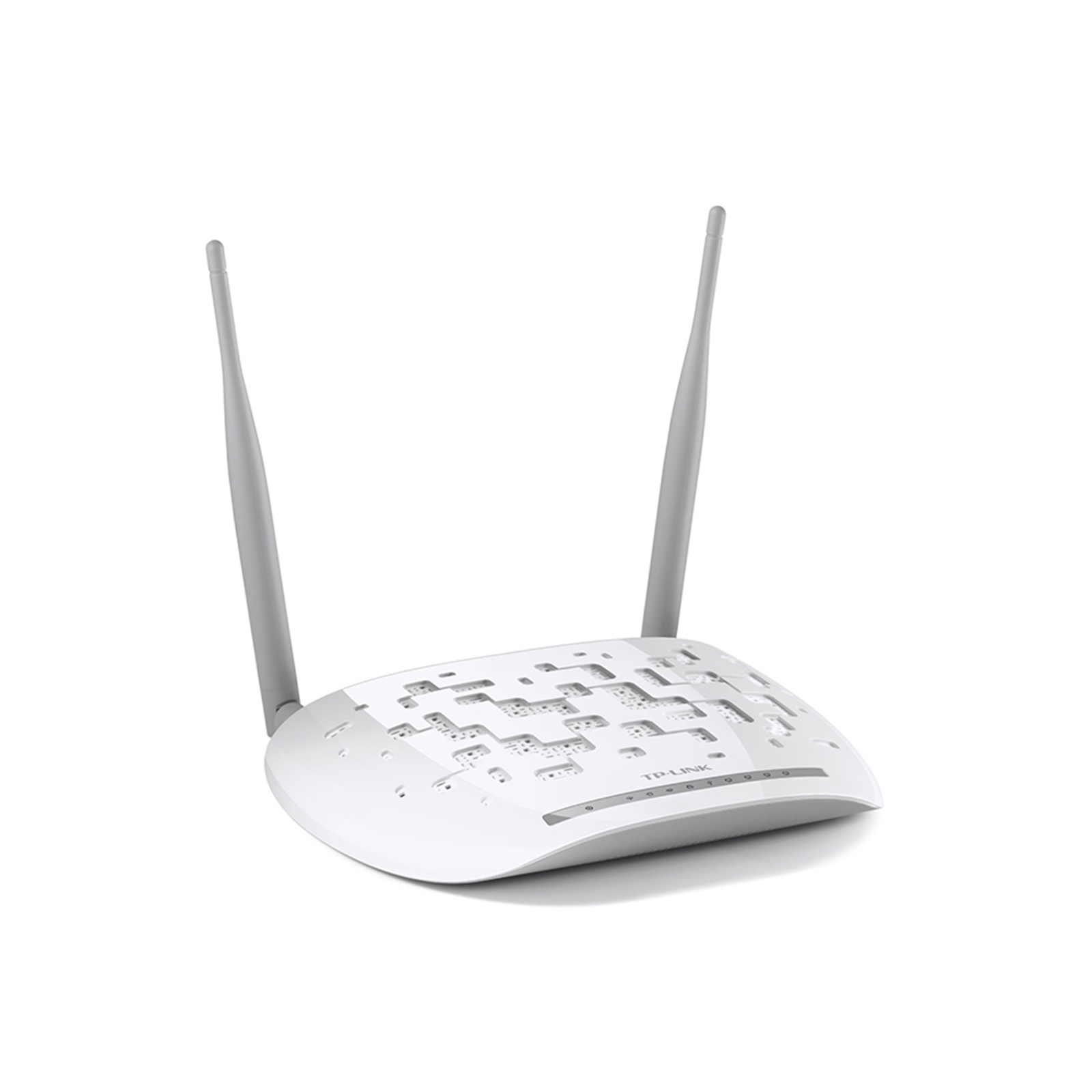

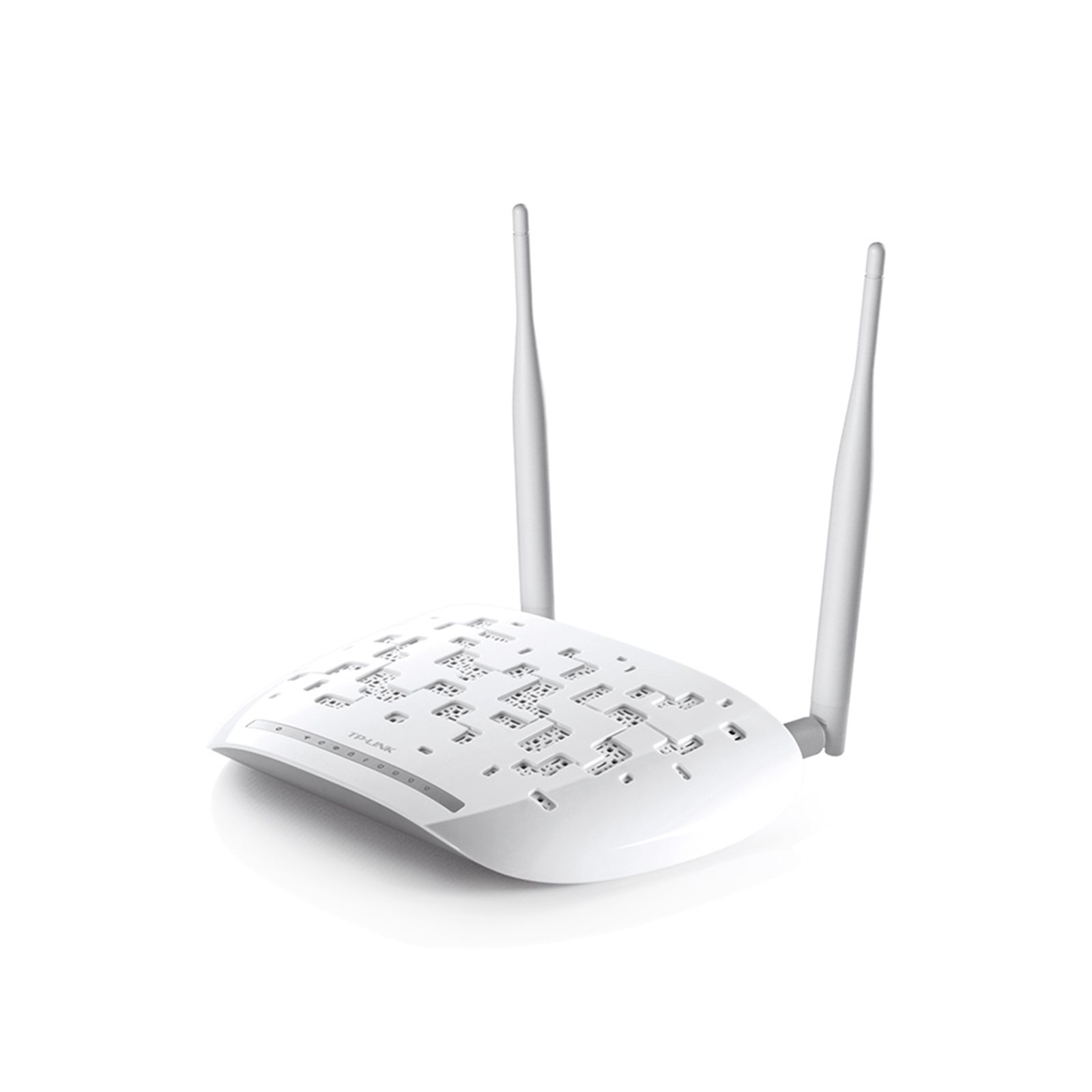

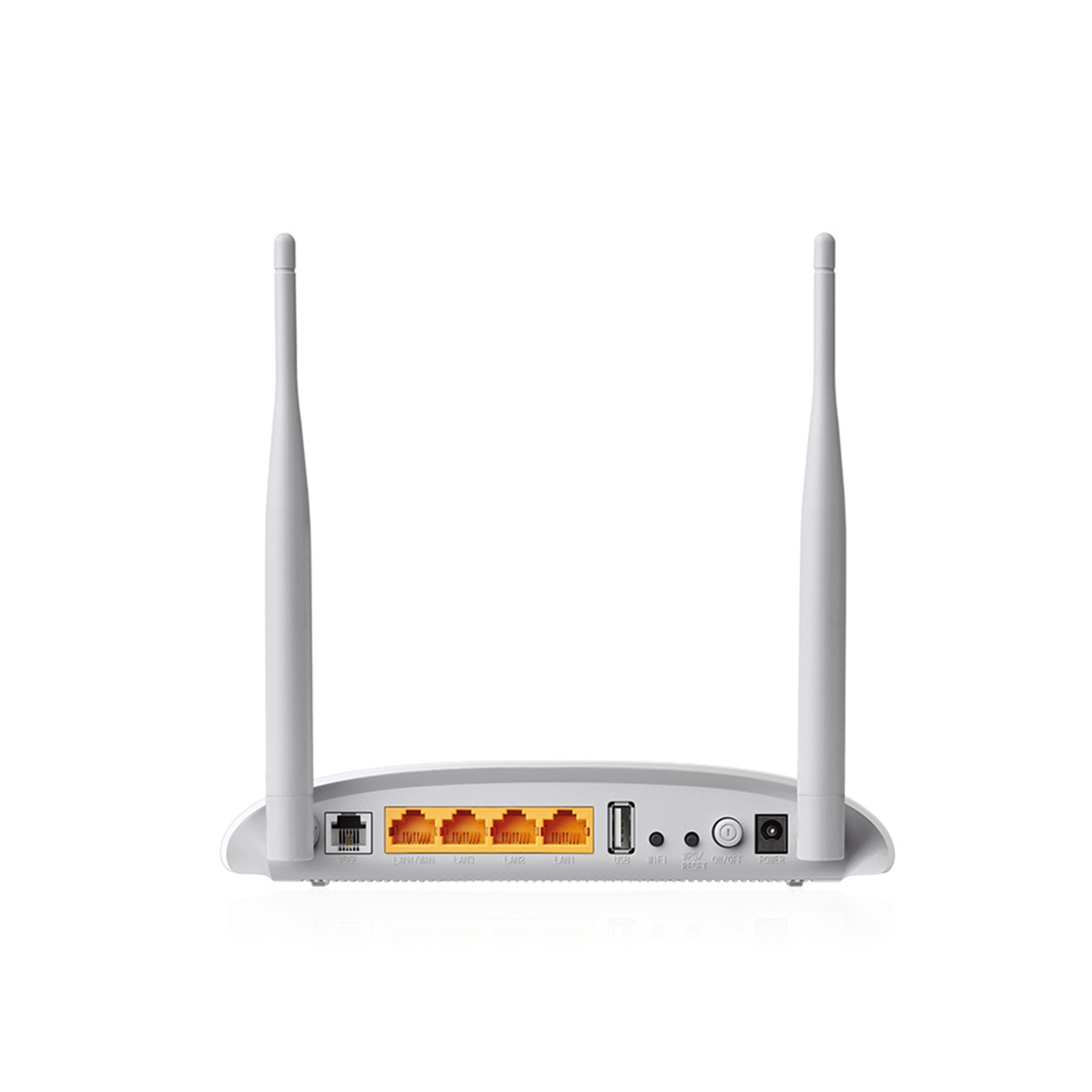

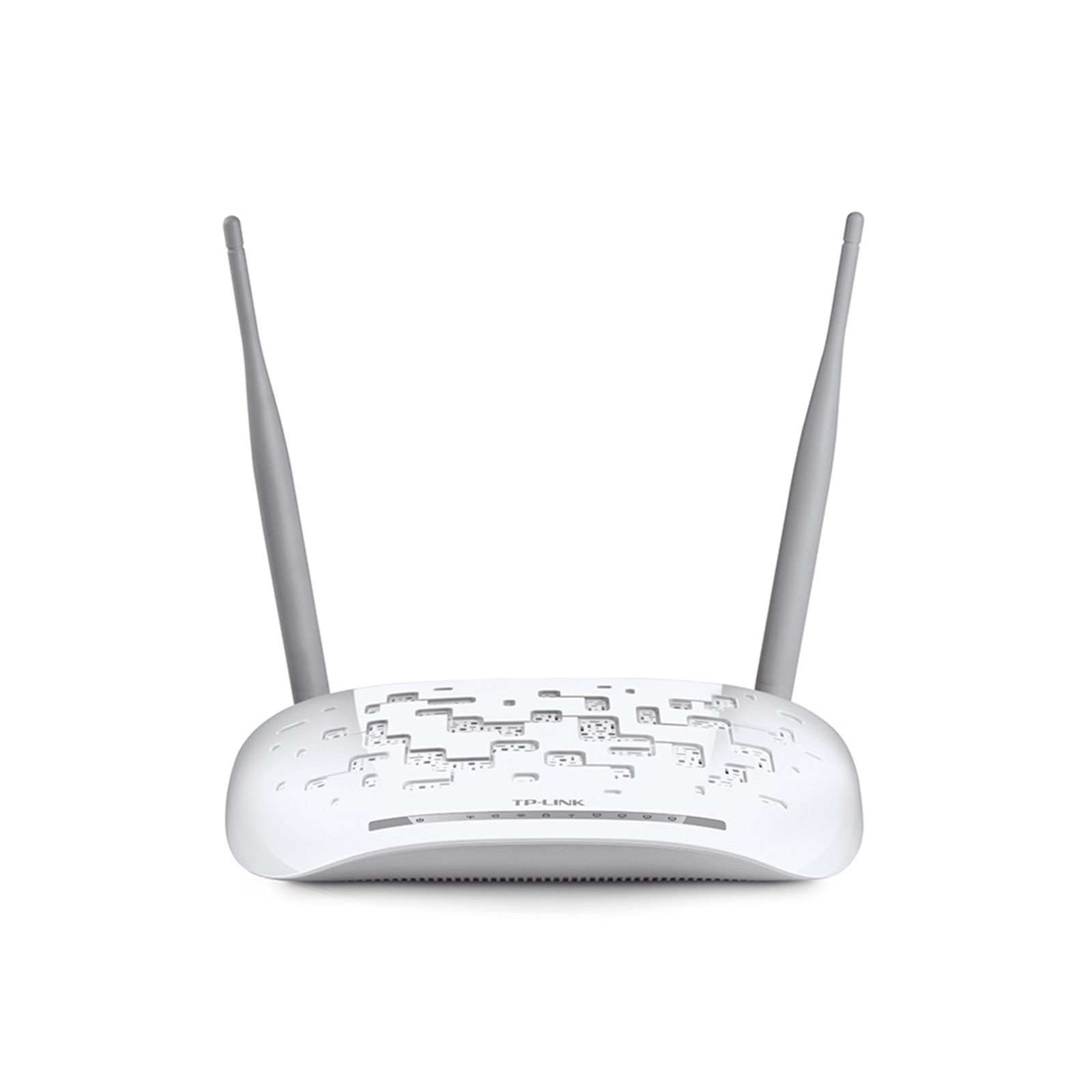

TP-LINK 300Mbps vDSL2+ Modem Router

TP-LINK Logo here

Manufacturer Part Code: TD-W9970

Order Code: NPTPL-TDW9970

Category: Wireless Routers

300Mbps vDSL2+ Modem Router

USB Sharing Port – Easy Sharing
Using the TD-W9970's multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device's FTP server functions so that you never have to part with your files.

Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.

Up to 100Mbps broadband speed
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.

What This Product Does
TP-LINK's TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.

Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
External
Antenna gain level (max)
5 dBi
Antennas quantity
2
Certification
CE, FCC, RoHS
LED indicators
Y
Colour of product
White
On/off switch
Y
xDSL connection
Y
DSL WAN
Y
VDSL2
Y
Cabling technology
10/100Base-T(X)
Ethernet LAN
Y
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN interface type
Fast Ethernet
Quality of Service (QoS) support
Y
Web-based management
Y
Reset button
Y
WPS push button
Y
Universal Plug and Play (UPnP)
Y
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
WLAN data transfer rates supported
300 Mbit/s
Frequency range
2.4 - 2.4835 GHz
USB version
2.0
USB ports quantity
1
xDSL connection
Y
AC adapter included
Y
Cables included
LAN (RJ-45), Phone (RJ-11)
Quick start guide
Y
Firmware upgradeable
Y
Windows operating systems supported
Y
Mac operating systems supported
Y
Linux operating systems supported
Y
Ethernet LAN (RJ-45) ports
4
RJ-11 ports quantity
1
DHCP client
Y
DMZ support
N
Security algorithms
128-bit AES,128-bit WEP,192-bit AES,256-bit AES,3DES,64-bit WEP,DES,MD5,SHA-1,WPA,WPA-PSK,WPA2,WPA2-PSK
Firewall security
NAT, SPI
VPN support
PPTP, L2TP, IPSec Pass-through
VPN tunnels quantity
10
MAC address filtering
Y
IP address filtering
Y
URL filtering
Y
Windows operating systems supported
Y
Mac operating systems supported
Y
Linux operating systems supported
Y
DSL WAN
Y
Height
36 mm
Width
195 mm
Depth
130 mm
Wi-Fi standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
WLAN data transfer rates supported
300 Mbit/s
Wi-Fi band
N
WLAN data transfer rate (max)
300 Mbit/s
Wi-Fi standard
IEEE 802.11n
