Ubiquiti PBE-5AC-Gen2 PowerBeam AC Gen2 High-Perforrmance airMAX ac Bridge
Manufacturer Part Code: PBE-5AC-GEN2
Order Code: NPUBI-PBE5ACGEN2
Category: Ubiquiti AirMax

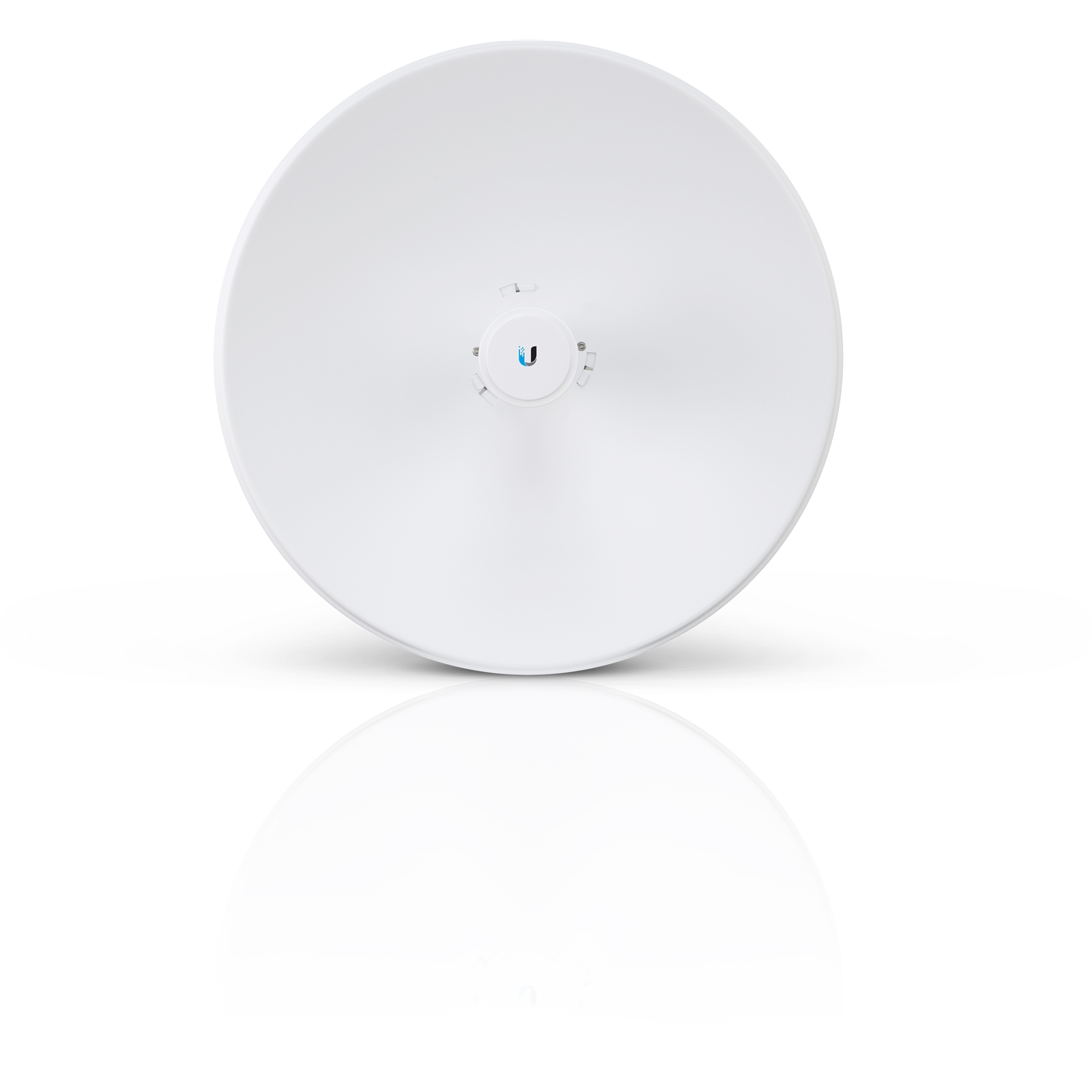

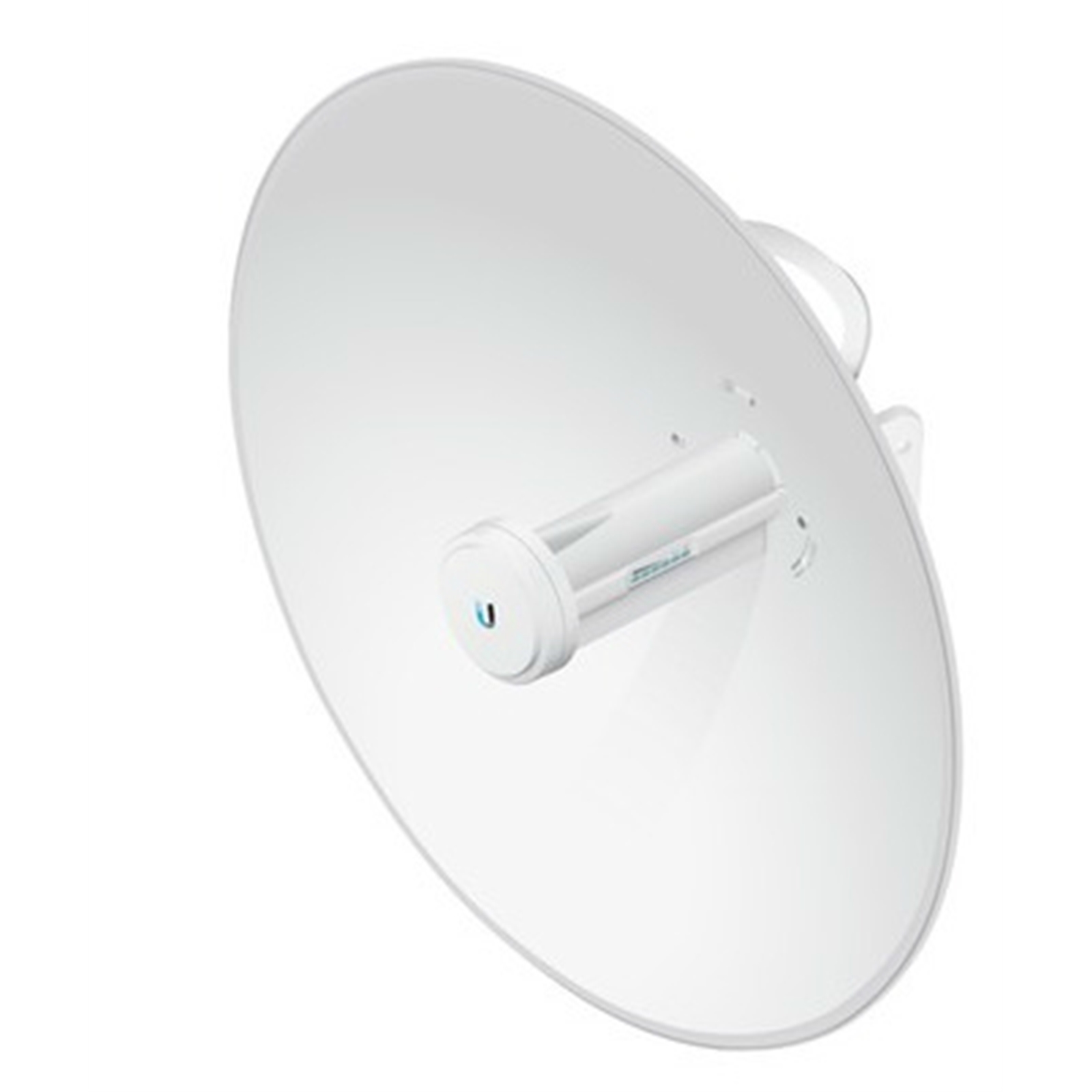

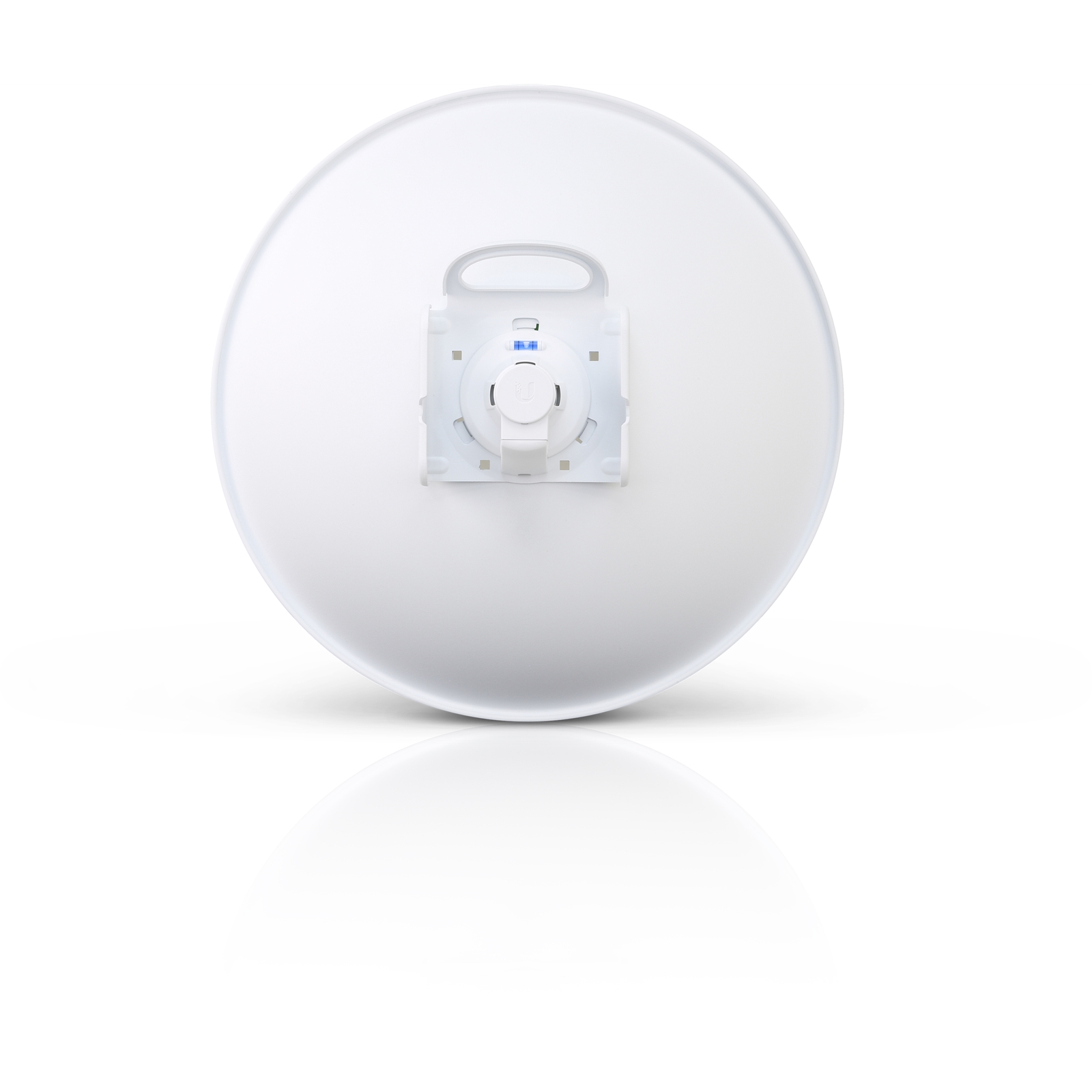

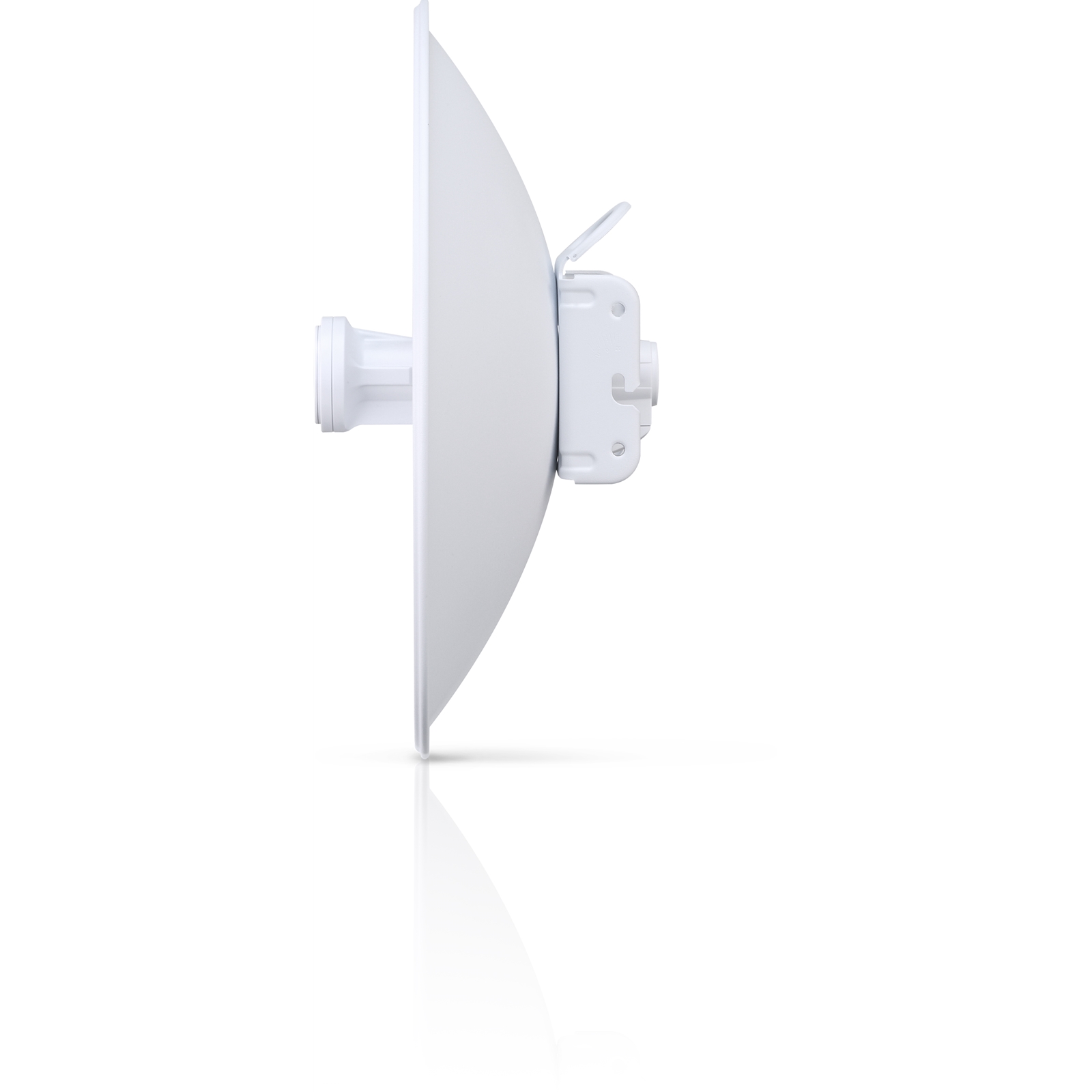

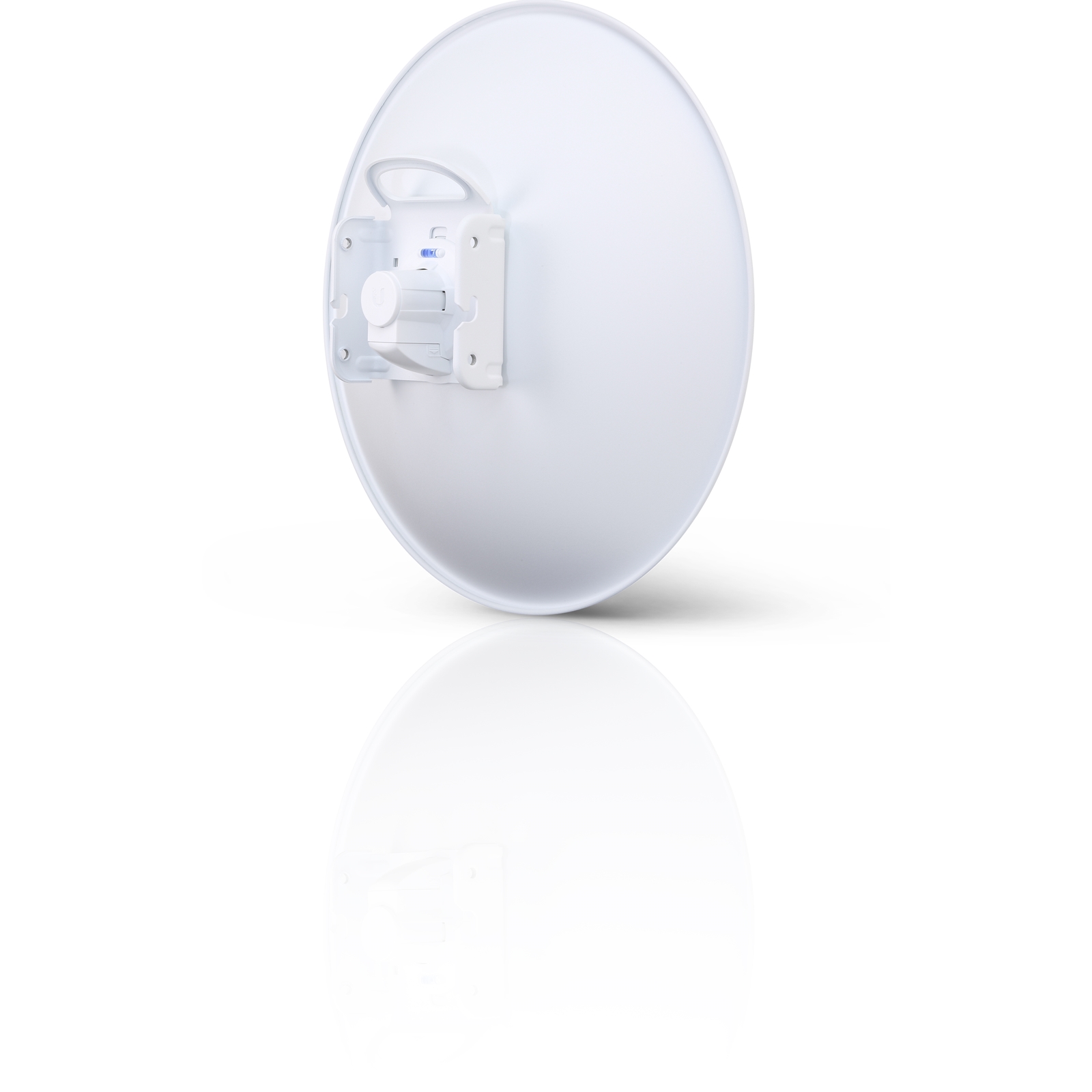

Ubiquiti PBE-5AC-Gen2 PowerBeam AC Gen2 High-Performance airMAX ac Bridge
High-Performance airMAX ac Bridge
Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Management Wi-Fi Radio
The PowerBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam AC offers a more robust mount with a convenient lifting loop or handle.
Integrated Radio Design
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam AC requires no tools for assembly; only a single wrench is required for pole-mounting.
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna Beam Performance
The form factor of the PowerBeam AC features the highest gain for its size. The PowerBeam AC's excellent beam directivity provides the best performance in high-noise environments.
Now with airOS 8
airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
420 x 420 x 230mm
24V, 0.5A Gigabit PoE Adapter (Included)
Max Power Consumption
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20 to 26VDC
(1) 10/100/1000 Ethernet Port
Pole-Mounting Kit (Included)
380 N @ 200 km/h (85.4 lbf @ 125 mph)
200 km/h (125 mph)
ESD/EMP Protection Air
+- 24 kV, Contact +- 24 kV
-40 to 70C (-40 to 158F)
5 to 95% Non-condensing
CE, FCC, IC
Hex Bolts with Washers (Qty. 4)
Pole Clamp Carriage Bolts (Qty. 2)
Flange Nuts (Qty. 2)
Gigabit PoE (24V, 0.5A) with Mounting Bracke
