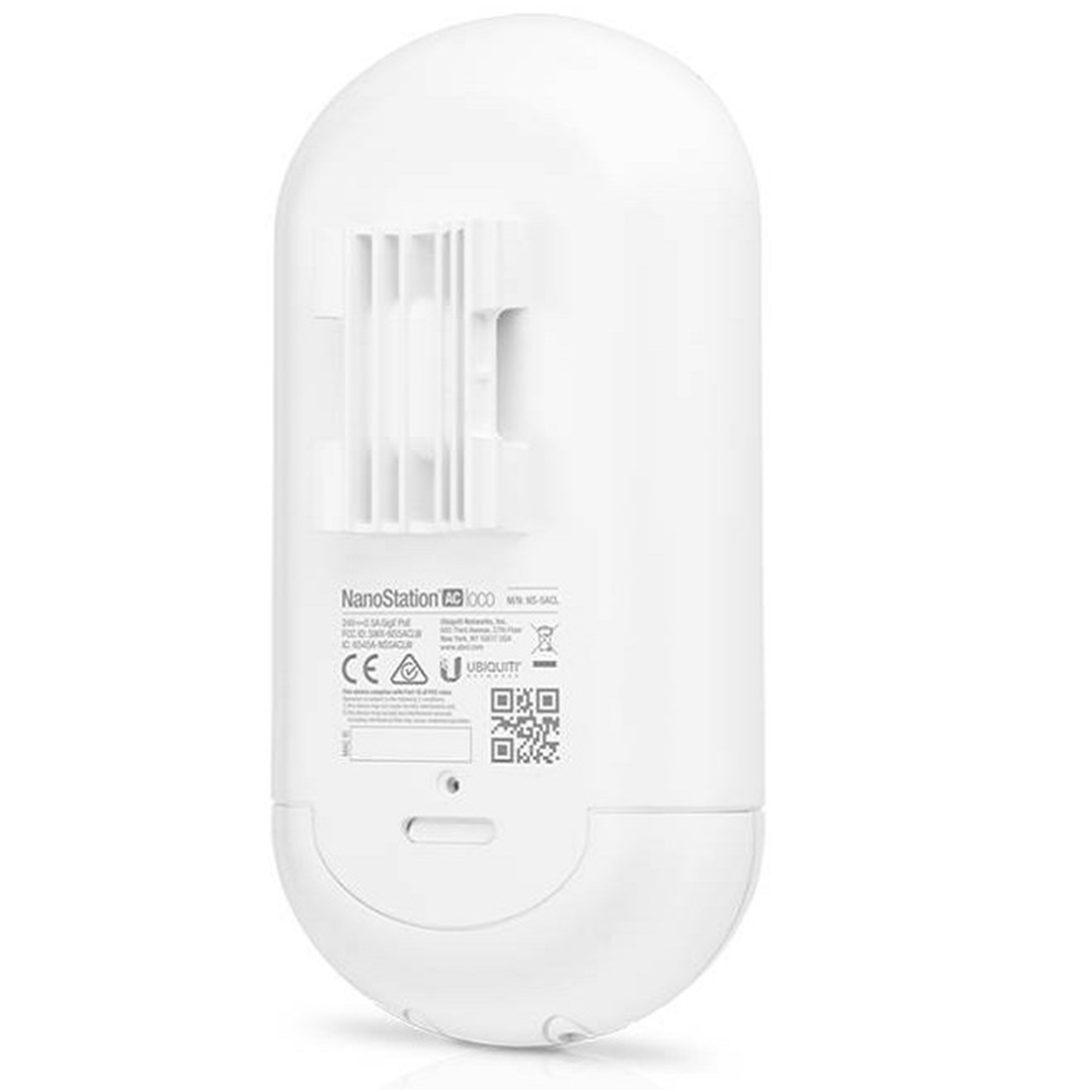

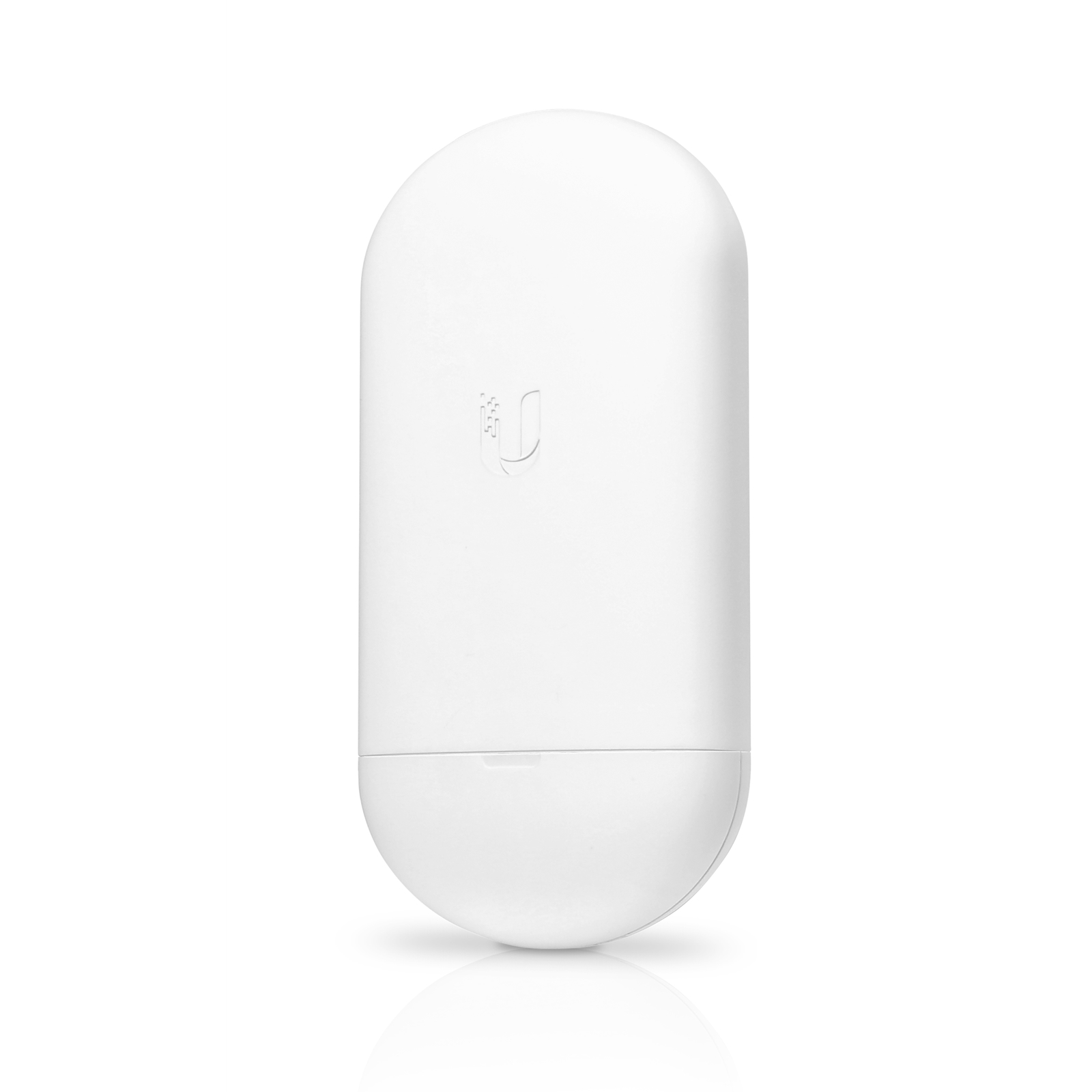

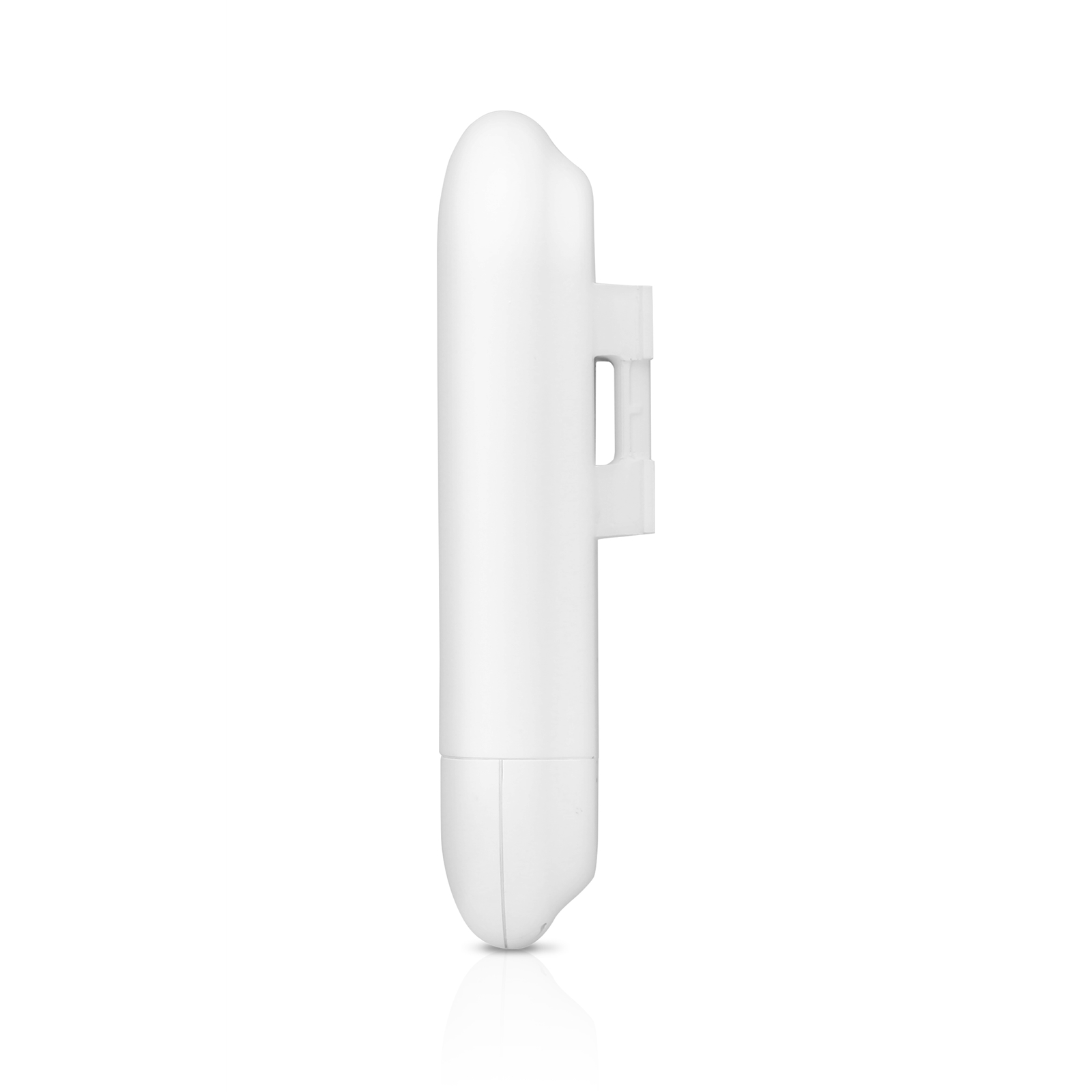

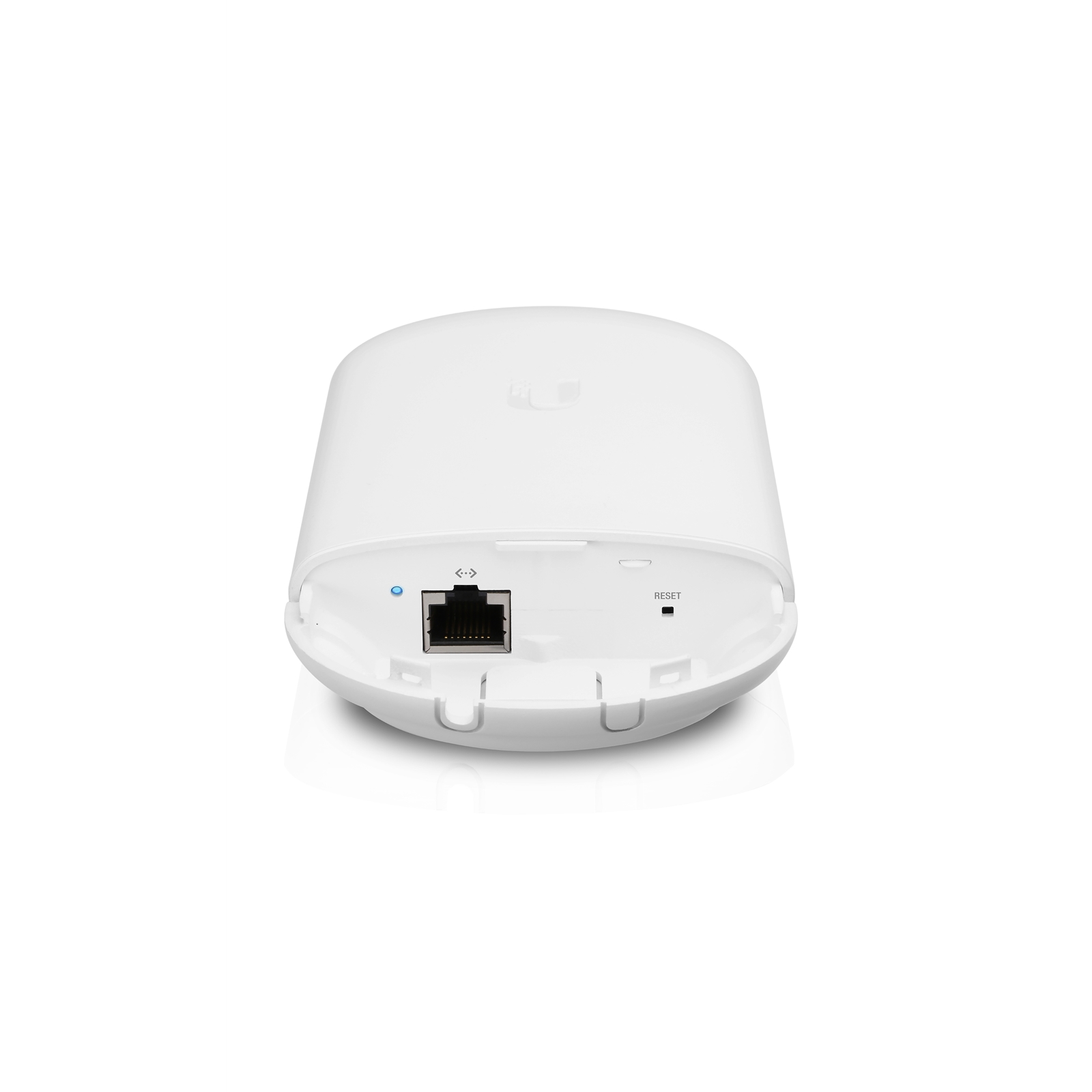

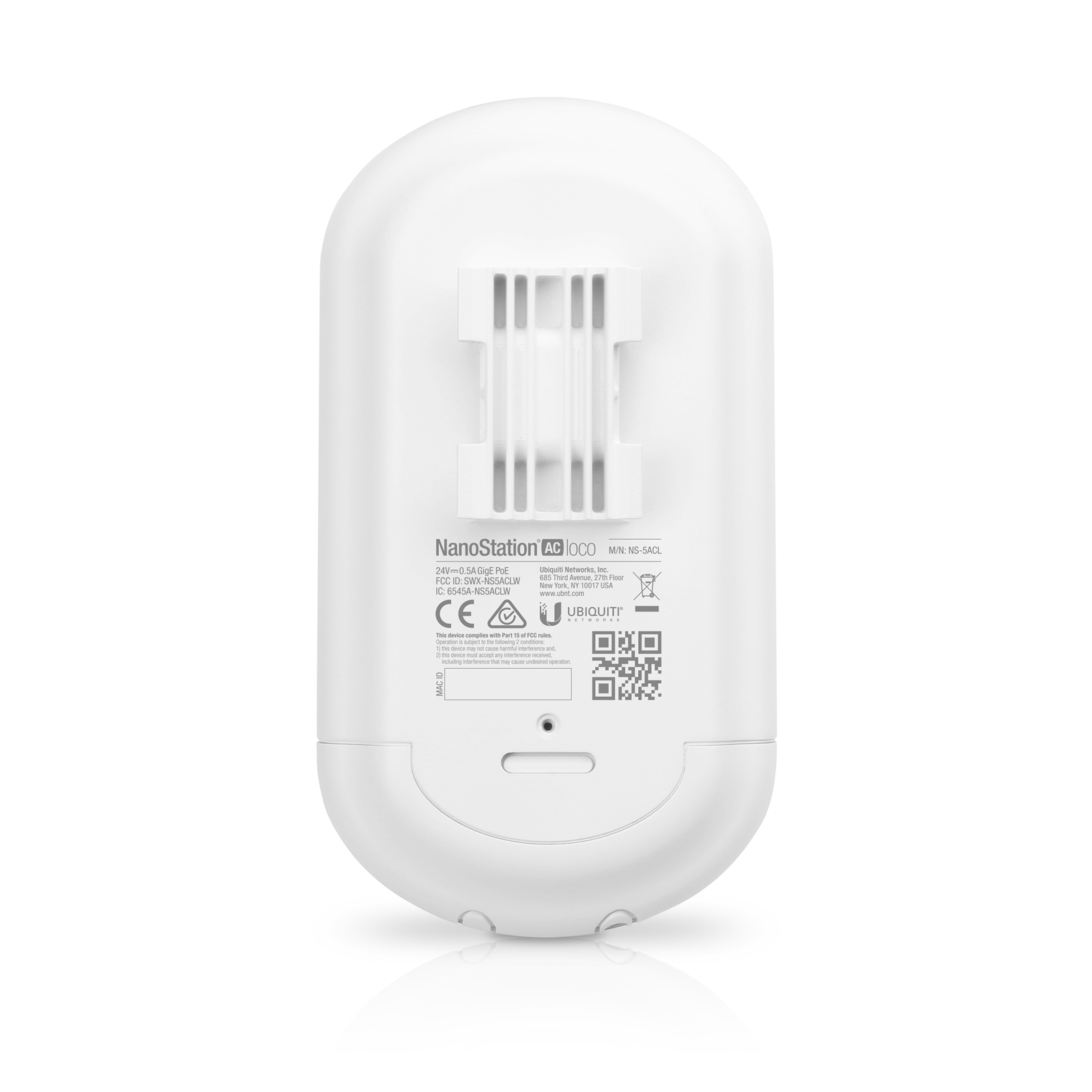

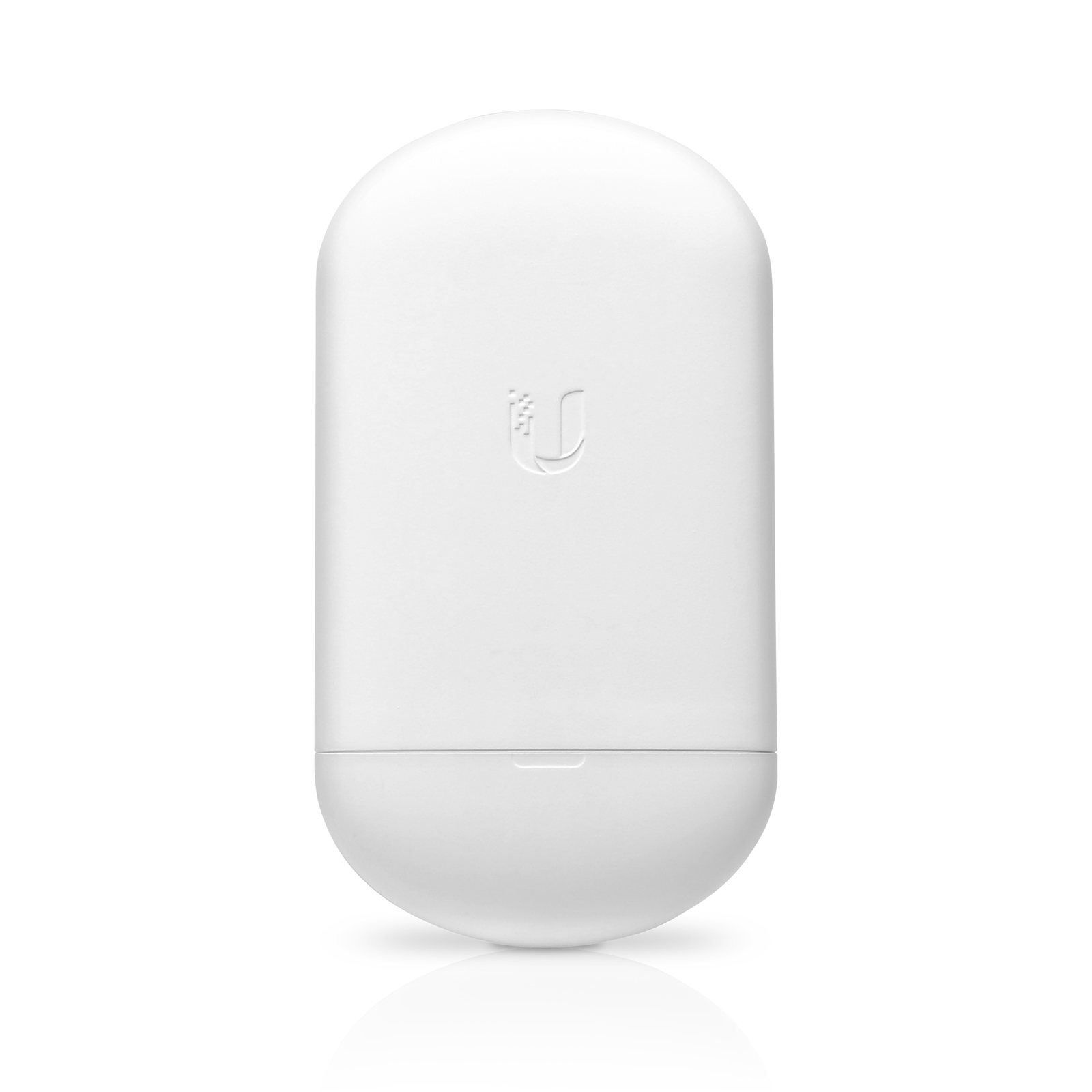

Ubiquiti NS-5ACL NanoStation AC Loco 5GHz 13dBi airMAX Outdoor Wireless AC CPE Bridge

Ubiquiti Logo here

Manufacturer Part Code: Loco5AC

Order Code: NPUBI-NS-5ACL

Category: Ubiquiti AirMax

Ubiquiti NS-5ACL NanoStation AC Loco 5GHz 13dBi airMAX Outdoor Wireless AC CPE Bridge

5 GHz airMAX ac CPE

The indoor/outdoor NanoStation AC loco is a compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS
airOS provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Model: Loco5AC
Frequency: 5 GHz
Throughput: 450+ Mbps
Range: 15+ KM
Management Radio: Yes
PoE PSU Included: No
802.3af Support: No
Secondary Ethernet Port with PoE Out: No


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Certification
CE, FCC, IC
Certification
CE, FCC, IC
LED indicators
Network, Power, Signal strength
Product colour
White
Placement
Ceiling
Power over Ethernet (PoE)
Yes
Input current
0.5 A
AC input voltage
24 V
Maximum data transfer rate
1000 Mbit/s
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Frequency band
5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum outdoor range
10000 m
5 GHz
Yes
Throughput data rate
450 Mbit/s
Harmonized System (HS) code
85176990
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 70 °C
Internal memory
64 MB
Operating system installed
AirOS
Built-in processor
Yes
Ethernet LAN (RJ-45) ports
1
Harmonized System (HS) code
85176990
Weight
180 g
Height
59.1 mm
Width
179 mm
Depth
77.5 mm
