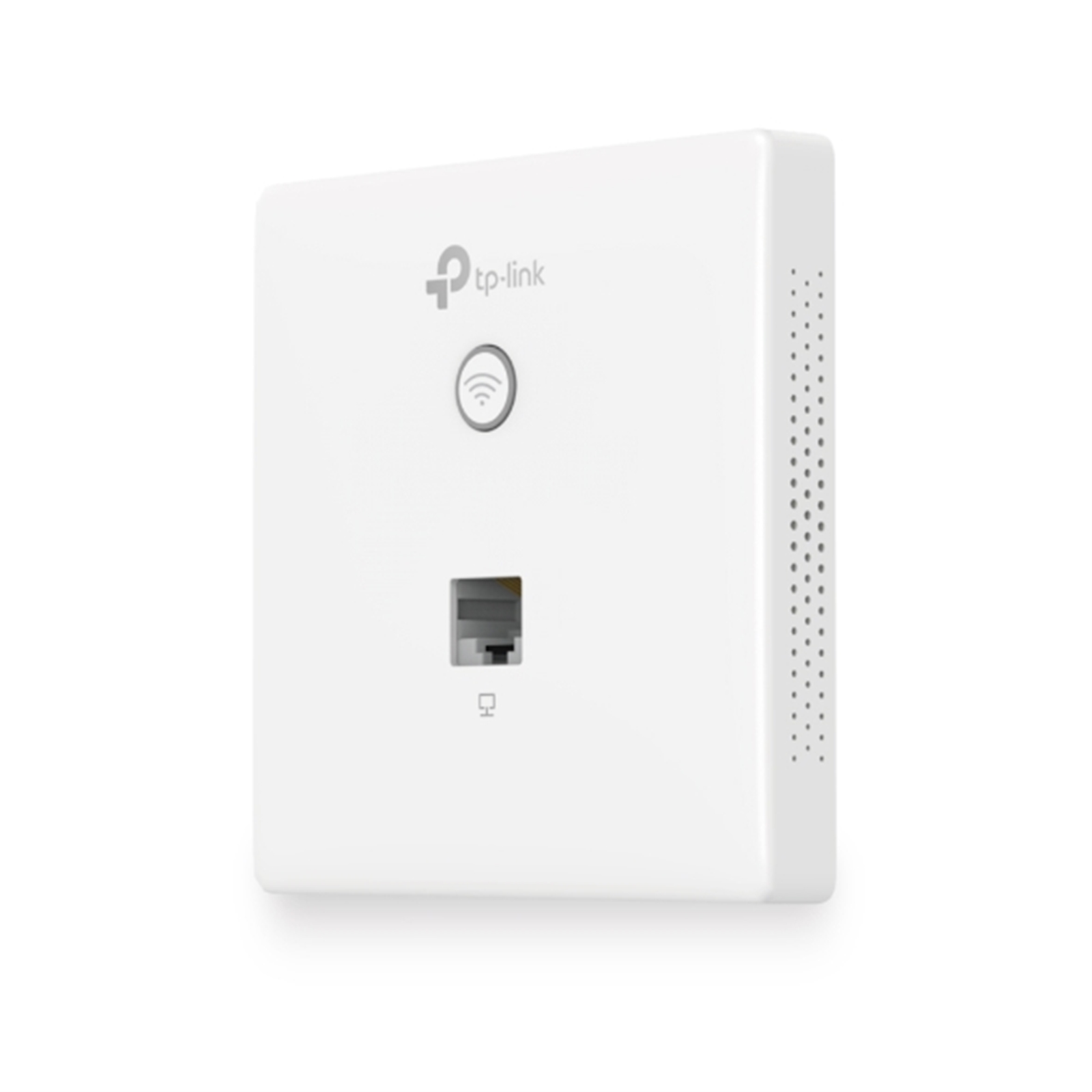

TP-LINK Omada EAP230-Wall Access Point

Fast Dual-Band Wi-Fi
Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.

Gigabit Ports
2 Gigabit Ethernet ports (1x uplink + 1x downlink).

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Private Connection for Every Room
Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.

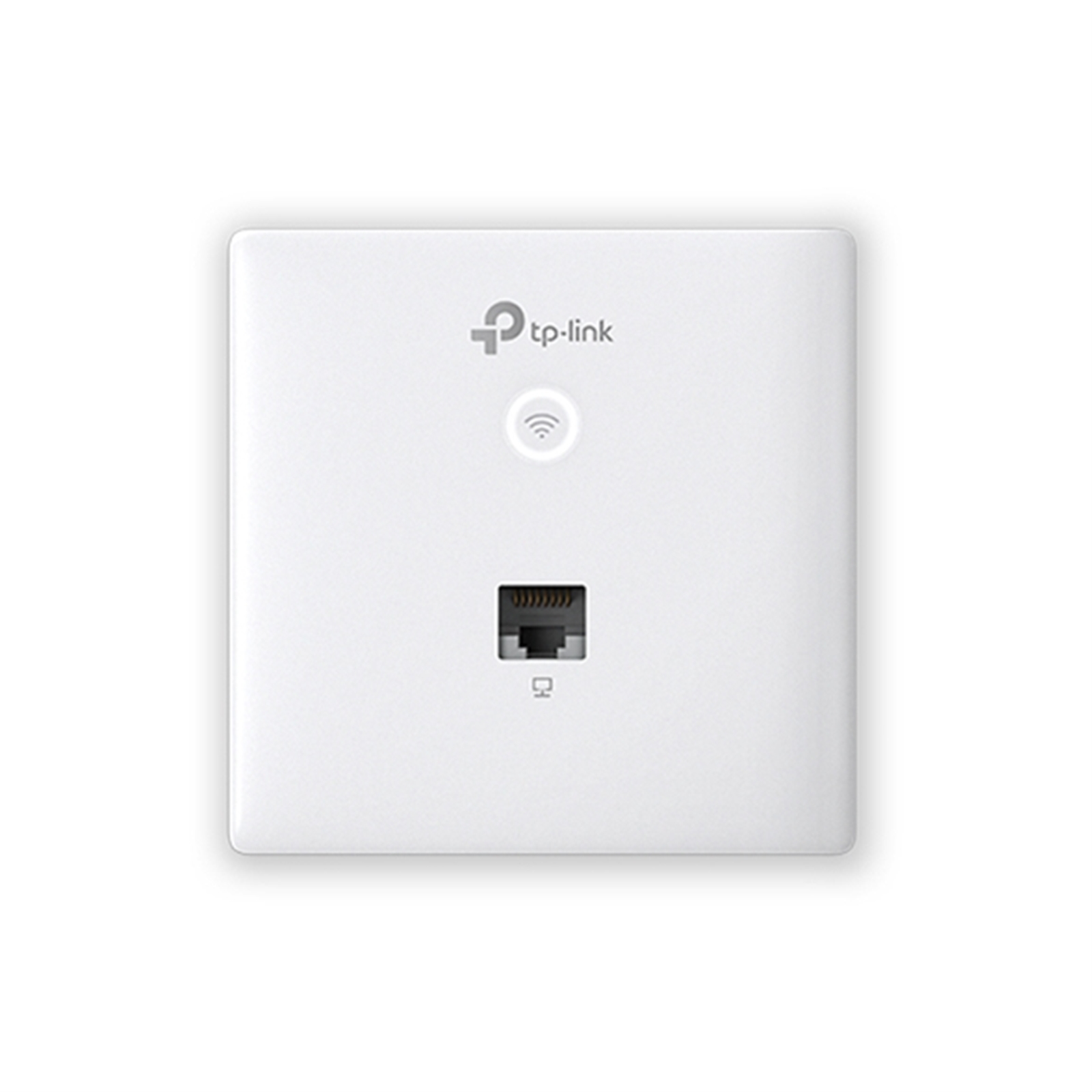

Elegant Appearance
Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

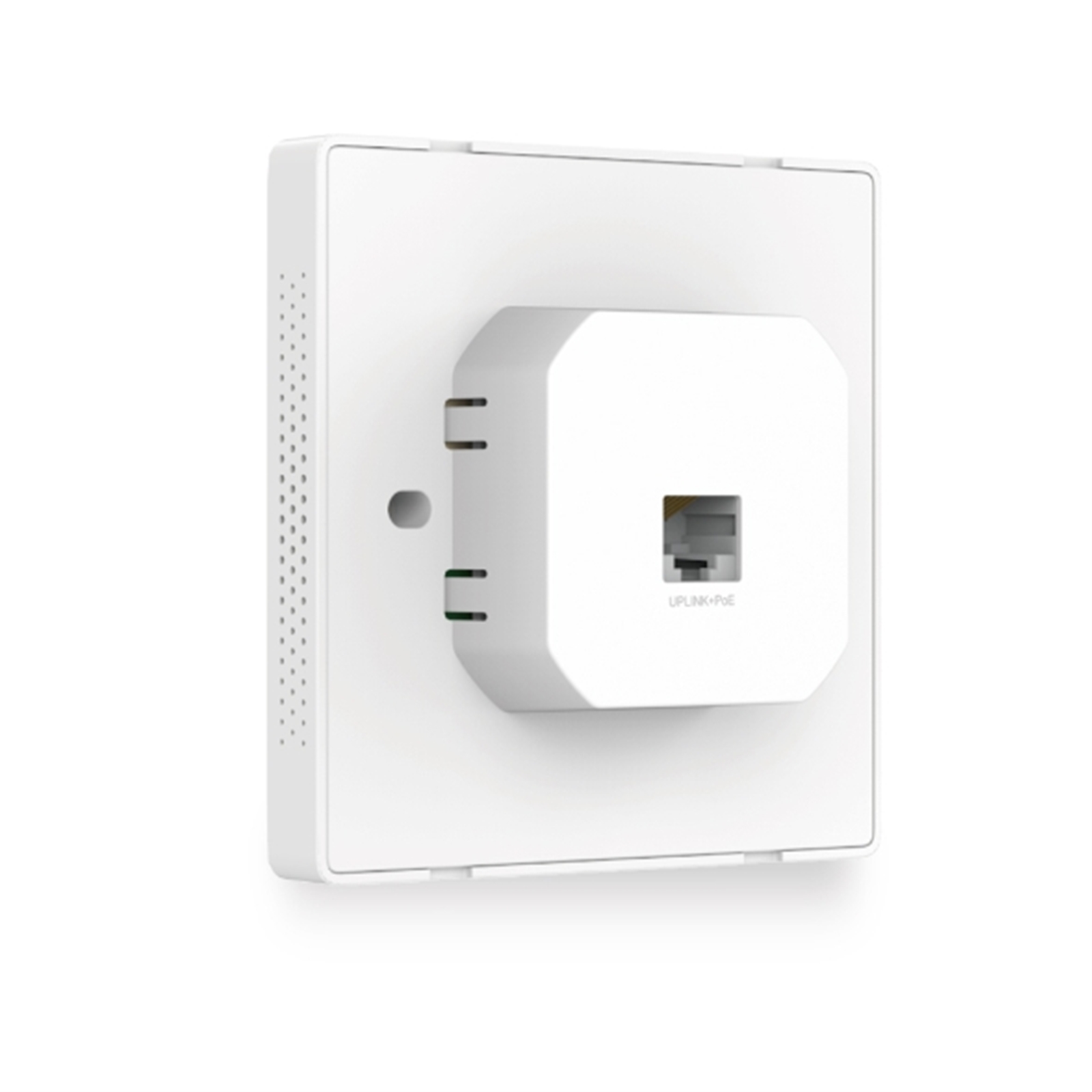

Easy Installation and PoE Support
Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

Secure Guest Network
Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications

Interface
Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 1x 10/100/1000 Mbps Ethernet Port

Physical Security Lock
No

Button
LED/Wi-Fi Button, RESET

Power Supply
802.3af/802.3at PoE

Power Consumption
7 W

Dimensions
3.4 x 3.4 x 1.2 in (86.8 x 86.8 x 30.2 mm)

Antenna
2 Dual-Band Antennas
2.4 GHz: 2x 4 dBi
5 GHz: 2x 3.6 dBi

Mounting
Wall Plate Mounting

Hardware Watch Dog
Yes

Certification
CE, RoHS

Package Contents
Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
Installation Guide
Mounting Screw

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment
Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
