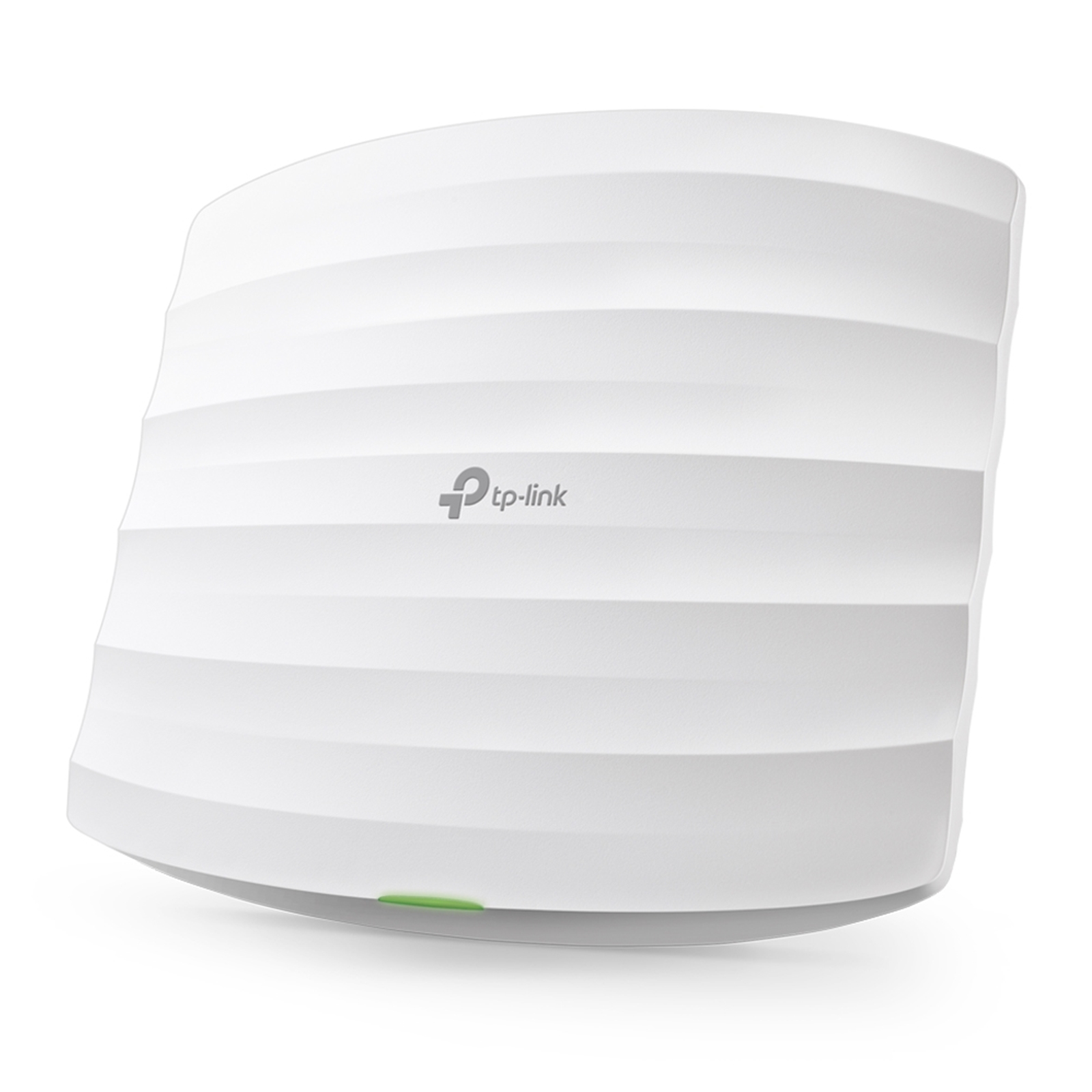

TP-LINK EAP110

TP-LINK Logo here

Manufacturer Part Code: EAP110

Order Code: NPTPL-EAP110

Category: TP Link Wireless Access Points

TP-Link 300Mbps Wireless N Ceiling Mount Access Point - EAP110

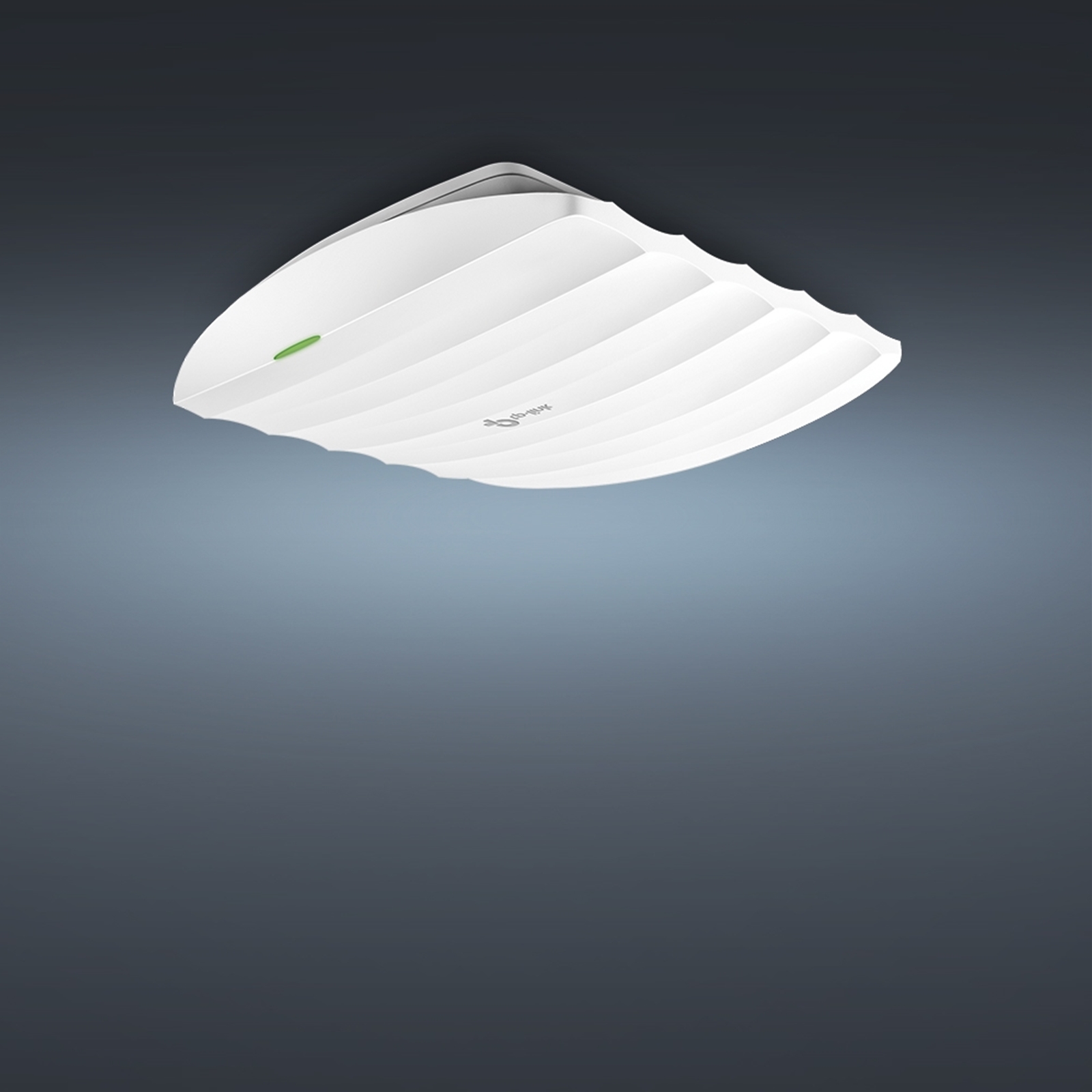

Flexible Placement
Easy mounting design & PoE

The EAP's elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Cloud Centralized Management
- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
Internal
Antenna gain level (max)
4 dBi
Antennas quantity
2
Antenna direction type
Omni-directional
Certification
FCC, RoHS
Data transfer rate (max)
300 Mbit/s
Ethernet LAN data transfer rates
10,100 Mbit/s
Certification
FCC, RoHS
LED indicators
Power
Colour of product
White
Reset button
Y
Placement
Ceiling, Wall
Power consumption (typical)
2.8 W
Input voltage
24 V
Power over Ethernet (PoE) Support
Y
Cabling technology
10/100Base-T(X)
Maximum data transfer rate
300 Mbit/s
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Frequency band
2.4 - 2.4835 GHz
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x
Quality of Service (QoS) support
Y
Rate limiting
Y
Ethernet LAN data rates
10,100 Mbit/s
Automatic channel selection
Y
VLAN support
Y
2.4 GHz
Y
5 GHz
N
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Virtual LAN features
SSID-based VLAN assignment
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Transmitting power (CE)
21 dBm
LED indicators
Power
Quality of Service (QoS) support
Y
Web-based management
Y
VLAN support
Y
Syslog
Y
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x
Operating relative humidity range
10 - 90%
Storage temperature range (T-T)
-40 - 70 °C
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
5 - 90%
Cables included
AC
Quick start guide
Y
Package type
Box
Number of products included
1 pc(s)
Mounting kit
Y
PoE adapter included
Y
Cables included
AC
Quick start guide
Y
Package type
Box
Number of products included
1 pc(s)
Mounting kit
Y
PoE adapter included
Y
Certification
FCC, RoHS
Data transfer rate (max)
300 Mbit/s
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Frequency band
2.4 - 2.4835 GHz
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x
Quality of Service (QoS) support
Y
Web-based management
Y
Rate limiting
Y
Ethernet LAN data rates
10,100 Mbit/s
Reset button
Y
Automatic channel selection
Y
VLAN support
Y
Syslog
Y
2.4 GHz
Y
5 GHz
N
Wireless isolation
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Cabling technology
10/100Base-T(X)
Ethernet LAN (RJ-45) ports quantity
1
Security algorithms supported
64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SNMPv2,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK
MAC address filtering
Y
Access Control List (ACL)
Y
Number of SSID support
8
Remote Authentication Dial-In User Service (RADIUS)
Y
Service Set Identifier (SSID) features
Multiple SSIDs
Access Control List (ACL)
Y
Height
29.5 mm
Input voltage
24 V
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Cables included
AC
Height
29.5 mm
Width
189.4 mm
Depth
172.3 mm
Antenna type
Internal
Frequency band
2.4 - 2.4835 GHz
Antenna gain level (max)
4 dBi
Antennas quantity
2
