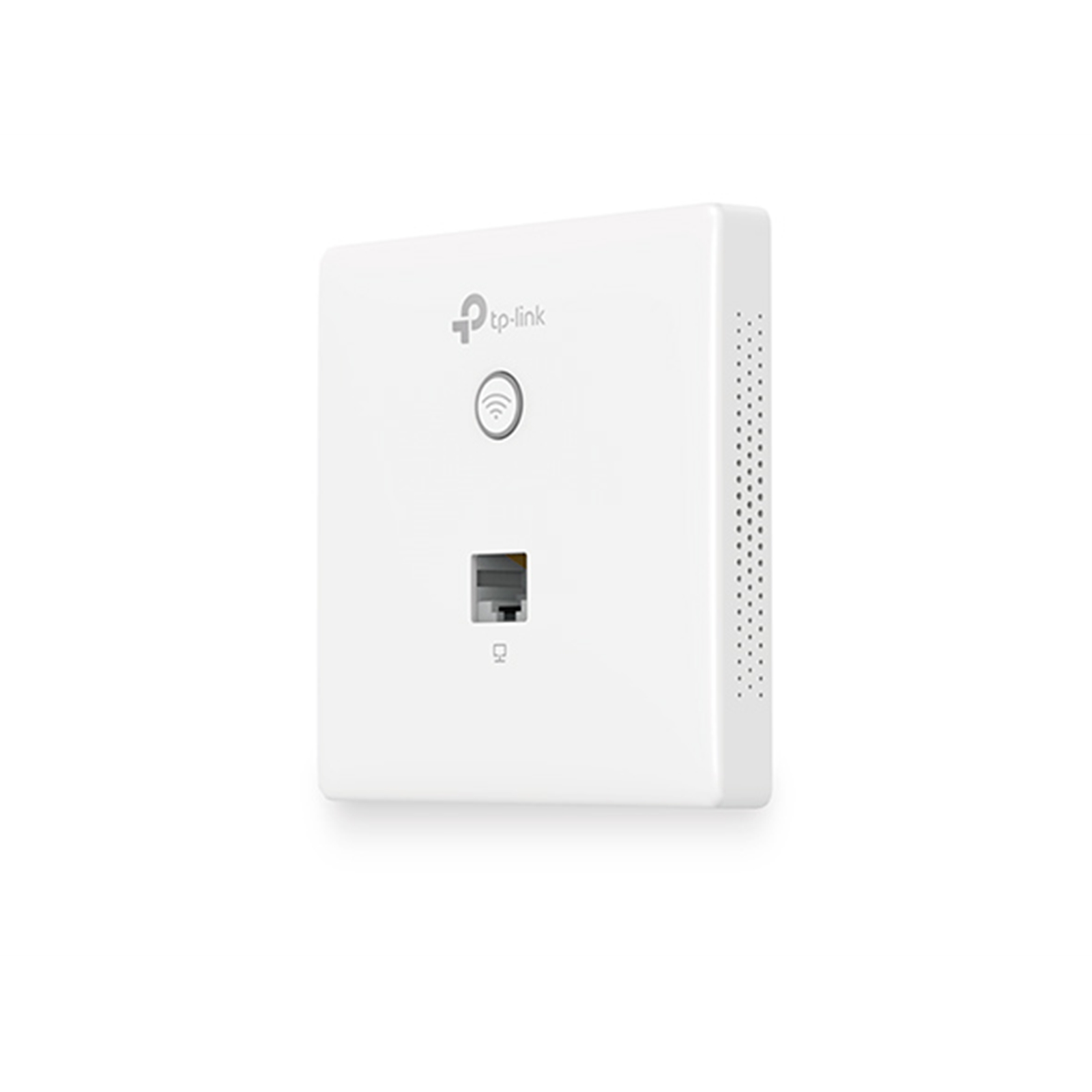

TP-LINK EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point

Installation Made Easy
Detach the faceplate of the junction box with a screwdriver.
Remove the faceplate of the EAP.
Connect an in-wall Ethernet cable to the Uplink+POE port.
Secure the access point to the wall using the nails provided.
Press the faceplate back into position.

Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that's just 11 mm in thickness.

Effortless Deployment
With 802.3af Power over Ethernet supported there's no need for additional wiring. Simply plug in existing Ethernet cables and you're ready to go.

Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.


Specifications

HARDWARE FEATURES
Interface:
10/100Mbps Ethernet (RJ-45) Port *2

Physical Security Lock:
-

Button:
LED/Wi-Fi Button, RESET

Power Supply:
PoE (IEEE 802.3af)

Power Consumption:
2.8 W

Antenna Type:
Internal 2*1.8dBi Omni

Mounting:
Wall Plate Mounting

Hardware Watch Dog:
Yes

WIRELESS FEATURES
Wireless Client Capacity:
100+*

Wireless Standards:
IEEE 802.11n/g/b

Frequency:
2.4GHz

Signal Rate:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Transmit Power (CE):
=20dBm(2.4GHz)

Wireless Functions:
Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK

MANAGEMENT
Omada App:
Yes

Centralized Management:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access:
Yes. Requiring the use of OC300, OC200, or Omada Software Controller.

EAP Controller Software:
Yes

Email Alerts:
Yes

LED ON/OFF Control:
Yes

Management MAC Access Control:
Yes

SNMP:
v1, v2c

System Logging:
Local/Remote Syslog

Telnet:
Yes

SSH:
Yes

Web-based Management:
HTTP/HTTPS

L3 Management:
Yes

Multi-site Management:
Yes

Management VLAN:
Yes

OTHERS
Certification:
CE, RoHS

Package Contents:
300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting Screw

System Requirements:
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
