Homeplugs & Powerline Adapters | MERCUSYS  MP510 KIT AV1000 Wireless N300 Gigabit Powerline Starter Kit (UK Plug) | MP510 KIT | ServersPlus
MERCUSYS MP510 KIT | serversplus.comMERCUSYS MP510 KIT | serversplus.comMERCUSYS MP510 KIT | serversplus.com

Illustration purposes only

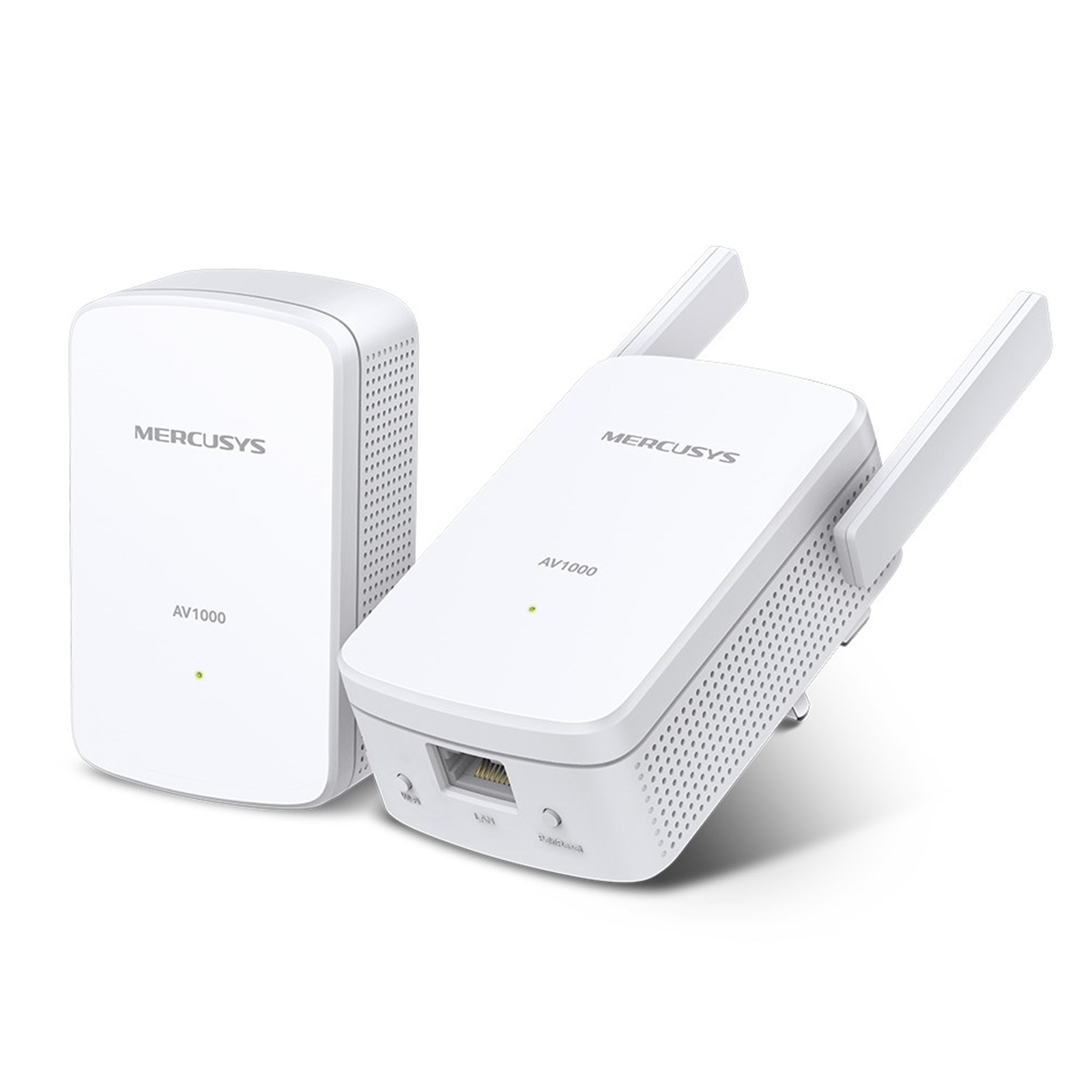

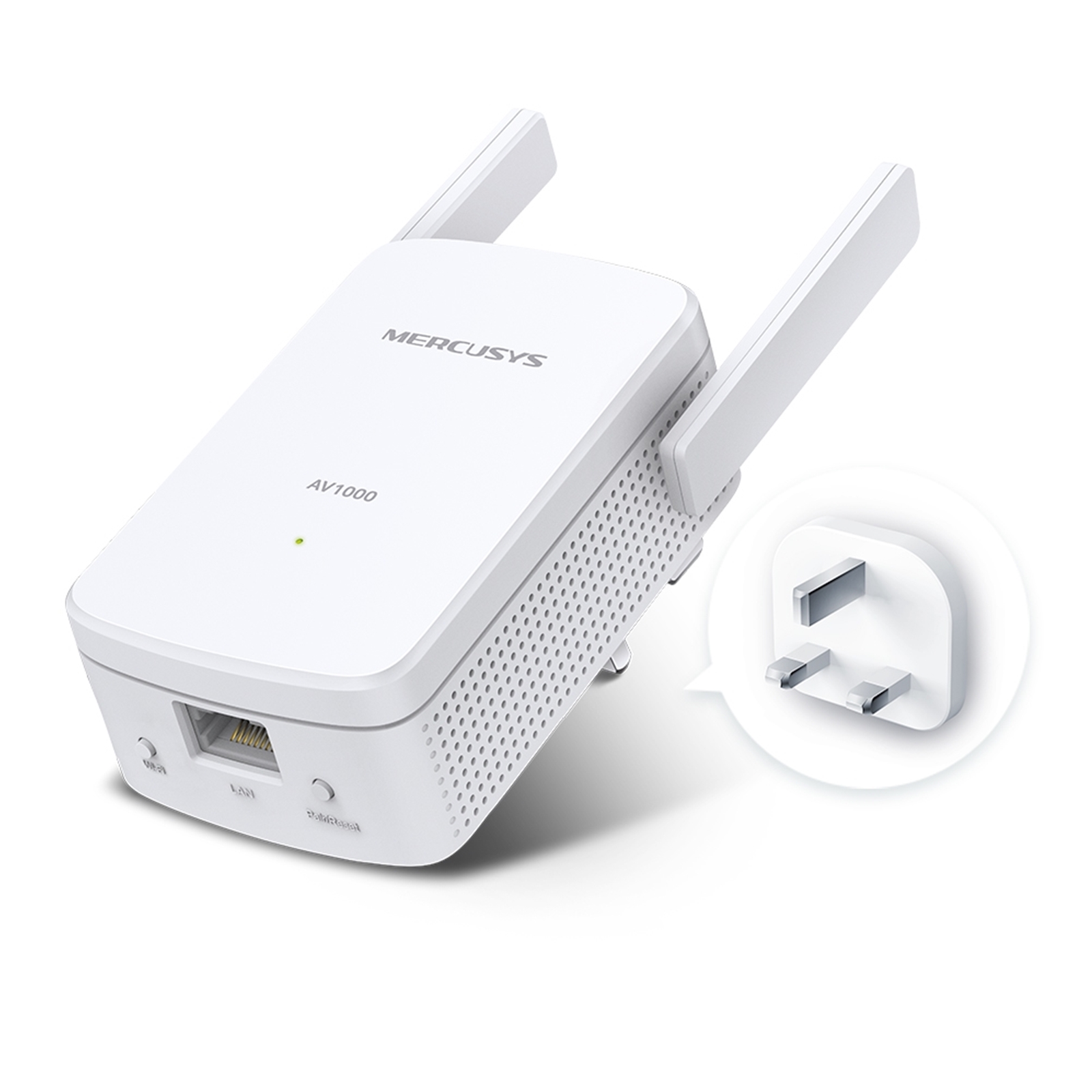

MERCUSYS MP510 KIT AV1000 Wireless N300 Gigabit Powerline Starter Kit (UK Plug)

MERCUSYS Logo here

Manufacturer Part Code: MP510 KIT

Order Code: NPMER-MP510KIT

Category: Homeplugs & Powerline Adapters

Mercusys MP510 KIT AV1000 Wireless N300 Gigabit Powerline Starter Kit (UK Plug)

Eliminate WiFi Dead Zones — Extend 300 Mbps WiFi wherever you need via your home's existing wiring
1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2
Super-Fast Wired Connections — A gigabit port for PCs, IPTVs, and game consoles
Plug & Play — Say goodbye to complex wiring and configuration, just plug and play
Easy Expansion — Expand coverage by simply adding more Powerline adapters

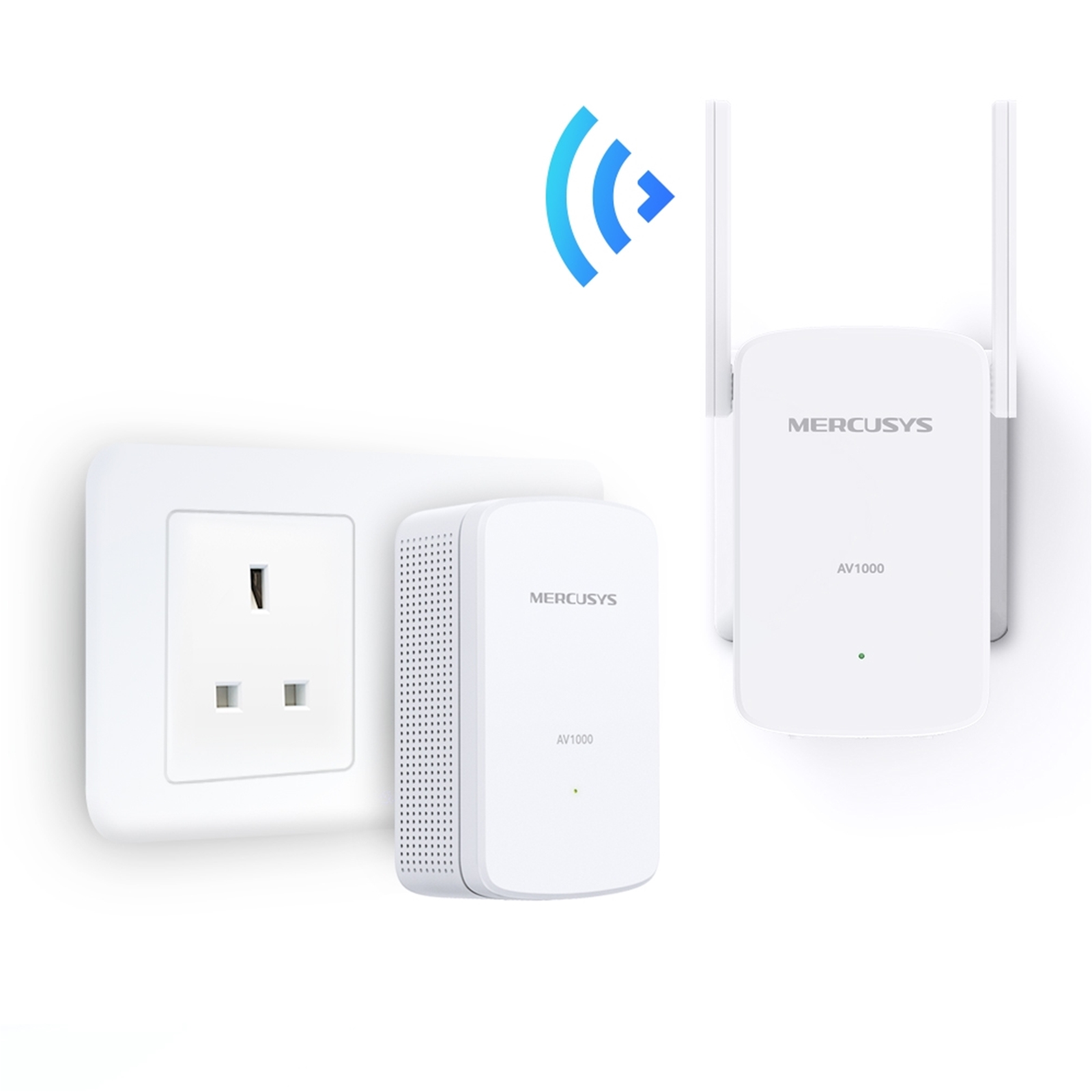

Where there's an Outlet, There's WiFi.
The MP510 Kit transmits network data through your existing electrical circuit, which prominently avoids the influence of obstacles on your WiFi. Enjoy extended WiFi wherever you need it with a transmission range of up to 300 meters on the same electrical circuit—perfect for your daily WiFi use.

Dual Gigabit Transmissions
Equipped with advanced HomePlug AV2 technology, your Powerline transmission rate reaches an ultra-fast 1000 Mbps. The included gigabit port helps you receive a high-quality network from any one of your outlets.

Plug & Play
With factory pre-configuration, you can immediately extend your network without complex wiring and configuration as soon as you connect one MP500 to your router and plug the MP510 extender into an outlet wherever you need network service.

Specifications

Software

Modulation Technology
OFDM (PLC)

Security
Wireless: WPA-PSK/WPA2-PSK, WPA/WPA2, WEP Encryption;
Powerline: 128-bit AES Encryption

Compatibility
Compatible with all routers and HomePlug AV/AV2 powerline adapters

Hardware

Dimensions (W X D X H)
MP510: 112 x 84.7 x 39 mm
MP500: 101 x 60 x 36 mm

Button
Pair/Reset Button

Standards and Protocols
HomePlug AV2, IEEE 802.3, IEEE 802.3u, IEEE802.11b/g/n

LED
Power

Power Consumption
MP510: Maximum: 6.28W, Typical: 4.29W
MP500: Maximum: 2.87W, Typical: 2.35W, Standby: 0.64W

Range
Up to 300 meters over an existing electrical circuit

Others

Certifications
CE, RoHS

Package Contents
AV1000 Gigabit Powerline Wi-Fi Kit
1x MP510
1x MP500
Quick Installation Guide
RJ45 Ethernet Cables

System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
External
LED indicators
Y
Colour of product
White
Antennas quantity
2
Operating relative humidity range
10 - 90%
Operating temperature range (T-T)
0 - 40 °C
Storage relative humidity range
5 - 90%
Manual
Y
Quick installation guide
Y
Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)
Data transfer rate (max)
1000 Mbit/s
Ethernet LAN
Y
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Maximum operating distance
300 m
Wi-Fi
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Built-in power socket
N
Ethernet LAN interface type
Gigabit Ethernet
Top Wi-Fi standard
802.11g
Mac compatibility
Y
Windows operating systems supported
Windows 10,Windows 7,Windows 8,Windows 8.1
Mac operating systems supported
Y
Linux operating systems supported
Y
Wireless LAN type
802.11b,802.11g,Wi-Fi 4 (802.11n)
Data transfer rate (max)
1000 Mbit/s
Ethernet LAN connection
Y
LED indicators
Y
Colour of product
White
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Maximum operating distance
300 m
Wireless LAN connection
Y
Ethernet LAN data transfer rates
10,100,1000 Mbit/s
Built-in power socket
N
Ethernet LAN interface type
Gigabit Ethernet
Wi-Fi standard
802.11g
