Managed Network Switches | DELL PowerSwitch N2224PX-ON L3 Managed Switch | 210-ASPC | ServersPlus
DELL 210-ASPC | serversplus.comDELL 210-ASPC | serversplus.comDELL 210-ASPC | serversplus.com

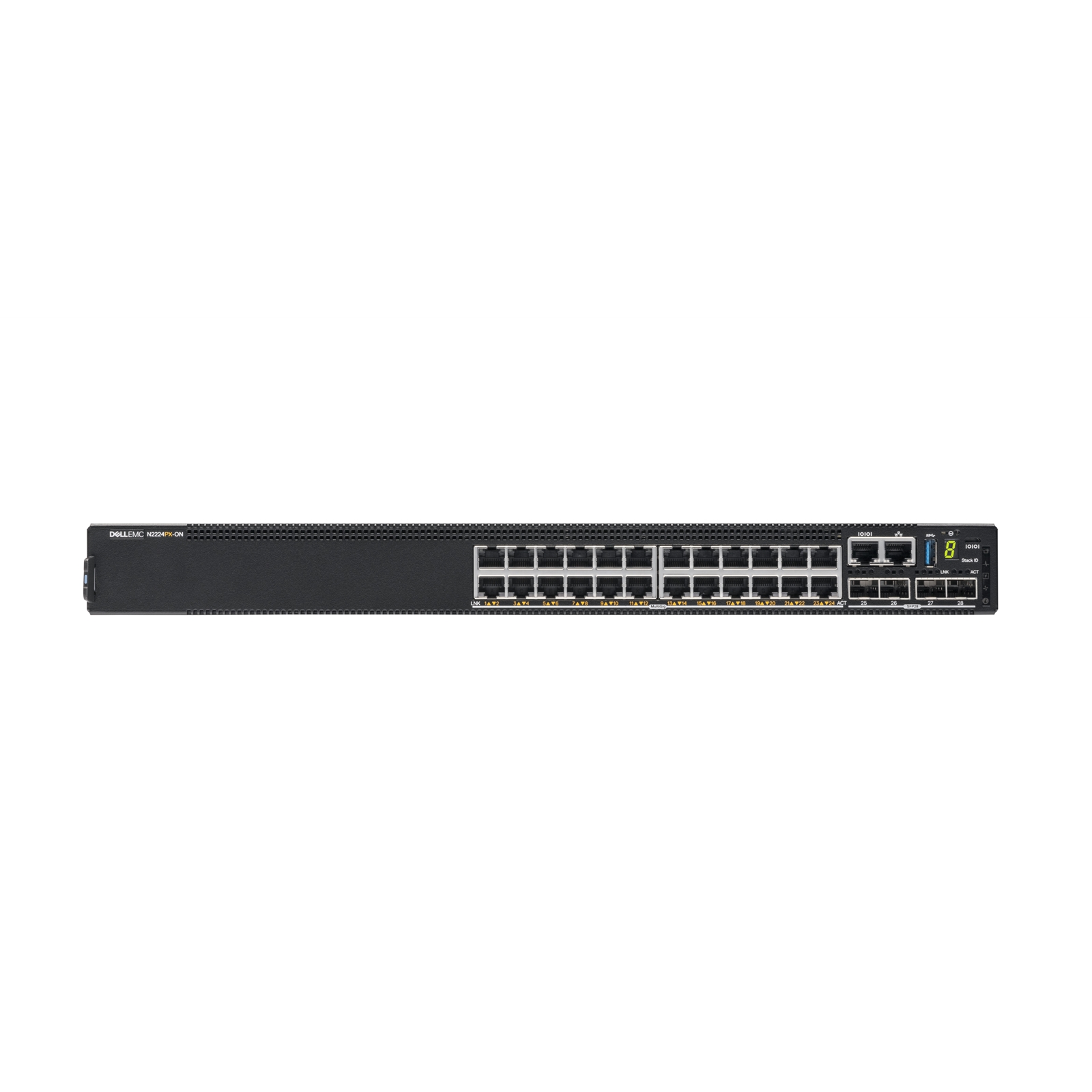

Illustration purposes only

DELL PowerSwitch N2224PX-ON L3 Managed Switch

DELL Logo here

Manufacturer Part Code: 210-ASPC

Order Code: NPDEL-210ASPC

Category: Managed Network Switches

Dell PowerSwitch N2224PX-ON - Switch - L3 - Managed - 12 x 10/100/1000/2.5G (PoE+) + 12 x 1/2.5G (PoE++) + 4 x 25 Gigabit SFP28 - front to back airflow - rack-mountable - PoE++ - CAMPUS Smart Value

Modernize your campus access network
Purpose-built industry's first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
32000 entries
Switching capacity
160 Gbit/s
Forwarding rate
667 Mpps
Packet buffer memory
4 MB
Number of static routes
256
Rack mounting
Y
Form factor
1U
Product colour
Black
Power consumption (typical)
1050 W
Power supply included
Y
Harmonized System (HS) code
85176990
Switch layer
L3
Switch type
Managed
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.3at, IEEE 802.3bt
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
IP routing
Y
Auto MDI/MDI-X
Y
Number of VLANs
4096
Spanning tree protocol
Y
VLAN support
Y
Auto-sensing
Y
Auto-negotiation
Y
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
0 - 85%
Harmonized System (HS) code
85176990
USB 2.0 ports quantity
1
Gigabit Ethernet (copper) ports quantity
24
Installed SFP modules quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
QSFP+ module slots quantity
2
SFP28 ports quantity
4
Power over Ethernet (PoE)
Y
Access Control List (ACL)
Y
IGMP snooping
Y
Authentication type
RADIUS
Weight
6.67 kg
Height
43.4 mm
Width
434.1 mm
Depth
400.1 mm
