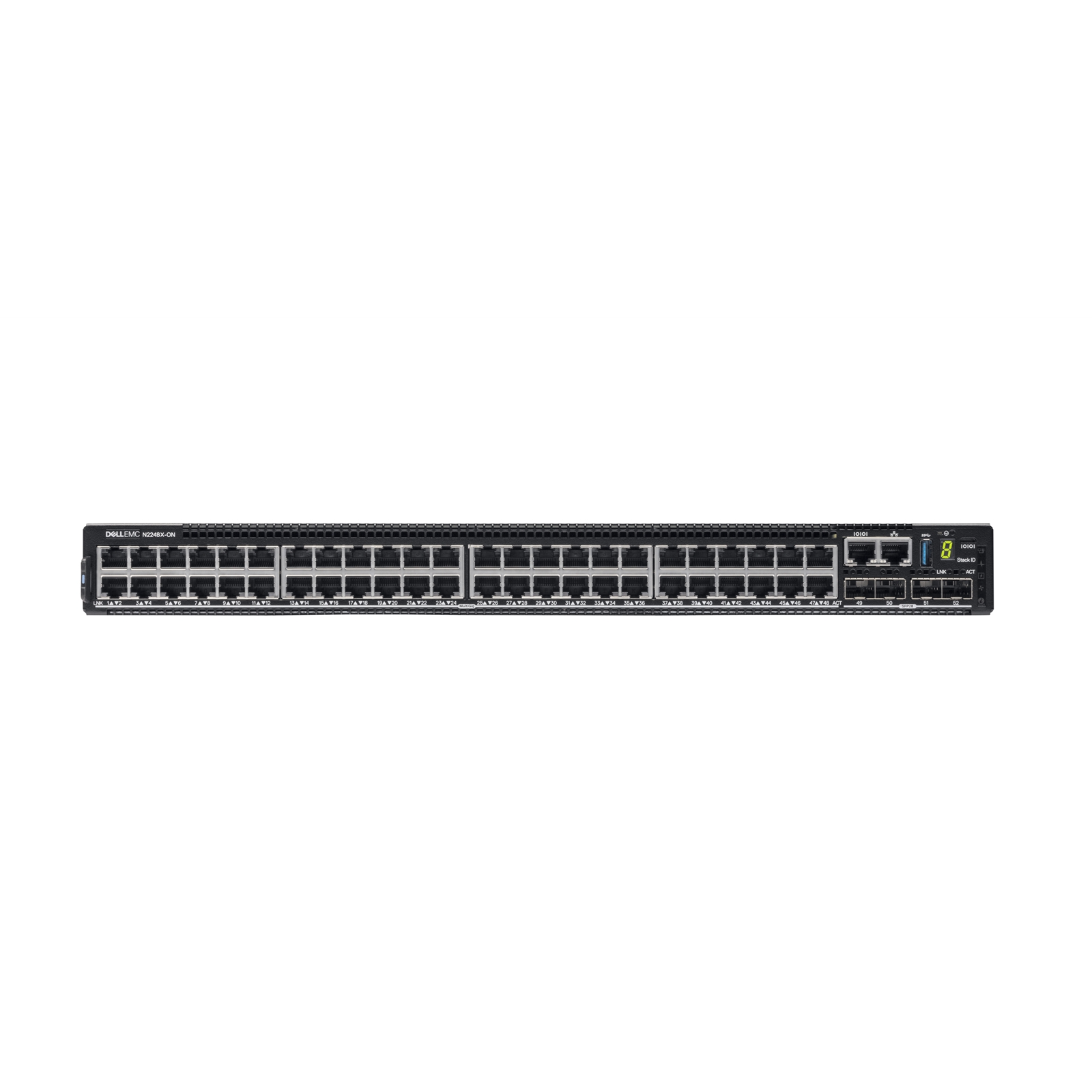

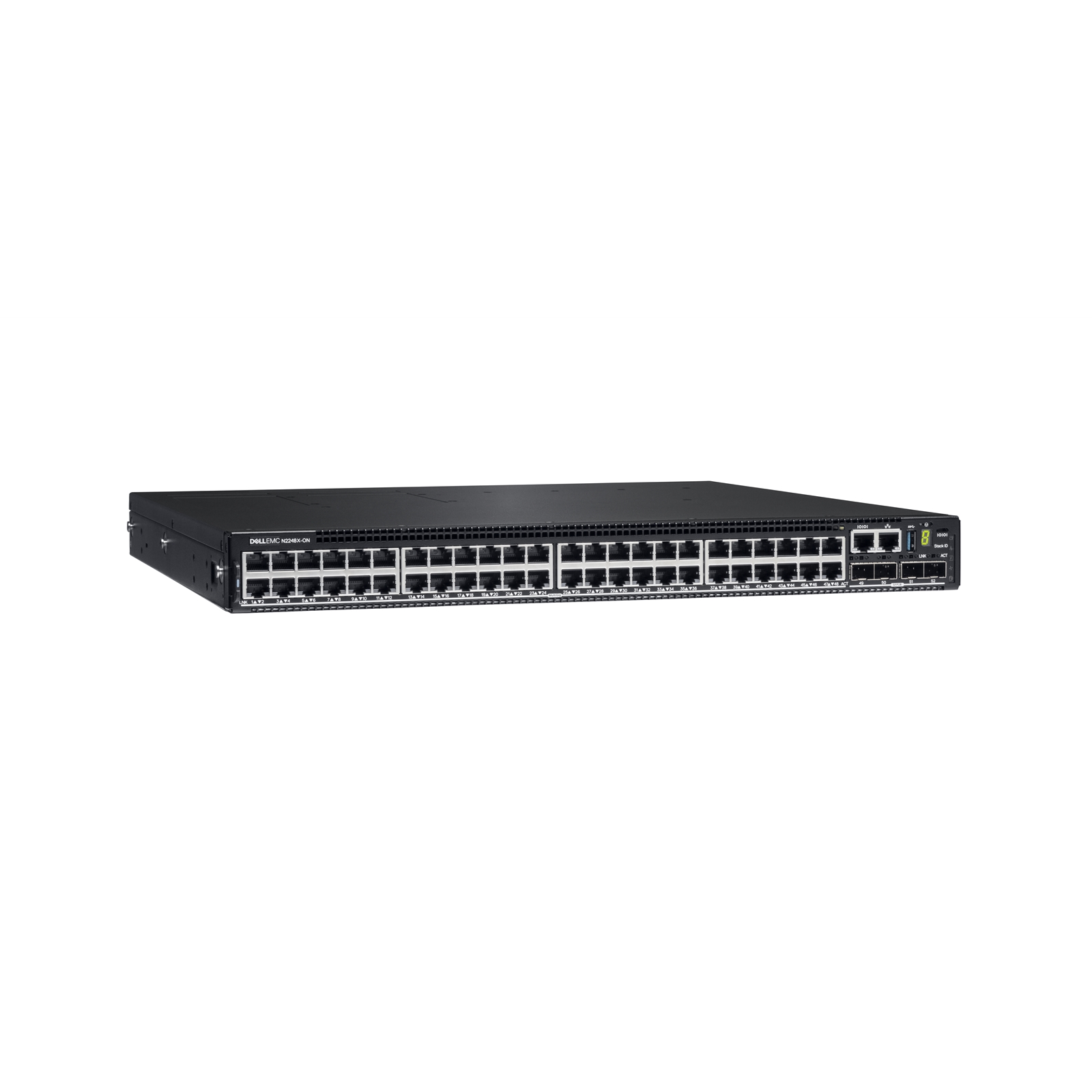

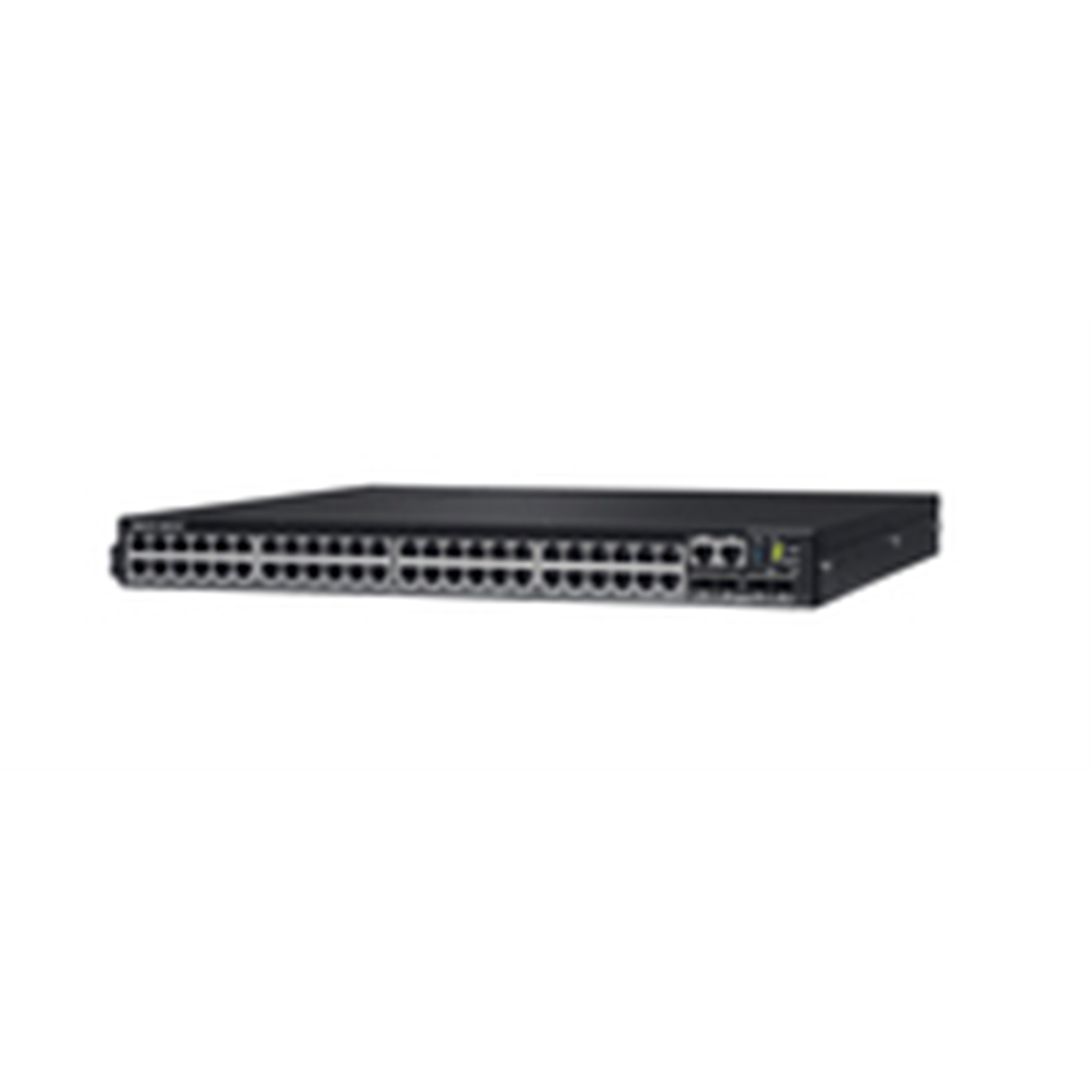

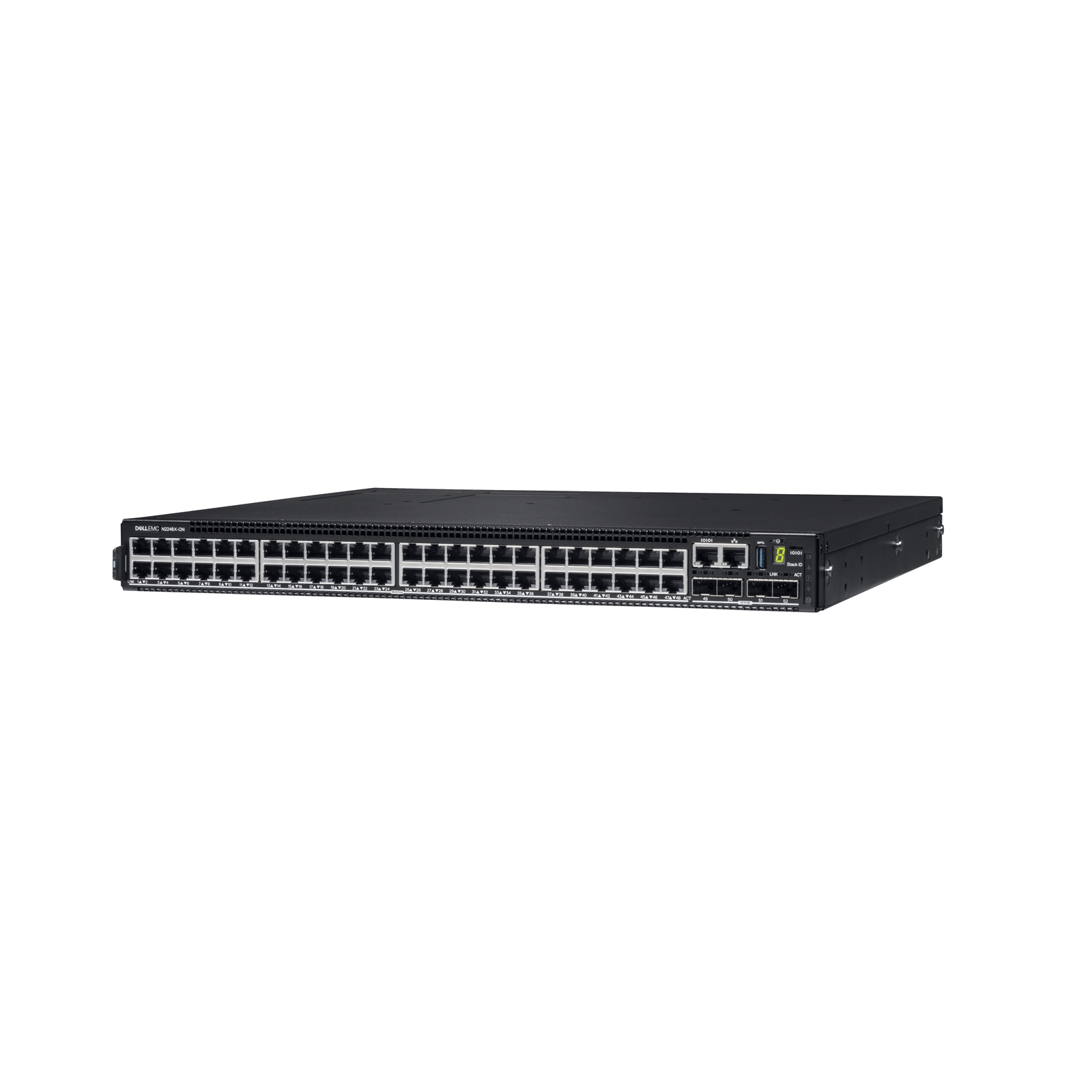

DELL PowerSwitch N2248X-ON L3 Managed Switch

DELL Logo here

Manufacturer Part Code: 210-ASPD

Order Code: NPDEL-210ASPD

Category: Managed Network Switches

Dell PowerSwitch N2248X-ON - Switch - L3 - Managed - 48 x 10/100/1000/2.5G + 4 x 25 Gigabit SFP28 - front to back airflow - rack-mountable - CAMPUS Smart Value

Modernize your campus access network
Purpose-built industry's first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
32000 entries
Switching capacity
600 Gbit/s
Forwarding rate
833 Mpps
Packet buffer memory
4 MB
Number of static routes
256
Rack mounting
Y
Form factor
1U
Product colour
Black
Power consumption (typical)
550 W
Power consumption (max)
326 W
Power supply included
Y
Harmonized System (HS) code
85176990
Switch layer
L3
Switch type
Managed
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
IP routing
Y
Auto MDI/MDI-X
Y
Number of VLANs
4096
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Auto-sensing
Y
Auto-negotiation
Y
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 65 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
0 - 85%
Heat dissipation
1112 BTU/h
Harmonized System (HS) code
85176990
USB 2.0 ports quantity
1
Console port
RJ-45
Installed SFP modules quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
QSFP+ module slots quantity
2
SFP28 ports quantity
4
Power over Ethernet (PoE)
N
Access Control List (ACL)
Y
IGMP snooping
Y
Authentication type
RADIUS
Weight
6.9 kg
Height
43.4 mm
Width
434.1 mm
Depth
400.1 mm
