Managed Network Switches | CISCO Catalyst Network Essentials IE-3200-8T2S-E | IE-3200-8T2S-E | ServersPlus
CISCO IE-3200-8T2S-E | serversplus.com

Illustration purposes only

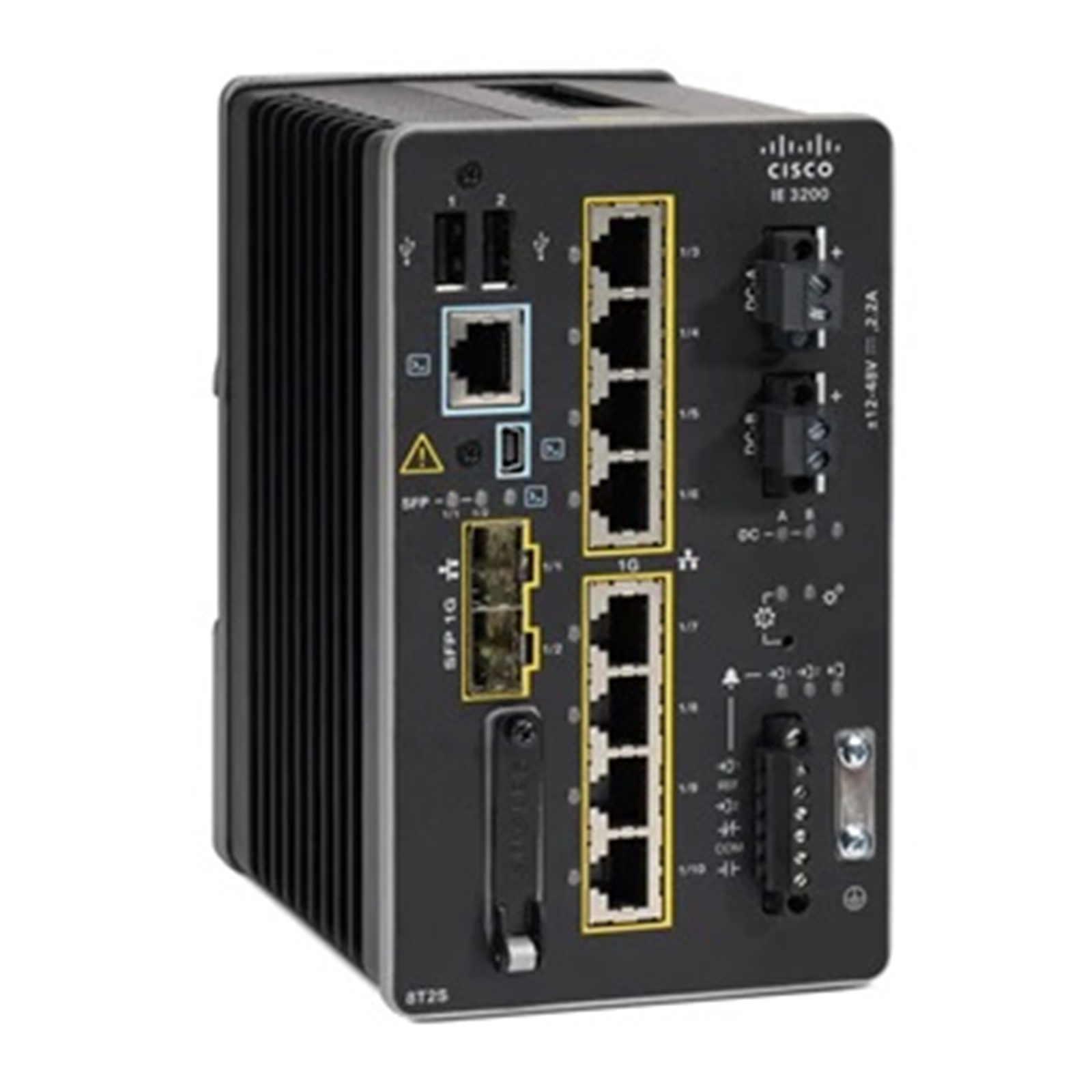

CISCO Catalyst Network Essentials IE-3200-8T2S-E

CISCO Logo here

Manufacturer Part Code: IE-3200-8T2S-E

Order Code: NPCIS-IE32008T2C

Category: Managed Network Switches

Cisco Catalyst IE3200 Rugged Series - Network Essentials - switch - Managed - 8 x 10/100/1000 + 2 x Gigabit SFP - DIN rail mountable - DC power

The Cisco Catalyst® IE3200 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact form factor for a wide variety of extended enterprise and industrial applications.

The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS® XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.

The IE3200 series supports power budget of up to 240W for PoE/PoE+, shared across 8 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
8000 entries
Number of queues
8
Static route
Y
Rack mounting
N
Product colour
Black
Stackable
N
Power consumption (typical)
23 W
Input current
2.4 A
DC input voltage
9.6 - 60 V
Harmonized System (HS) code
85176990
Switch layer
L2/L3
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
Switch type
Managed
Traffic shaping
Y
ARP inspection
Y
Multicast support
Y
Networking standards
IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Broadcast storm control
Y
Rate limiting
Y
IP routing
Y
Number of VLANs
256
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Virtual LAN features
Voice VLAN
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 75 °C
Internal memory
2000 MB
Mean time between failures (MTBF)
641150 h
Flash memory
1500 MB
Memory type
DRAM
Fanless
Y
Harmonized System (HS) code
85176990
USB 2.0 ports quantity
1
Console port
RS-232
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
SFP module slots quantity
2
Power connector
DC-in jack
Power over Ethernet (PoE)
N
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
MAC address filtering
Y
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Authentication type
HWTACACS+, IEEE 802.1x, Network Access Control (NAC), RADIUS
Authentication
Guest VLAN, MAC-based authentication, Web-based authentication
IGMP entries
1000
DHCP features
DHCP server, DHCP snooping
Weight
1.72 kg
Height
152.4 mm
Width
91.4 mm
Depth
134.6 mm
