TP-LINK TL-RP108GE

TP-LINK Logo here

Manufacturer Part Code: TL-RP108GE

Order Code: NPTPL-TLRP108GE

Category: Managed Network Switches

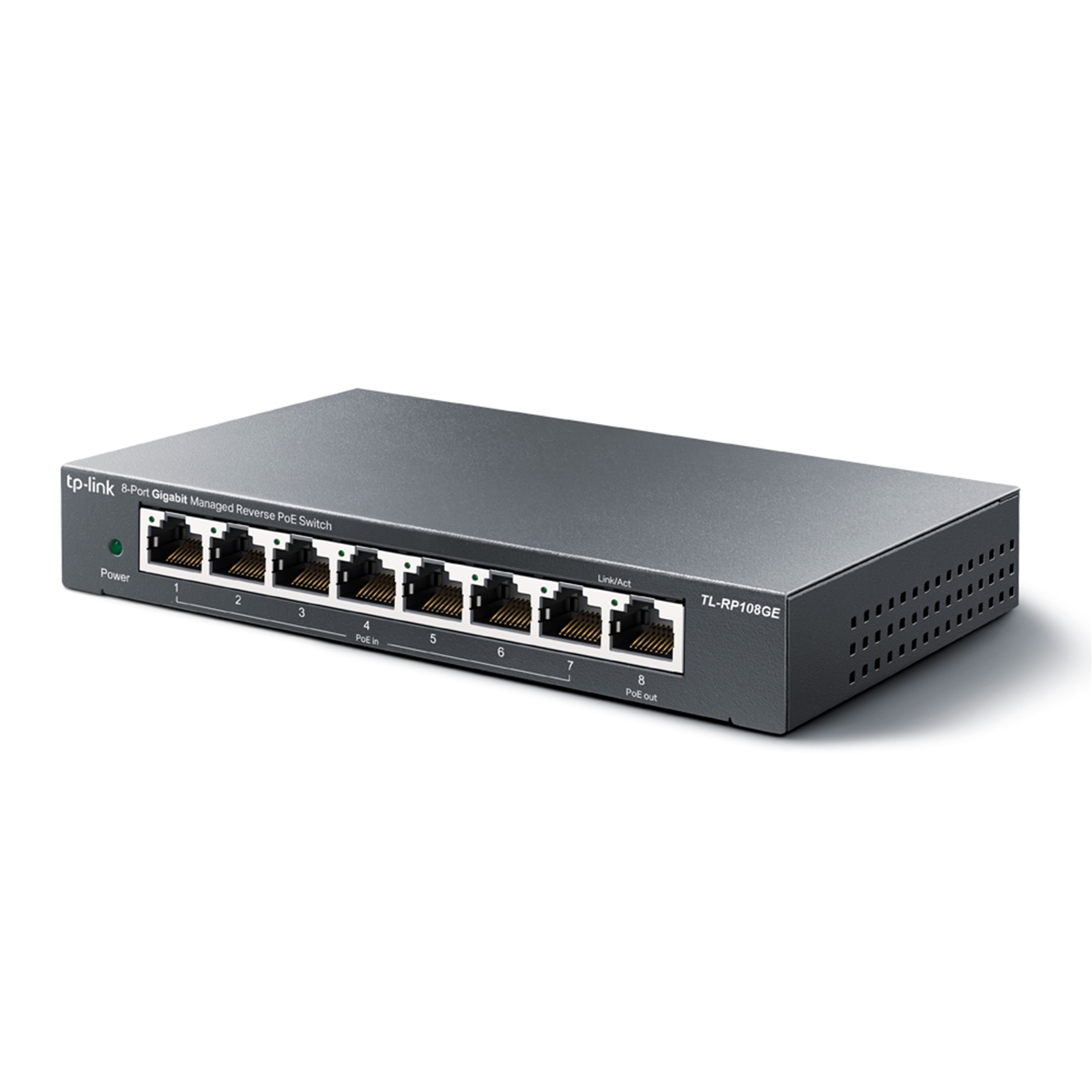

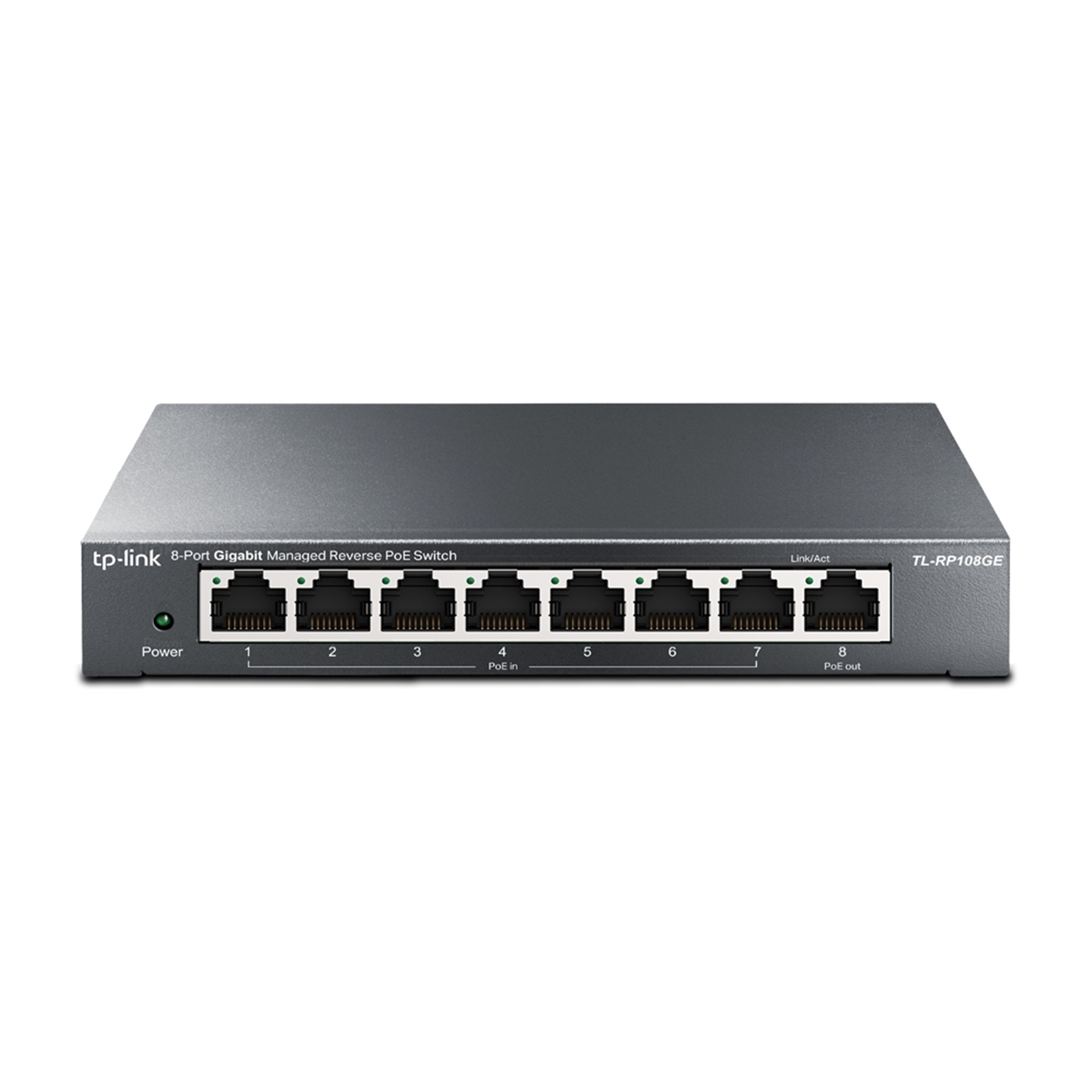

TP-Link TL-RP108GE - Switch - Managed - 7 x 10/100/1000 (PoE input) + 1 x 10/100/1000 (PoE output) - desktop - Reverse PoE

What This Product Does

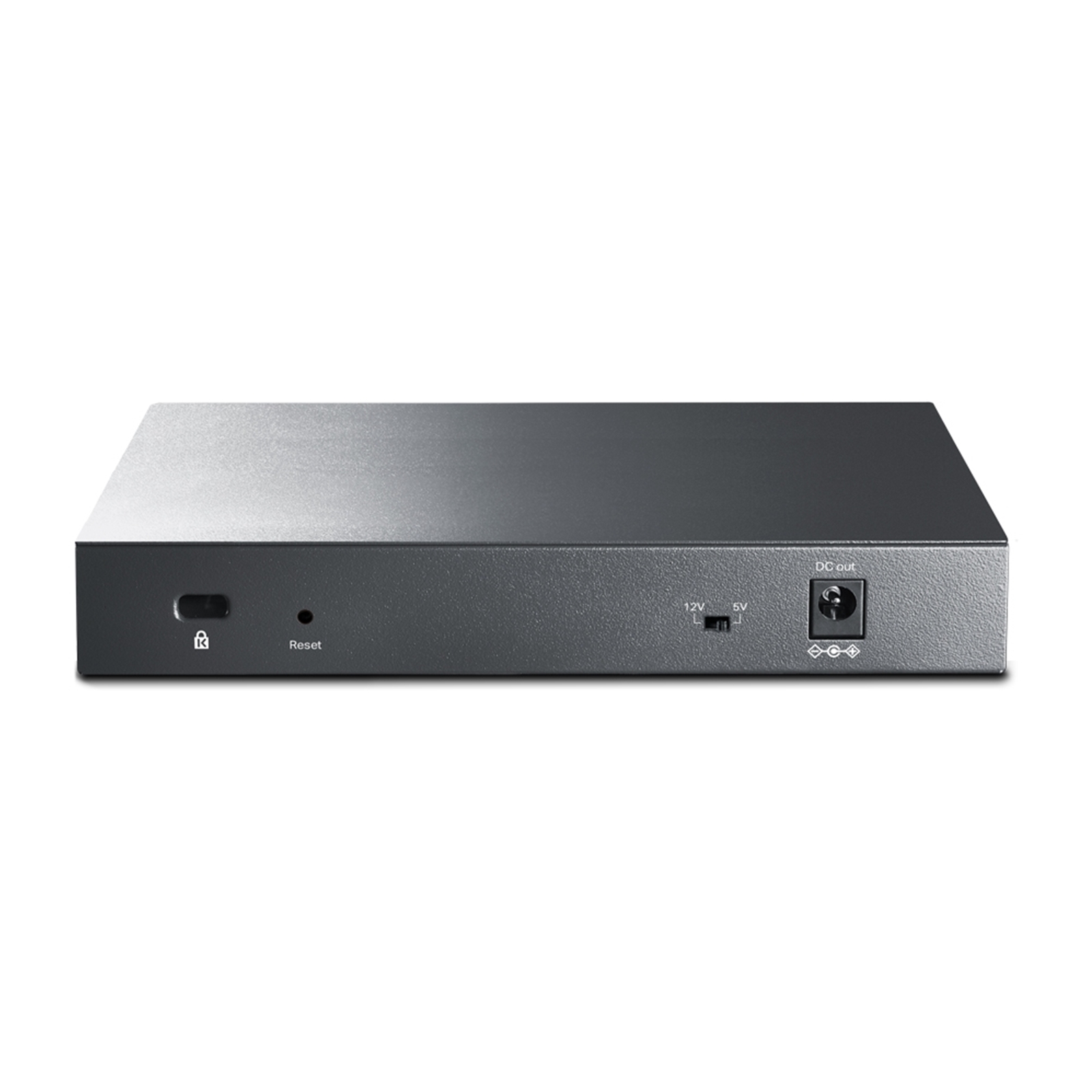

The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
4000 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Y
Store-and-forward
Y
Forwarding rate
11.9 Mpps
Jumbo frames
16000
Static route
Y
Certification
FCC, CE, RoHS
LED indicators
Y
Product colour
Black
Reset button
Y
Power source
DC
Input voltage
5 V
Input current
1 A
Power supply included
N
Harmonized System (HS) code
85176990
Switch layer
L2
Quality of Service (QoS) support
Y
Switch type
Managed
Full duplex
Y
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Port mirroring
Y
Broadcast storm control
Y
Rate limiting
Y
Number of VLANs
4000
VLAN support
Y
10G support
N
Virtual LAN features
Port-based VLAN, Tagged VLAN
Half duplex
Y
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Input voltage
5 V
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) type supported
Passive PoE
IGMP snooping
Y
Loop protection
Y
Height
25 mm
Width
158 mm
Depth
99.1 mm
