Managed Network Switches | TP-LINK TL-SG3210 | TL-SG3210 | ServersPlus
TP-LINK TL-SG3210 | serversplus.comTP-LINK TL-SG3210 | serversplus.comTP-LINK TL-SG3210 | serversplus.com

Illustration purposes only

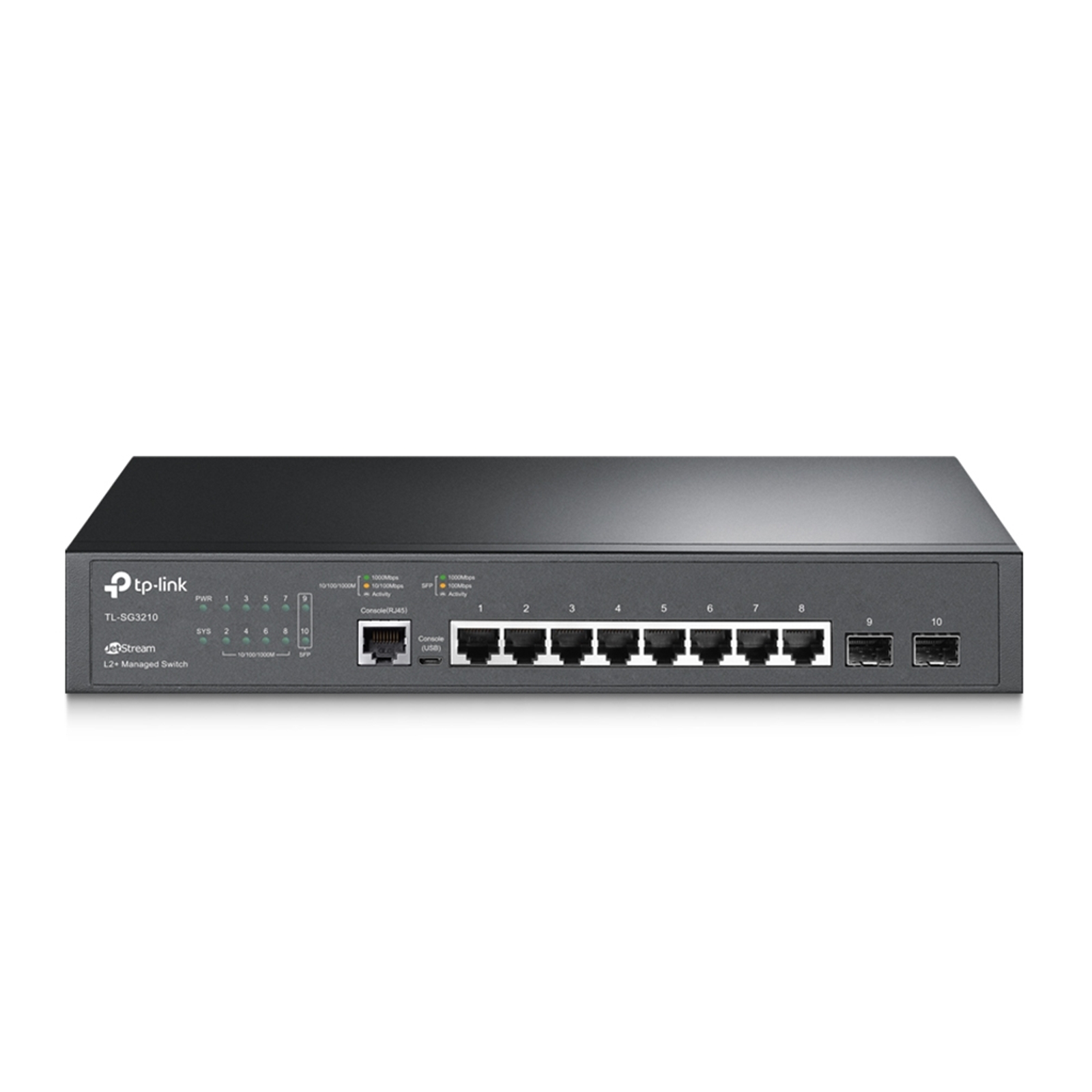

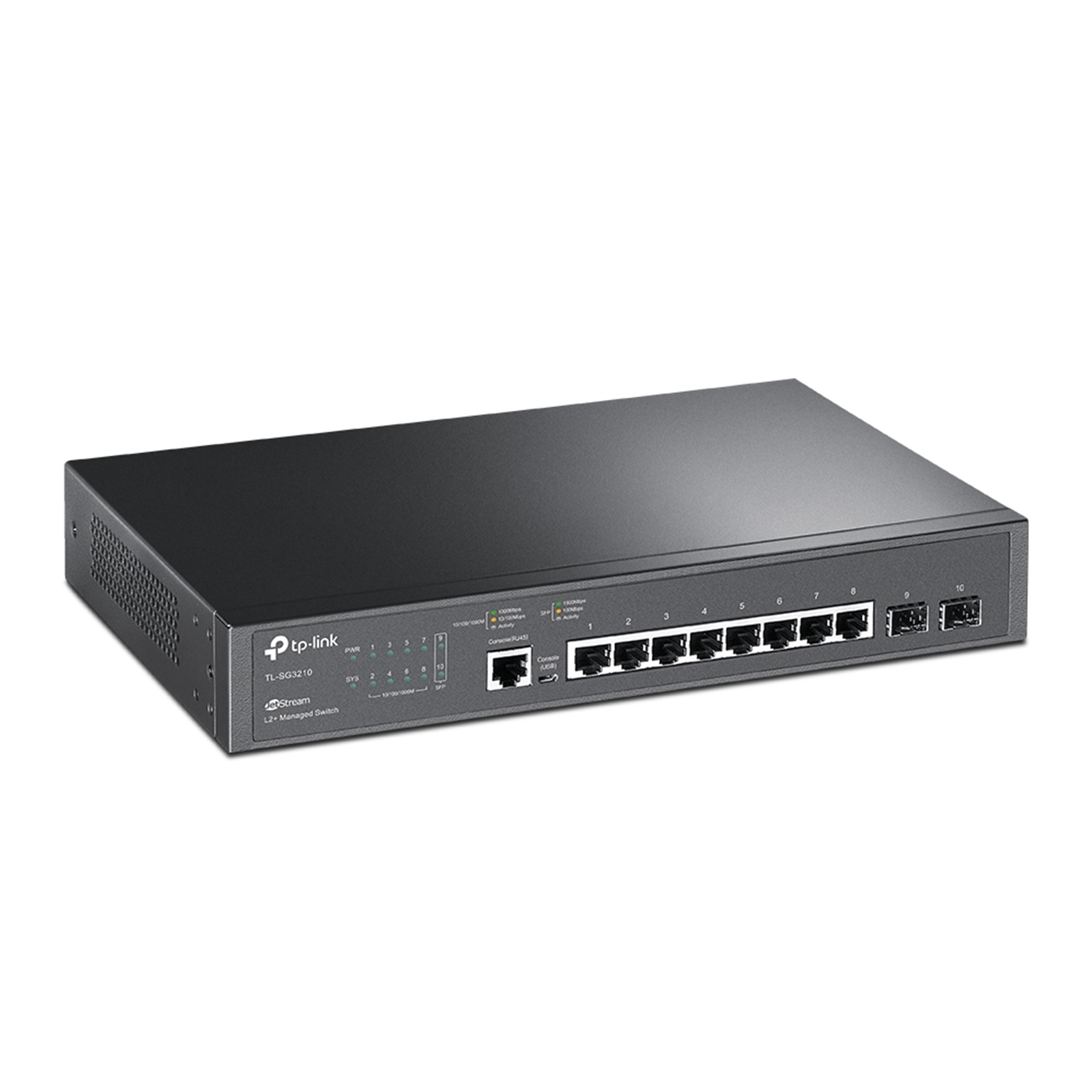

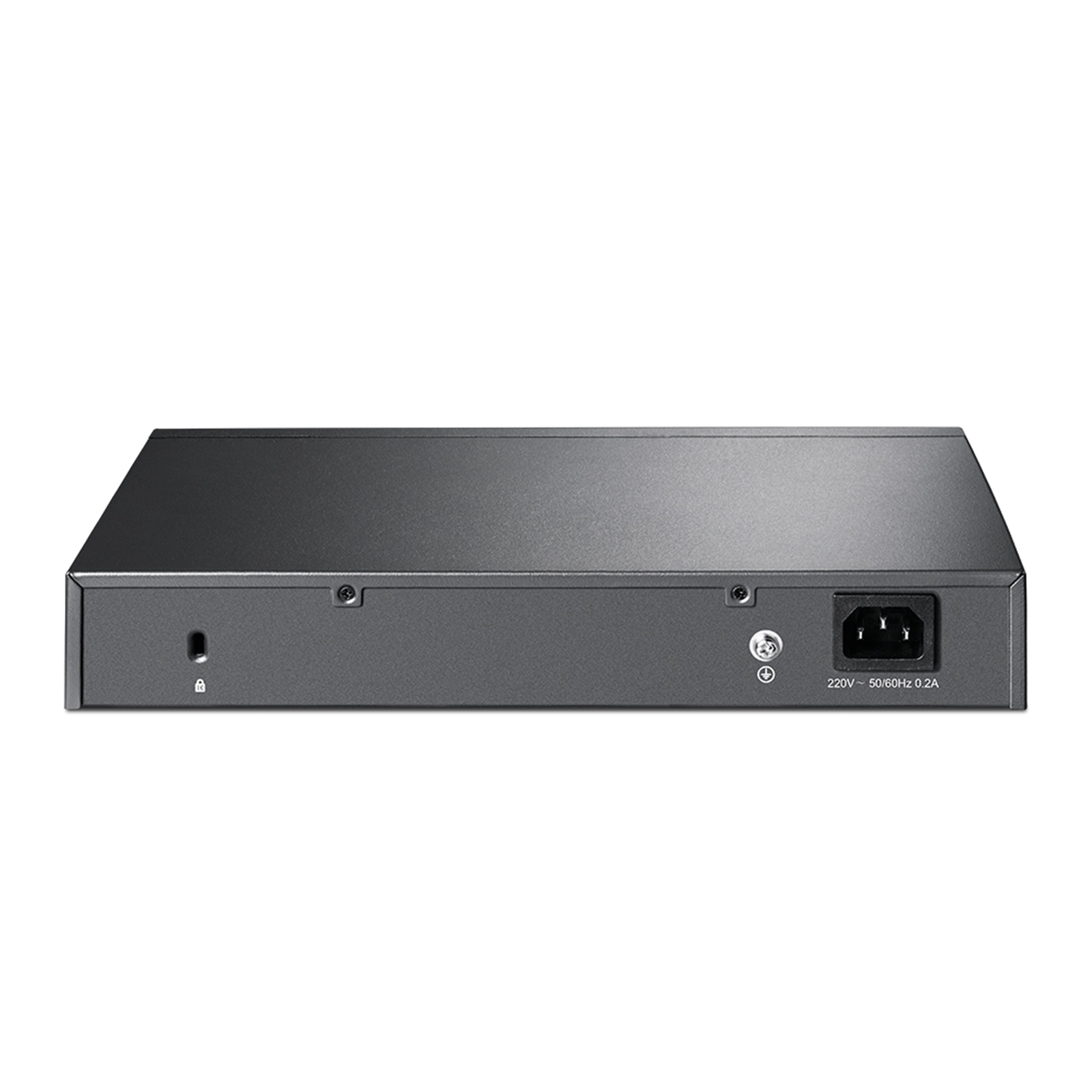

TP-LINK TL-SG3210

TP-LINK Logo here

Manufacturer Part Code: TL-SG3210

Order Code: NPTPL-TLSG3210

Category: Managed Network Switches

TP-Link TL-SG3210 Gigabit L2 Managed Switch 8 + 2

Convenient Gigabit Switch
for a Complete Omada Network
JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
8000 entries
Switching capacity
20 Gbit/s
Jumbo frames support
Y
Store-and-forward
Y
Forwarding rate
14.9 Mpps
Packet buffer memory
4.1 MB
Number of IP interfaces
16
Jumbo frames
9000
Rack mounting
Y
Form factor
1U
LED indicators
Y
Product colour
Black
Power source
AC
AC input frequency
50 Hz
AC input voltage
100 - 240 V
Power consumption (max)
6.84 W
Power supply included
Y
Harmonized System (HS) code
85176990
MIB support
Yes
Switch layer
L2/L3
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
Switch type
Managed
Multicast support
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Number of VLANs
4000
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
VLAN support
Y
10G support
N
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Manual
Y
Quick start guide
Y
User guide
Y
Rack mount kit
Y
Minimum system requirements
Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Firmware upgradeable
Y
Fanless
Y
Harmonized System (HS) code
85176990
Console port
RJ-45/Micro-USB
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
SFP module slots quantity
2
Power over Ethernet (PoE)
N
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Y
MAC address filtering
Y
Static port security
Y
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Loop protection
Y
BPDU filtering/protection
Y
IP-MAC-Port binding
Y
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Height
44 mm
Width
294 mm
Depth
180 mm
