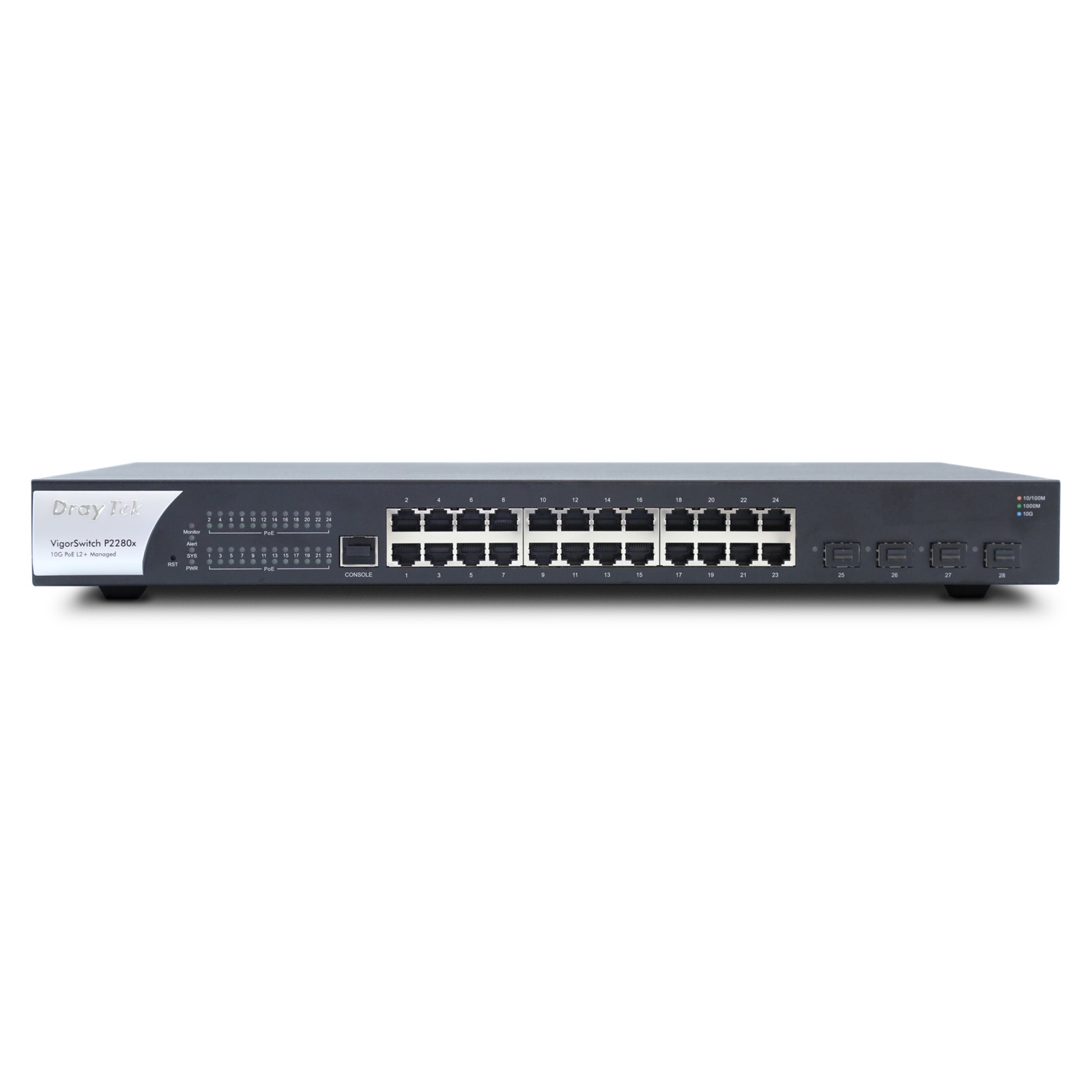

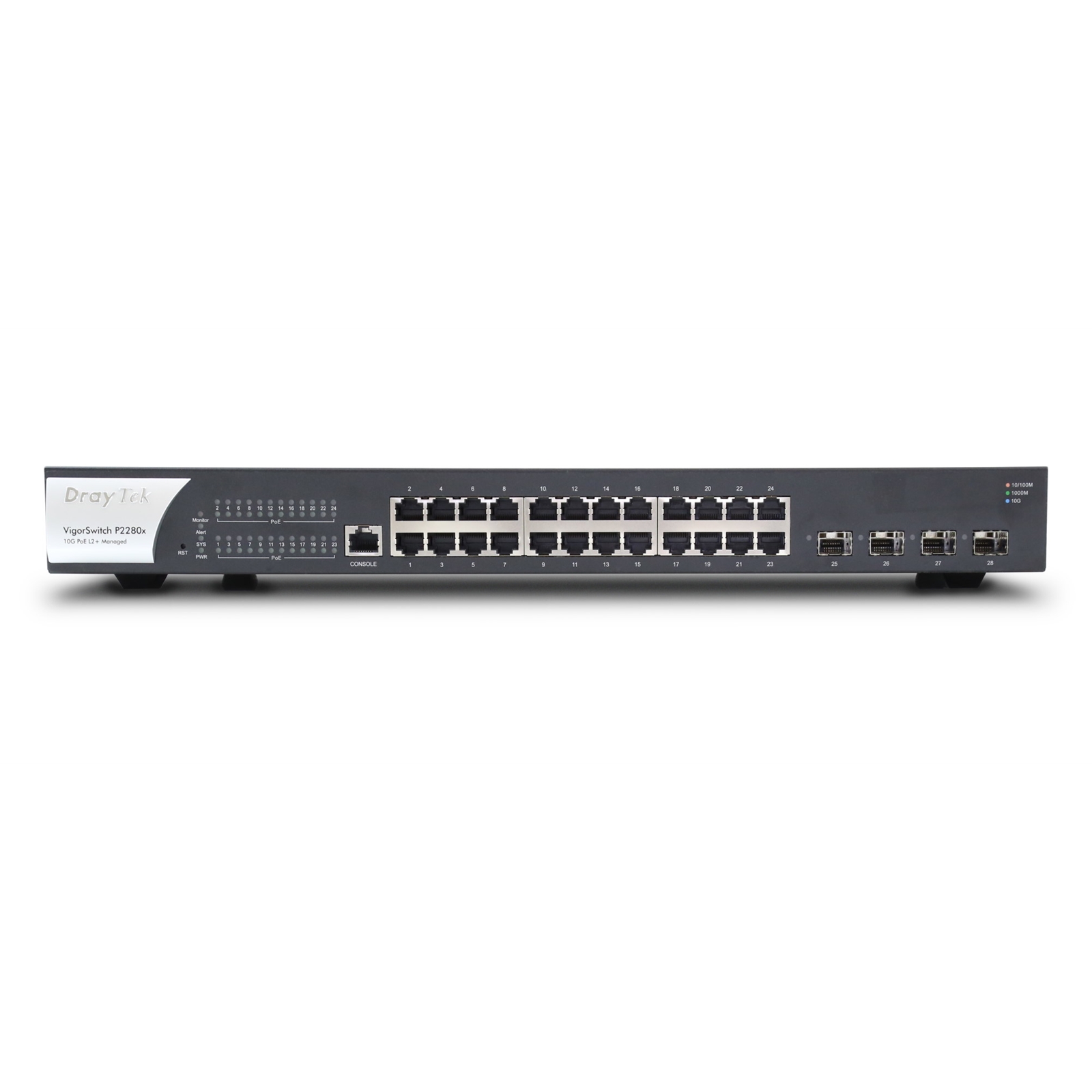

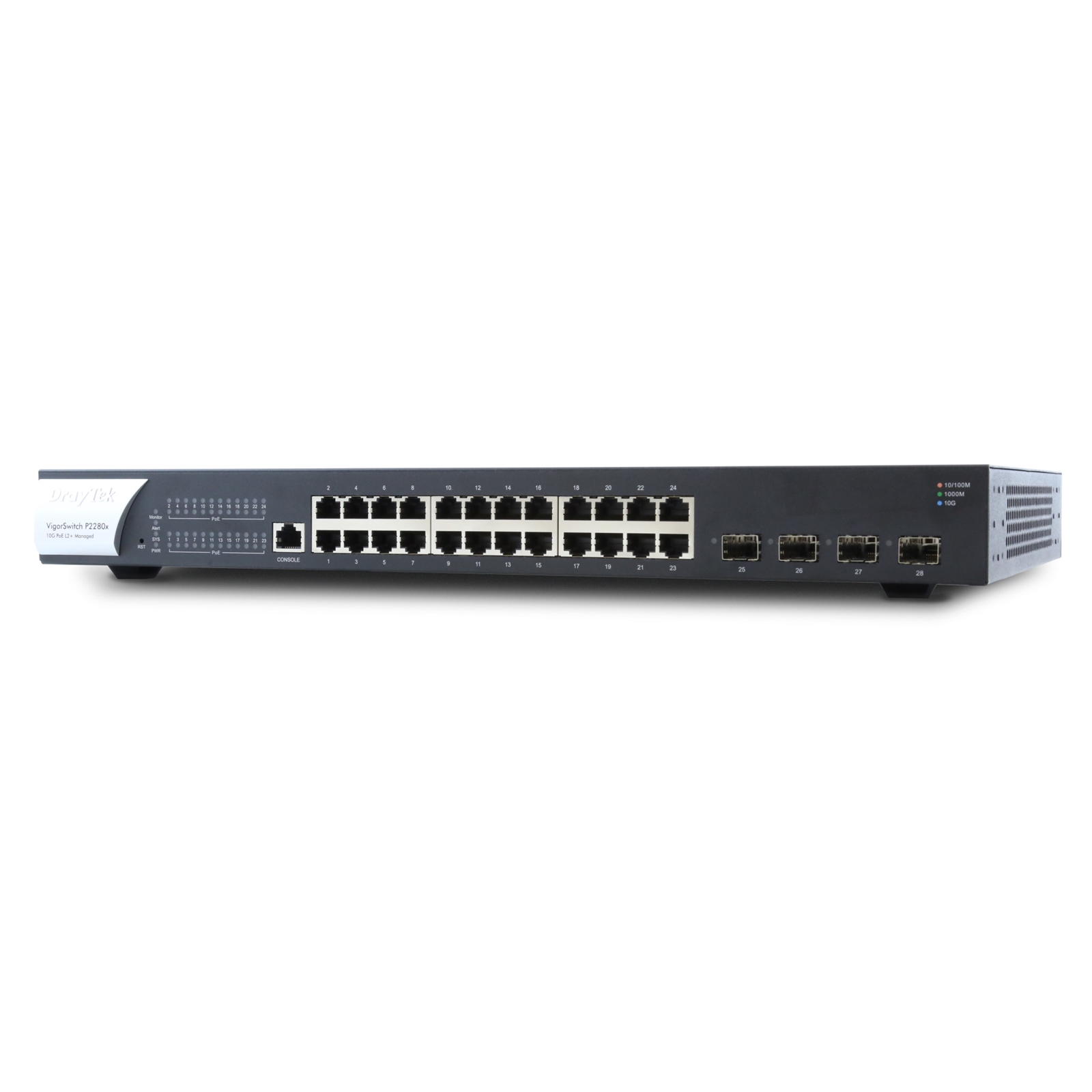

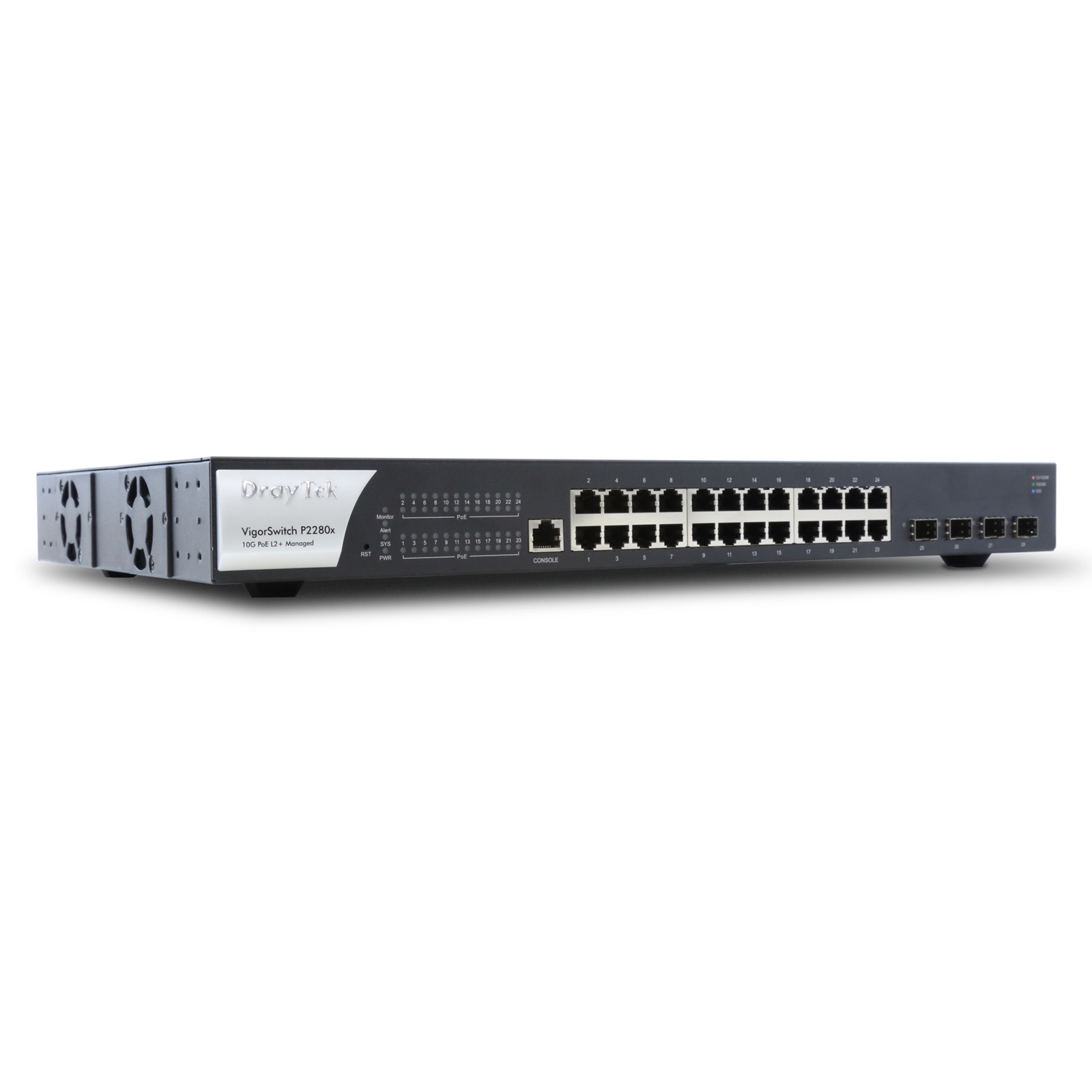

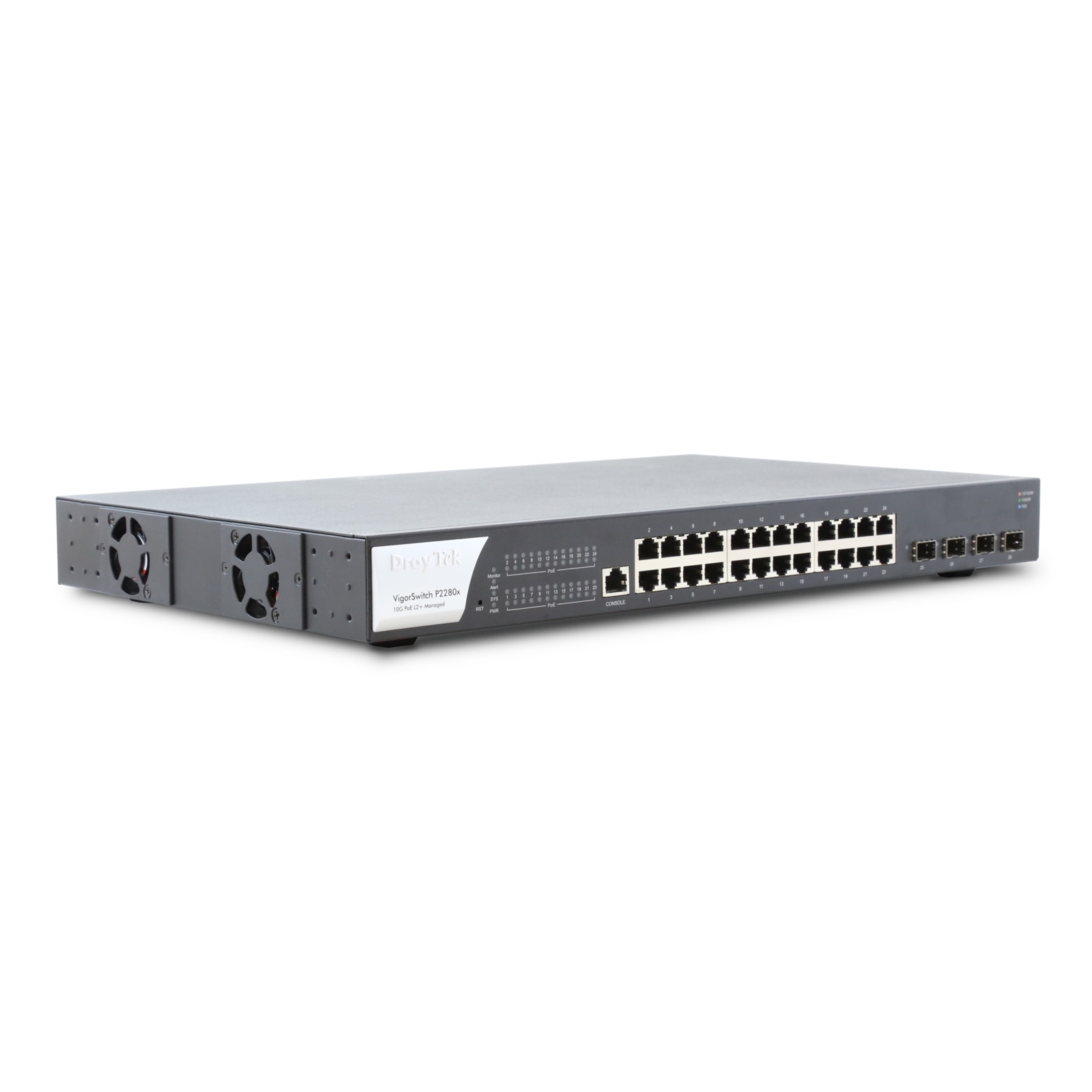

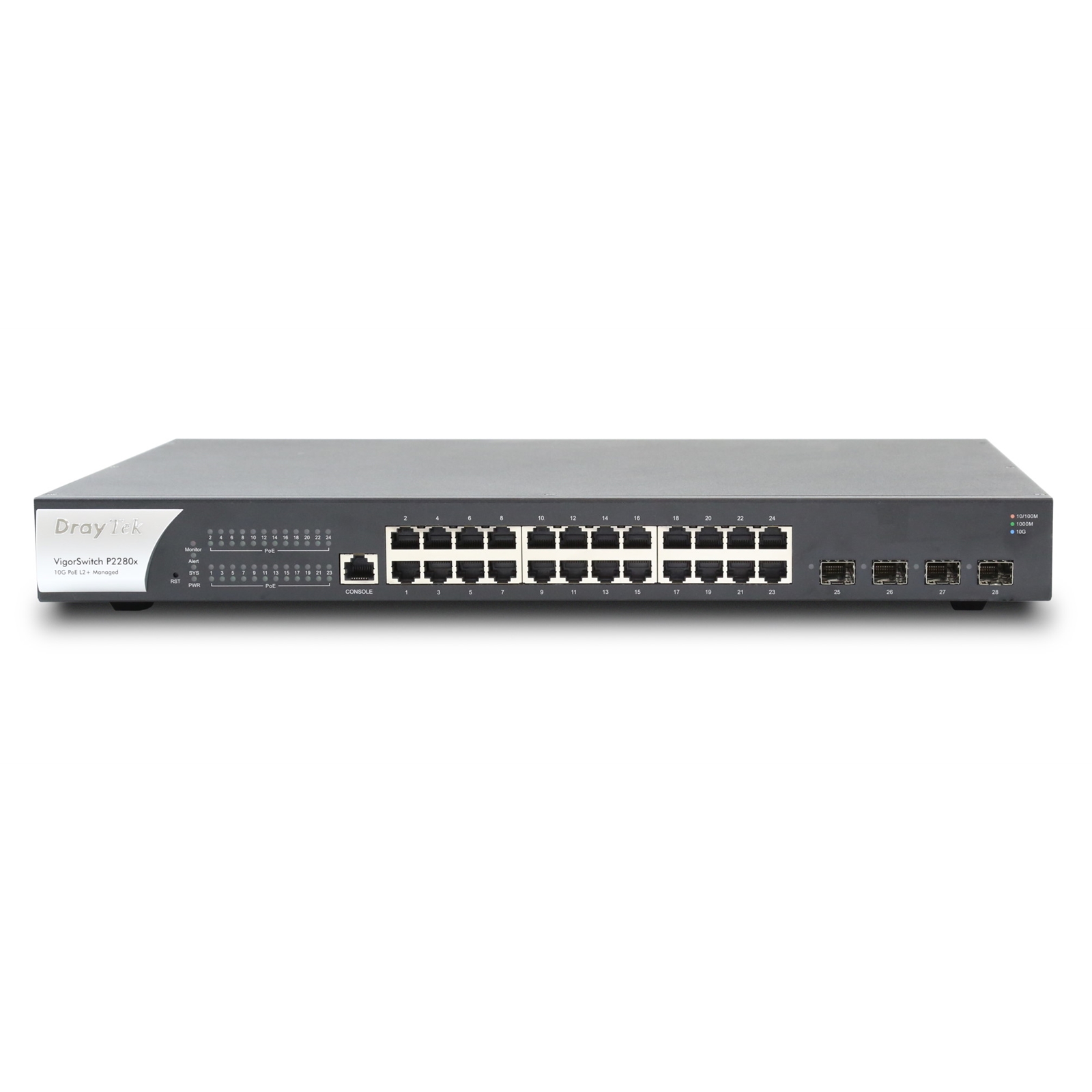

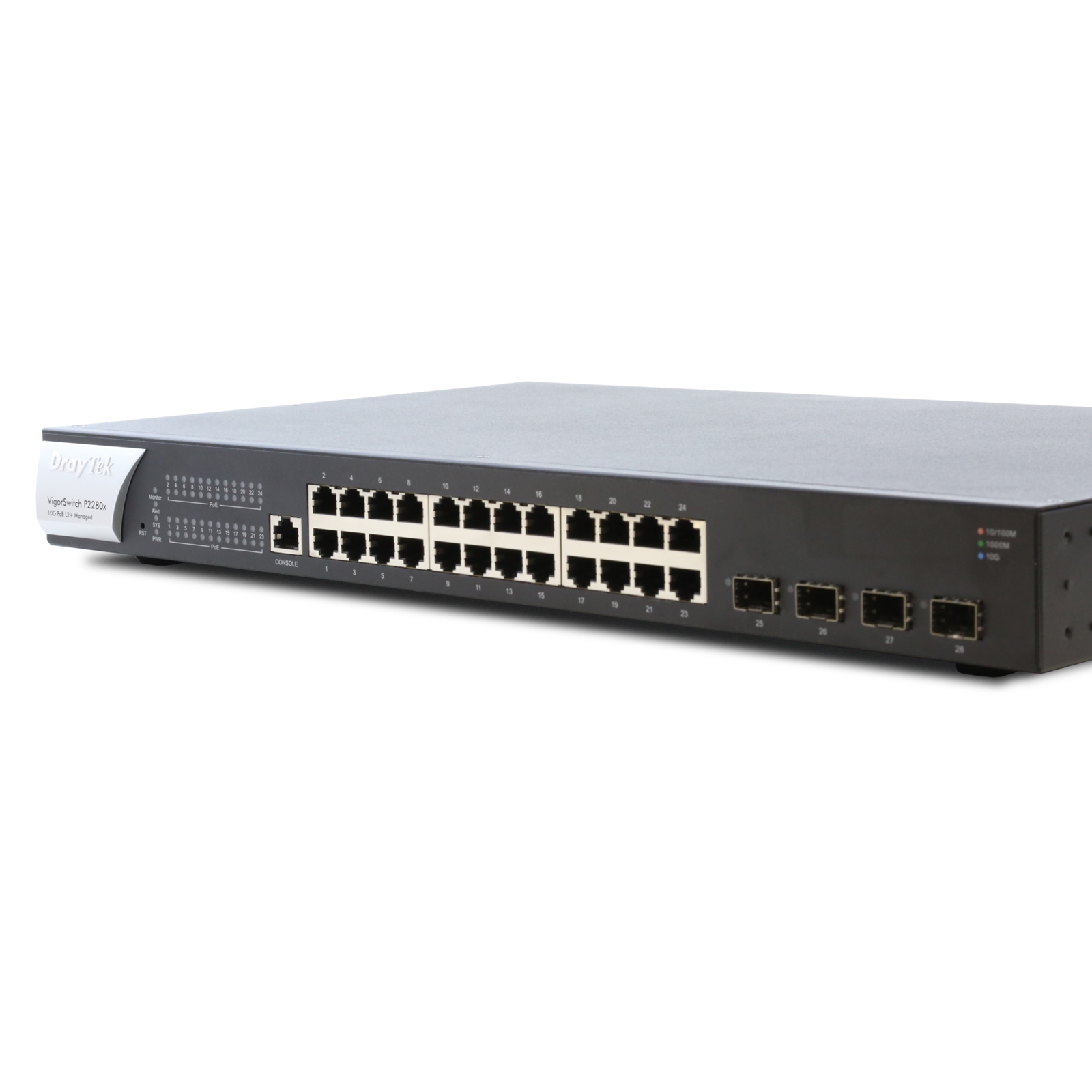

DRAYTEK VigorSwitch P2280X 28 Port PoE

DRAYTEK Logo here

Manufacturer Part Code: VSP2280X-K

Order Code: NPDRA-VSP2280XK

Category: Managed Network Switches

DrayTek VigorSwitch P2280X 28 Port PoE

Please note: For next business day delivery, this item must be ordered before 2:00pm

10GbE Gigabit Switch with 24 Gigabit PoE+ Ports & 4 10GbE SFP+ Uplink Ports
The VigorSwitch P2280x is a high-performance, L2+ Managed Gigabit Ethernet switch. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports for high bandwidth uplinks to Servers, Network Attached Storage and Switches.

The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports. Supporting up to 30 watts per port, it can easily power a large number of IP cameras, IP phones, wireless APs and other PoE devices.
Use the 4 SFP+ ports for high speed uplinks between Switches, Servers and Network-Attached-Storage at up to 10 Gigabits per port.

Designed for centralised management, the VigorSwitch P2280x can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

400W PoE Power Budget
Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & monitoring features ensure your PoE devices are powered and working.

Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices.

Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.

Benefits: Secure & control access to your network.

High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allows your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

Benefits: Provides a fast and secure bridge between networks.

Hardware Monitoring
Monitor switch temperature, power supply and fan status to ensure stable & constant operation. The switch's fans run quieter with Smart fan control.

Benefits: Email notification alerts for power loss, downtime or configuration changes.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
128 Gbit/s
Jumbo frames support
Y
Number of queues
8
Forwarding rate
41.7 Mpps
Packet buffer memory
12 MB
Jumbo frames
12
Rack mounting
Y
Form factor
1U
LED indicators
Y
Product colour
Black
Reset button
Y
Number of fans
2 fan(s)
Power source
AC
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
480 W
Power supply included
Y
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
Switch type
Managed
ARP inspection
Y
Cloud-managed
Y
Multicast support
Y
Number of multicast groups filtered
256
Multicast Listener Discovery (MLD) snooping
v1/v2
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Number of VLANs
256
Spanning tree protocol
Y
VLAN support
Y
Routing entries
1000
10G support
N
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Auto-negotiation
Y
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1423.81 BTU/h
Cables included
LAN (RJ-45)
Quick start guide
Y
User guide
Y
Rack mount kit
Y
Fanless
N
Console port
RJ-45
Combo SFP ports quantity
4
Installed SFP modules quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
24
Total Power over Ethernet (PoE) budget
400 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) type supported
Active PoE
Routing protocols
VRRP
GARP VLAN Registration Protocol (GVRP)
Y
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Authentication type
RADIUS, TACACS+
Loop protection
Y
Authentication
Guest VLAN
Queue scheduling algorithms
SPQ, Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Access Control List (ACL) IPv4 entries
512
Access Control List (ACL) IPv6 entries
512
DHCP features
DHCP Option 66, DHCP Option 67, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
Weight
4.32 kg
Height
45 mm
Width
441 mm
Depth
270 mm
