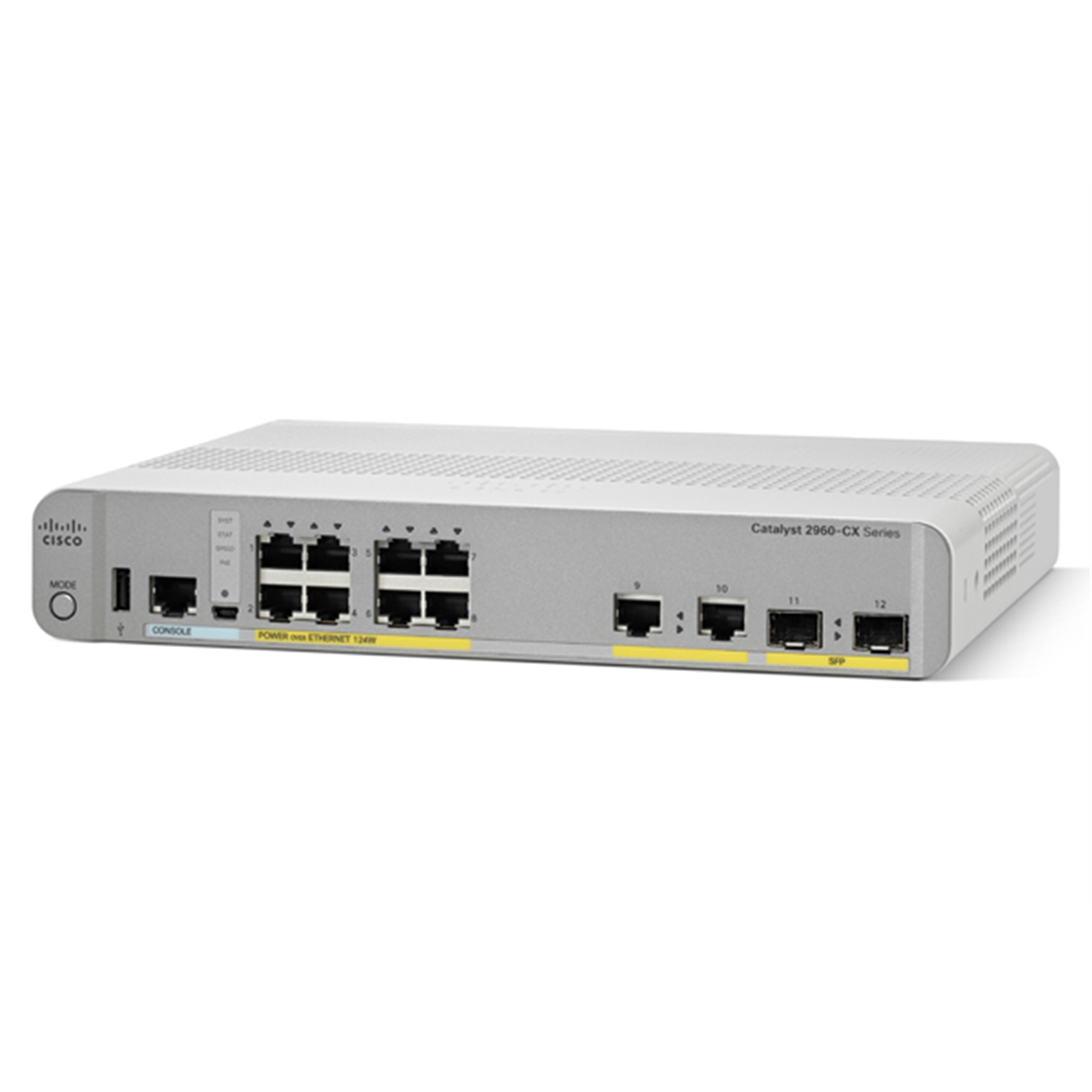

Illustration purposes only

CISCO Catalyst 2960CX-8TC-L - Switch - Managed WS-C2960CX-8TC-L

CISCO Logo here

Manufacturer Part Code: WS-C2960CX-8TC-L

Order Code: NPCIS-WSC2960CXO

Category: Managed Network Switches

Cisco Catalyst 2960CX-8TC-L - Switch - Managed - 8 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000 (uplink) - desktop rack-mountable DIN rail mountable wall-mountable

The Cisco Catalyst Compact Switches easily extend your Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect Power over Ethernet (PoE) devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging.

With increased bandwidth, double the PoE capacity, faster CPU, and more memory, the Cisco Catalyst 3560-CX and 2960-CX bring a multifold improvement in performance to the Cisco Catalyst Compact Switch product line. They offer many smart and innovative features for management, simplicity, and scale.

New features include:
- 8 or 12 Gigabit Ethernet ports with line-rate forwarding performance
- Gigabit copper Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
- Power over Ethernet Plus (PoE+) support with up to 240W of PoE budget
- Advanced Layer 2 (LAN Base) and Layer 3 (IP Base) support with an option to upgrade to IP Services
- Cisco Catalyst Instant Access (optional with 10G) for management simplicity
- Network plug-and-play (PnP) support for automating device configuration
- Cisco TrustSec capability for role-based access security
- Innovative power management features, including Energy Efficient Ethernet and switch hibernation mode
- NetFlow Lite for application visibility at the access network

Upgrade Paths
Cisco Catalyst 3560-CX and 2960-CX Series Switches build upon the success of the 3560-C and 2960-C compact switches and offer superior performance and scale. They come in the same form factor as the older switches, and you can use them anywhere you used the older switches. Customers migrating to the new compact switches will benefit from the increased scalability and performance, innovative new features, and proven performance.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Switching capacity
12 Gbit/s
Jumbo frames support
Y
Forwarding rate
17.9 Mpps
Jumbo frames
9198
Certification
FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST
Rack mounting
N
LED indicators
Y
Product colour
White
Power consumption (typical)
18.8 W
Input current
0.5 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Switch type
Managed
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3z
Link aggregation
Y
Rate limiting
Y
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Copper ethernet cabling technology
10GBASE-T,100BASE-T,1000BASE-T
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-25 - 70 °C
Operating temperature (T-T)
-5 - 45 °C
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 4000 m
Heat dissipation
170.6 BTU/h
Internal memory
512 MB
Mean time between failures (MTBF)
756260 h
Flash memory
128 MB
Memory type
DRAM
Gigabit Ethernet (copper) ports quantity
2
Console port
RJ-45
Combo SFP ports quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
Power connector
DC-in jack
Power over Ethernet (PoE)
N
Data link protocols
UDP, TFTP, IP, TCP, FTP
Management protocols
Telnet, RIP, SNMP, NTP, TACACS+, RMON, HTTP, RADIUS
Supported network protocols
ICMP, ARP, BOOTP, OSPF, DHCP
Security algorithms
802.1x RADIUS,SSH
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
Authentication type
IEEE 802.1x
Authentication
MAC-based authentication, Web-based authentication
DHCP features
DHCP server,DHCP snooping
Weight
1.72 kg
Height
44.4 mm
Width
269 mm
Depth
213 mm
