Managed Network Switches | CISCO Catalyst 2960-X-48FPS-L WS-C2960X-48FPS-L | WS-C2960X-48FPS-L | ServersPlus
CISCO WS-C2960X-48FPS-L | serversplus.comCISCO WS-C2960X-48FPS-L | serversplus.comCISCO WS-C2960X-48FPS-L | serversplus.com

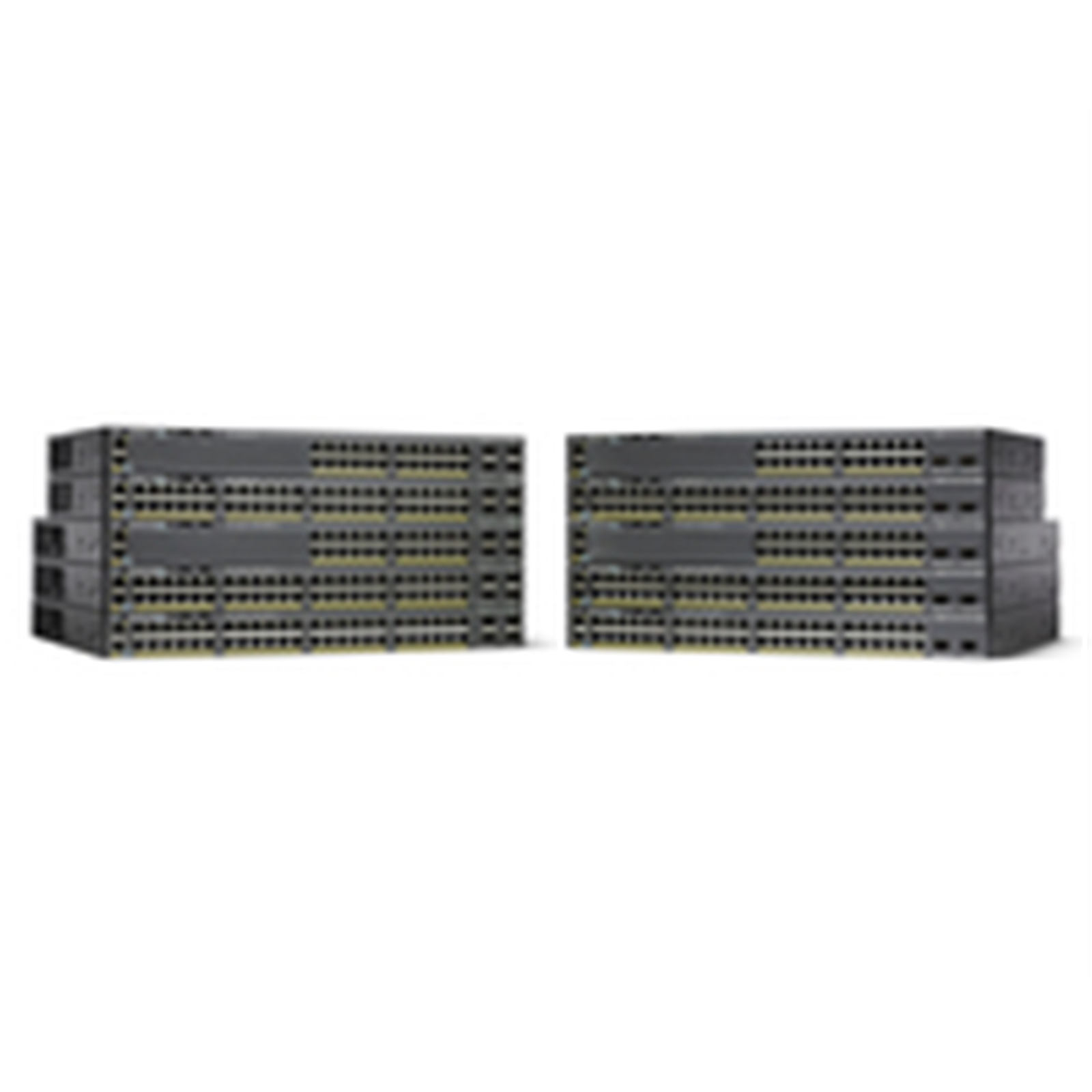

Illustration purposes only

CISCO Catalyst 2960-X-48FPS-L WS-C2960X-48FPS-L

CISCO Logo here

Manufacturer Part Code: WS-C2960X-48FPS-L

Order Code: NPCIS-C2960X48FP

Category: Managed Network Switches

Cisco Catalyst 2960X-48FPS-L - Switch - Managed - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop rack-mountable - PoE+

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
216 Gbit/s
Jumbo frames support
Y
Throughput
107.1 Mpps
Rack mounting
Y
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
LED indicators
Y
Product colour
Black
Stackable
Y
Power consumption (typical)
66.6 W
Number of power supply units
1
Redundant power supply (RPS) support
Y
Input current
9 A
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Switch layer
L2/L3
Quality of Service (QoS) support
Y
Web-based management
Y
Switch type
Managed
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Auto MDI/MDI-X
Y
Number of VLANs
1023
Spanning tree protocol
Y
VLAN support
Y
10G support
Y
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-25 - 70 °C
Operating temperature (T-T)
-5 - 40 °C
Storage relative humidity (H-H)
10 - 95%
Non-operating altitude
0 - 4000 m
Power LED
Y
Processor frequency
600 MHz
Internal memory
512 MB
Processor model
AppliedMicro APM8639
Mean time between failures (MTBF)
232610 h
Flash memory
128 MB
Memory type
DRAM
Noise level
39 dB
Built-in processor
Y
USB 2.0 ports quantity
2
Gigabit Ethernet (copper) ports quantity
48
Console port
RJ-45
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
SFP module slots quantity
4
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
48
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
740 W
Management protocols
SNMPv3
Security algorithms
802.1x RADIUS,SSH
Access Control List (ACL)
Y
SSH/SSL support
Y
IGMP snooping
Y
DHCP features
DHCP server
Weight
5.8 kg
Height
45 mm
Width
445 mm
Depth
368 mm
