Managed Network Switches | CISCO Catalyst 2960-XR-24TS-I WS-C2960XR-24TS-I | WS-C2960XR-24TS-I | ServersPlus
CISCO WS-C2960XR-24TS-I | serversplus.com

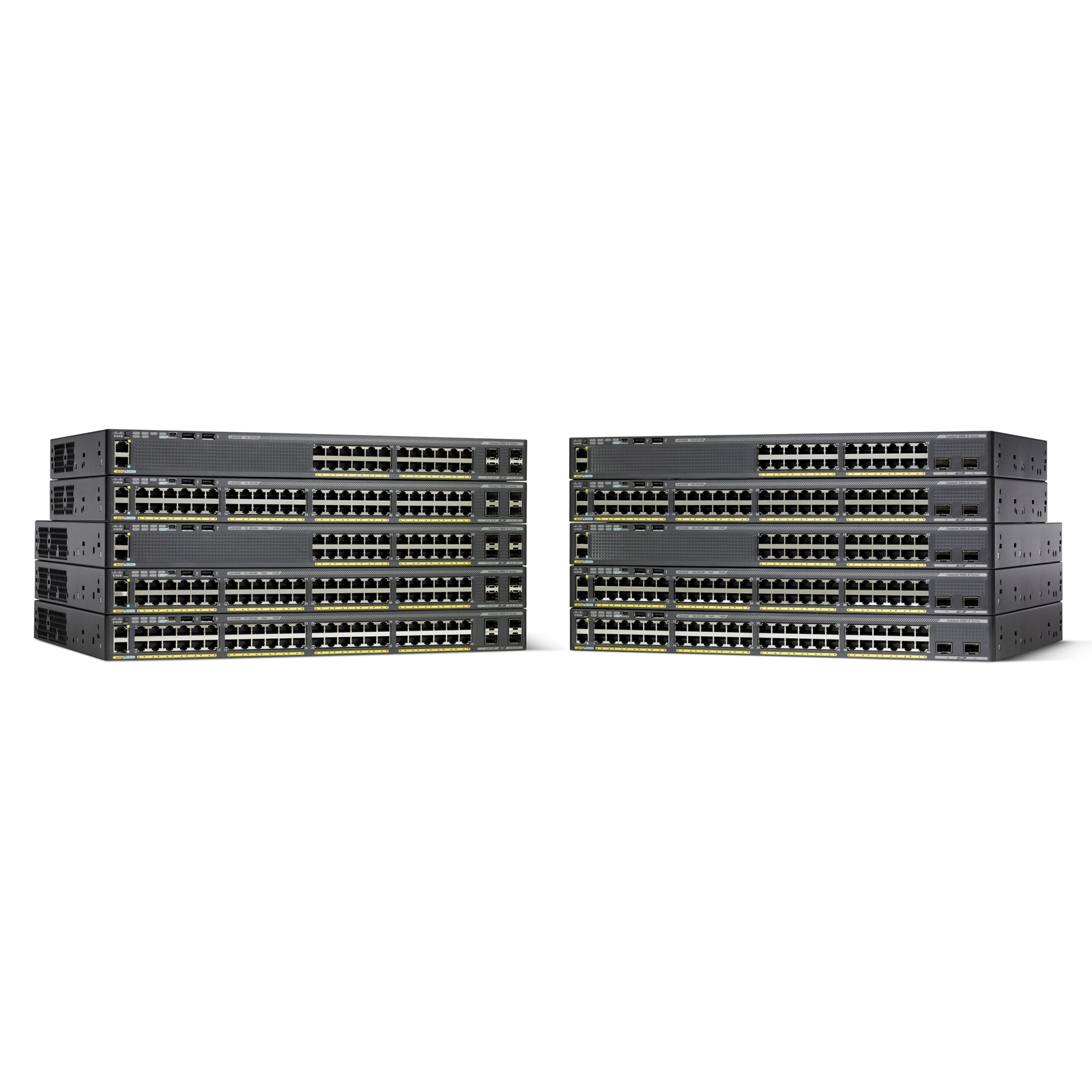

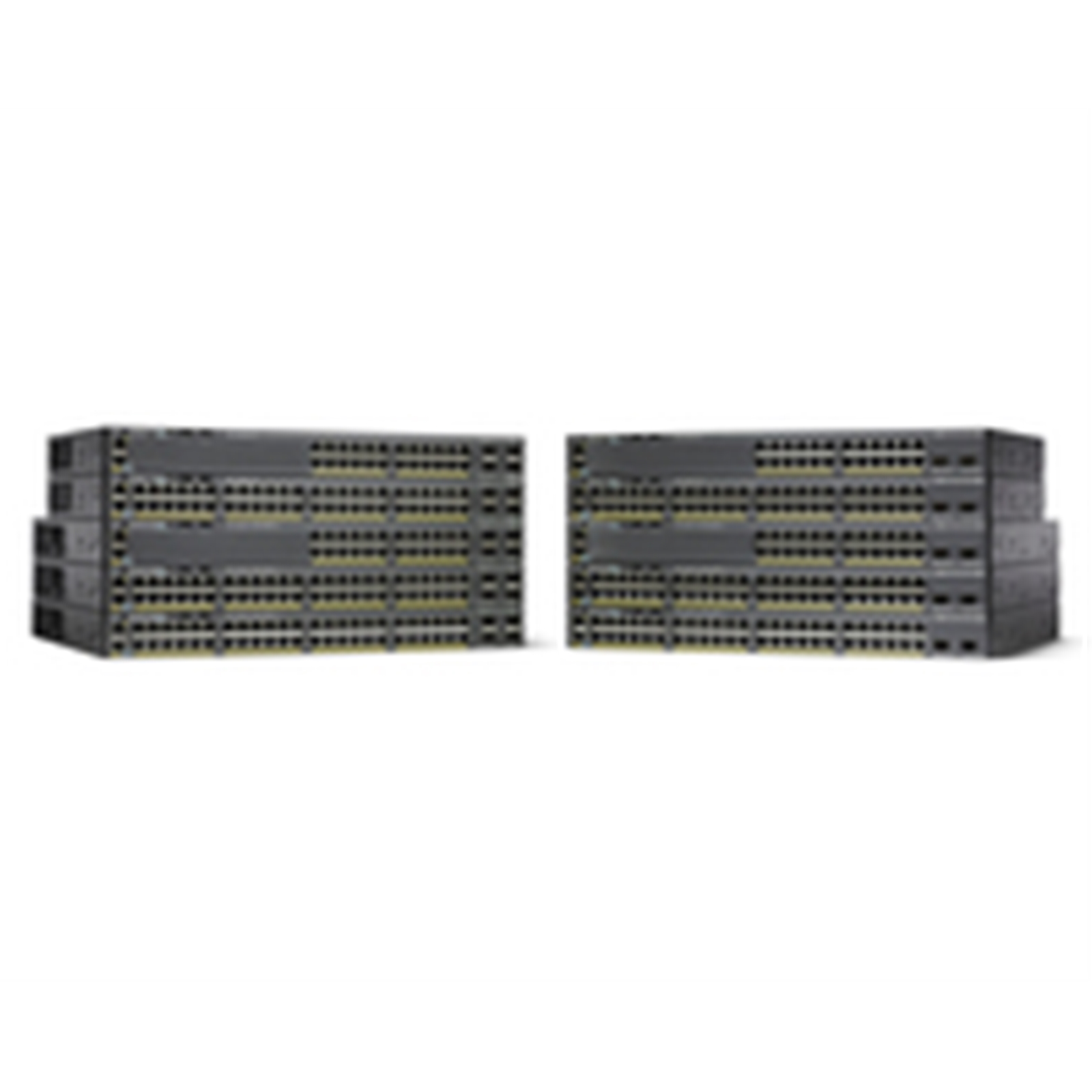

Illustration purposes only

CISCO Catalyst 2960-XR-24TS-I WS-C2960XR-24TS-I

CISCO Logo here

Manufacturer Part Code: WS-C2960XR-24TS-I

Order Code: NPCIS-WSC2960XR2

Category: Managed Network Switches

Cisco Catalyst 2960XR-24TS-I - Switch - L3 - Managed - 24 x 10/100/1000 + 4 x Gigabit SFP - desktop rack-mountable

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Full duplex
Y
MAC address table
16000 entries
Switching capacity
216 Gbit/s
Jumbo frames support
Y
Number of VLANs
1023
10G support
Y
Throughput
71.4 Mpps
Rack mounting
Y
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
LED indicators
Y
Colour of product
Black
Stackable
Y
Source data-sheet
Power consumption (typical)
36 W
Number of power supplies
1
Redundant power supply (RPS) support
Y
Output power
250 W
AC input frequency
50 - 60 Hz
AC input voltage
90 - 264 V
LED indicators
Y
Power LED
Y
Switch layer
L2
Quality of Service (QoS) support
Y
Multicast support
Y
Web-based management
Y
Switch type
Managed
Internal memory
512 MB
Flash memory
128 MB
Memory type
DRAM
Multicast support
Y
Full duplex
Y
MAC address table
16000 entries
Networking standards
IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Link aggregation
Y
Jumbo Frames support
Y
Broadcast storm control
Y
Rate limiting
Y
DHCP server
Y
IGMP snooping
Y
Auto MDI/MDI-X
Y
Number of VLANs
1023
Spanning tree protocol
Y
VLAN support
Y
10G support
Y
Operating altitude
0 - 3000 m
Operating relative humidity range
10 - 95%
Storage temperature range (T-T)
-25 - 70 °C
Operating temperature range (T-T)
-5 - 40 °C
Storage relative humidity range
10 - 95%
Non-operating altitude
0 - 4000 m
Power LED
Y
Processor clock speed
600 MHz
Internal memory
512 MB
Processor model
AppliedMicro APM8639
Mean time between failures (MTBF)
557320 h
Flash memory
128 MB
Memory type
DRAM
Noise level
22 dB
Stackable
Y
Built-in processor
Y
USB 2.0 ports quantity
2
Console port
RJ-45
SFP ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
SFP module slots quantity
4
Access Control List (ACL)
Y
DHCP server
Y
SSH/SSL support
Y
IGMP snooping
Y
DHCP features
DHCP server
Processor clock speed
600 MHz
Rack mounting
Y
Mean time between failures (MTBF)
557320 h
Colour of product
Black
Noise level
22 dB
Stackable
Y
Source data-sheet
VLAN support
Y
Built-in processor
Y
Number of VLANs
1023
VLAN support
Y
Weight
5.9 kg
Height
44.5 mm
Width
445 mm
Depth
408 mm
