Managed Network Switches | CISCO Catalyst 3560-CX-8TC-S - Switch - Managed WS-C3560CX-8TC-S | WS-C3560CX-8TC-S | ServersPlus
CISCO WS-C3560CX-8TC-S | serversplus.com

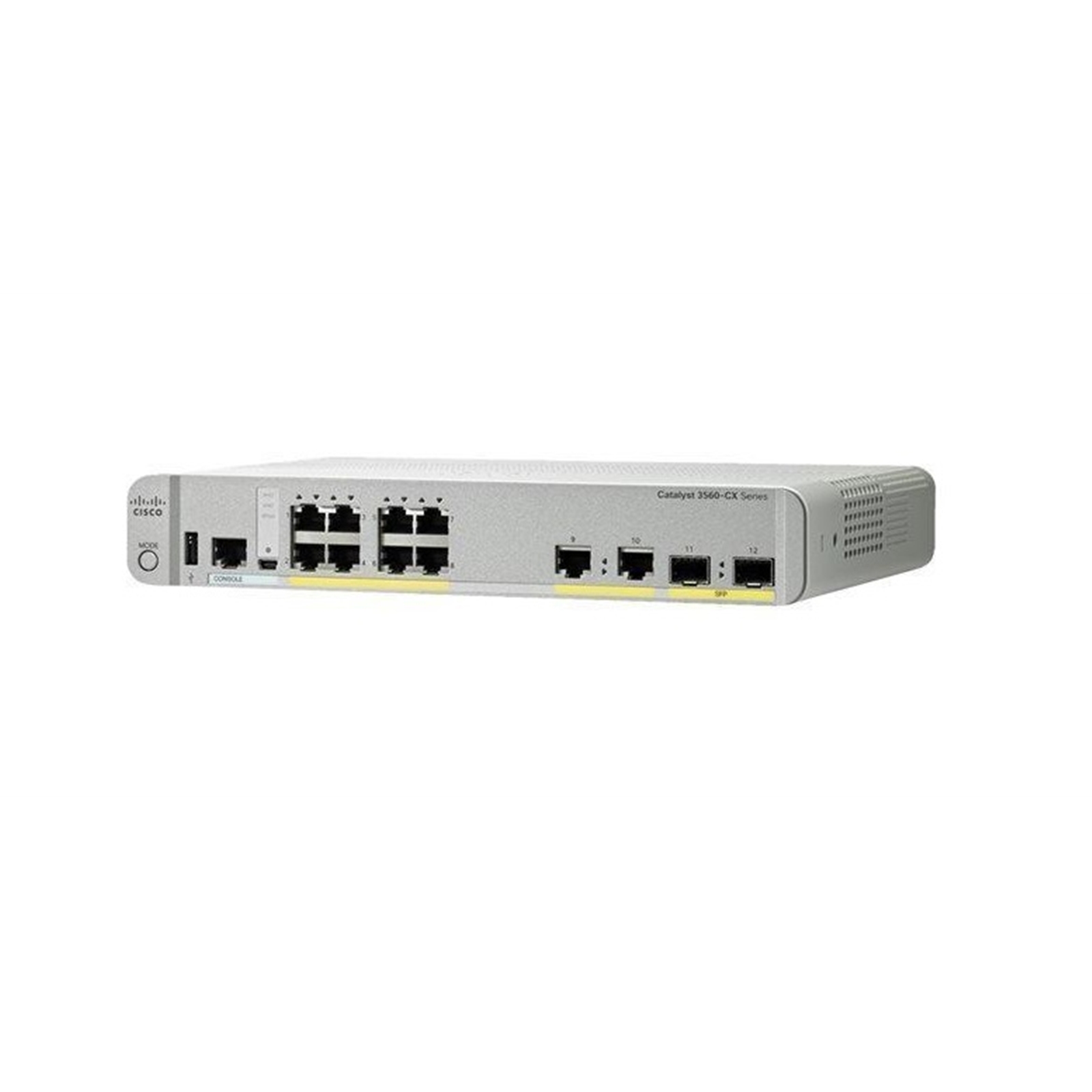

Illustration purposes only

CISCO Catalyst 3560-CX-8TC-S - Switch - Managed WS-C3560CX-8TC-S

CISCO Logo here

Manufacturer Part Code: WS-C3560CX-8TC-S

Order Code: NPCIS-WSC3560CXM

Category: Managed Network Switches

Cisco Catalyst 3560CX-8TC-S - Switch - Managed - 8 x 10/100/1000 + 2 x combo Gigabit SFP - desktop rack-mountable DIN rail mountable wall-mountable


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Full duplex
Y
Jumbo frames support
Y
Number of VLANs
4000
10G support
N
Jumbo frames
9198
Rack mounting
Y
Colour of product
White
Case design
freestanding
Stackable
N
Power consumption (typical)
30 W
Heat dissipation
170.6 BTU/h
Power over Ethernet (PoE) Support
N
Input current
0.5 - 0.2 A
Output current
0.2 A
AC input voltage
100 - 240 V
Power supply included
Y
Switch layer
L3
Quality of Service (QoS) support
Y
Switch type
Managed
ARP inspection
Y
Internal memory
512 MB
Flash memory
128 MB
Full duplex
Y
Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Link aggregation
Y
Jumbo Frames support
Y
IP routing
Y
Number of VLANs
4000
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Copper ethernet cabling technology
1000BASE-T,100BASE-T,10BASE-T
Operating altitude
0 - 3048 m
Operating relative humidity range
5 - 95%
Storage temperature range (T-T)
-25 - 70 °C
Operating temperature range (T-T)
-5 - 45 °C
Storage relative humidity range
5 - 95%
Non-operating altitude
0 - 4000 m
Heat dissipation
170.6 BTU/h
Fiber optic connector
SFP
Internal memory
512 MB
Mean time between failures (MTBF)
756260 h
Flash memory
128 MB
Stackable
N
Gigabit Ethernet (copper) ports quantity
2
Fiber optic connector
SFP
Copper ethernet cabling technology
1000BASE-T,100BASE-T,10BASE-T
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
SFP module slots quantity
2
Power over Ethernet (PoE) support
N
Access Control List (ACL)
Y
SSH/SSL support
Y
Authentication
MAC-based authentication
Rack mounting
Y
Mean time between failures (MTBF)
756260 h
Colour of product
White
Case design
freestanding
Stackable
N
VLAN support
Y
Number of VLANs
4000
VLAN support
Y
Weight
1.72 kg
Height
44.4 mm
Width
269.2 mm
Depth
213.4 mm
