ZYXEL 11 Port Manageable Switch - XGS1250-12

ZYXEL Logo here

Manufacturer Part Code: XGS1250-12-ZZ0101F

Order Code: NPZYX-XGS125012Z

Category: Managed Network Switches

ZYXEL XGS1250-12 11 Ports Manageable Ethernet Switch - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - Desktop, Wall Mountable

Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications

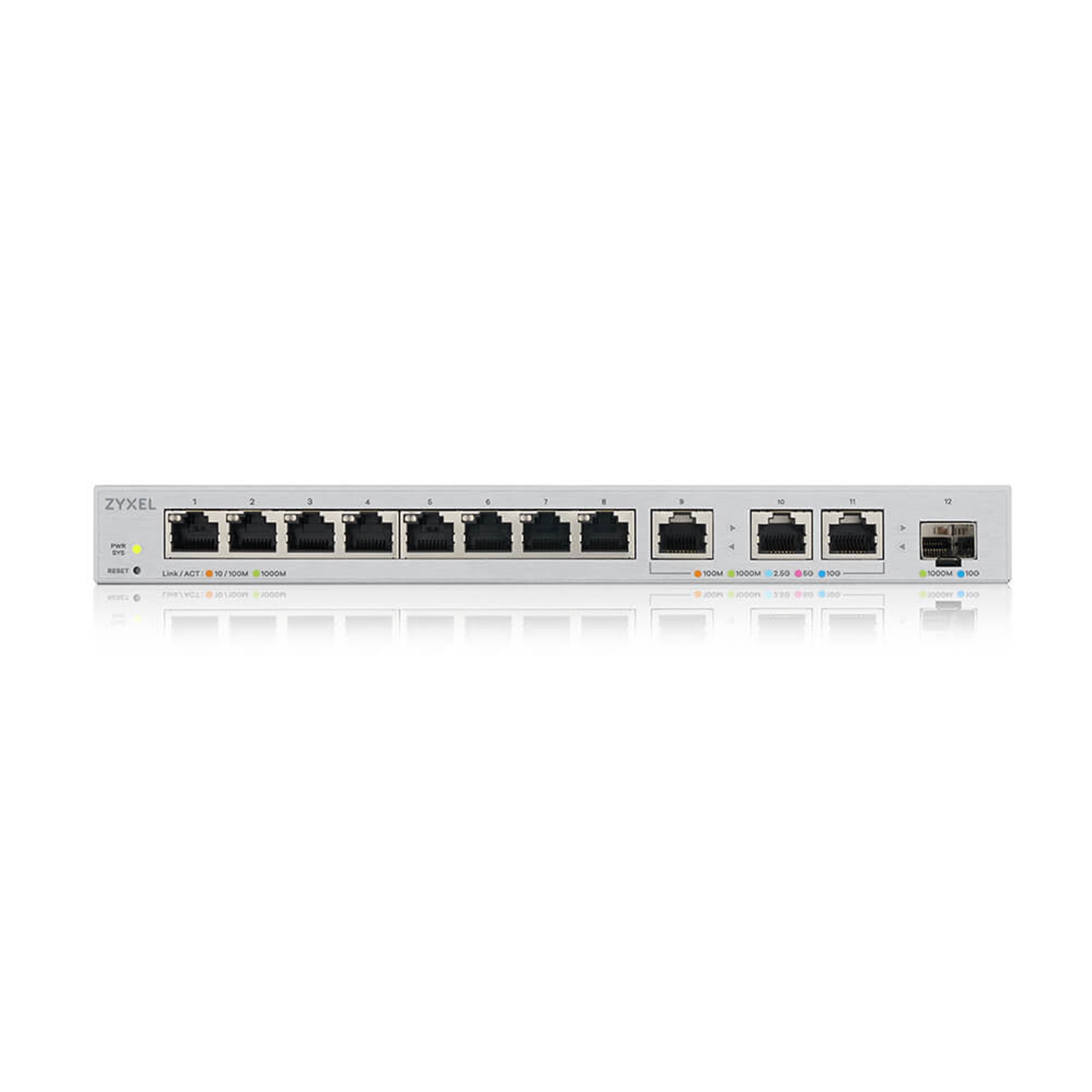

Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
The built-in smart fan is designed to automatically adjust speeds based on the device's temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.

Easy Web Management
The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It's the most ideal solution to simplify networks for home and small office users.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
96 Gbit/s
Jumbo frames support
Y
Forwarding rate
71.42 Mpps
Jumbo frames
12000
LED indicators
Y
Product colour
Grey
Reset button
Y
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power supply included
Y
Harmonized System (HS) code
85176990
MIB support
Y
Quality of Service (QoS) support
Y
Web-based management
Y
Switch type
Managed
Multicast support
Y
Full duplex
Y
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
Auto MDI/MDI-X
Y
VLAN support
Y
10G support
Y
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
10 - 90%
Harmonized System (HS) code
85176990
Installed SFP+ modules quantity
1
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity
11
SFP+ module slots quantity
1
Power connector
DC-in jack
Power over Ethernet (PoE)
N
IGMP snooping
Y
DHCP features
DHCP client
Weight
783 g
Height
27 mm
Width
250 mm
Depth
104 mm
