Network Cards | TP-LINK 10/100/1000 GIGABIT PCIe NETWORK ADAPTER | TG-3468 | ServersPlus

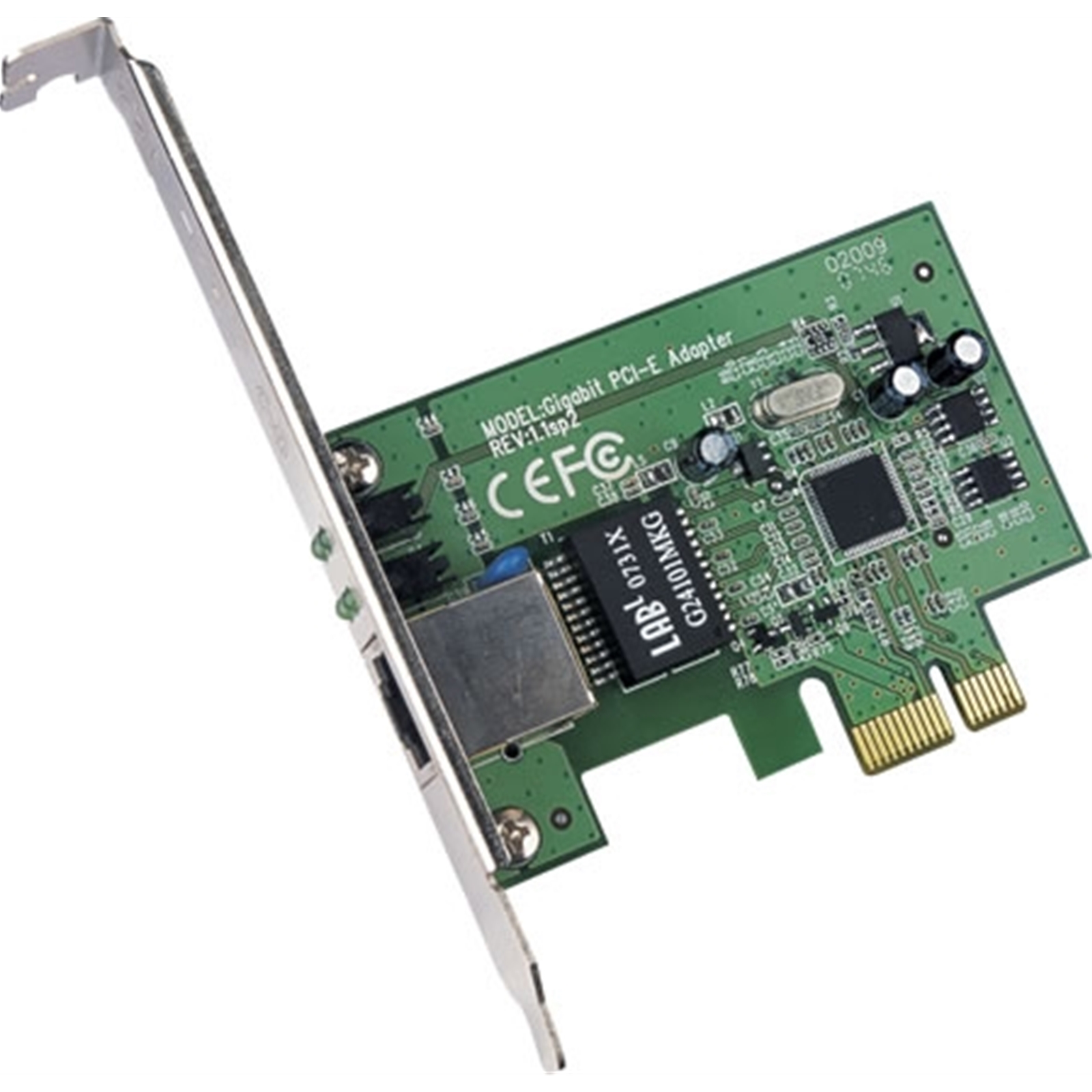

Illustration purposes only

TP-LINK 10/100/1000 GIGABIT PCIe NETWORK ADAPTER

TP-LINK Logo here

Manufacturer Part Code: TG-3468

Order Code: NPTPL-TG-3468

Category: Network Cards

Gigabit PCIe Network Adapter

Key Features:

  • 10/100/1000Mbps PCIe Adapter

  • 32-bit PCIe 1.0 interface, saving the finite chassis space

  • Wake-on-LAN, convenient to manage over LAN

  • Auto-Negotiation and Auto MDI/MDIX

  • Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode

  • Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging

  • Supports power down/link down power saving


  • More Information

    TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

    The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

    Full List of Specifications


    Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

    Technical Information

    Full duplex
    Y
    Supported data transfer rates
    10/100/1000 Mbps
    Data transfer rate (max)
    2000 Mbit/s
    Data transfer rate
    1 Gbit/s
    Certification
    FCC, CE
    Colour of product
    Green
    Cabling technology
    10/100/1000BaseT(X)
    Ethernet LAN connection
    Y
    Networking standards
    IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
    Flow control support
    Y
    Jumbo Frames support
    Y
    Ethernet LAN data transfer rates
    10,100,1000 Mbit/s
    Windows operating systems supported
    Windows 2000,Windows 2000 Professional,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
    Linux operating systems supported
    Y
    Operating relative humidity range
    10 - 90%
    Storage temperature range (T-T)
    -40 - 70 °C
    Operating temperature range (T-T)
    0 - 40 °C
    Storage relative humidity range
    5 - 90%
    Operating temperature (T-T)
    32 - 104 °F
    Wake-on-LAN ready
    Y
    Windows operating systems supported
    Windows 2000,Windows 2000 Professional,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
    Linux operating systems supported
    Y
    Interface
    Ethernet
    Internal
    Y
    Connectivity technology
    Wired
    Ethernet LAN (RJ-45) ports quantity
    1
    Host interface
    PCI-E
    Supported network protocols
    CSMA/CD, TCP/IP
    Compatibility
    PC&Notebook
    Windows operating systems supported
    Windows 2000,Windows 2000 Professional,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
    Linux operating systems supported
    Y
    Recommended usage
    PC&Notebook
    Colour of product
    Green
    Operating temperature range (T-T)
    32 - 104 °F
    Wake-on-LAN ready
    Y
    Ethernet LAN data transfer rates
    10,100,1000 Mbit/s
