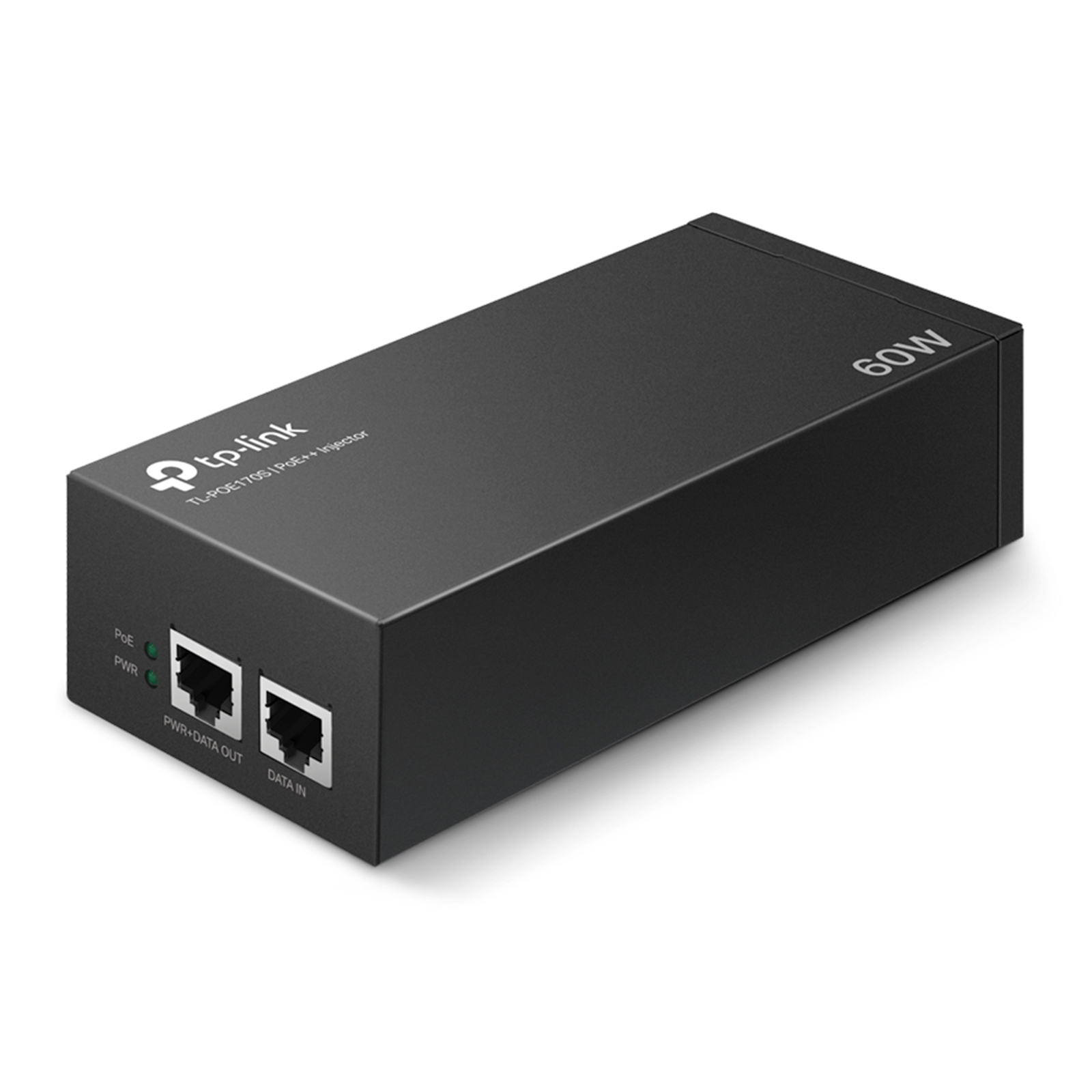

TP-LINK TL-POE170S 60W PoE++ Injector

TP-LINK Logo here

Manufacturer Part Code: TL-POE170S

Order Code: NPTPL-TLPOE170S

Category: PoE Injectors

TP-Link TL-POE170S 60W PoE++ Injector

- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor.


Specifications

NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

GENERAL
Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing

Material
Metal Casing

PACKAGE CONTENTS
Package Contents
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable

HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket

Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)

Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play

Dimensions ( W x D x H )
6.1*2.8*1.7 in (155*70*42 mm)


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Output power
60 W
Certification
FCC, CE, RoHS
Plug and Play
Yes
Wall mountable
Yes
Product colour
Black
Housing material
Metal
Harmonized System (HS) code
85044095
Cabling technology
10/100/1000
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Storage relative humidity (H-H)
5 - 90%
Quick installation guide
Yes
Number of products included
1 pc(s)
Package weight
920 g
Package depth
250 mm
Package height
95 mm
Package width
190 mm
Package type
Box
RJ-45 input ports
1
RJ-45 output ports
1
Harmonized System (HS) code
85044095
Height
42 mm
Width
155 mm
Depth
70 mm
