Wired Routers | DRAYTEK  Vigor 2766 VDSL Router | V2766-K | ServersPlus
DRAYTEK V2766-K | serversplus.comDRAYTEK V2766-K | serversplus.comDRAYTEK V2766-K | serversplus.com

Illustration purposes only

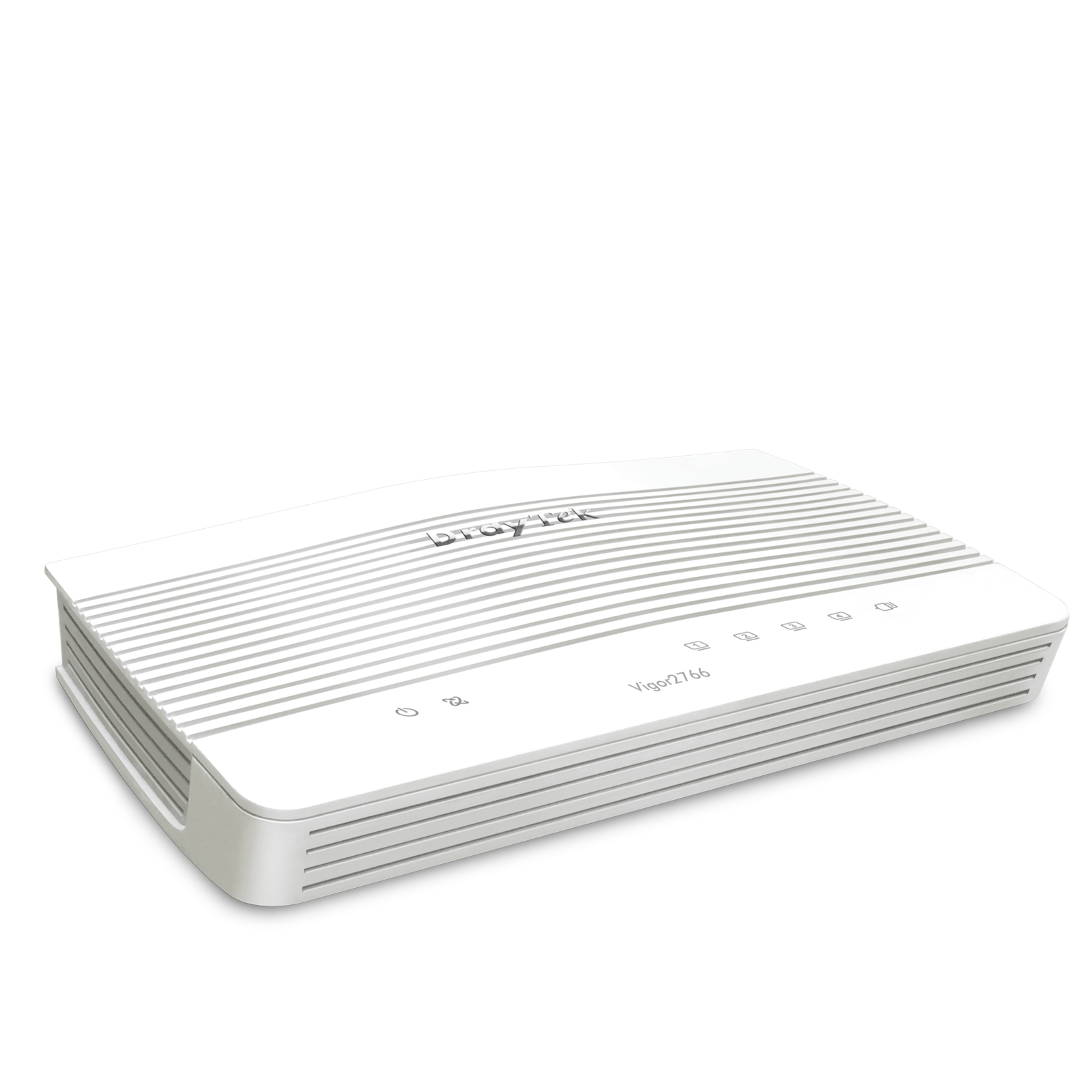

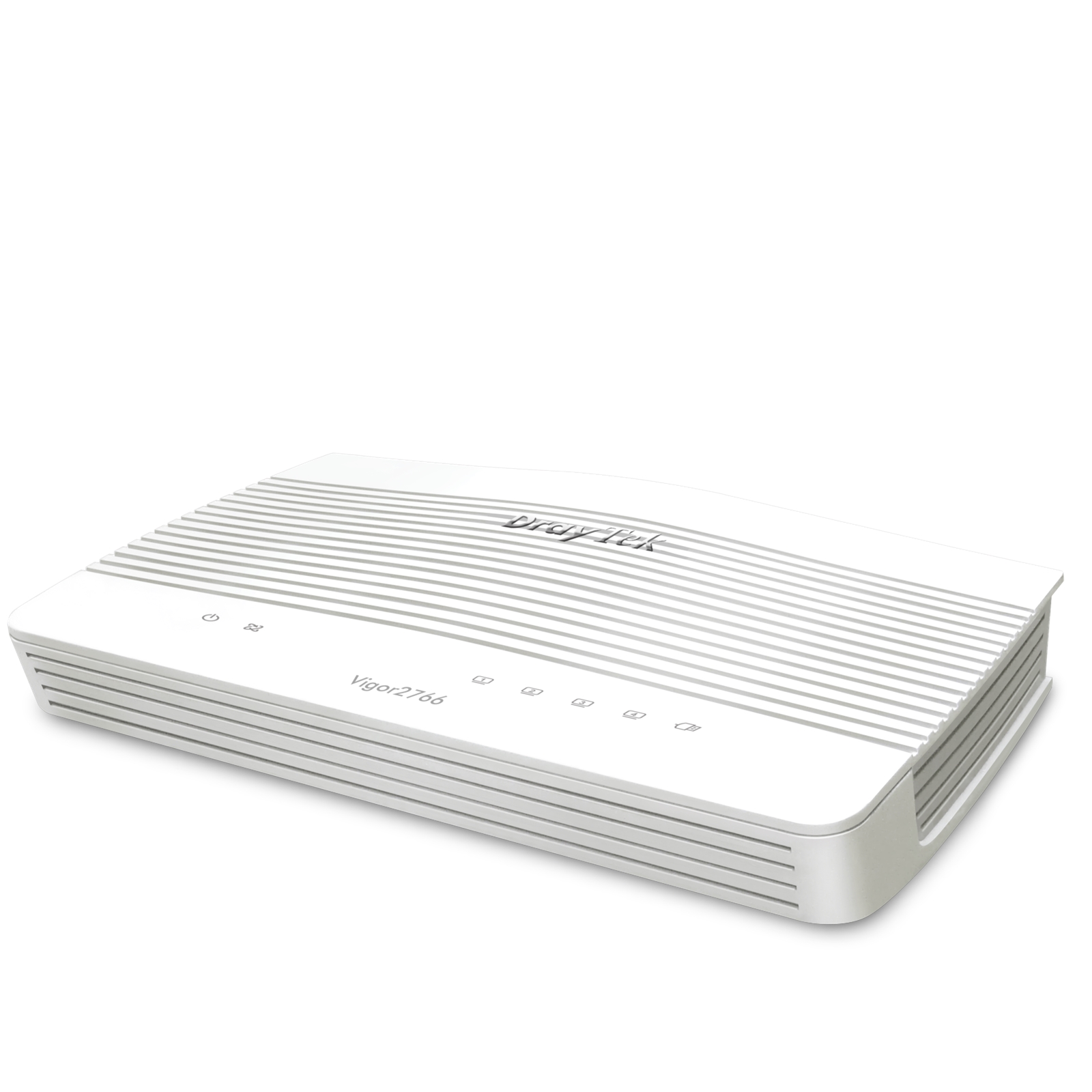

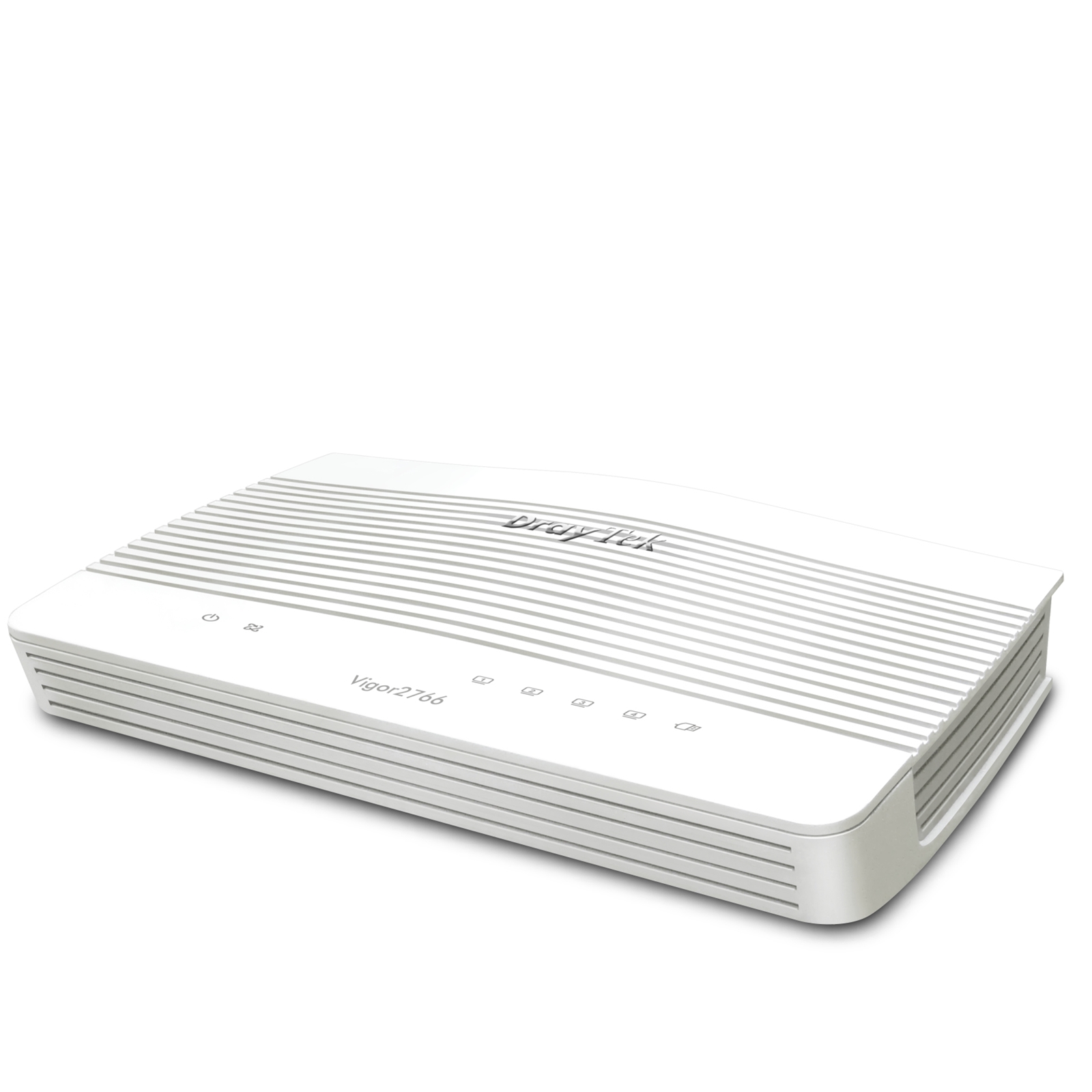

DRAYTEK Vigor 2766 VDSL Router

DRAYTEK Logo here

Manufacturer Part Code: V2766-K

Order Code: NPDRA-V2766K

Category: Wired Routers

DrayTek Vigor 2766 VDSL Router

Please note: For next business day delivery, this item must be ordered before 2:00pm

The Ideal SoHo VPN Router for G.Fast, VDSL and Gigabit Fibre
The Vigor 2766 series is DrayTek's G.Fast / VDSL and Ethernet router that is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

G.Fast, VDSL and Ethernet Router
Connect the Vigor 2766 to Ultrafast G.Fast and Superfast VDSL2 FTTC with integrated DSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Quality of Service with App QoS
Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.

Packed With Features
Configure DrayTek's rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more.

Powerful SoHo VPN Router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.

4 Gigabit LAN Ports with VLANs
Attach Computers, Servers and Network Attached Storage. Use VLANs to provide a fully separated Guest network, with up to 4 LAN subnets.

VigorACS Central Management
Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Product colour
White
ADSL
Yes
ADSL2+
Yes
VDSL2
Yes
Power consumption (typical)
24 W
Output voltage
12 V
AC input voltage
220 - 240 V
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cabling technology
10/100Base-T(X)
Networking standards
IEEE 802.1Q
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Ethernet interface type
Gigabit Ethernet
Throughput
1 Gbit/s
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-25 - 70 °C
Operating temperature (T-T)
0 - 45 °C
Operating temperature range (T-T)
N
Operating temperature range (T-T)
No
Quick start guide
Yes
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
3
RJ-11 ports quantity
1
USB version
2.0
USB ports quantity
1
Management protocols
HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Supported network protocols
PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP, PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Voice codecs
G.711a, G.723.1, G.729A, VAD
VoIP protocols
SIP, RTSP, FTP, H.323
DHCP client
N
DHCP client
No
DHCP server
Yes
Security algorithms
WEP, WPA, WPA2, WPA3
IP address filtering
Yes
DoS attack prevention
Yes
Firewall
Yes
URL filtering
Yes
DSL WAN
Yes
Ethernet WAN
Yes
SIM card slot
No
3G/4G USB modem compatibility
No
SFP WAN
No
Height
39 mm
Width
207 mm
Depth
131 mm
