Wired Routers | DRAYTEK  Vigor 2866 VDSL Router | V2866-K | ServersPlus

Illustration purposes only

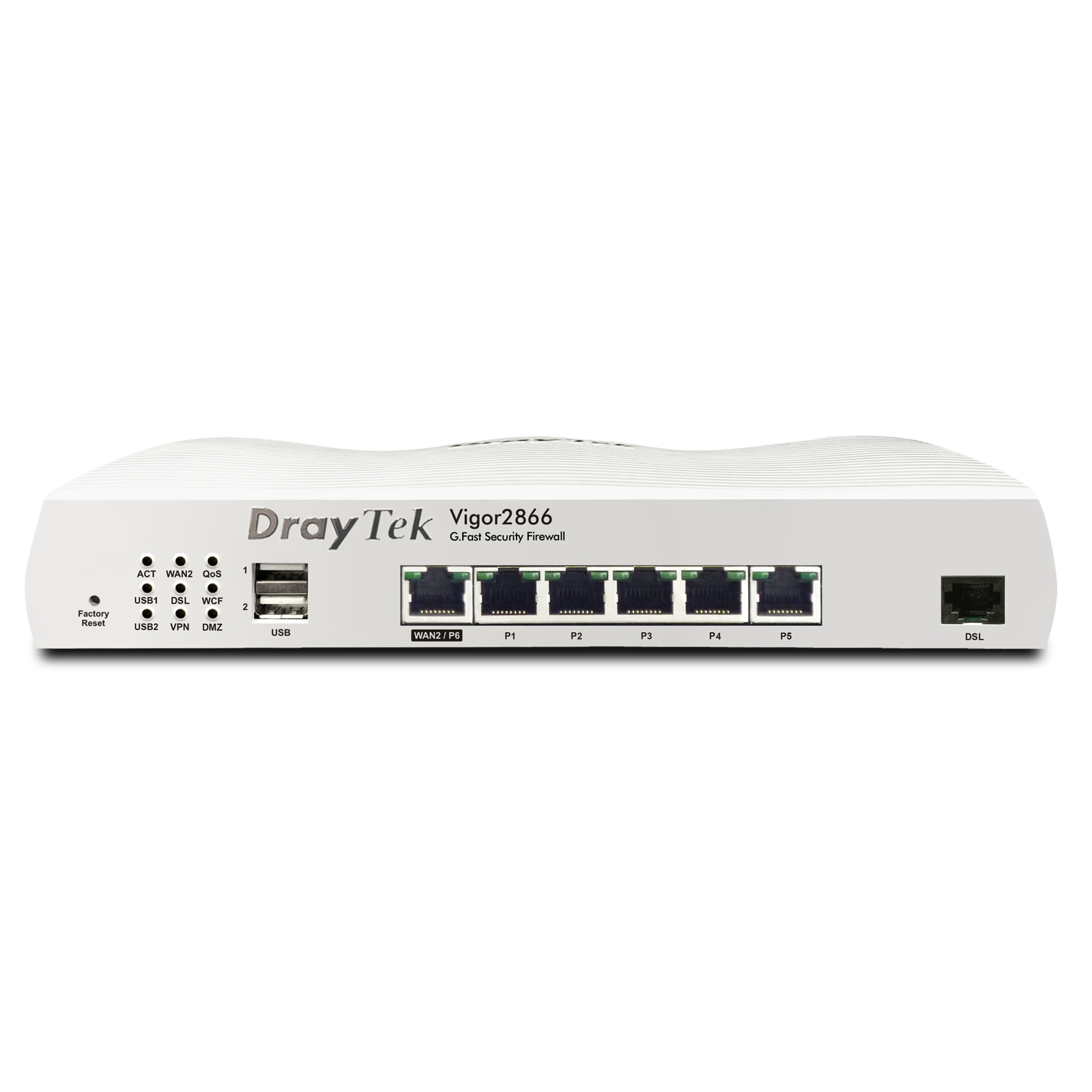

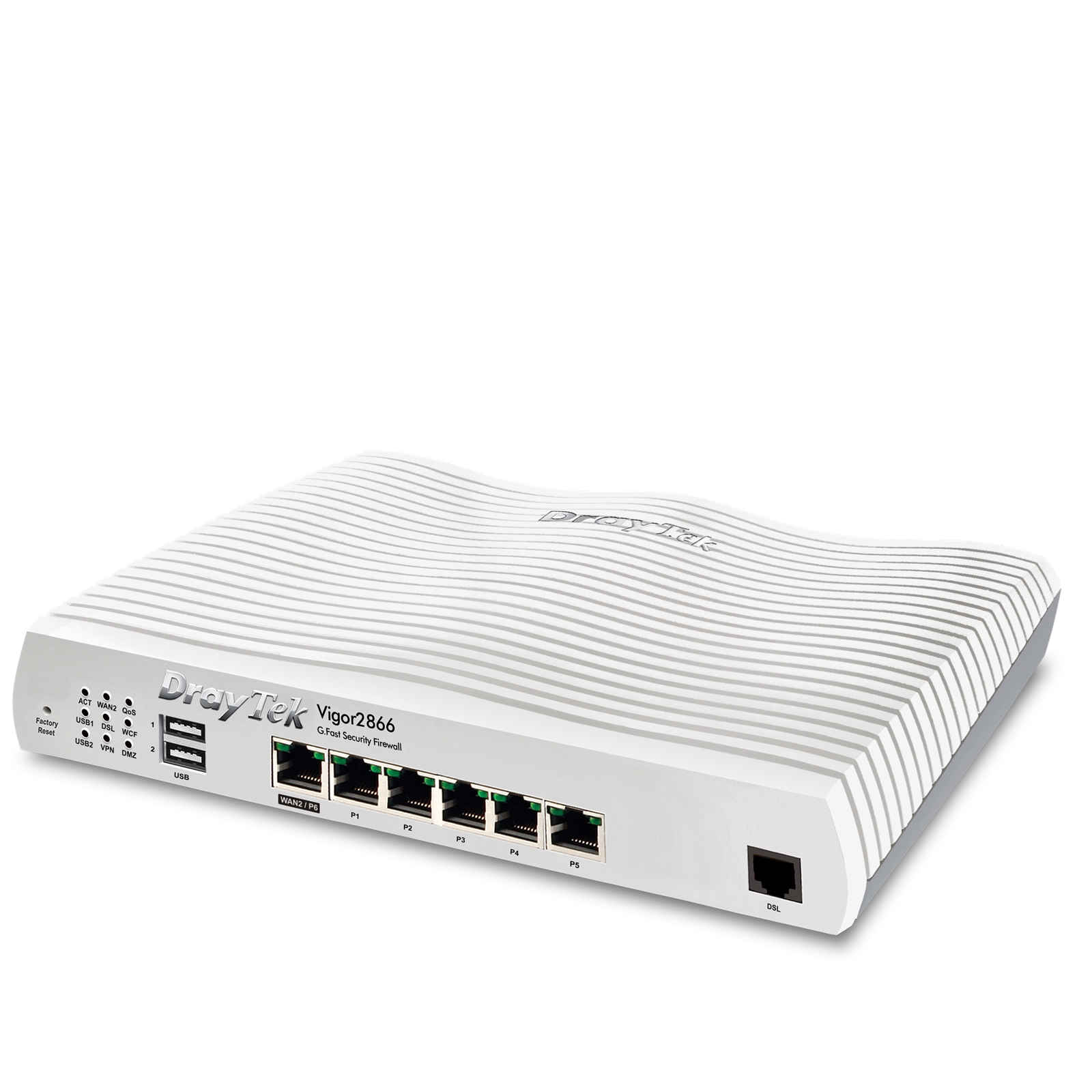

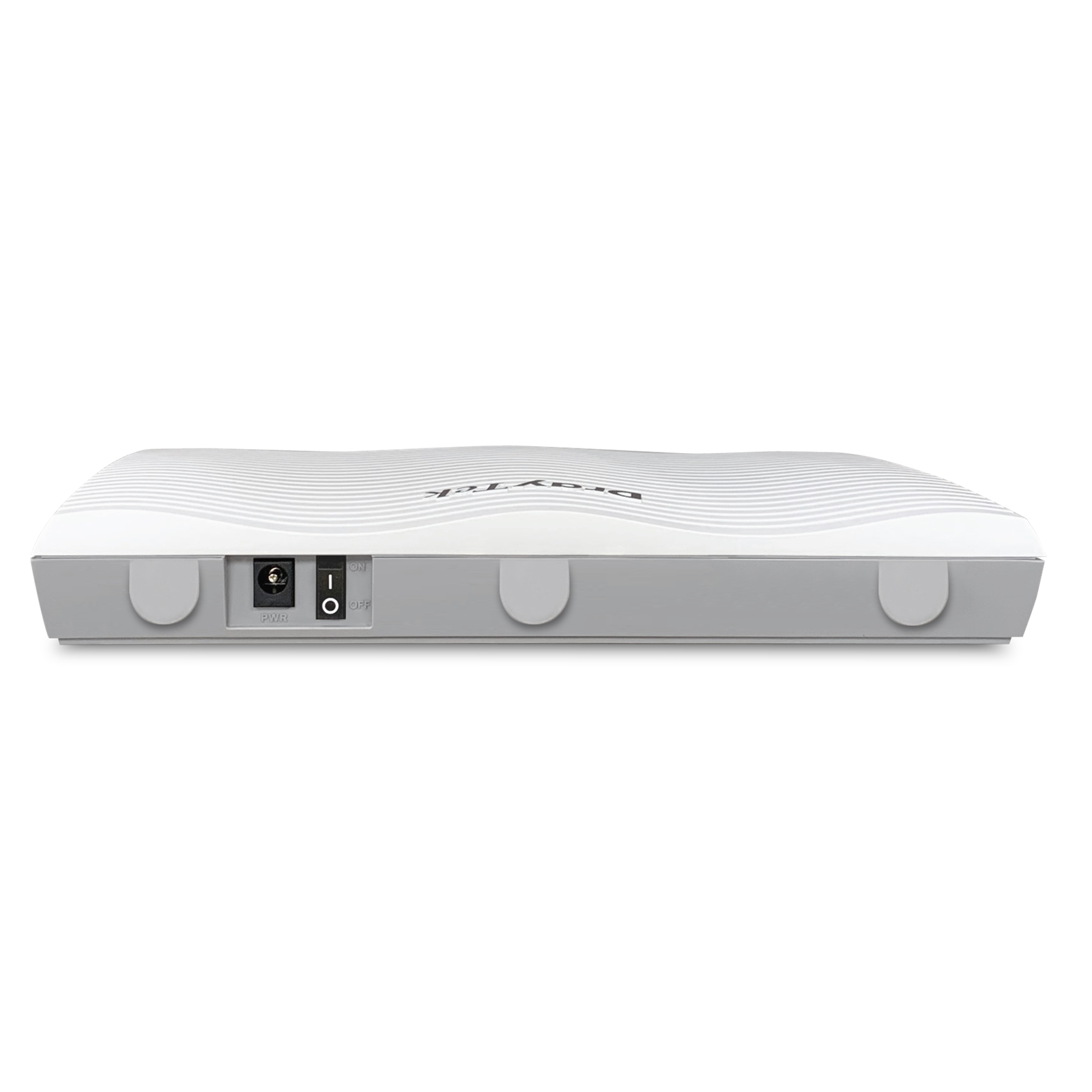

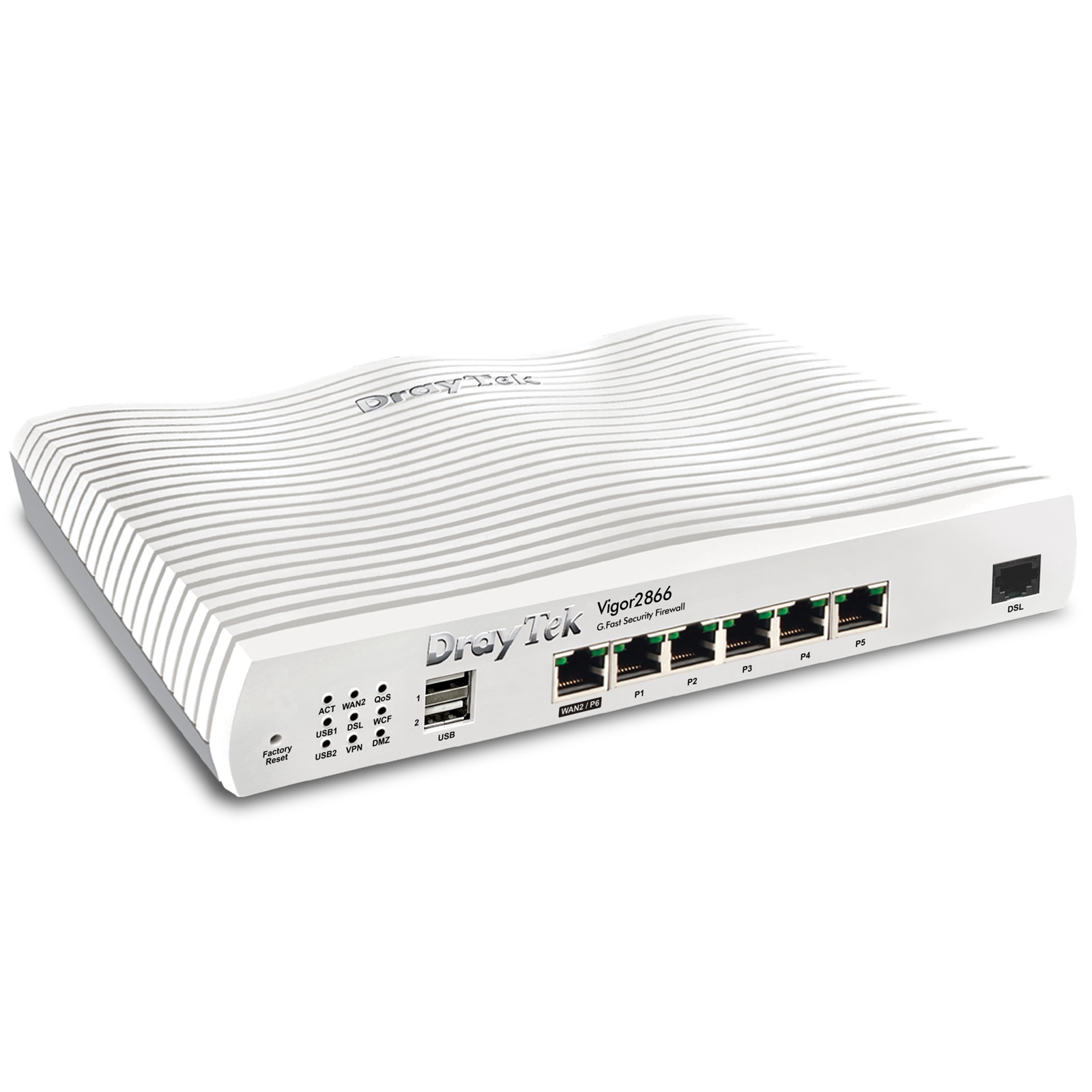

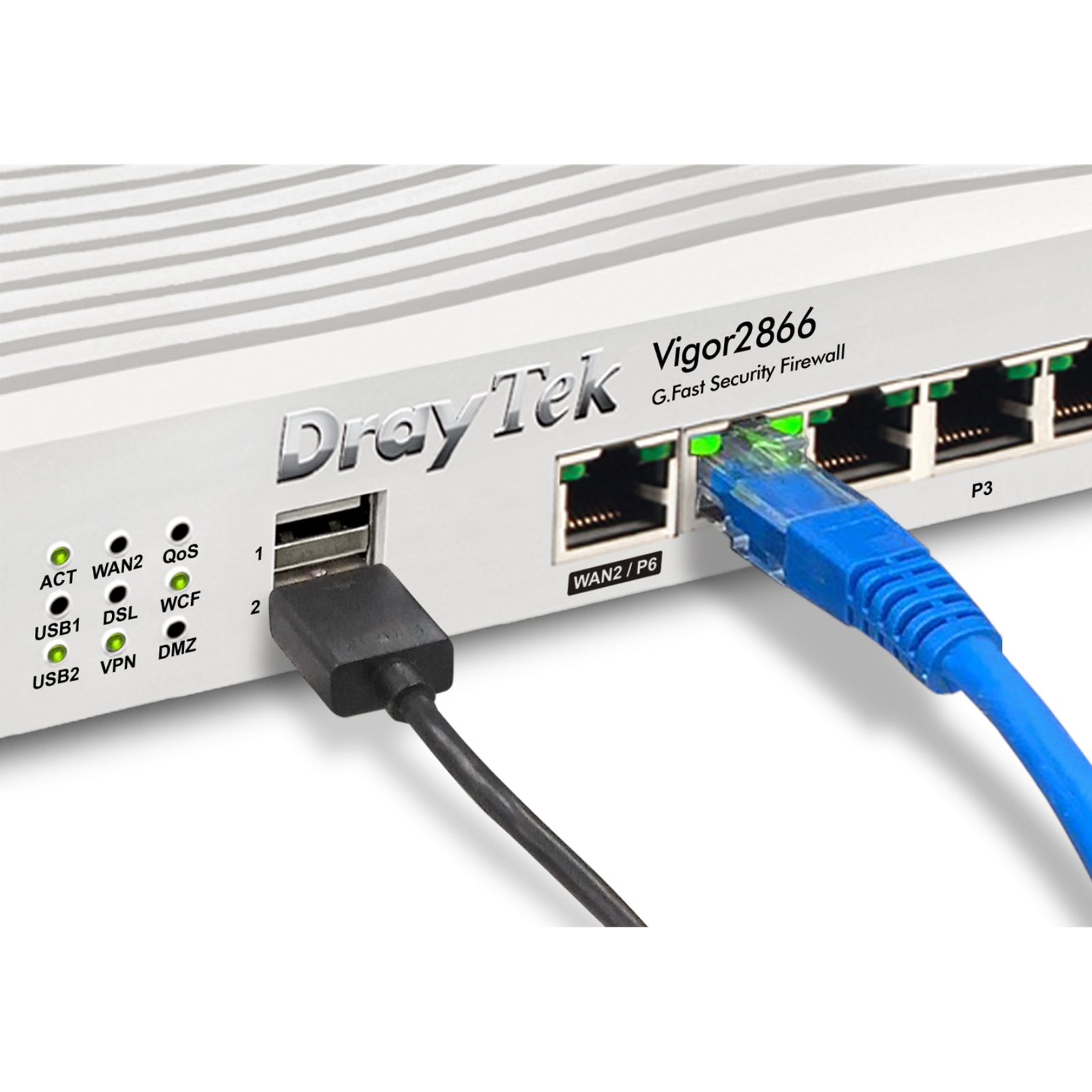

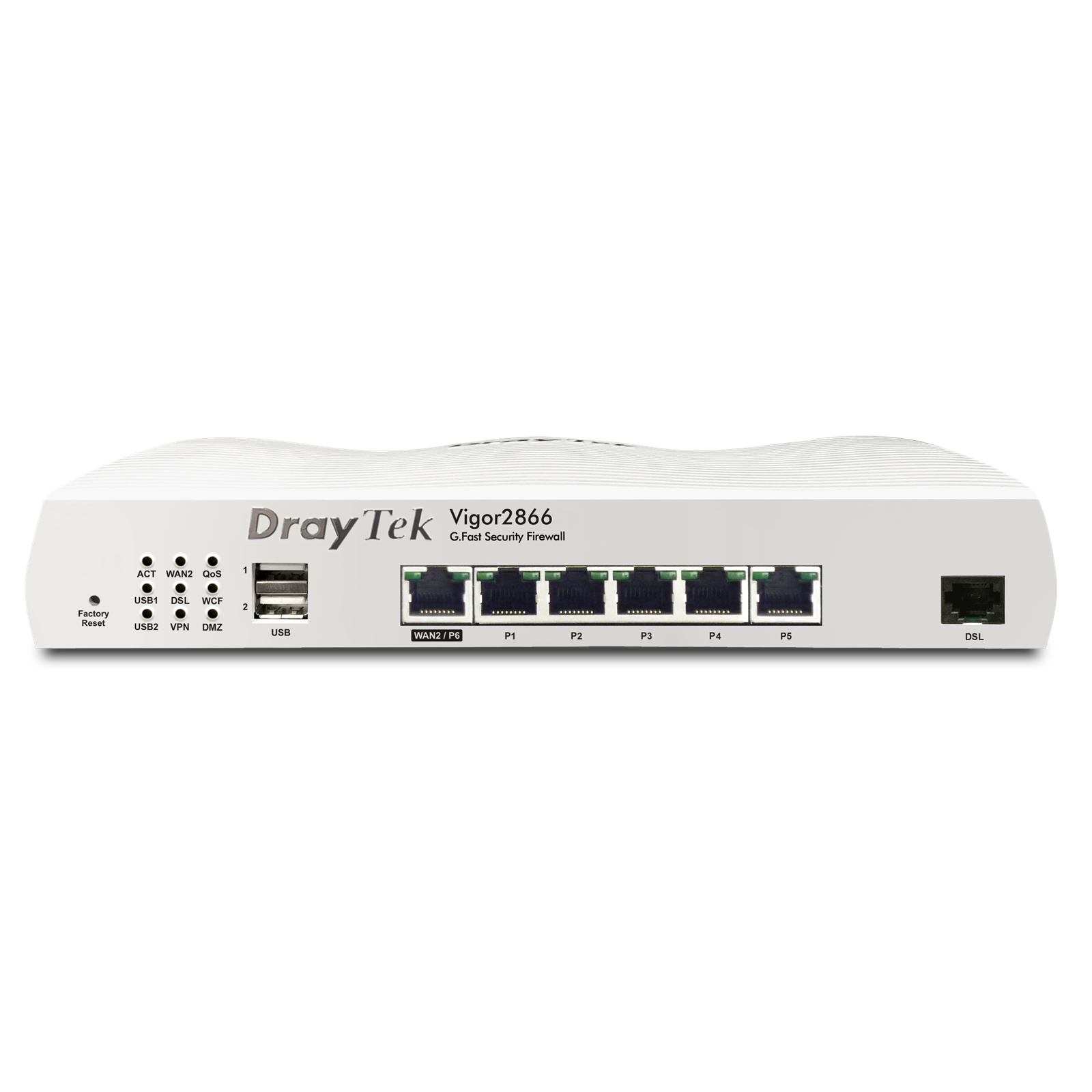

DRAYTEK Vigor 2866 VDSL Router

DRAYTEK Logo here

Manufacturer Part Code: V2866-K

Order Code: NPDRA-V2866K

Category: Wired Routers

DrayTek Vigor 2866 VDSL Router

Please note: For next business day delivery, this item must be ordered before 2:00pm

G.fast, VDSL and Ethernet Load Balancer
The Vigor 2866 is a G.fast, VDSL2/ADSL2+ and Ethernet WAN router featuring VPN, advanced routing features, firewall, content filtering, bandwidth management and more. Connect the Vigor 2866 to Superfast Fibre with its integrated G.fast and VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Featuring high throughput with Load Balancing and Failover connectivity, suitable for handling Fibre to the Premises (FTTP) and Gigabit Internet connections. Offering up to 950Mbps per-WAN of Hardware Accelerated throughput while retaining its full feature set.

With 802.11ac wireless on 'ac' models, it provides fast wireless coverage to your network's computers and devices. In addition, the router can connect to Wireless networks for Internet access, allowing it to make use of Mobile Hotspot wireless connections and nearby wireless networks, where for instance a neighbour's wireless network could provide an emergency backup connection.

The integrated 4G/LTE modem on 'L' models provides fast 4G+ Mobile Broadband with Carrier Aggregation to get the best performance out of 4G Broadband, for use as a backup connection or primary Internet connection.

Integrated LTE 4G/3G Modem
The Vigor 2866Lac router provides high speed mobile broadband connectivity for Internet access and VPN, with its built-in LTE-A 4G+ modem. LTE Category 6 uses carrier aggregation to improve 4G speeds, allowing you to get the best performance out of 4G Broadband.

DrayTek's LTE routers are not locked to any mobile network and is compatible with all major UK mobile networks, such as EE, Vodafone, O2 and Three, as well as any MVNOs on those networks.

The Vigor 2866 'L' router models can even be used as an LTE modem. With LTE Bridge mode, the Vigor 2866Lac provides 4G connectivity directly to a connected router or firewall, without any additional network translation (NAT).

The Vigor 2866Lac routers use two LTE aerials (antennae) which can rotate and tilt for optimum reception. The included extension bases provide a 1M extension cable to allow optimum positioning, avoiding obstructions, cabinets or equipment.

Constant Connectivity - Dual-SIM LTE
Where connectivity is mission critical, a single cellular network can become a single point of failure, in the event of a mobile network outage.

The Vigor 2866Lac has two SIM slots, so that in the event of one mobile network not providing Internet connectivity, the router will switch to a secondary SIM and cellular network connection.

It intelligently monitors for Internet connectivity and latency; If the primary 4G SIM's network can't access a required location, or is too slow, it switches over to the backup SIM to resume connectivity.

For resilience in the event of mobile network outages, each SIM should be on a different cellular network (e.g. Vodafone and EE) and not 'virtual' networks which piggyback on the first (e.g. not Virgin Mobile and EE, as the former uses the latter's network).

AC1300 Wireless LAN with Mesh
The 2866 series 'ac' models provide 802.11ac simultaneous Dual-Band wireless for fast and efficient wireless connectivity. Multi-User MIMO allows the router to send to more than one device at a time, with each of its Antennas streaming data to different devices at once, improving efficiency over standard 802.11ac wireless and allowing the router to effectively serve more wireless clients.

With firmware 4.3.0, the Vigor 2866 'ac' wireless routers can be used as part of DrayTek's Mesh wireless system, allowing the router to work as the Mesh Root, providing Internet access and management of Mesh VigorAPs directly.

Ideal VPN router for SMB
A feature central to DrayTek routers is its VPN (Virtual Private Networking) capabilities. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office.

The Vigor 2866 is an ideal VPN router, with 300 Mbps standard IPsec VPN throughput and up to 50 concurrently active VPN tunnels.

IPsec Hardware Acceleration boosts performance, up to 800 Mbps for 16 VPN tunnels, allowing securely encrypted tunnels between sites to make full use of high speed Internet connections.

It supports all common industry standard VPN protocols, for it to connect to VPN services, link remote offices and handle connections from all types of VPN clients. Supporting IPsec IKEv1 & IKEv2 protocols with EAP and XAuth authentication, DrayTek's SSL VPN and L2TP for both LAN to LAN and Dial-In teleworker VPNs. In addition, teleworkers can connect to the router with OpenVPN.

User management for Dial-In Teleworkers is managed through the router's web interface, with mOTP 2-factor authentication available for IPsec, L2TP and SSL VPN Teleworker connections. Alternatively, authentication for Dial-In Teleworker connections can be forwarded to your Active Directory (LDAP) or RADIUS or TACACS+ server.

Connect VPNs from behind NAT with DrayTek's VPN Matcher
A typical requirement for connecting a VPN tunnel between two points is that the VPN server must be directly accessible on the public Internet. Sometimes this can be achieved with NAT Port Forwarding if the router is located behind another router, but if the router is connected to 4G Mobile Broadband or is behind Carrier-Grade NAT (CG-NAT), connecting to that VPN server may be impossible.

DrayTek's new VPN Matcher service helps DrayTek routers behind NAT to allow Dial-In Teleworkers to connect, or connect two DrayTek VPN routers that are behind NAT and could not normally establish a VPN tunnel.

Connecting Remote Sites with LAN to LAN VPN
Supporting up to 32 concurrently active VPN tunnels, the Vigor 2866 series is ideal for connecting multiple sites or home offices together with fast and secure IPsec VPN tunnels.

Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna gain level (max)
5 dBi
Antenna connector type
SMA/RP-SMA
Antennas quantity
2
Detachable antenna(s)
Y
Antenna design
External
Wall mountable
Y
Product colour
White
On/off switch
Y
Product type
Portable router
ADSL
Y
ADSL2
Y
ADSL2+
Y
VDSL2
Y
Quality of Service (QoS) support
Y
Reset button
Y
WPS push button
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
MU-MIMO technology
Y
Short Message Service (SMS)
Y
Dual SIM support
Y
SIM card slot
N
Mobile network generation
4G
Ethernet LAN
Y
Networking standards
IEEE 802.1Q, IEEE 802.1p
VPN tunnels quantity
32
Ethernet LAN data rates
10,100,1000 Mbit/s
Load balancing system
Y
Dynamic DNS (DDNS)
Y
Ethernet LAN interface type
Gigabit Ethernet
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-25 - 70 °C
Operating temperature (T-T)
0 - 45 °C
USB version
2.0
USB ports quantity
2
Quick start guide
Y
Antenna included
Y
Quick start guide
Y
Antenna included
Y
Compatible memory cards
SMA/RP-SMA
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
6
Compatible memory cards
SMA/RP-SMA
RJ-11 ports quantity
1
USB port
Y
Power source type
AC, DC
AC input voltage
100 - 240 V
Security algorithms
HTTPS, WPA2, WPA3
DoS attack prevention
Y
Network address translation (NAT)
Y
Firewall
Y
URL filtering
Y
Filtering
Y
Dual SIM support
Y
DSL WAN
Y
Ethernet WAN
Y
SIM card slot
N
3G/4G USB modem compatibility
Y
Weight
620 g
Height
44 mm
Width
241 mm
Depth
165 mm
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
