Wireless Routers | D-LINK DSR-1000AC | DSR-1000AC | ServersPlus

Illustration purposes only

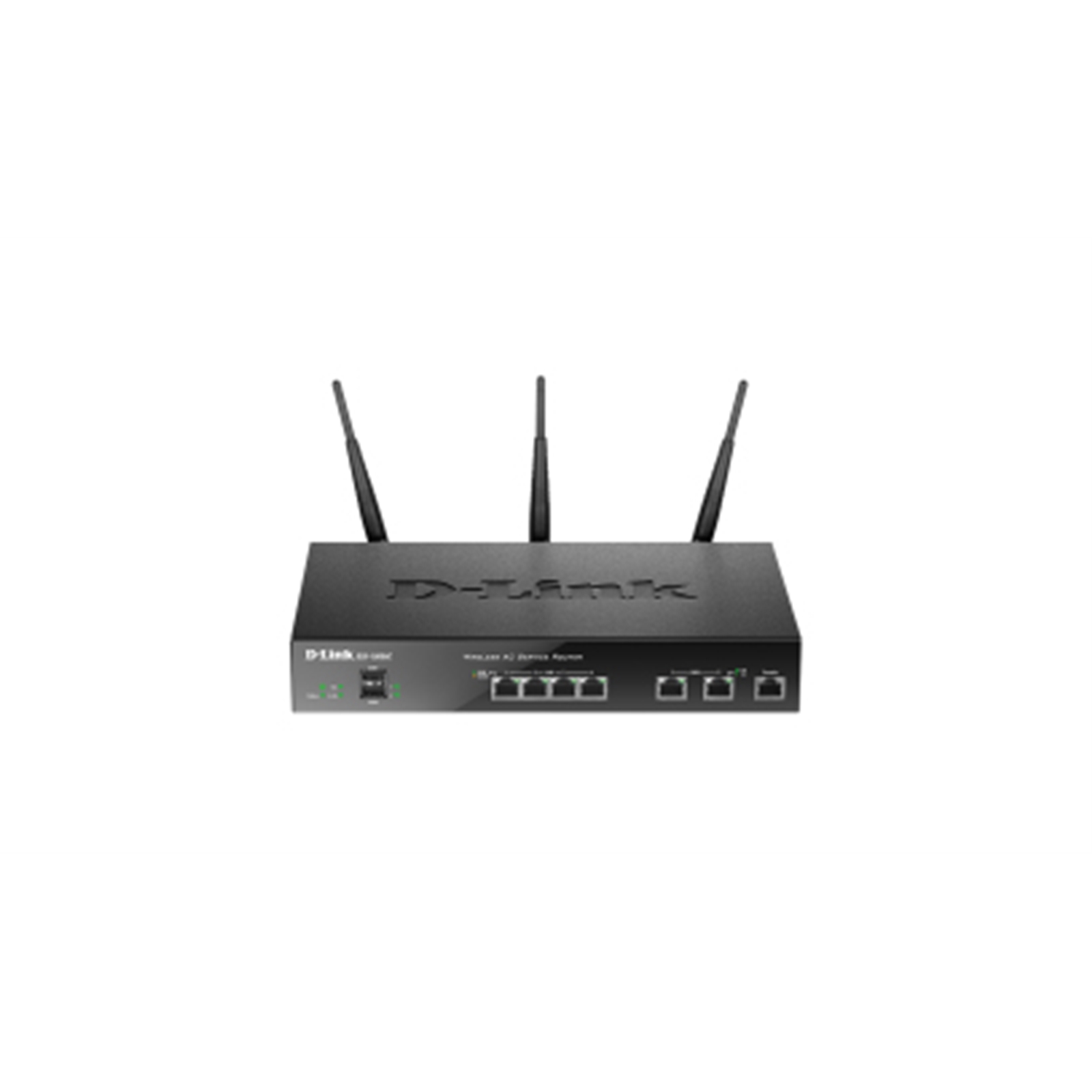

D-LINK DSR-1000AC

D-LINK Logo here

Manufacturer Part Code: DSR-1000AC

Order Code: NPDLI-DSR1000AC

Category: Wireless Routers

D-Link DSR-1000AC - Wireless router - 4-port switch - GigE - WAN ports: 2 - 802.11a/b/g/n - Dual Band

The DSR-1000AC Wireless AC Unified Services VPN Router provides a secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.

Comprehensive Management Capabilities

The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G2 dongles.

Web Authentication Capabilities

Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.

Complete and Robust VPN Features

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.

Web Content Filtering for HTTP/HTTPs

The DSR-1000AC also provides a web content filtering feature to help administrators monitor, manage and control employees' Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Antenna type
External
Antenna gain level (max)
2 dBi
Antenna type
External
Antenna gain level (max)
2 dBi
Antennas quantity
3
Antenna design
External
Antennas quantity
3
Product colour
Black
Colour of product
Black
Product type
Tabletop router
Product type
Tabletop router
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Ethernet WAN
Y
Mean time between failures (MTBF)
360000 h
Mean time between failures (MTBF)
360000 h
Harmonized System (HS) code
85176990
Pallet gross width
120 cm
Pallet gross length
110 cm
Shipping (inner) case width
29.6 cm
Shipping (inner) case length
35.4 cm
Shipping (inner) case height
42.8 cm
Shipping (inner) case gross weight
11.3 kg
Products per shipping (inner) case
4 pc(s)
Harmonized System (HS) code
85176990
Shipping (inner) case net weight
10.5 kg
Pallet gross weight (air)
429.8 kg
Master (outer) cases per pallet (air)
36 pc(s)
Products per pallet (air)
144 pc(s)
Pallet height (air)
141.9 cm
Pallet gross weight (sea)
565.8 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Products per pallet (sea)
192 pc(s)
Pallet height (sea)
184.2 cm
Pallet width
120 cm
Pallet length
110 cm
Shipping (inner) case width
29.6 cm
Shipping (inner) case length
35.4 cm
Shipping (inner) case height
42.8 cm
Shipping (inner) case gross weight
11.3 kg
Quantity per shipping (inner) case
4 pc(s)
Shipping (inner) case net weight
10.5 kg
Pallet gross weight (air)
429.8 kg
Number of cartons per pallet (air)
36 pc(s)
Quantity per pallet (air)
144 pc(s)
Pallet height (air)
141.9 cm
Pallet gross weight (sea)
565.8 kg
Number of cartons per pallet (sea)
48 pc(s)
Quantity per pallet (sea)
192 pc(s)
Pallet height (sea)
184.2 cm
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN
Yes
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q
VPN support
3DES
VPN tunnels quantity
155
Flow control support
Y
Flow control support
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Y
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h,IEEE 802.1Q
VPN support
3DES
VPN tunnels quantity
155
Flow control support
Y
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Network address translation (NAT)
Y
Guest access
Y
Ethernet LAN interface type
Gigabit Ethernet
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
Yes
WLAN data transfer rates supported
1300 Mbit/s
Bandwidth (second)
5 GHz
Bandwidth (first)
2.4 GHz
WLAN data transfer rates supported
1300 Mbit/s
Bandwidth (second)
5 GHz
Bandwidth (first)
2.4 GHz
AC adapter included
N
AC adapter included
No
Manual
Yes
Quick start guide
Yes
AC adapter included
N
Manual
Y
Quick start guide
Y
Package weight
2.63 kg
AC adapter included
N
AC adapter included
No
Package weight
2.63 kg
Package depth
396 mm
Package height
80 mm
Package width
273 mm
Manual
Yes
Quick start guide
Yes
AC adapter included
N
Package depth
396 mm
Package height
80 mm
Package width
273 mm
Manual
Y
Quick start guide
Y
Mean time between failures (MTBF)
360000 h
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
4
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
4
USB port
Yes
USB port
Y
Power consumption (typical)
23.1 W
Output voltage
12 V
Power consumption (typical)
23.1 W
Output current
3 A
Output voltage
12 V
Output current
3 A
DHCP client
Yes
DHCP server
Yes
DHCP client
Y
DHCP server
Y
Security algorithms
WEP, WPA, WPA-EAP, WPA2, WPS
Security algorithms
WEP,WPA,WPA-EAP,WPA2,WPS
IP address filtering
Yes
DoS attack prevention
Yes
Network address translation (NAT)
Y
Network address translation (NAT)
Yes
VPN support
3DES
VPN tunnels quantity
155
Firewall
Yes
URL filtering
Yes
Guest access
Yes
Port-based Network Access Control (PNAC)
Yes
Filtering
Yes
IP address filtering
Y
DoS attack prevention
Y
Network address translation (NAT)
Y
Firewall
Y
URL filtering
Y
Guest access
Y
Port-based Network Access Control (PNAC)
Y
Filtering
Y
Shipping (inner) case width
29.6 cm
Shipping (inner) case length
35.4 cm
Shipping (inner) case height
42.8 cm
Quantity per shipping (inner) case
4 pc(s)
Shipping (inner) case net weight
10.5 kg
Ethernet WAN
Yes
Ethernet WAN
Y
Weight
1.73 kg
Height
44 mm
Width
280 mm
Depth
180 mm
Package weight
2.63 kg
Height
44 mm
Width
280 mm
Depth
180 mm
Package depth
396 mm
Package height
80 mm
Package width
273 mm
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi standards
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)
1300 Mbit/s
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported
1300 Mbit/s
Bandwidth (second)
5 GHz
Bandwidth (first)
2.4 GHz
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)
1300 Mbit/s
Wi-Fi standard
Wi-Fi 5 (802.11ac)
