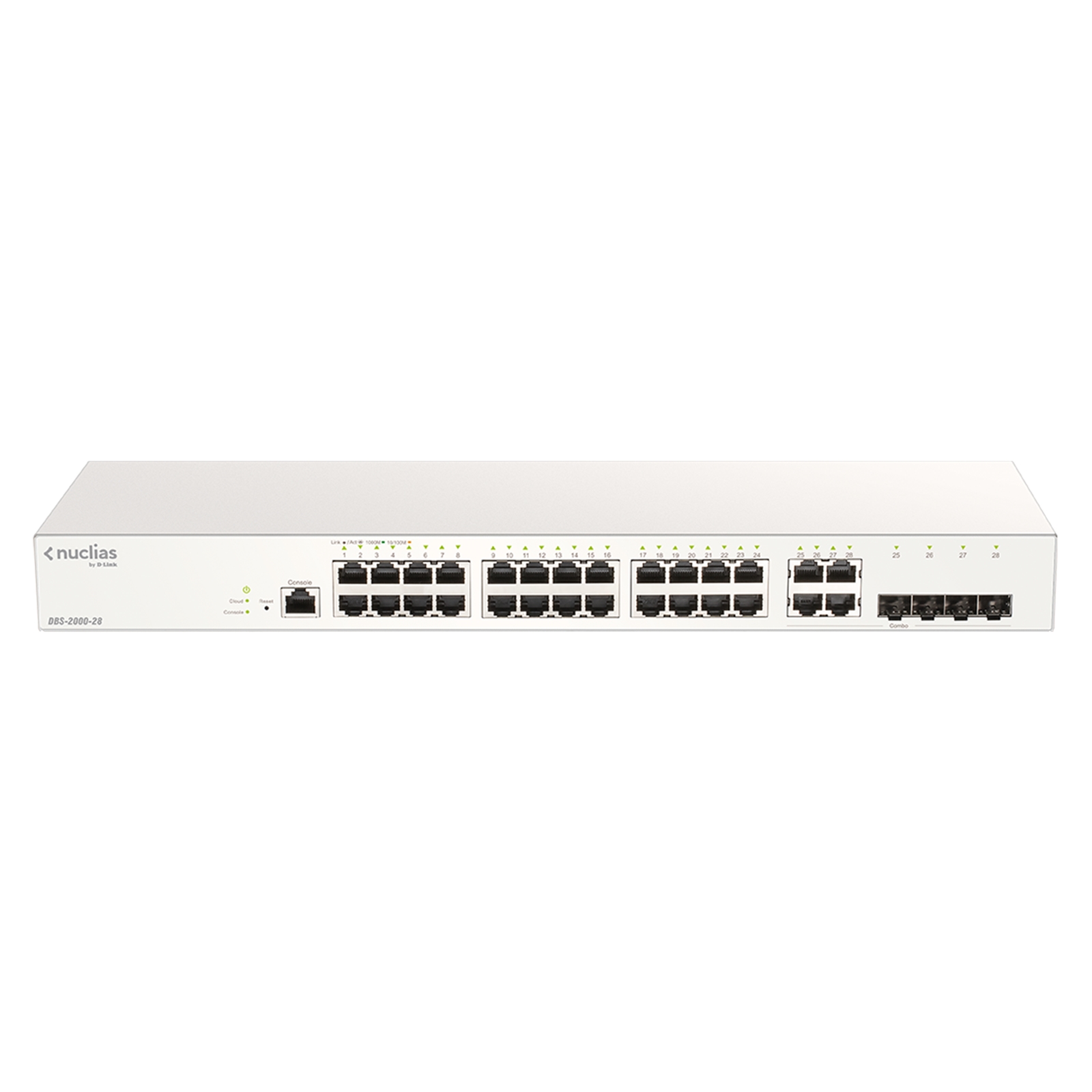

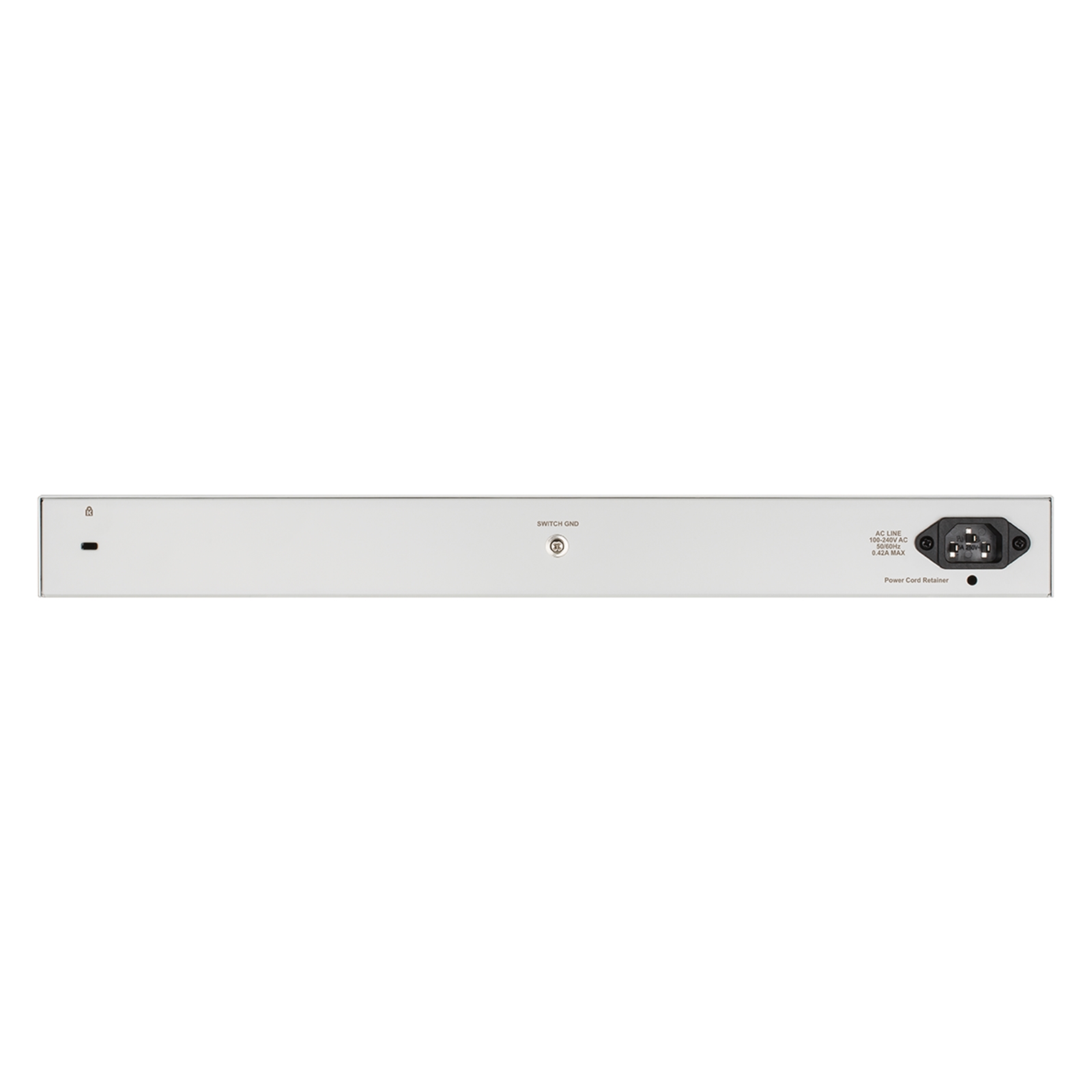

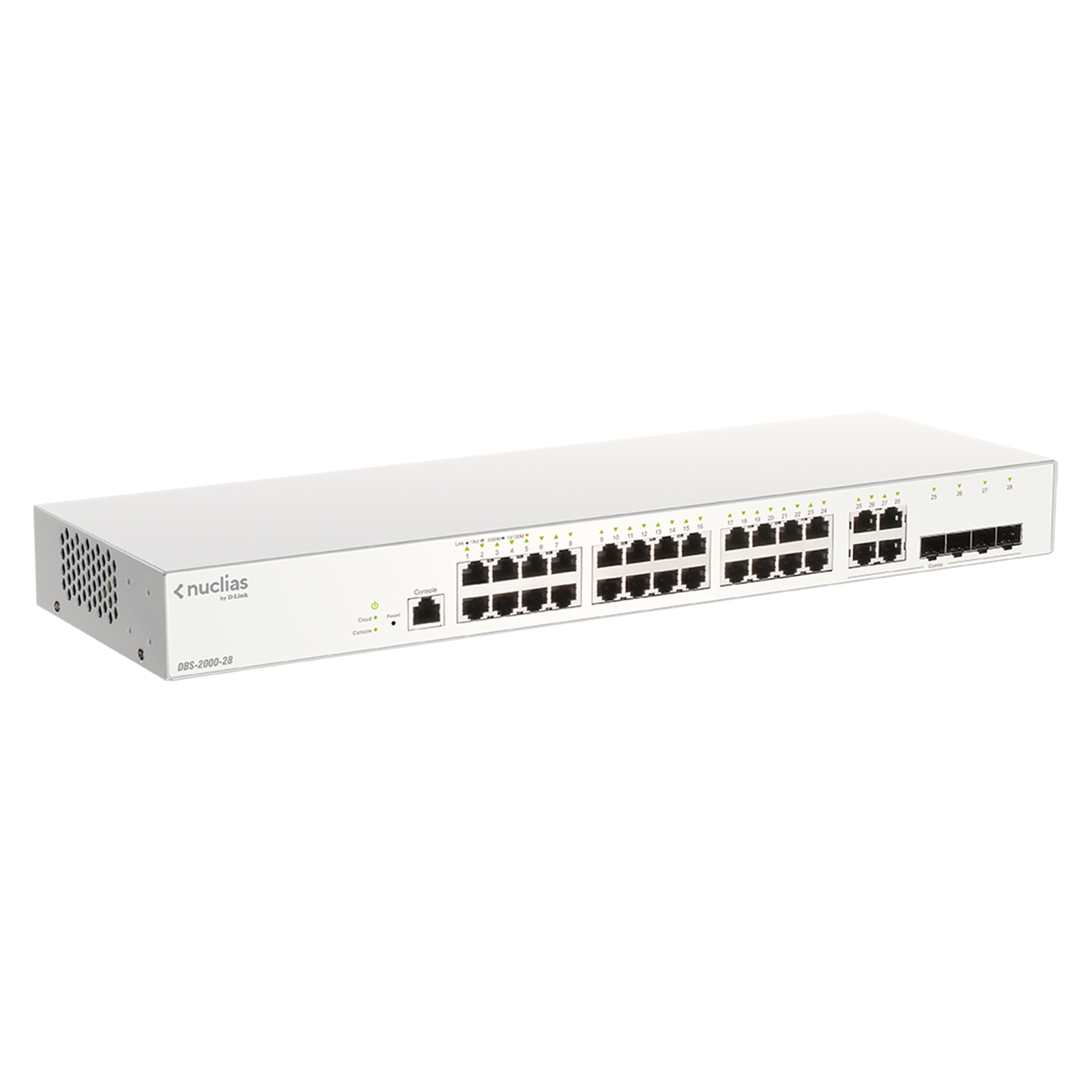

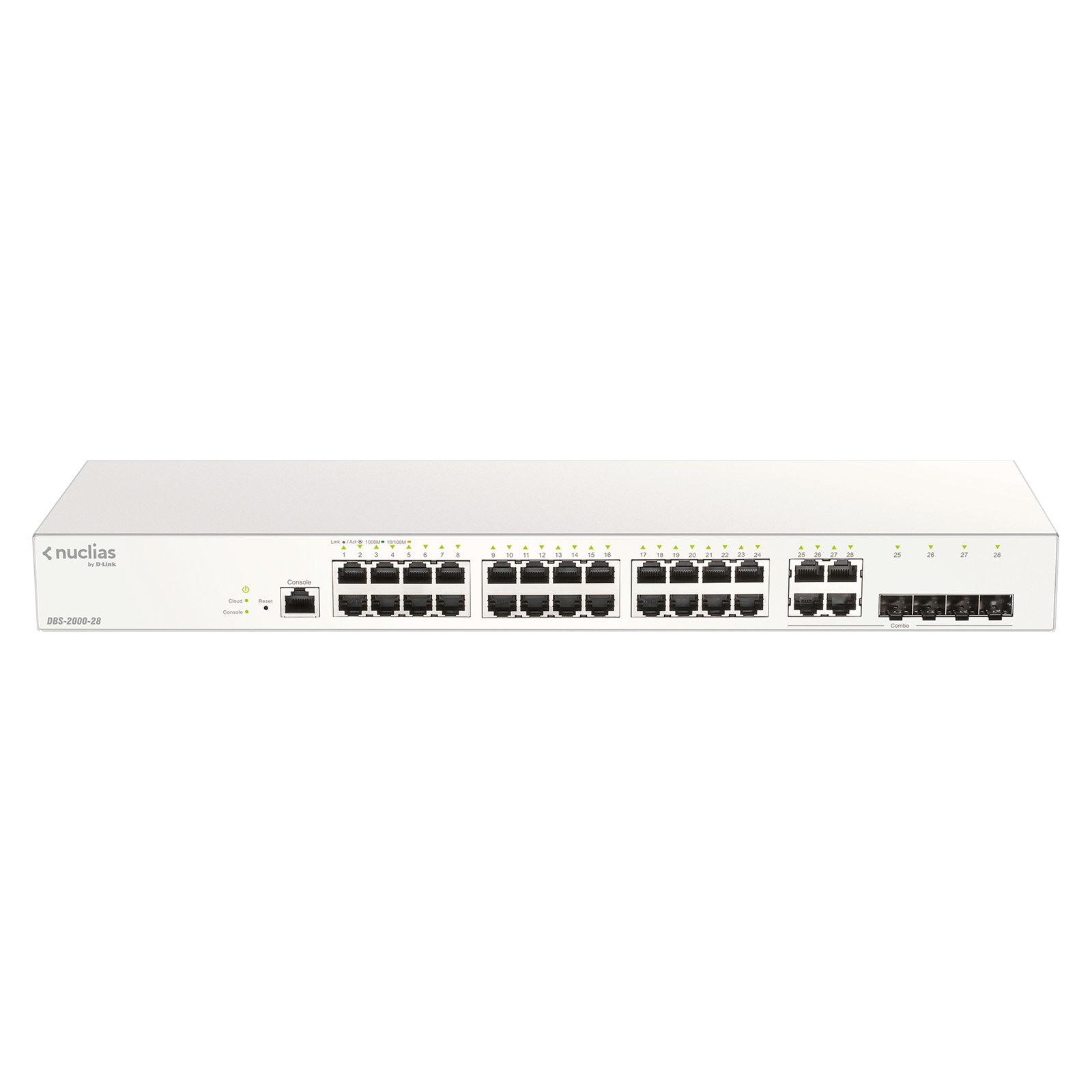

D-LINK DBS-2000-28 24-Port Gigabit Cloud Managed Switch

D-LINK Logo here

Manufacturer Part Code: DBS-2000-28

Order Code: NPDLI-DBS200028E

Category: Smart Managed Network Switches

D-Link Nuclias Cloud-Managed DBS-2000-28 - Switch - 24 x 10/100/1000 + 4 x combo SFP

Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link's complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Switching capacity
56 Gbit/s
Forwarding rate
41.7 Mpps
Packet buffer memory
4.1 MB
Rack mounting
Yes
LED indicators
Yes
Product colour
Grey
AC input voltage
100 - 240 V
Power consumption (max)
17.32 W
Harmonized System (HS) code
85176990
Switch layer
L2
Web-based management
Yes
Switch type
Managed
Networking standards
IEEE 802.3ad
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Operating altitude
0 - 1500 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
-5 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
59.09 BTU/h
Package weight
3.11 kg
Package depth
492 mm
Package height
72 mm
Package width
250 mm
Processor frequency
500 MHz
Internal memory
256 MB
Mean time between failures (MTBF)
992594 h
Flash memory
32 MB
Memory type
DDR3-SDRAM
Built-in processor
Yes
Harmonized System (HS) code
85176990
Console port
RJ-45
Combo SFP ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Power over Ethernet (PoE)
No
Security algorithms
WPA, WPA2
IGMP snooping
Yes
Pallet gross width
120 cm
Pallet gross length
110 cm
Shipping (inner) case width
38.1 cm
Shipping (inner) case length
51 cm
Shipping (inner) case height
29.2 cm
Shipping (inner) case gross weight
16.4 kg
Products per shipping (inner) case
5 pc(s)
Shipping (inner) case net weight
15.5 kg
Pallet gross weight (air)
413.3 kg
Master (outer) cases per pallet (air)
24 pc(s)
Products per pallet (air)
120 pc(s)
Pallet height (air)
131.8 cm
Pallet gross weight (sea)
610.8 kg
Master (outer) cases per pallet (sea)
36 pc(s)
Products per pallet (sea)
180 pc(s)
Pallet height (sea)
190.2 cm
Weight
2.15 kg
Height
44 mm
Width
440 mm
Depth
140 mm
