Smart Managed Network Switches | D-LINK DGS-1100-26MPV2 24 Port Gigabit POE Smart Switch | DGS-1100-26MPV2 | ServersPlus
D-LINK DGS-1100-26MPV2 | serversplus.comD-LINK DGS-1100-26MPV2 | serversplus.com

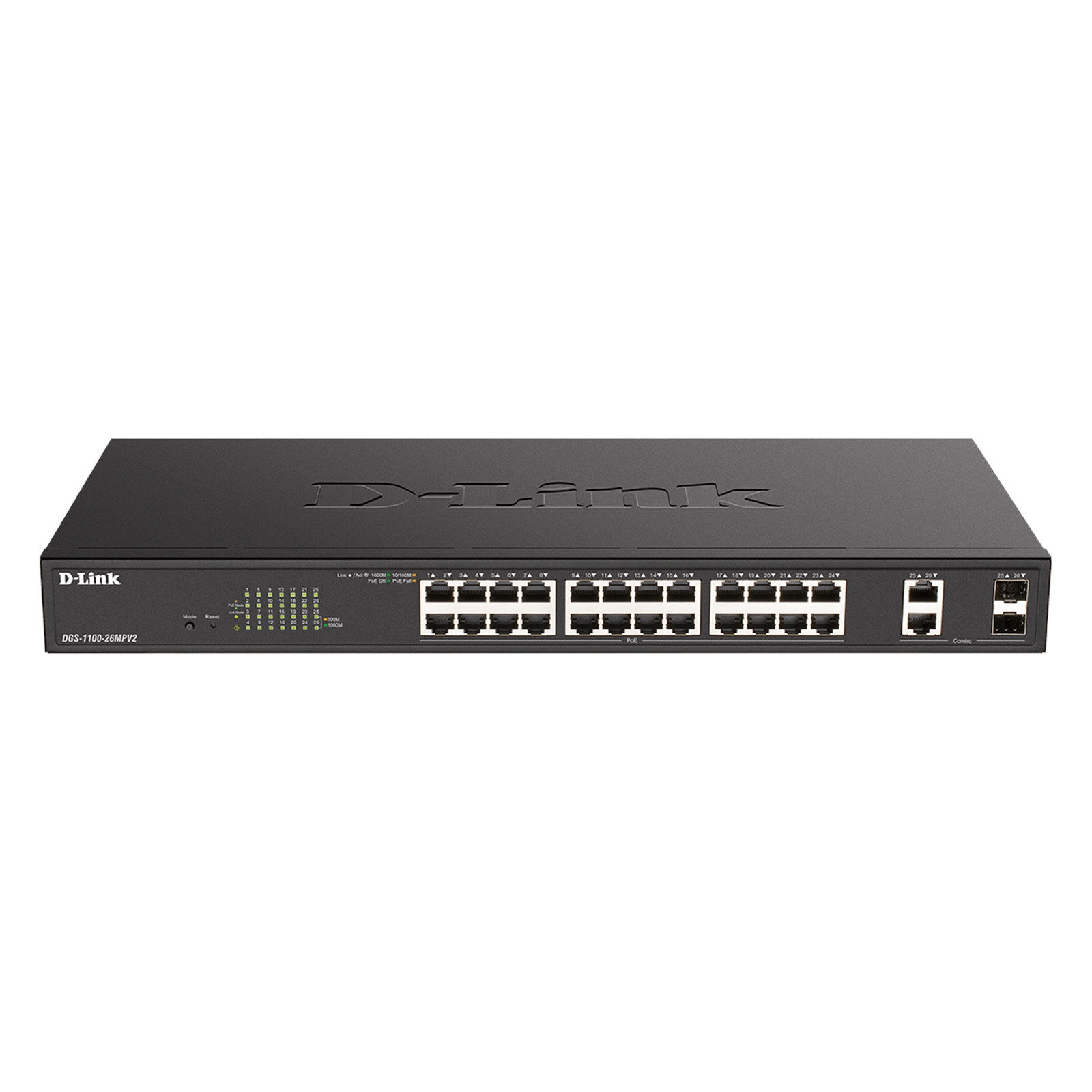

Illustration purposes only

D-LINK DGS-1100-26MPV2 24 Port Gigabit POE Smart Switch

D-LINK Logo here

Manufacturer Part Code: DGS-1100-26MPV2

Order Code: NPDLI-DGS110026G

Category: Smart Managed Network Switches

D-Link DGS 1100-26MPV2 - Switch - smart - 24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - rack-mountable - PoE+ (370 W)

Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Easy to Deploy and Manage
D-Link's free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

PoE and Poe+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
8000 entries
Switching capacity
52 Gbit/s
Jumbo frames support
Y
Forwarding rate
38.69 Mpps
Rack mounting
Y
Product colour
Black
Housing material
Metal
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
454.1 W
Power supply included
Y
Harmonized System (HS) code
85176990
MIB support
• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Switch type
Managed
ARP inspection
Y
Multicast support
Y
Number of multicast groups filtered
1
IPv4 multicast entries
1
IPv6 multicast entries
1
Full duplex
Y
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
VLAN support
Y
Copper ethernet cabling technology
10GBASE-T, 1000BASE-T
Auto-negotiation
Y
Virtual LAN features
Port-based VLAN, Voice VLAN
Half duplex
Y
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-10 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
287 BTU/h
Flash memory
16 MB
Noise level
50.5 dB
Fanless
Y
Harmonized System (HS) code
85176990
MTBF (PoE)
317.777 h
Combo SFP ports quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE) power per port
370 W
IPv4 & IPv6 features
IPv4 FIB
Security algorithms
SSL/TLS
MAC address filtering
Y
Static port security
Y
IGMP snooping
Y
DHCP features
DHCP client
Weight
2.8 kg
Height
44 mm
Width
440 mm
Depth
208 mm
