Smart Managed Network Switches | D-LINK DGS-1210-20 | DGS-1210-20 | ServersPlus

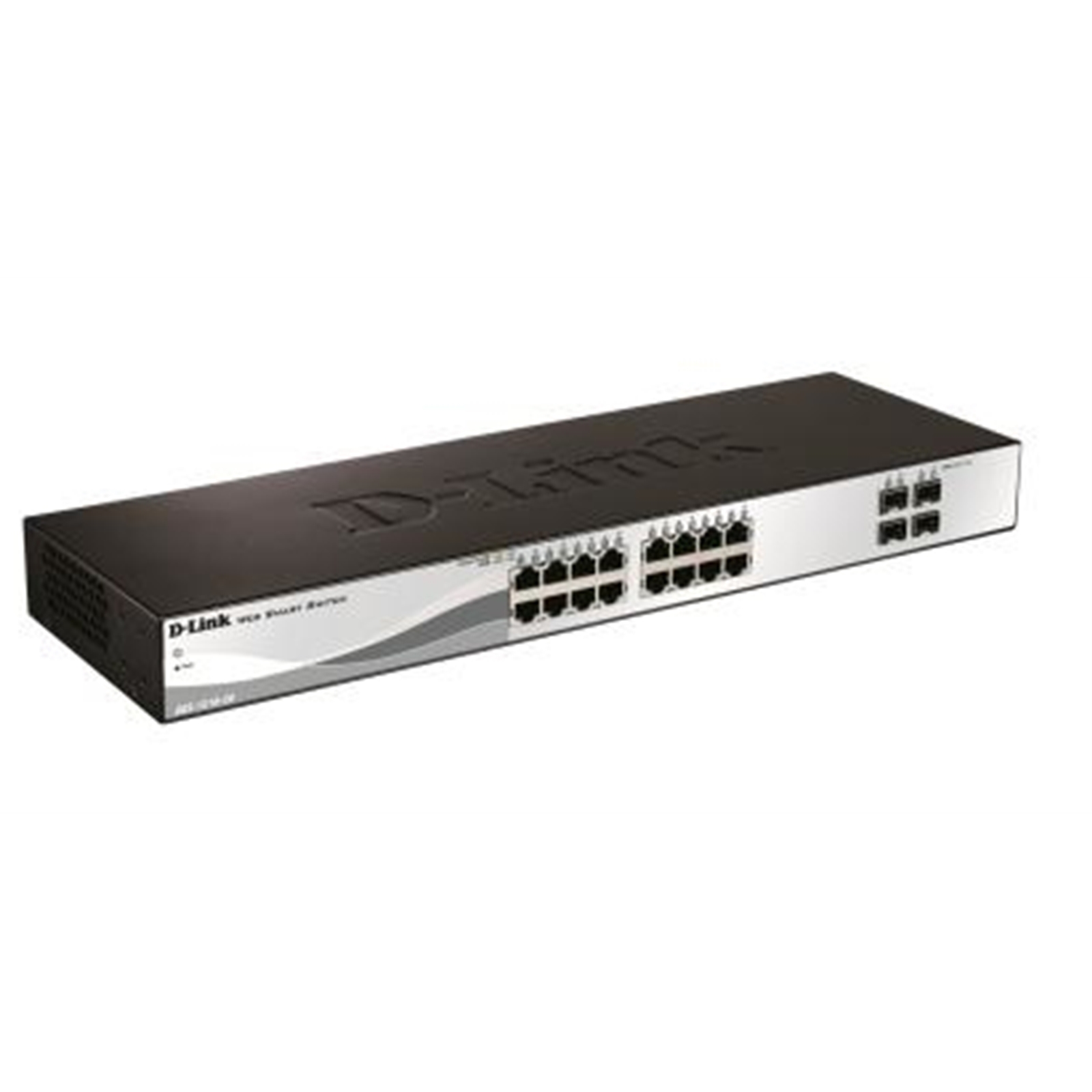

Illustration purposes only

D-LINK DGS-1210-20

D-LINK Logo here

Manufacturer Part Code: DGS-1210-20

Order Code: NPDLI-DGS121020

Category: Smart Managed Network Switches

D-Link DGS-1210-16 16 Port with 4 SFP Web Gigabit Smart Switch

Green Technology
- IEEE 802.3az Energy Efficient Ethernet
- D-Link Green 3.0 power-s!aving features
- LED and Port Shutoff
- Port Standby
- System Hibernation
- Cable Length Detection
- Link Status Detection
- Time-based PoE (PoE model only)

Security Features
- Access Control List
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
- Smart IP-MAC-Port Binding

Intuitive Management
- IPv4/ IPv6 Dual Stack1
- Web GUI (supports 10 languages)
- SmartConsole utility
- SNMP and RMON
- Simplified CLI through Telnet

QoS
- Supports IEEE 802.1p QoS
- Supports DSCP

Advanced Features
- Auto Surveillance VLAN
- Auto Voice VLAN
- Port or VLAN-based Loopback Detection
- Cable Diagnostics
- LLDP/LLDP-MED

Trap & Logs
- SNMP Trap
- Trap for SmartConsole Utility
- System Log


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

Certification
FCC, CE, ICES, VCCI, BSMI, C-Tick
Safety
cUL, CE LVD
Certification
FCC, CE, ICES, VCCI, BSMI, C-Tick
MAC address table
16000 entries
Supported data transfer rates
10/100/1000 Mb/s
Switching capacity
40 Gbit/s
Full duplex
Y
MAC address table
16000 entries
Supported data transfer rates
10/100/1000 Mb/s
Maximum data transfer rate
1 Gbit/s
Store-and-forward
Yes
Switching capacity
40 Gbit/s
Packet transfer speed
29.8Mp/s
Packet buffer memory
1 MB
Maximum data transfer rate
1 Gbit/s
Store-and-forward
Y
10G support
N
Packet buffer memory
1 MB
Certification
FCC, CE, ICES, VCCI, BSMI, C-Tick
Rack mounting
Yes
Safety
cUL, CE LVD
Form factor
1U
LED indicators
Yes
Product colour
Black
Certification
FCC, CE, ICES, VCCI, BSMI, C-Tick
Rack mounting
Y
Safety
cUL, CE LVD
Form factor
1U
Cable management
Yes
Stackable
Yes
LED indicators
Y
Colour of product
Black
Cable management
Y
Stackable
Y
Power consumption (typical)
14.06 W
Power consumption (typical)
14.06 W
AC input voltage
100 - 240 V
Power over Ethernet (PoE) Support
N
AC input voltage
100 - 240 V
LED indicators
Y
Power LED
Y
Harmonized System (HS) code
85176990
MIB support
SNTP, ICMPv6, IPv4/v6
Switch layer
L2
Quality of Service (QoS) support
Yes
Switch type
Managed
MIB support
SNTP, ICMPv6, IPv4/v6
Cable management
Y
Switch layer
L2
Quality of Service (QoS) support
Y
Multicast support
Y
Switch type
Managed
Packet buffer memory
1 MB
Multicast support
Yes
Multicast support
Y
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Y
MAC address table
16000 entries
Flow control support
Yes
Port mirroring
Yes
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
10G support
No
Flow control support
Y
Port mirroring
Y
Store-and-forward
Y
DHCP client
Y
DHCP server
Y
IGMP snooping
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
VLAN support
Y
10G support
N
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
-5 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
41 - 122 °F
Operating relative humidity range
0 - 95%
Storage temperature range (T-T)
-20 - 70 °C
Operating temperature range (T-T)
-5 - 50 °C
Storage relative humidity range
0 - 95%
Operating temperature range (T-T)
41 - 122 °F
Packet transfer speed
29.8Mp/s
Power LED
Yes
Packet transfer speed
29.8Mp/s
Power LED
Y
Package weight
2.97 kg
Package weight
2.97 kg
Package depth
331 mm
Package height
72 mm
Package width
357 mm
Packaging depth
331 mm
Packaging height
72 mm
Packaging width
357 mm
Harmonized System (HS) code
85176990
Stackable
Y
Packet buffer memory
1 MB
SFP/SFP+ slots quantity
4
Gigabit Ethernet (copper) ports quantity
16
Basic switching RJ-45 Ethernet ports quantity
20
SFP module slots quantity
4
SFP slots quantity
4
Gigabit Ethernet (copper) ports quantity
16
Basic switching RJ-45 Ethernet ports quantity
20
SFP module slots quantity
4
Power over Ethernet (PoE)
No
Power over Ethernet (PoE) support
N
Data link protocols
IP
Management protocols
SNMP, RMON
Data link protocols
IP
Management protocols
SNMP, RMON
MAC address filtering
Yes
Static port security
Yes
Access Control List (ACL)
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
MAC address filtering
Y
Static port security
Y
DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Y
DHCP client
Y
DHCP server
Y
SSH/SSL support
Y
IGMP snooping
Y
DHCP features
DHCP server,DHCP client
Rack mounting
Y
Form factor
1U
Colour of product
Black
Pallet gross width
120 cm
Pallet gross length
110 cm
Shipping (inner) case width
34.6 cm
Shipping (inner) case length
38.2 cm
Shipping (inner) case height
38.6 cm
Shipping (inner) case gross weight
15.7 kg
Products per shipping (inner) case
5 pc(s)
Shipping (inner) case net weight
14.9 kg
Stackable
Y
Pallet gross weight (air)
448.5 kg
Master (outer) cases per pallet (air)
27 pc(s)
Products per pallet (air)
135 pc(s)
Pallet height (air)
129.3 cm
Pallet gross weight (sea)
731 kg
Master (outer) cases per pallet (sea)
45 pc(s)
Products per pallet (sea)
225 pc(s)
Pallet height (sea)
2.06 m
VLAN support
Y
Pallet width
120 cm
Pallet length
110 cm
Shipping (inner) case width
34.6 cm
Shipping (inner) case length
38.2 cm
Shipping (inner) case height
38.6 cm
Shipping (inner) case gross weight
15.7 kg
Quantity per shipping (inner) case
5 pc(s)
Shipping (inner) case net weight
14.9 kg
Pallet gross weight (air)
448.5 kg
Number of cartons per pallet (air)
27 pc(s)
Quantity per pallet (air)
135 pc(s)
Pallet height (air)
129.3 cm
Pallet gross weight (sea)
731 kg
Number of cartons per pallet (sea)
45 pc(s)
Quantity per pallet (sea)
225 pc(s)
Pallet height (sea)
2.06 m
VLAN support
Y
Weight
2.2 kg
Height
44 mm
Weight
2.2 kg
Width
440 mm
Depth
140 mm
Height
44 mm
Width
440 mm
Depth
140 mm
