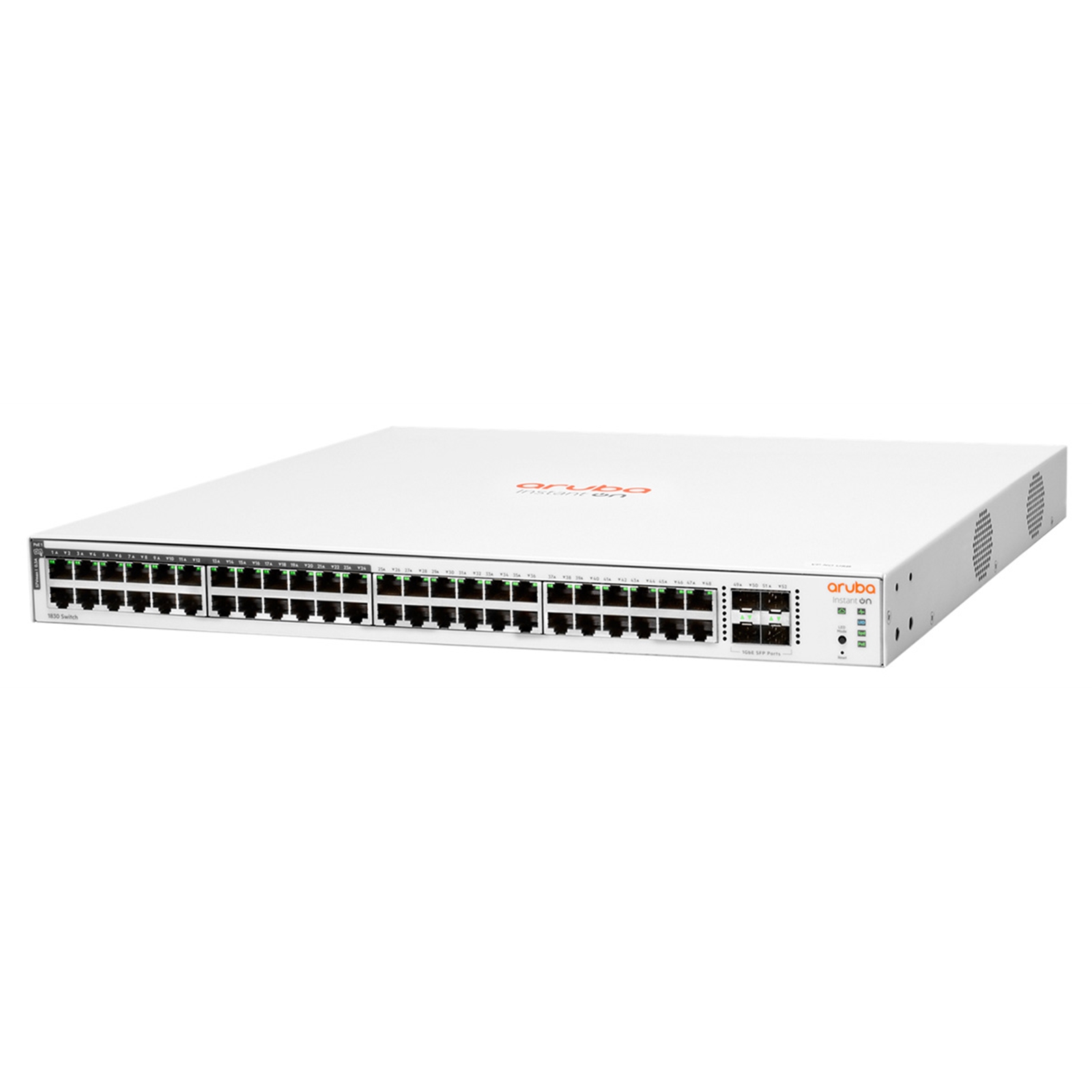

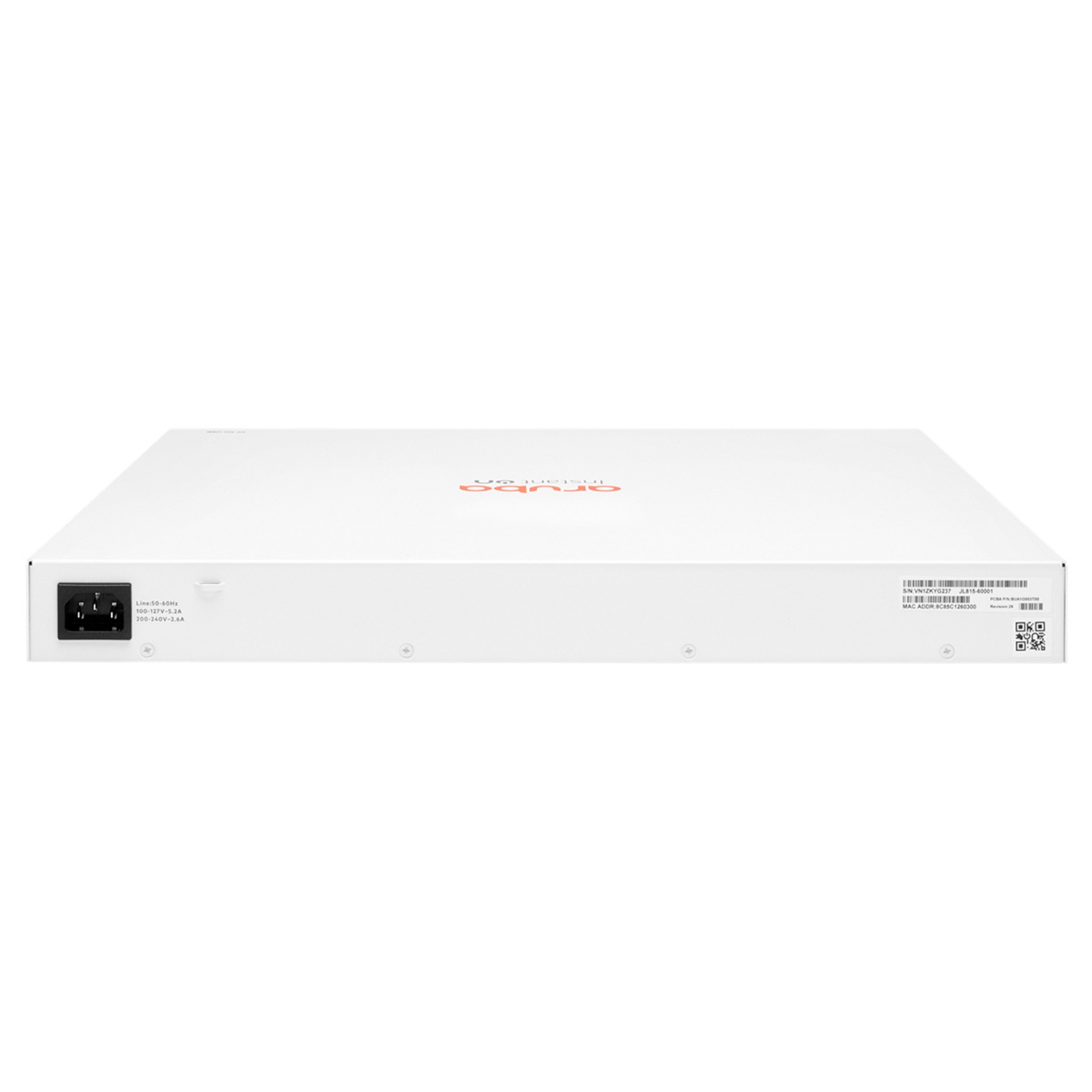

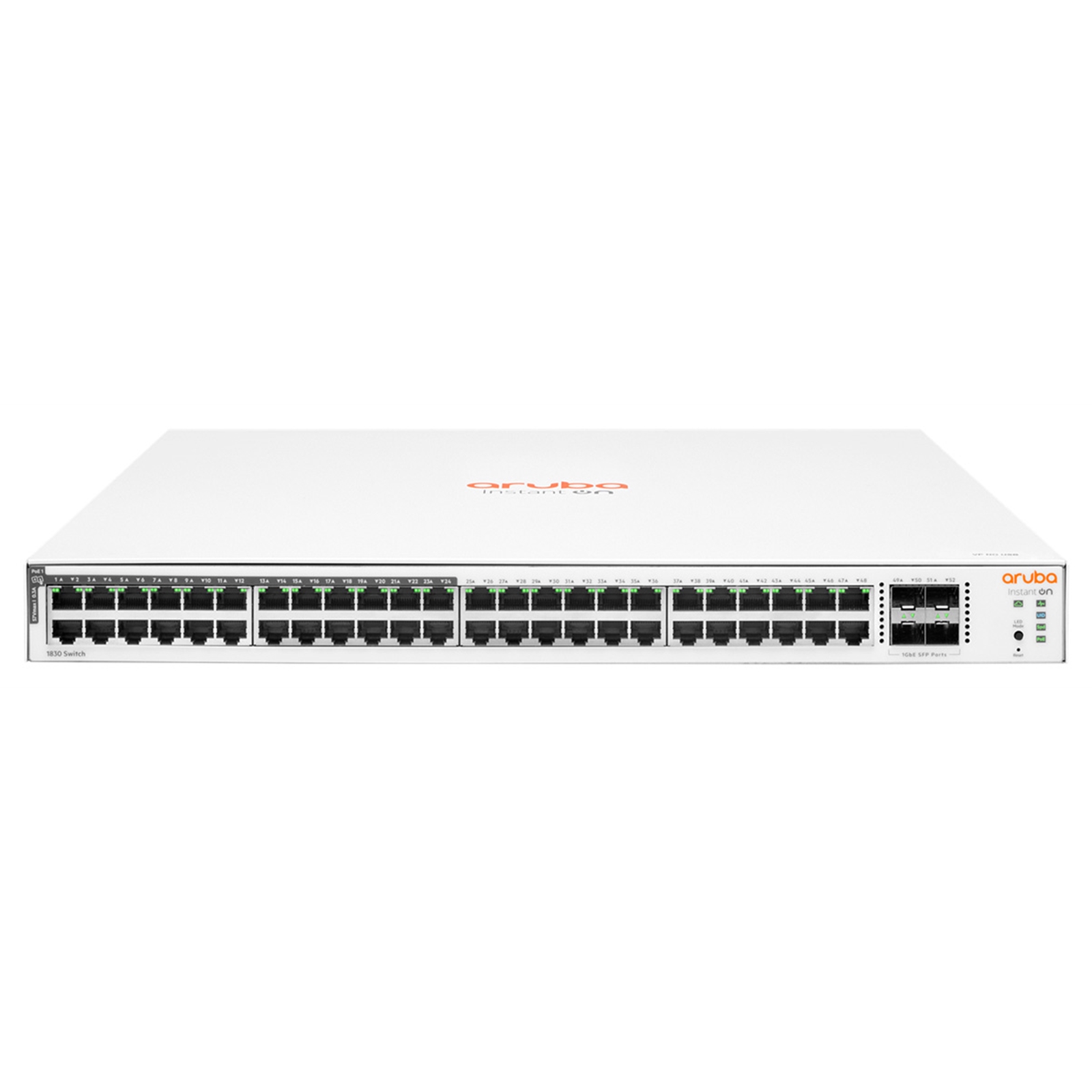

Illustration purposes only

ARUBA Instant On 1830 48-Port PoE Gigabit Switch, 4x SFP 1GbE, 48x Gigabit Ethernet, Layer 2+ Smart

ARUBA Logo here

Manufacturer Part Code: JL815A

Order Code: NPARU-JL815A

Category: Smart Managed Network Switches

Aruba Instant On 1830 48-Port PoE Gigabit Switch, 4x SFP 1GbE, 48x Gigabit Ethernet, Layer 2+ Smart Managed, Cloud Managed, Rack Mountable, UK Plug (JL815A)

Small businesses continue to face challenges to stay afloat as the world wrestles with this multi-year pandemic. They need day-to-day tasks to be simple to keep operations running smoothly, and with increasing costs making it more expensive than ever to stay in business, they need affordable solutions.

Fast, reliable, and secure network connections play a critical role in helping businesses maintain a competitive advantage. At the same time, with constrained resources and a growing number of interconnected devices, getting the most valuable networking solution for the money has become a basic need for budget-strapped small businesses.

Aruba Instant On 1830 Switch Series is an affordable, easy to deploy, smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes — all at an affordable price point.

Key Features

Gigabit Connectivity for Small Businesses
Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Class 4 PoE models.
Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

Simplify Network Deployment and Management
The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.
The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.

Keep Your Business Protected with Integrated Security Features
The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Better Energy Efficient Features for Reducing Environmental Footprint
The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).

Specifications

Product Differentiator (long)
Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports, and provides 370 W of Class 4 PoE power.

Power Consumption Description
Maximum: 100-127V: 462.5W 200-220V: 452.5W, Idle: 100-127V: 25.8W 200-220V: 25.4W

Input Voltage
100 - 240 VAC

External I/O Ports
48 RJ-45 10/100/1000 Class 4 PoE ports, 4 SFP 1GbE ports

Switching Capacity
104 Gbps

Throughput
77.37 Mbps

Memory and Processor
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash, packet buffer: 1.5 MB

PoE Capability
370W

Management Features
Aruba Instant On Cloud, Web browser, SNMP Manager

Warranty Features
HPE provides 3-year, next-day, product exchange, limited warranty for the HPE LTO Ultrium Tape Drives, plus 9x5 phone support

Warranty Standard Statement
Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight (metric)
4.94 kg

Product Dimensions (metric)
35.10 x 44.30 x 4.39 cm


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
16000 entries
Switching capacity
104 Gbit/s
Jumbo frames support
Y
Packet buffer memory
1.5 MB
Latency (10-100 Mbps)
5.2 µs
Latency (1 Gbps)
2.8 µs
Throughput
77.37 Mpps
Rack mounting
Y
Form factor
1U
Power source
AC
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
462.5 W
Power supply included
Y
Switch layer
L2
Quality of Service (QoS) support
Y
Web-based management
Y
Switch type
Managed
Cloud-managed
Y
Full duplex
Y
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support
Y
Port mirroring
Y
Link aggregation
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
VLAN support
Y
10G support
N
Auto-sensing
Y
Processor frequency
800 MHz
Internal memory
512 MB
Processor model
ARM Cortex-A9
Flash memory
256 MB
Memory type
SDRAM
Built-in processor
Y
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
SFP module slots quantity
4
Power over Ethernet (PoE)
Y
Total Power over Ethernet (PoE) budget
370 W
SSH/SSL support
Y
IGMP snooping
Y
DHCP features
DHCP client
Weight
4.94 kg
Height
43.9 mm
Width
351 mm
Depth
443 mm
