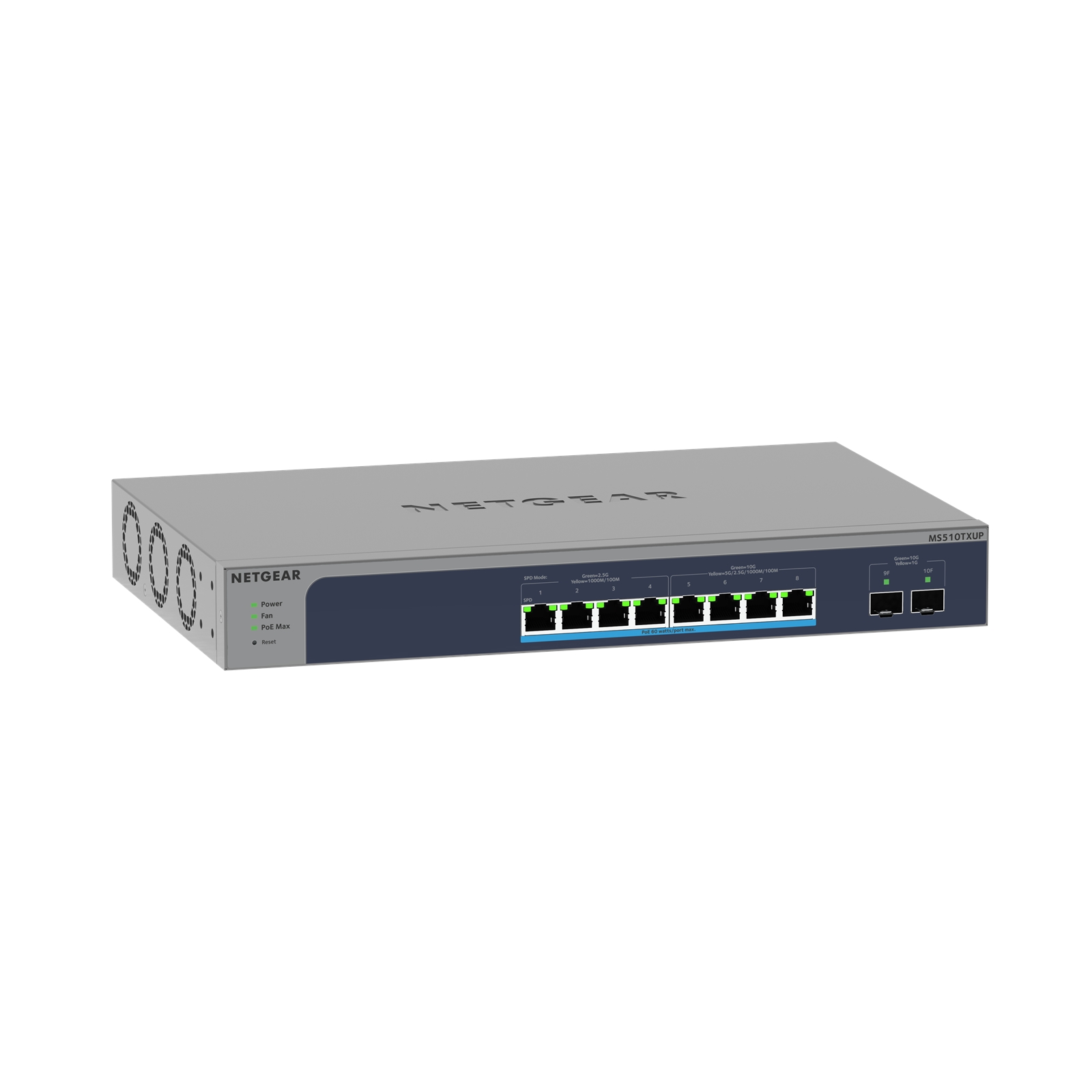

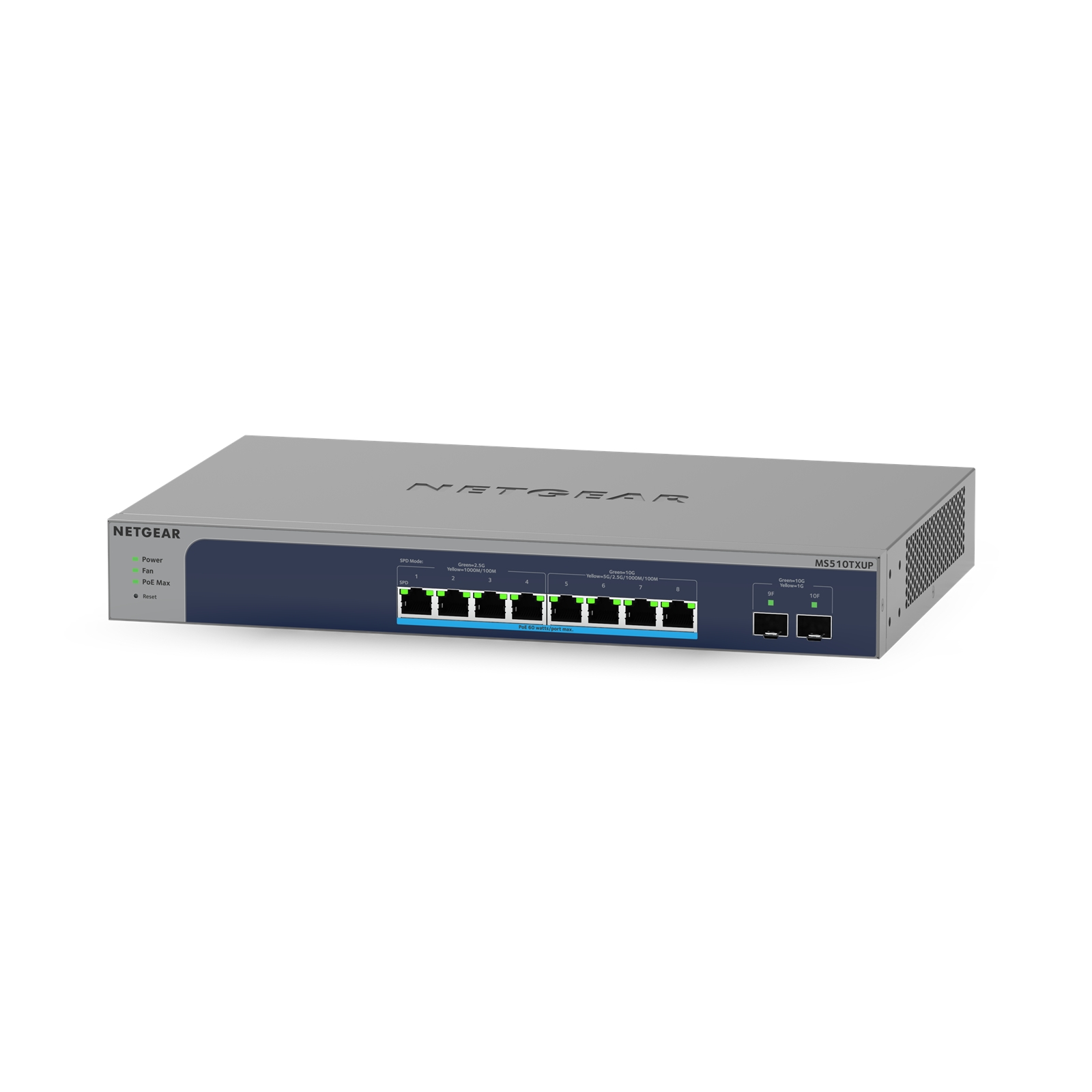

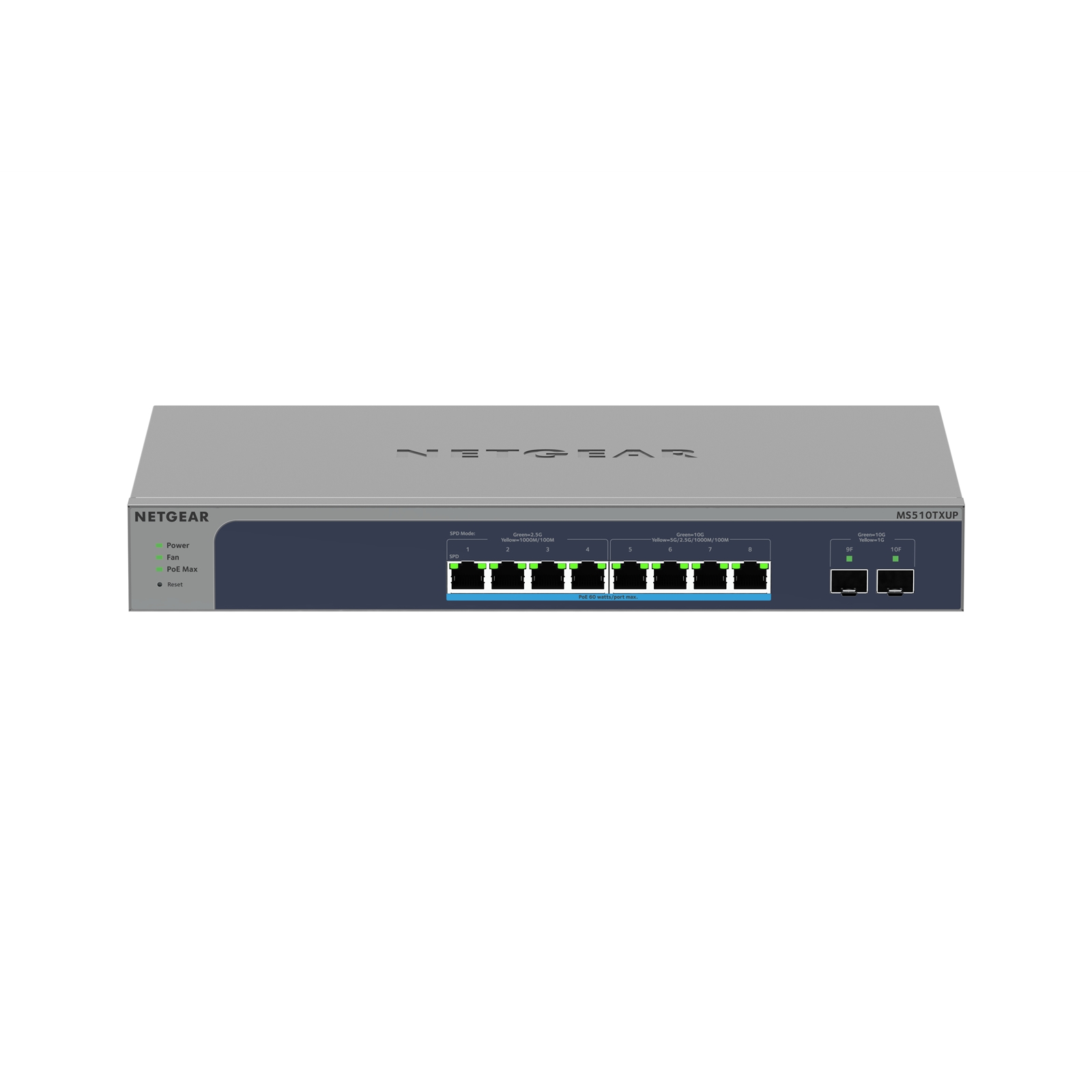

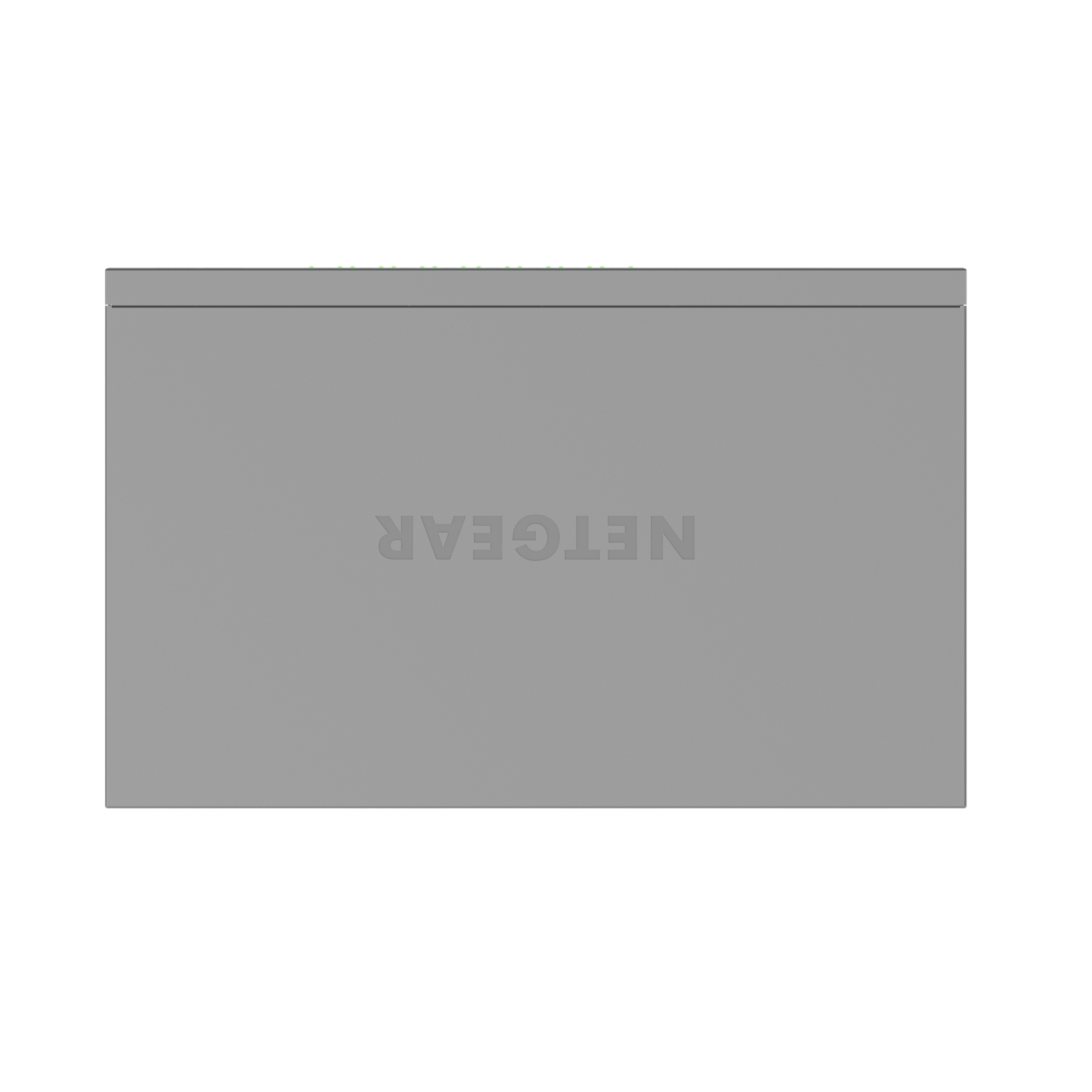

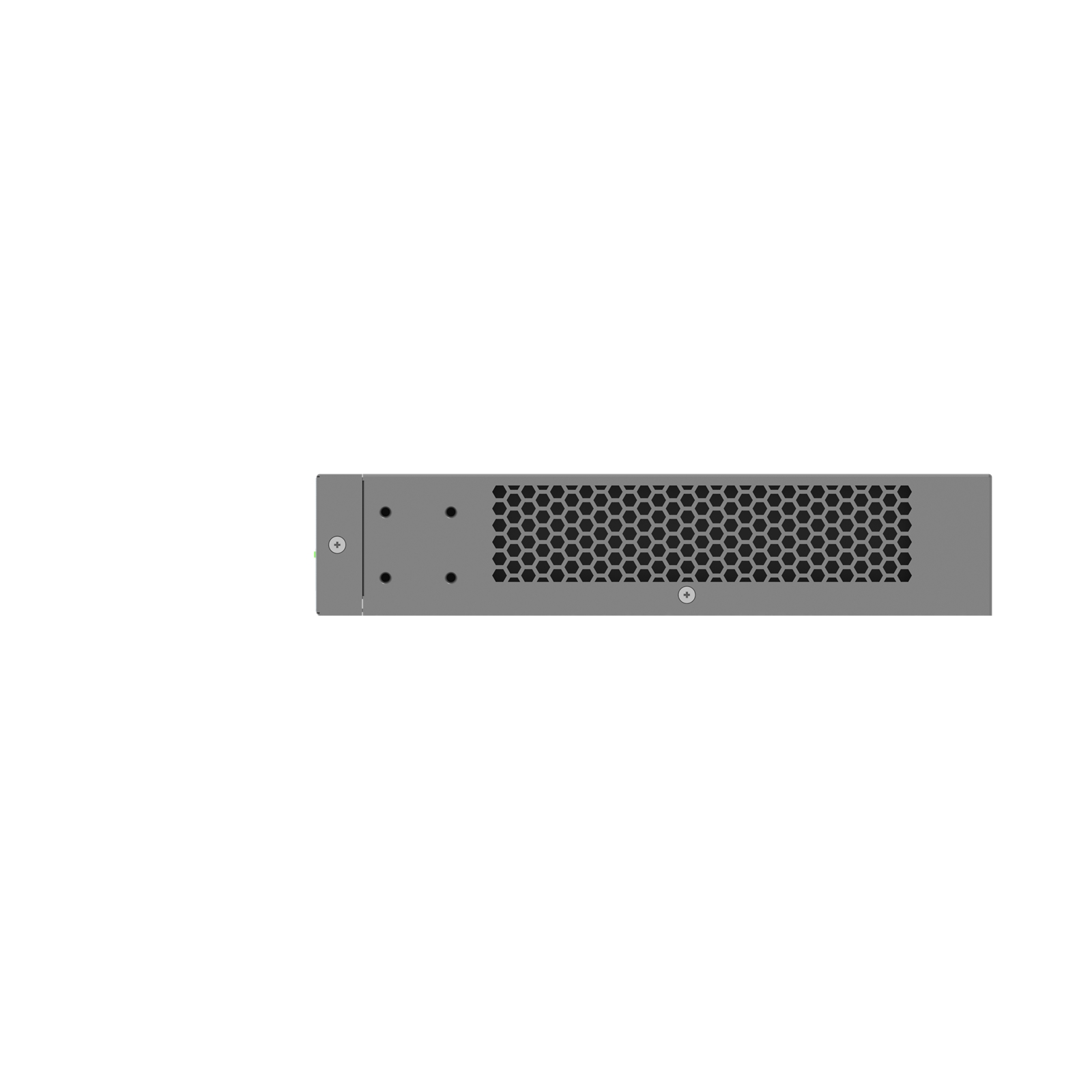

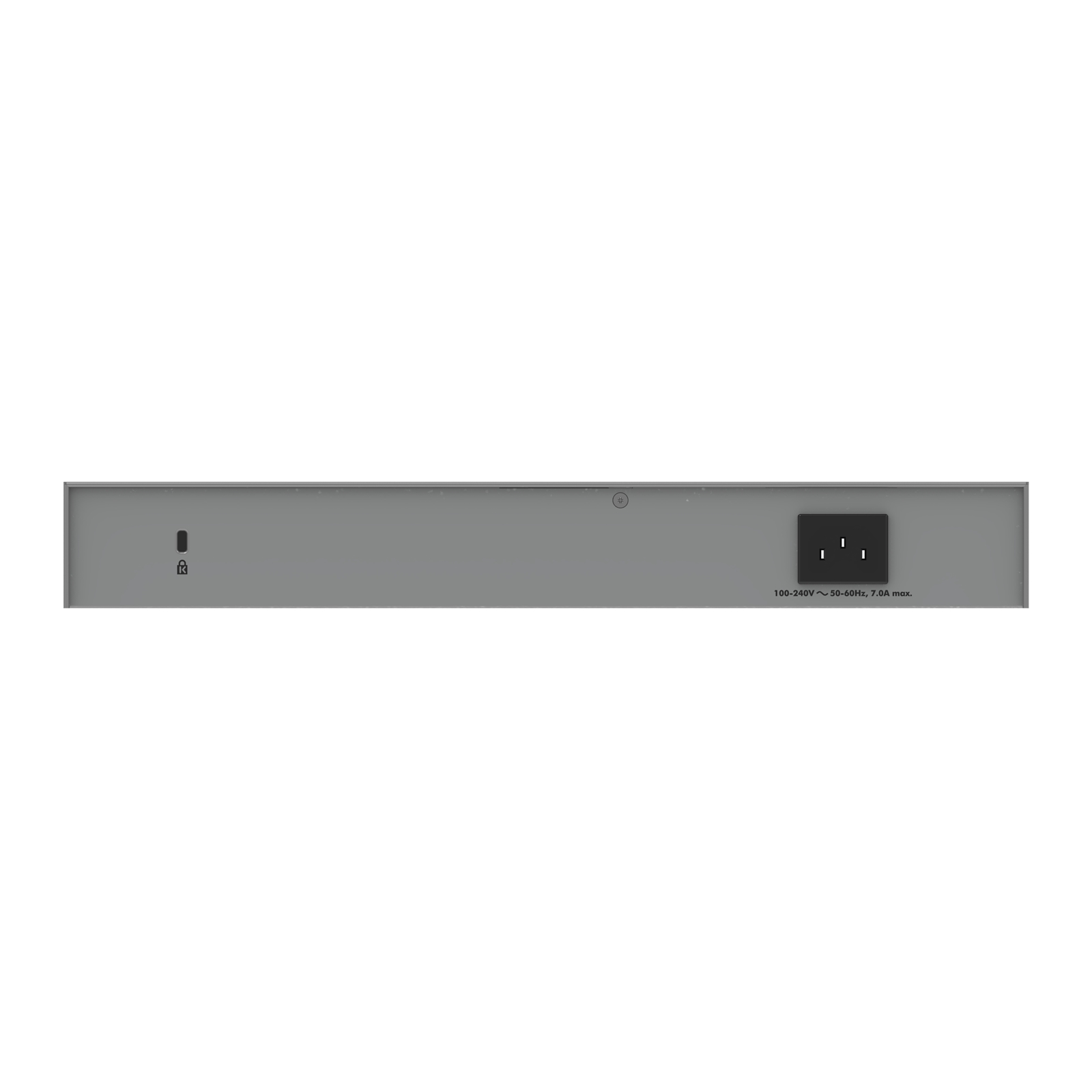

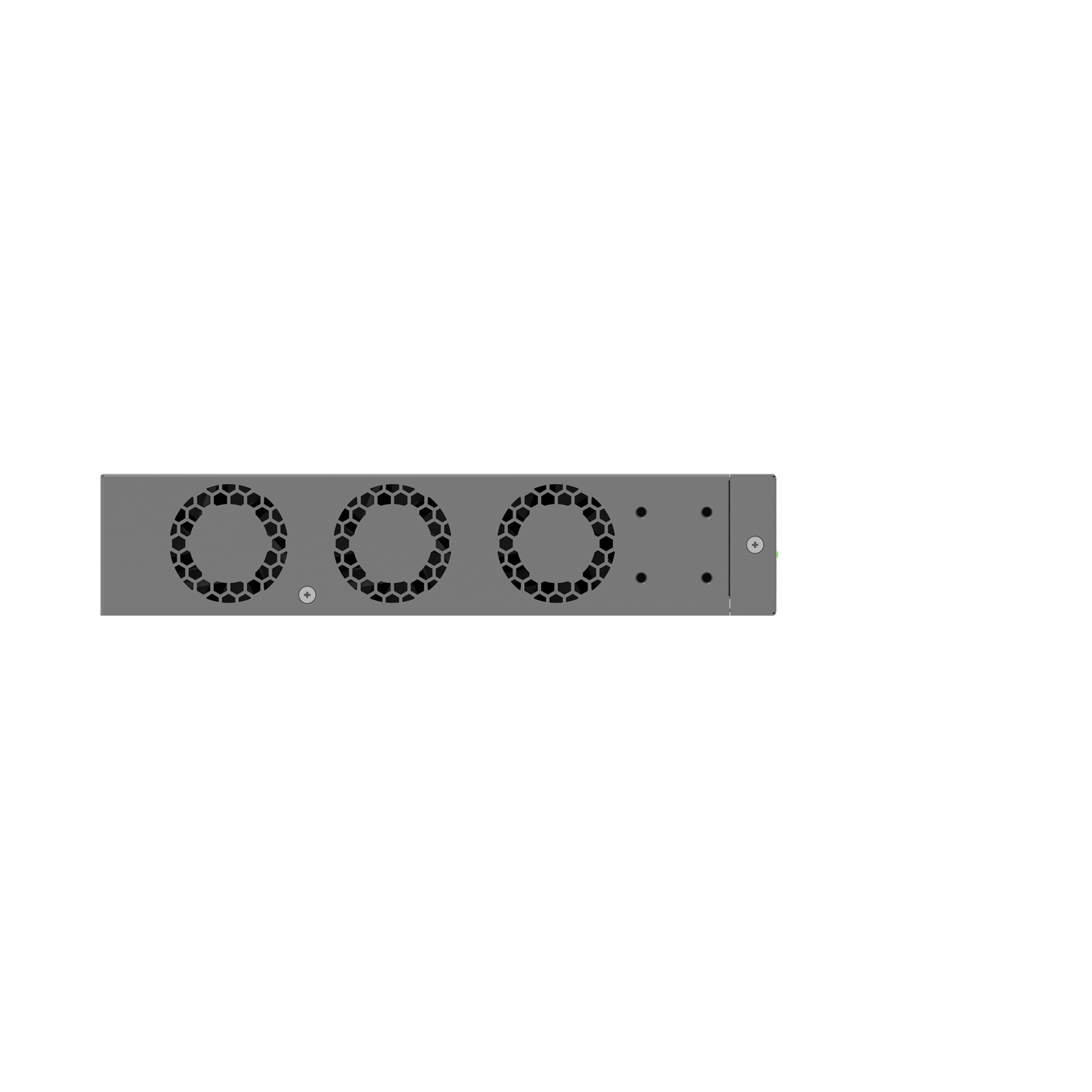

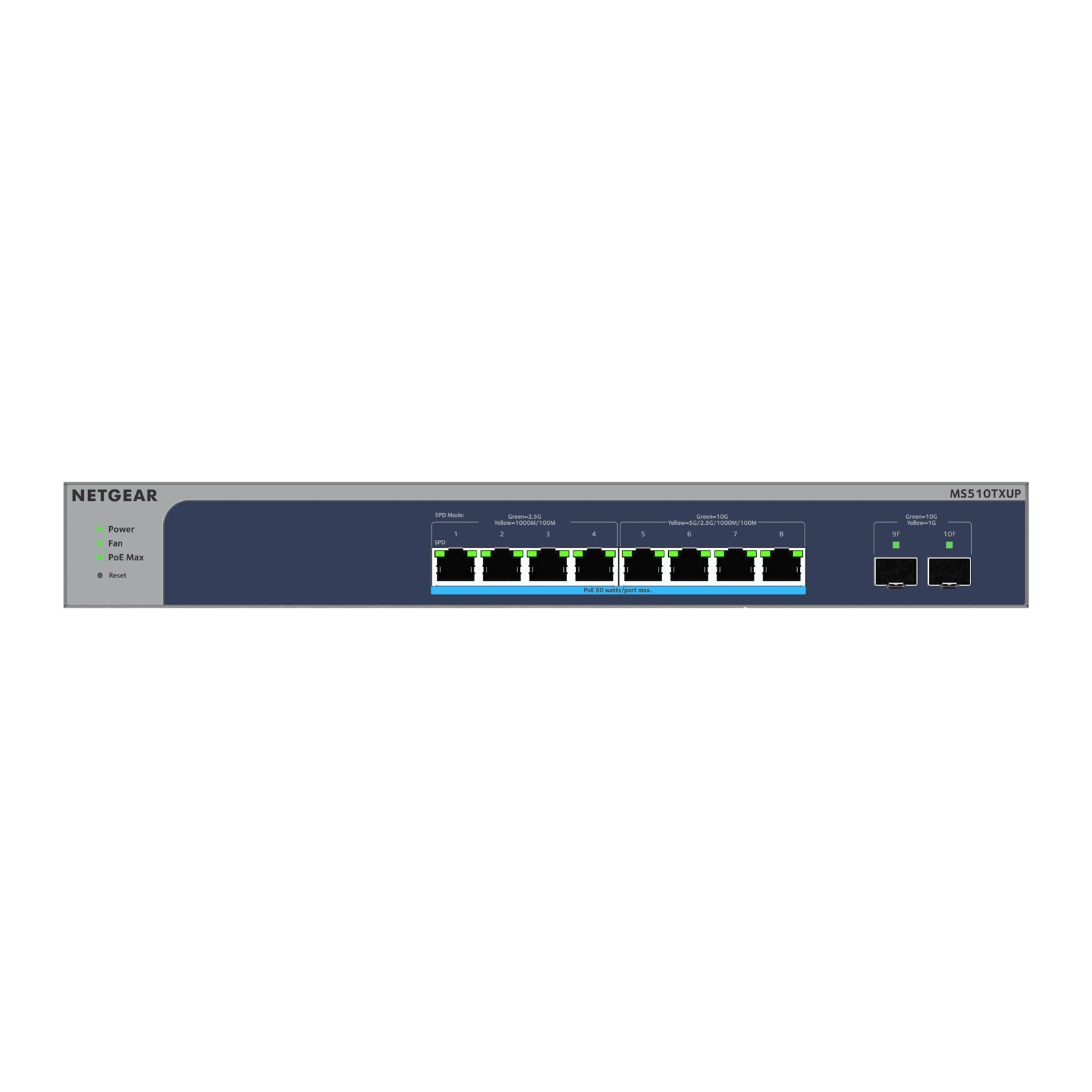

NETGEAR 8-Port L3 Managed Switch (4 x 10GbE PoE++, 4 x 2.5Gb PoE++, 2 x 10G SFP+) - MS510TXUP

NETGEAR Logo here

Manufacturer Part Code: MS510TXUP-100EUS

Order Code: NPNET-MS510TXUP

Category: Smart Managed Network Switches

NETGEAR Smart MS510TXUP - Switch - L3 Lite - smart - 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5/5/10G (PoE++) + 2 x 10 Gigabit SFP+ (uplink) - desktop rack-mountable - PoE++ (295 W)

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port).
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Uninterrupted PoE and advanced per port PoE controls.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.


Business IT purchase over £1000? Spread the cost on a monthly basis with our flexible leasing options.

Technical Information

MAC address table
32000 entries
Switching capacity
140 Gbit/s
Jumbo frames support
Yes
Number of queues
8
Packet buffer memory
2 MB
Jumbo frames
10000
Rack mounting
Yes
LED indicators
Activity, Fan fail, Link, PoE, Power, Speed
Product colour
Grey
Number of fans
3 fan(s)
Power consumption (max)
380 W
Power supply included
Yes
Harmonized System (HS) code
85176990
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Switch type
Managed
Cloud-managed
Yes
Multicast support
Yes
Number of multicast groups filtered
256
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Port mirroring
Yes
Broadcast storm control
Yes
Number of VLANs
256
VLAN support
Yes
10G support
Yes
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 3000 m
Heat dissipation
1294.5888 BTU/h
Cables included
AC
User guide
Yes
Cables included
AC
User guide
Yes
Rack rails
Yes
Processor frequency
1000 MHz
Internal memory
256 MB
Mean time between failures (MTBF)
1059519 h
Flash memory
64 MB
Noise level
33 dB
Firmware upgradeable
Yes
Built-in processor
Yes
Harmonized System (HS) code
85176990
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity
8
SFP+ module slots quantity
2
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
295 W
Access Control List (ACL)
Yes
IGMP snooping
Yes
Password protection
Yes
Queue scheduling algorithms
WRR+SP
DHCP features
DHCPv6 snooping
Weight
2.51 kg
Height
43 mm
Width
330 mm
Depth
206 mm
